UWP-D22/14

High quality sound with Sony digital audio processing

NFC SYNC function for quick and easy secure channel setting (IR sync capability with UTX-M40 transmitter from URX-P03, URX-P03D, and URX-S03D receivers)

True double tuner diversity for stable signal reception

Interchangeable head for wide choice of microphone capsules

Auto gain mode volume control

+15 dB gain volume boost mode for off-mic audio

Channel memory for fast switching between receiver frequencies for two transmitter operation

Transmitter frequency sent to receiver for matching multiple receivers to one transmitter

Headphone output for monitoring

Monitor mode for using a receiver as an ear monitor

Variable muting function

Compatibility with Sony WL-800/UWP/UWP-D series

Receiver output level control

High visibility OLED display, ideal for indoor/outdoor use

USB connector for power supply (URX-P40 only)

Digital audio interface support with SMAD-P5 Multi Interface (MI) Shoe Adaptor (option)*

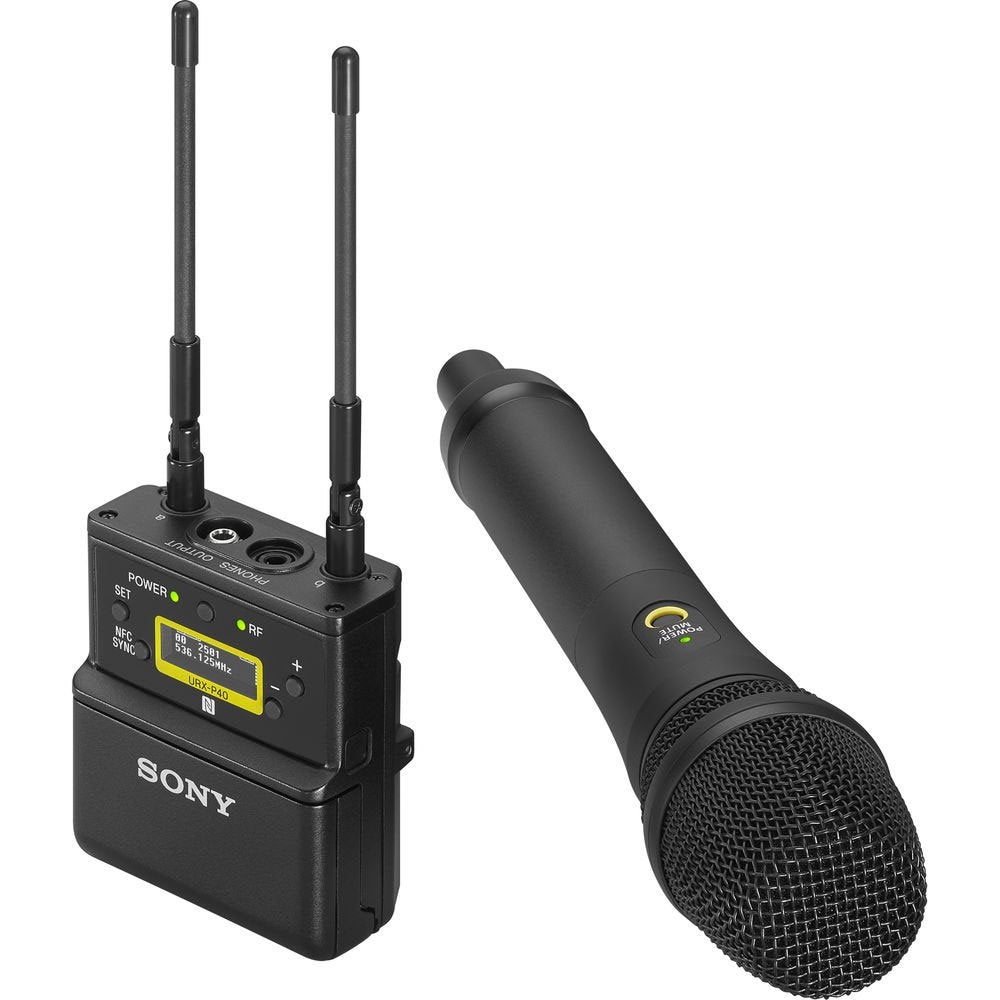

URX-P40 portable receiver

Oscillator Type: Crystal-controlled PLL synthesizer

Reception Type: True diversity method

Antenna Type: 1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)

Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (typical) (J model)

Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation)

Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5 kHz modulation)

Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)

Audio Output Connector: 3.5mm diameter 3-pole locking mini jack, , external connection

Audio Output Level: "60 dBV (3.5 mm diameter 3-pole locking mini jack, analog output, 0 dB audio output level), "20 dBFS (external connection, digital output, 0 dB audio output level), "50 dBFS (external connection, analog output, 0 dB audio output level)

Analog Audio Output Adjustment Range: -12dB - +12dB (3dB step)

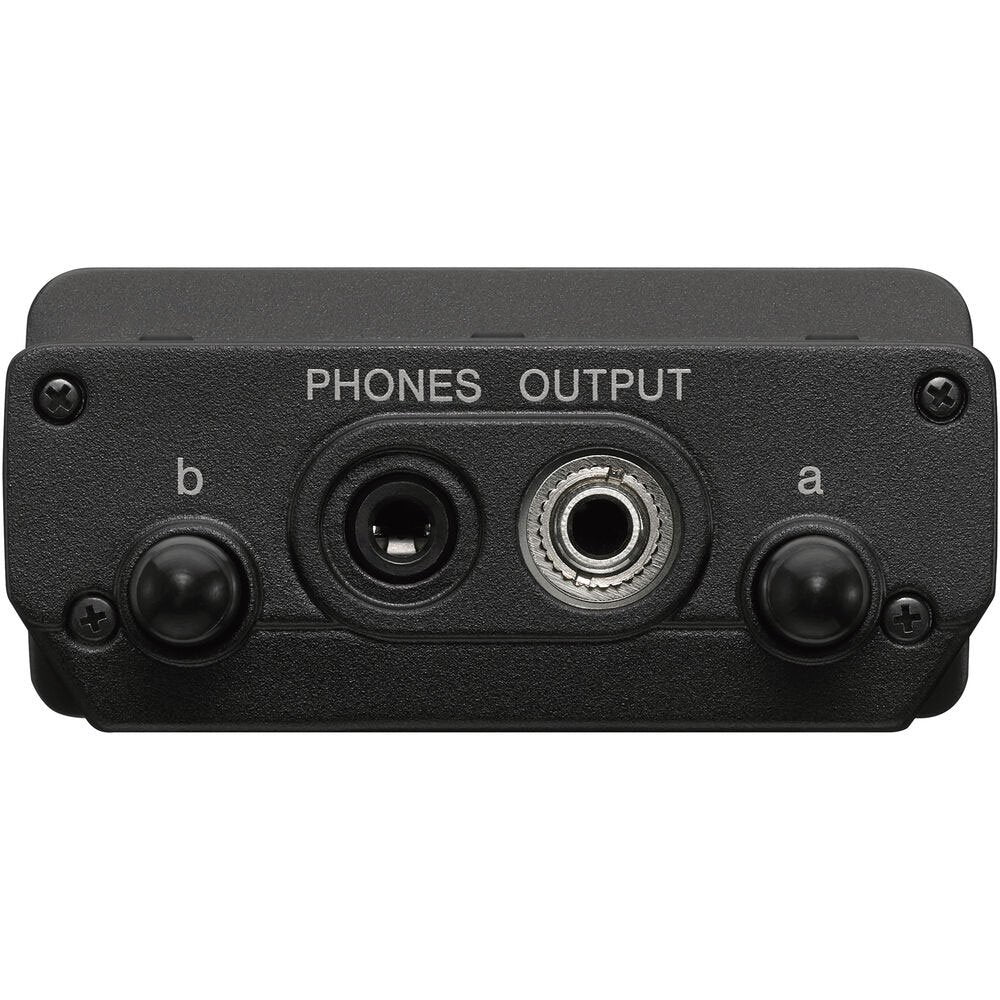

Headphone Output Connector: 3.5 mm diameter mini jack

Headphone Output Level: Max. 10mW (16-ohm)

Tone Signal FrequencyIn UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz

Display: OLED

Power RequirementsDC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)

Battery Life*: Approx. six hours, *Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 C (77 F) DISPLAY MODE set to AUTO OFF

Operating Temperature: 0 C to 50 C (32 F to 122 F)

Storage/Transport Temperature: "20 C to +55 C ("4 F to +131 F)

Dimensions: 63 x 70 x 31 mm (2 1/2 x 2 7/8 x 1 1/4 in.) (W / H / D) (excluding antenna)

Mass: Approx. 131 g (4.6 oz) (excluding batteries)

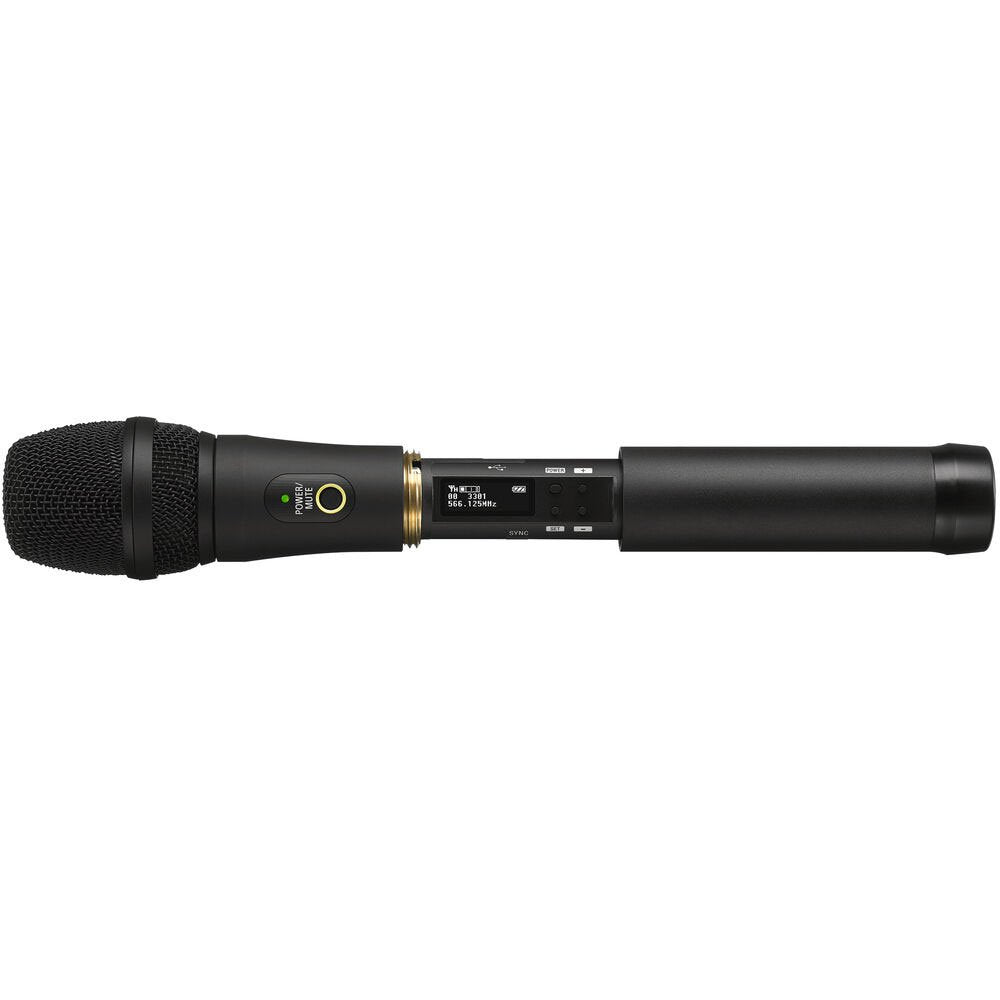

UTX-M40 Handheld microphone with unidirectional capsule

Oscillator Type: Crystal-controlled PLL synthesizer

Antenna Type: 1/4 λ wavelength wire antenna

Carrier Frequencies: 14UC : 470.125 MHz to 541.875 MHz(UHF-TV channels 14 to 25)

RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)

Capsule Type: Dynamic

Directivity: Uni-directional

Reference Audio Input level: "55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)

Maximum Audio Input Level: 151 dB SPL (21 dB attenuation, using supplied microphone unit )

Audio Attenuator Adjustment Range: 0 dB to 21 dB (3 dB steps)

Frequency Response: 70 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 70 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz sine wave input ) 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted), 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)

Distortion: 0.9% or less ("60 dBV, 1 kHz input )

Audio Delay: Approx. 0.35 ms

Tone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHz

Display: OLED

Power Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)

Battery life*: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models), * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 C (77 F).

Operating Temperature: 0 C to 50 C (32 F to 122 F)

Storage/Transport Temperature: "20 C to +55 C ("4 F to +131 F)

Dimensions: ø48 x 258 mm (1 15/16 x 10 1/4 in.) (diameter / length)

Mass: Approx. 255 g (9.0 oz) (excluding batteries)
