Orion 32+ | Gen 4

Professional Audio Interface
Combines audio conversion, computer connection, routing, mixing, and monitoring in one studio unit.

Flexible Signal Routing
Routes audio between analog, digital, computer, mixer, and monitor paths through a clear control panel.

High Quality Conversion
Captures and plays back audio with detailed sound and a wide stereo image.

Clocking Support
Locks to internal, external, or atomic clock sources for stable studio synchronization.

Control Panel Software
Gives easy access to settings, routing, mixing, metering, monitoring, and presets from one application.

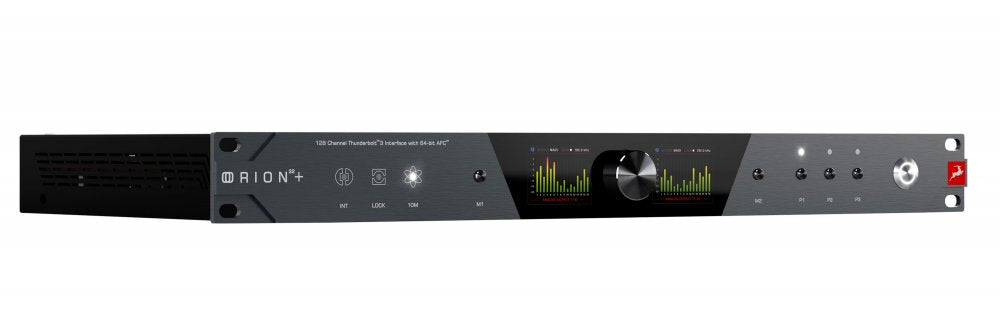

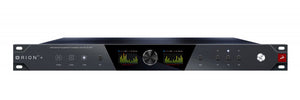

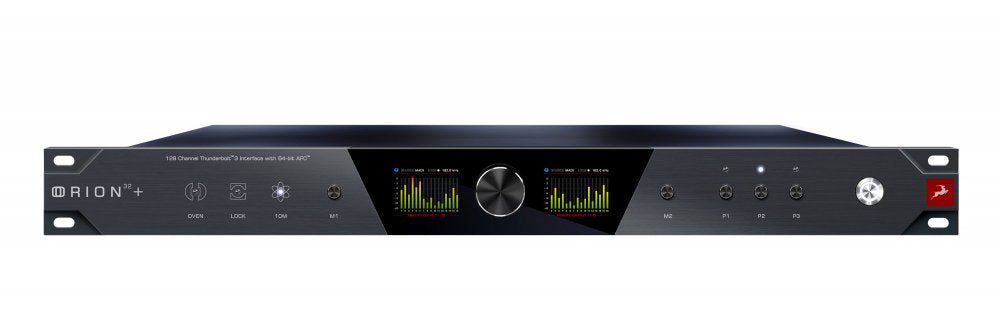

Front Panel Control
Allows key settings, routing, metering, volume, mute, and preset recall directly from the hardware.

Virtual Mixing
Provides built-in mixers for creating monitor mixes and routing audio without relying only on a DAW.

Built In Reverb
Adds AuraVerb reverb for live monitoring and performance use.

Surround Monitoring
Supports surround and immersive monitoring setups with speaker control and calibration tools.

Preset Recall
Saves and recalls device setups for faster switching between studio workflows.

General Specifications
Device Type: Multi-channel audio interface and AD/DA converter
Rack Size: 1U
Computer Connectivity: Thunderbolt 3, USB 2.0
Maximum Computer I/O: 128 channels via Thunderbolt 3
Maximum USB I/O: 32 channels
USB Channel Modes: 32-channel, 24-channel
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
Clocking Technology: 4th Generation Acoustically Focused Clocking
Jitter Management: 64-bit DDS

System Requirements
Mac Compatibility: Apple Mac 2012 or newer with Thunderbolt port
Minimum macOS: Mac OS X 10.12 Sierra
Recommended macOS: Mac OS X 11.02 Big Sur
Windows Compatibility: PC with certified Thunderbolt connectivity
Windows Version: Windows 10 64-bit
Minimum Storage: 4 GB
Minimum RAM: 4 GB
Recommended RAM: 8 GB or more
Minimum CPU: Intel Core i3 or AMD FX
Internet Requirement: Stable connection required for software download and updates

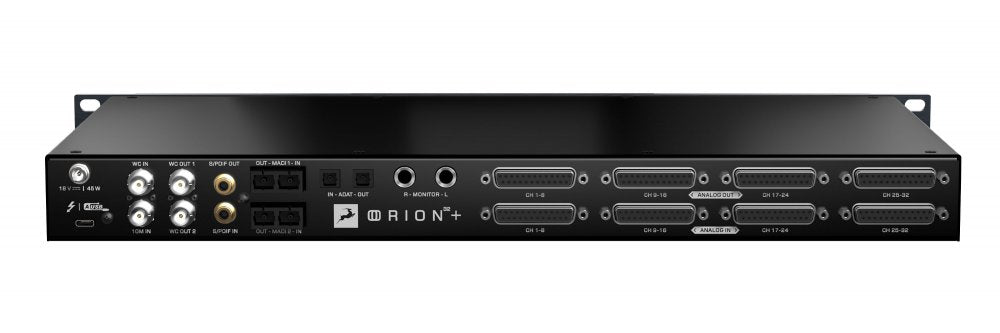

AD Line Input
Input Connection: 4 x D-sub 25-pin, TASCAM standard
Channel Count: 32 channels
Input Level Trim: 12 dBu to 24 dBu
Trim Step: 1 dB
Dynamic Range: 122 dB
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit
THD+N A-weighted: -116 dB
Impedance Load: 12 kOhms
DC Coupled: Supported

DA Line Output
Output Connection: 4 x DC-coupled D-sub 25-pin, TASCAM standard
Channel Count: 32 channels
Output Level: -inf to 24 dBu
Output Level Step: 1 dB
Dynamic Range: 128 dB
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit
THD+N A-weighted: -115 dB
DC Coupled: Supported

DA Monitor Output
Output Connection: 2 x 1/4 in 6.35 mm jack, 3-pin
Channel Count: 2 channels
Output Level: -inf to 24 dBu
Output Level Step: 1 dB
Dynamic Range: 130 dB
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit
THD+N A-weighted: -115 dB

Thunderbolt Digital Interface
Interface Connection: 1 x Thunderbolt 3 Type-C port
Port Function: I/O, shared with USB
I/O Channel Count: 128 channels
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit
Control Panel Support: Supported
Daisy Chain: Supported
Legacy Thunderbolt 2 Support: Supported with third-party adapter and cable

USB Digital Interface
Interface Connection: 1 x USB 2.0 Type-C port
Port Function: I/O, shared with Thunderbolt
I/O Channel Count: 32 channels
Alternate I/O Mode: 24 channels
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit
Control Panel Support: Supported

MADI Digital Interface
Interface Connection: 4 x Optical SC connectors
MADI Mode: Dual wire, optical
SMUX: Supported
Protocol: AES10-2003
I/O Channel Count at 44.1/48 kHz: 128 channels
I/O Channel Count at 88.2/96 kHz: 64 channels
I/O Channel Count at 176.4/192 kHz: 32 channels
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

S/PDIF Digital Interface
Interface Connection: 2 x RCA connectors
SRC: Not supported
I/O Channel Count: 2 channels
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit

ADAT Digital Interface
Interface Connection: 2 x optical connectors
SMUX Mode: Supported
I/O Channel Count at 44.1/48 kHz: 8 channels
I/O Channel Count at 88.2/96 kHz: 4 channels
I/O Channel Count at 176.4/192 kHz: 2 channels
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit

Clocking System
Word Clock Input: 1 x BNC
Word Clock Input Impedance: 75 Ohms
Word Clock Input Level: 3 Vpp
Word Clock Output: 2 x BNC
Word Clock Output Impedance: 75 Ohms
Word Clock Output Level: 3 Vpp
Atomic Reference Input: 1 x BNC
Atomic Reference Input Impedance: 75 Ohms
Atomic Reference Input Level: 1 Vpp
Clock Stability: < +/-0.02 ppm
Clock Aging: < 1 ppm per year
Clock Calibration: < +/-0.001 ppm
Supported Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit

Display
Display Count: 2
Display Type: IPS
Resolution: 320 x 240
Display Size: 1.8 in

Monitoring and Processing
Peak Metering: Up to 64 channels in control panel
Front Panel Metering: Up to 32 channels per display source
Virtual Mixers: 4
Mixer Channels: 32 channels each
Mixer Controls: Pan, volume, solo, link, metering
Master Controls: Volume, mute
Reverb Send Effect: AuraVerb
Surround Monitoring: Up to 16 channels
Supported Immersive Format: Up to 9.1.6
Surround Global Delay: Up to 100 ms
Per-channel Delay: Up to 100 ms
Channel EQ: 8-band parametric EQ
Bass Management Filters: Linkwitz-Riley, Butterworth
Filter Orders: 2nd, 4th, 8th
Filter Slopes: 12 dB/octave, 24 dB/octave, 48 dB/octave

Front Panel Controls
Clock Indicators: Internal, external, atomic
Control Encoder: Stepped jog wheel
Function Keys: Left, right
Hardware Preset Keys: 3
Hardware Preset Slots: 5
Power Control: On/standby button
Standalone Routing: Supported
Factory Reset: Supported
Screen Brightness Control: Supported
Screensaver Time Control: Supported

Software Control
Control Panel Views: S/PDIF, ADAT, Meters, Monitors, Session, Info, Routing, Mixer, Surround, Trims
Routing Matrix: Analog and digital routing
Session File Format: .as
Software Preset Slots: 5
Hardware Preset Slots: 5
Line Input Trim Control: Individual or global
Line Output Trim Control: Individual or global
Monitor Trim Range: 12 dBu to 24 dBu
Line Input Trim Range: 12 dBu to 24 dBu
Line Output Trim Range: 12 dBu to 24 dBu

Power
Power Consumption: 45 W

Physical Specifications
Width: 482.6 mm
Depth: 279 mm
Height: 44 mm
Weight: 3.4 kg
Weight: 7.49 lb
