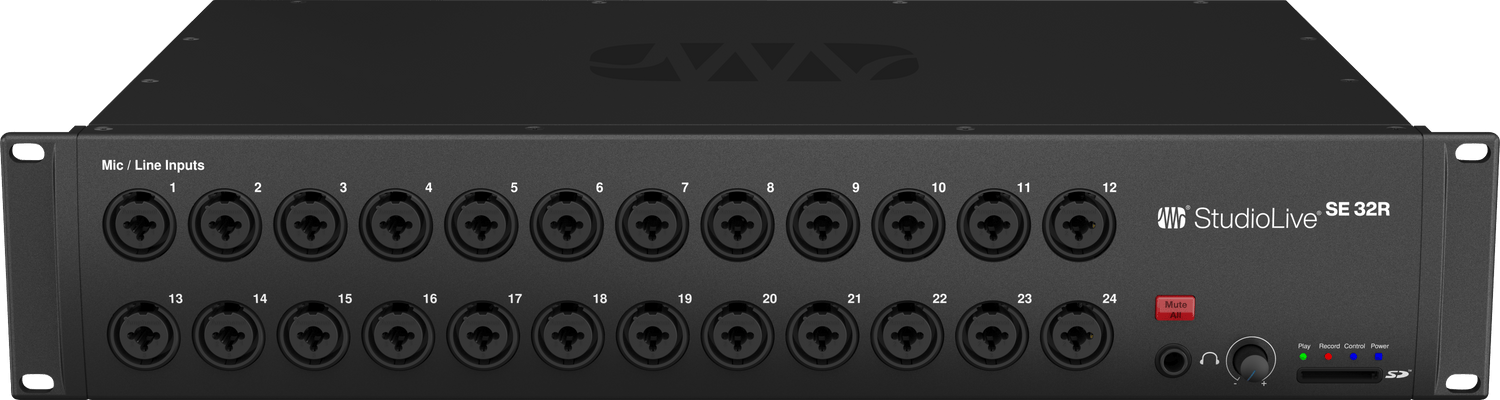

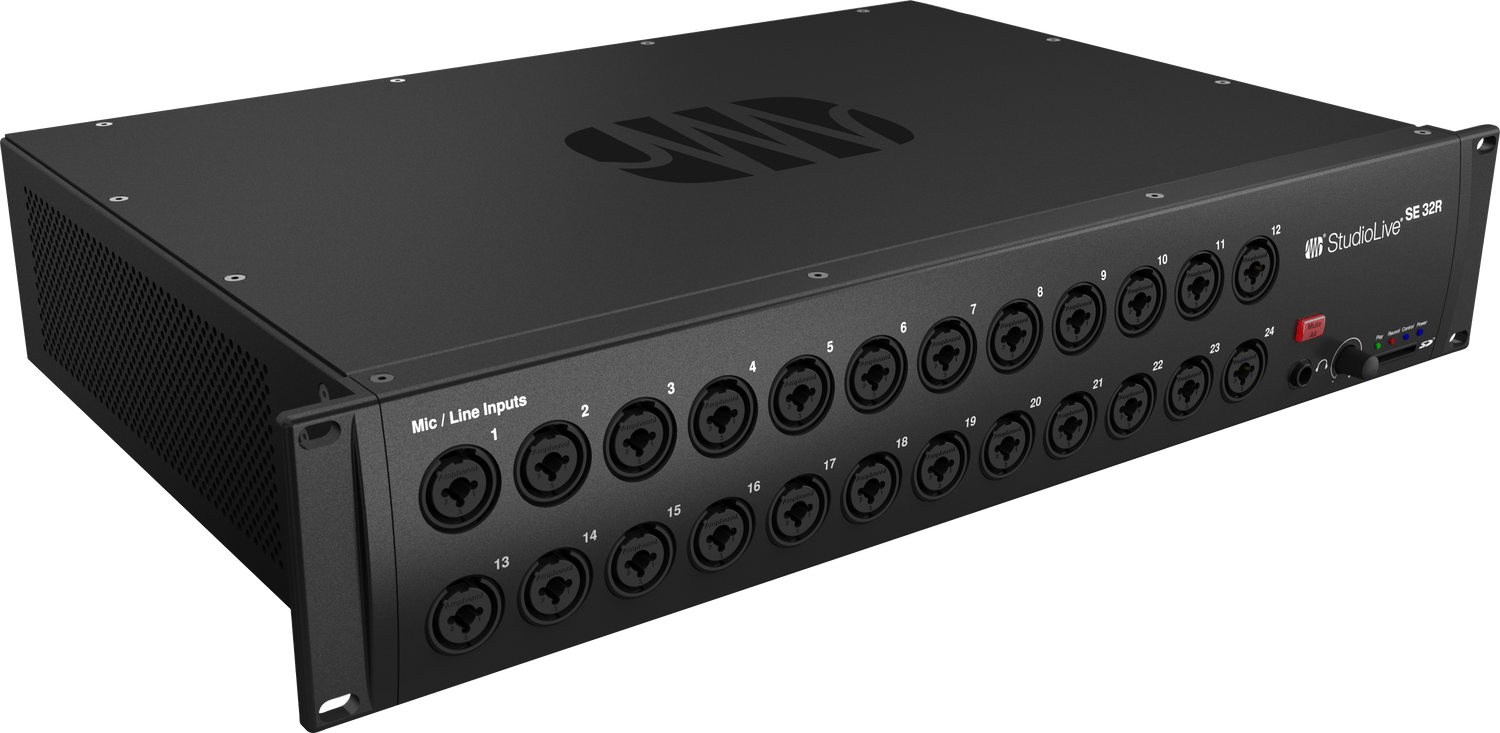

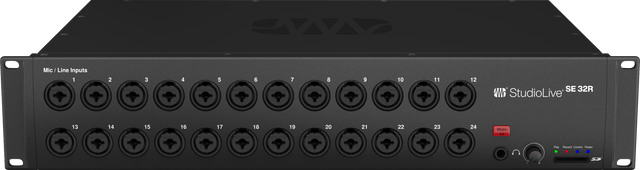

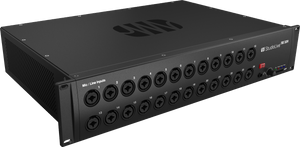

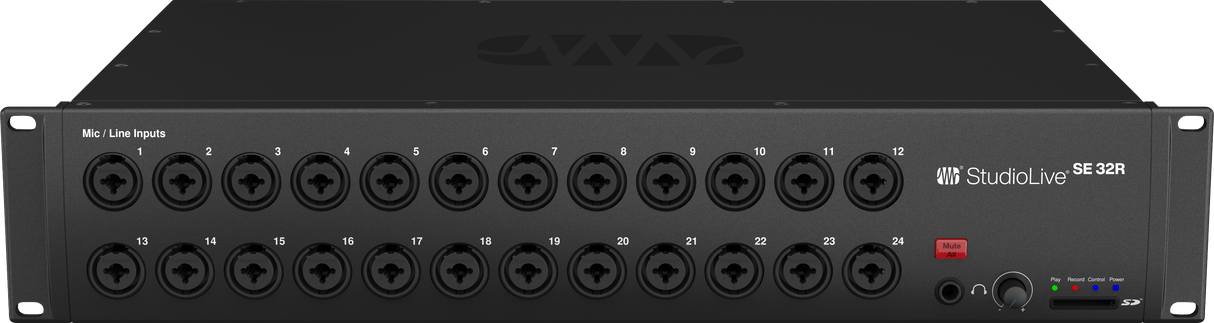

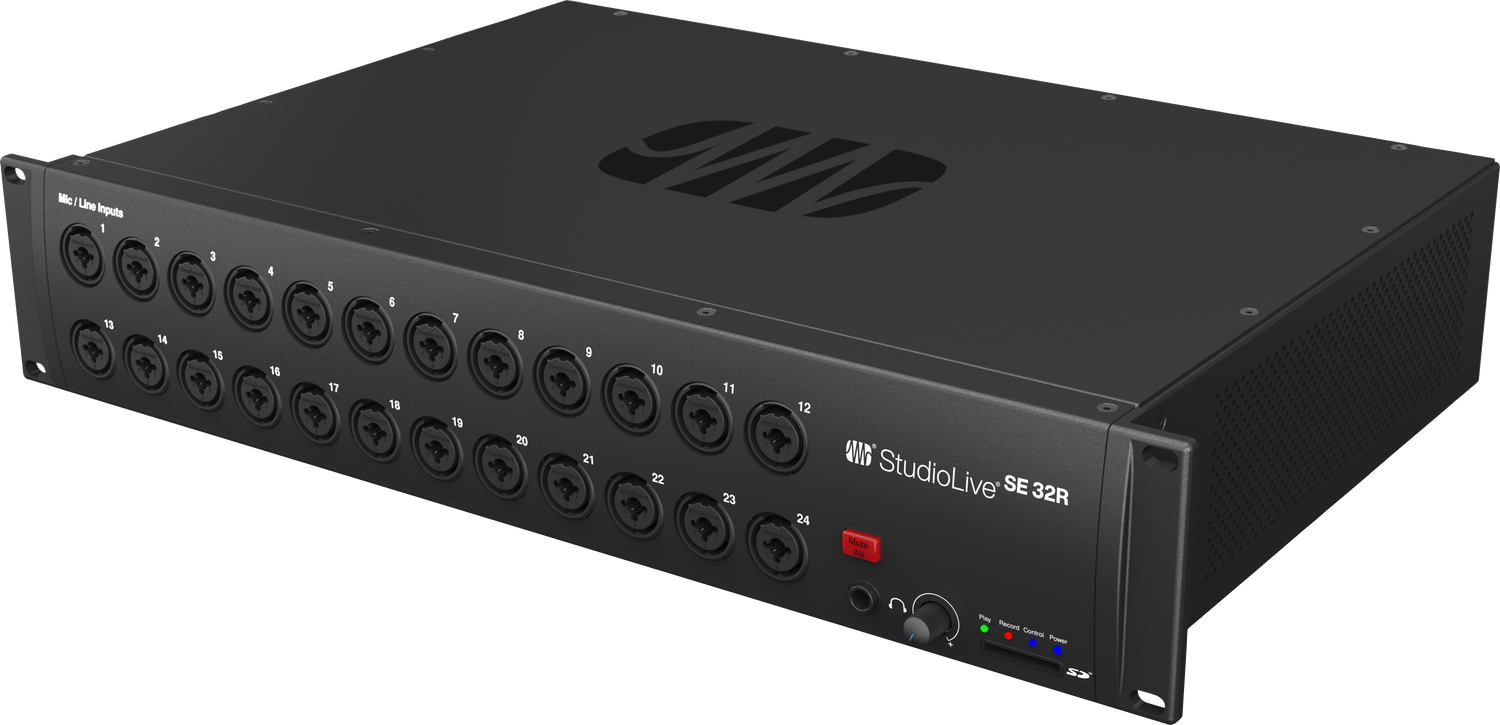

StudioLive Series III SE 32R

32 Recallable XMAX-R Preamps
Capture every source with clean, professional sound and instantly recall settings for consistent mixes.

40-Channel Digital Mixing
Mix large sessions with full control over inputs, routing, and processing in a compact rack design.

Flexible Mix Configuration
Configure 16 FlexMixes as auxes, subgroups, or matrix mixes to match any live or studio setup.

Dedicated Subgroups and FX Mixes
Shape your mix with dedicated subgroups and built-in effects for polished, dynamic sound.

24 DCA Groups
Control multiple channels at once for smooth, efficient level adjustments during performances.

Built-In Multitrack Recording
Record and play back full multitrack sessions directly via USB for seamless studio or live capture.

Onboard SD Recording
Quickly record stereo mixes straight to an SD card without extra equipment.

Virtual Soundcheck Integration
Rehearse and fine-tune mixes using recorded tracks without needing the full band present.

Milan-Certified AVB Networking
Connect seamlessly with stageboxes, personal monitor mixers, and other compatible devices.

Per-Channel Source Switching
Switch each channel between analog, USB, SD, or network sources for maximum flexibility.

Wireless Remote Control
Mix from anywhere using Universal Control and give performers personal monitor control with QMix-UC.

Multiple Operating Modes
Use it as a standalone mixer, monitor mixer, or stagebox to fit any workflow.

Fender Studio Pro Included
Enjoy integrated recording software with direct preamp control and smooth processing transitions.

General Specifications
Device Type: 40-Channel Digital Rack Mixer
Form Factor: 3U Rackmount
Color: Black
Internal Processing: 32-bit Floating Point
Total Channels: 40
Microphone Preamps: 32 XMAX-R Recallable
FlexMixes: 16 (Configurable as Aux, Subgroup, or Matrix)
Dedicated Subgroups: 4
FX Mixes: 4 with Stereo Returns
DCA Groups: 24
Operating Modes: Standalone, Monitor Mixer, Stagebox
Networking: Milan-Certified AVB
Remote Control: Universal Control, QMix-UC
Software Integration: Capture with Virtual Soundcheck, Fender Studio Pro
Phantom Power: +48 VDC (±2 VDC)
Power Consumption: 35W Continuous
Voltage Requirements: 100–230 VAC, 50–60 Hz
Power Connection: IEC
Operating Temperature: 0° to 40° C (32° to 104° F)
Dimensions: 3.5” (H) x 19” (W) x 12” (D)
Weight: 11.2 lbs (5 kg)

Digital Audio
USB Audio Interface: 64x64 USB 2.0, Type-B
Bit Depth: 24-bit
Supported Sample Rates: 44.1 kHz, 48 kHz
Dynamic Range: 115 dB ADC (A-Weighted, 48 kHz); 115 dB DAC (A-Weighted, 48 kHz)
Reference Level (0 dBFS): +18 dBu
Total System Latency: 1.9 ms (Analog In to Analog Out, All Processing Active)

Microphone Preamps
Connection Type: Combo Locking XLR / 1/4” TRS
Gain Range: 0 dB to 60 dB (±1 dB)
Input Impedance: 1 kΩ
Maximum Input Level: +12 dBu (Unity Gain)
Frequency Response: 20 Hz to 20 kHz (±0.5 dB at Unity Gain)
Common Mode Rejection Ratio: 65 dB (1 kHz at Unity Gain)
Signal-to-Noise Ratio: 94 dB (Ref +4 dBu, 20 kHz BW, Unity Gain, A-Weighted)
Total Harmonic Distortion: <0.005% (+4 dBu, 20 Hz–20 kHz, Unity Gain, Unweighted)

Line Inputs
Connection Type: RCA Female, Unbalanced (Stereo Pair)
Maximum Input Level: +12 dBu (±0.5 dBu)

Outputs
Line Outputs Connection: 1/4" TRS, Balanced
Line Outputs Maximum Level: +18 dBu (±0.5 dBu)
Line Outputs Output Impedance: 100 Ω
XLR Outputs Maximum Level: +24 dBu (±0.5 dBu)
XLR Outputs Output Impedance: 100 Ω
Headphone Output Connection: 1/4" TRS Stereo
Headphone Frequency Response: 20 Hz to 20 kHz (±0.5 dB)
Headphone Maximum Output: 100 mW/Channel @ 60 Ω
Headphone Signal-to-Noise Ratio: 96 dB (1 kHz, Max Gain, 20 Hz BW, Unweighted)
Headphone Total Harmonic Distortion: 0.01% (1 kHz, Max Gain, 20 Hz BW, Unweighted)

Recording
Onboard Recording: Stereo SD
SD Media Support: FAT16 SD (2 GB), FAT32 SDHC (Up to 32 GB)
Recording Format: Stereo WAV
SD Recorder Bit Depth: 24-bit Recording; 16-bit or 24-bit Playback
SD Recorder Sample Rate: 44.1 kHz, 48 kHz

Performance
Crosstalk (Adjacent Channels): -87 dB (Ref +4 dBu, 20 Hz–20 kHz, Unweighted)

Networking
AVB Audio Network Ports: Locking XLR, Ethernet
Network Control Port: RJ-45
