SWIT  |  SKU: 14337

S-1093F

Recording Monitors

The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920x1200 resolution and LED backlight, 800:1 contrast

$3,245.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The viewing angle is Horizontal: 170 / Vertical: 170

Features

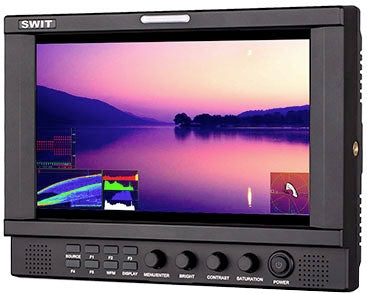

9-inch Full HD Waveform LCD Monitor

9" IPS LCD, 1920x1200, H/V 170viewing

Build-in LCD protective glass

2K/3G/HD/SD-SDI, HDMI, CVBS monitoring

16-ch Embedded audio meters with alert

Select any 2 audio channels to output

Waveform Y/Cb/Cr/R/G/B and single line

Vector scope, histogram R/G/B/Y

AFD, H/V delay, R/G/B/Mono, False color

TSL UMD and text TALLY display

Zebra stripes, Peaking focus assist

SDI timecode display

Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1

Front / Rear TALLY light and GPI control

V-mount, Gold mount or snap-on DV mount

USB firmware upgrade

Specifications

LCD Performance


Size: 9 inches
Display area: 191.52x119.70mm
Resolution: 1920x1200
Aspect ratio: 16:9 (4:3 adjustable)
Brightness: 450cd/m2
Contrast : 800:1
Color: 16.77 million colors
Viewing angle: Horizontal: 170Vertical: 170

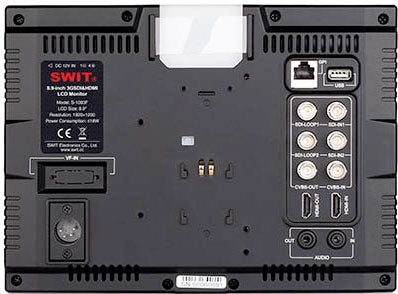

Input


BNC x2: 2K/3G/HD/SD-SDI input x2
BNC x1: Composite input
HDMI x1: HDMI input
3.5mm x1: Analog audio input

Output


BNC x2: 2K/3G/HD/SD-SDI loop output x2
BNC x1: Composite loop output
HDMI x1: HDMI loop output
3.5mm x1: SDI, HDMI, Analog audio output

Video Format

CVBS


NTSCPAL
SDI: SMPTE ST 2048-1: 2011 2048x1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
SMPTE-425M: 1080p (60 / 59.94 / 50)
SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94) ITU-R BT.656 576i (50)

HDMI:


480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)

General


Working voltage: DC / battery 6.5V-24V
Power consumption: 18W
Working temperature: 0C+40C
Working humidity: 10%90%
Storage temperature: -15C+60C
Storage humidity: 10%90%
Dimensions: 241x178x52mm
Net weight (main body): 960g
