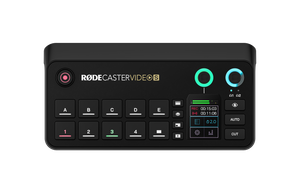

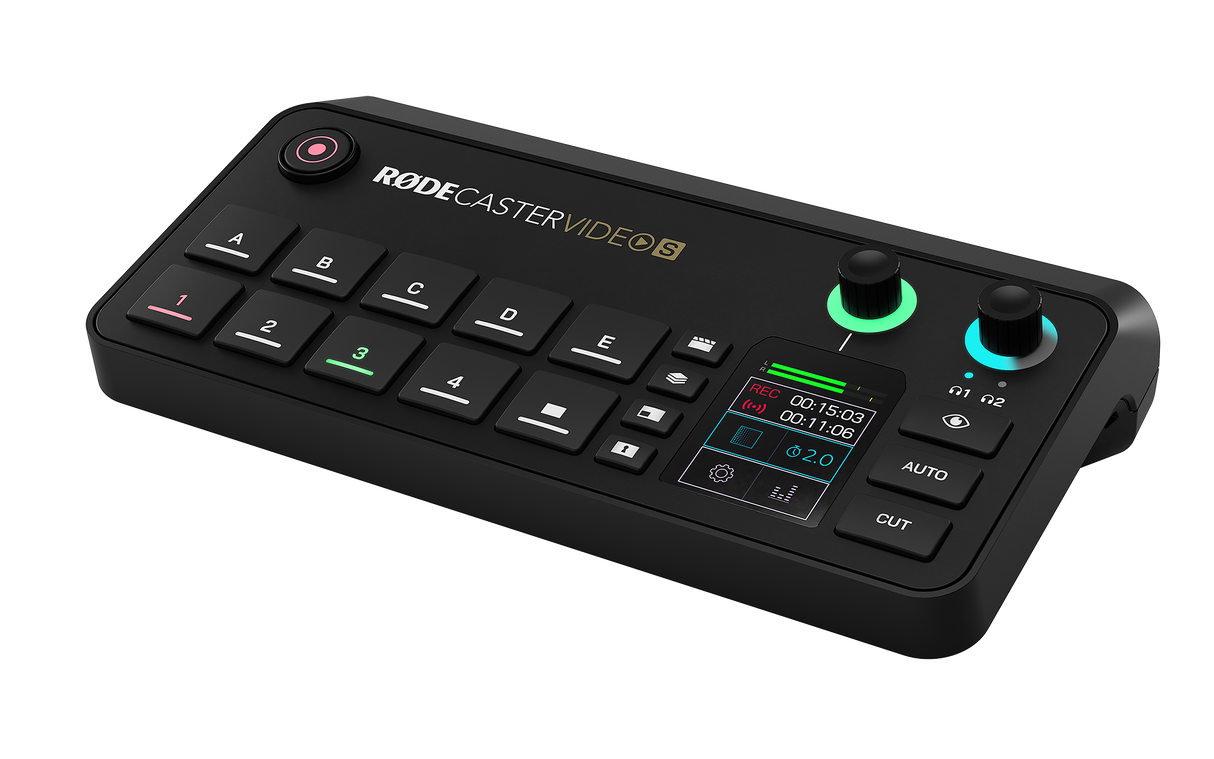

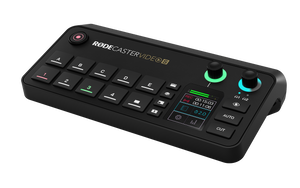

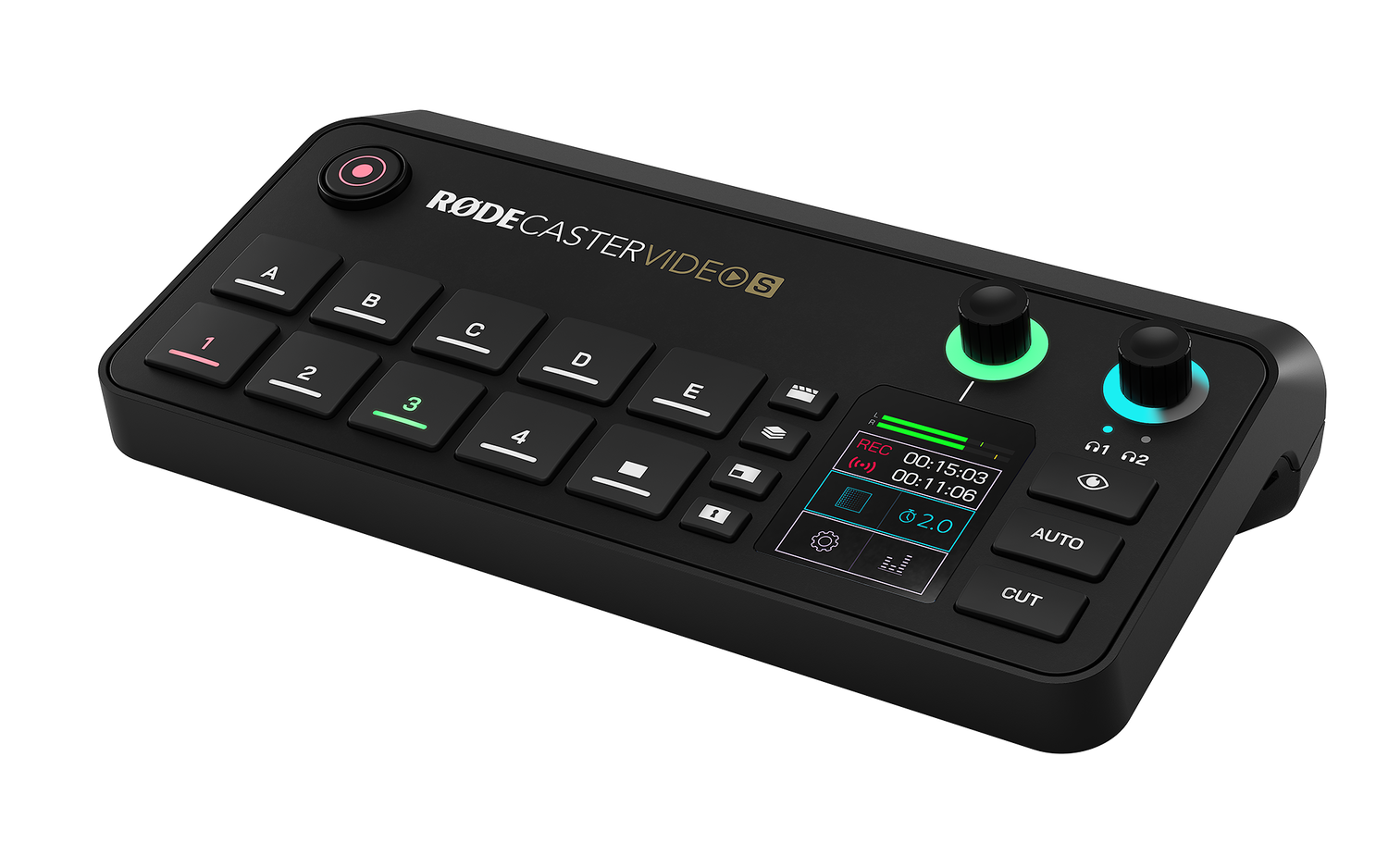

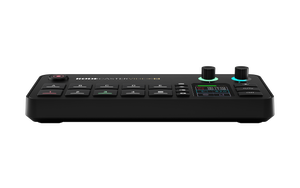

RODECaster VIDEO S

All-in-One Video and Audio Console
Combines video switching, recording, and pro audio mixing in a single compact device.

Multi-Camera Switching
Switch between up to four video sources with seamless transitions and customizable scenes.

Built-In Video Recording
Record directly to an external USB drive or output live video to a computer.

Professional Audio Processing
Includes studio-grade effects like EQ, compressor, noise gate, and APHEX® enhancements for high-quality sound.

Integrated High-Quality Preamps
Two Neutrik® combo jacks deliver clean audio from microphones and instruments with ultra-low noise.

Wireless Microphone Support
Connect RØDE wireless mics directly with dual internal receivers.

Dual USB-C Audio Connections
Use two computers or mobile devices at the same time for flexible audio routing.

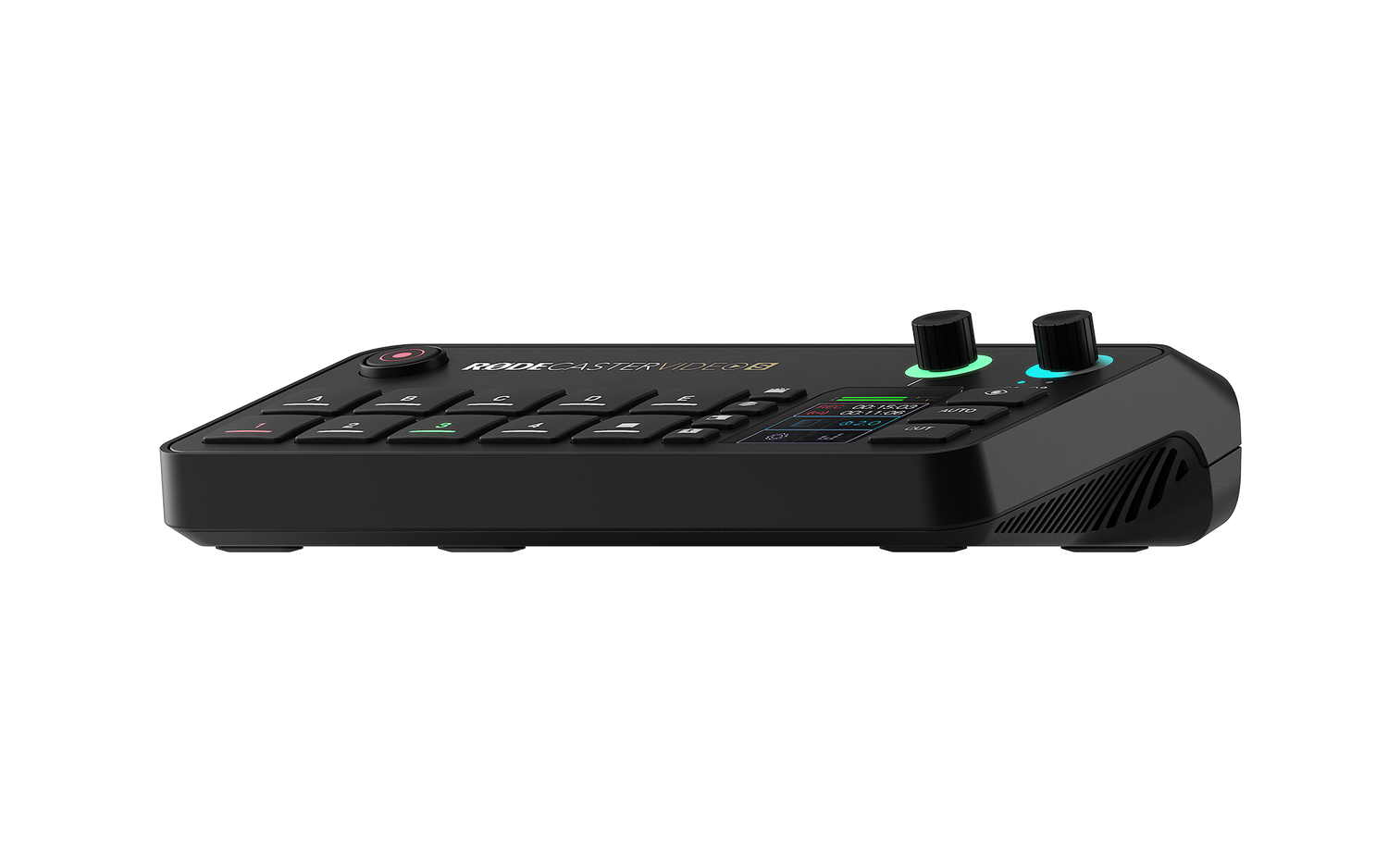

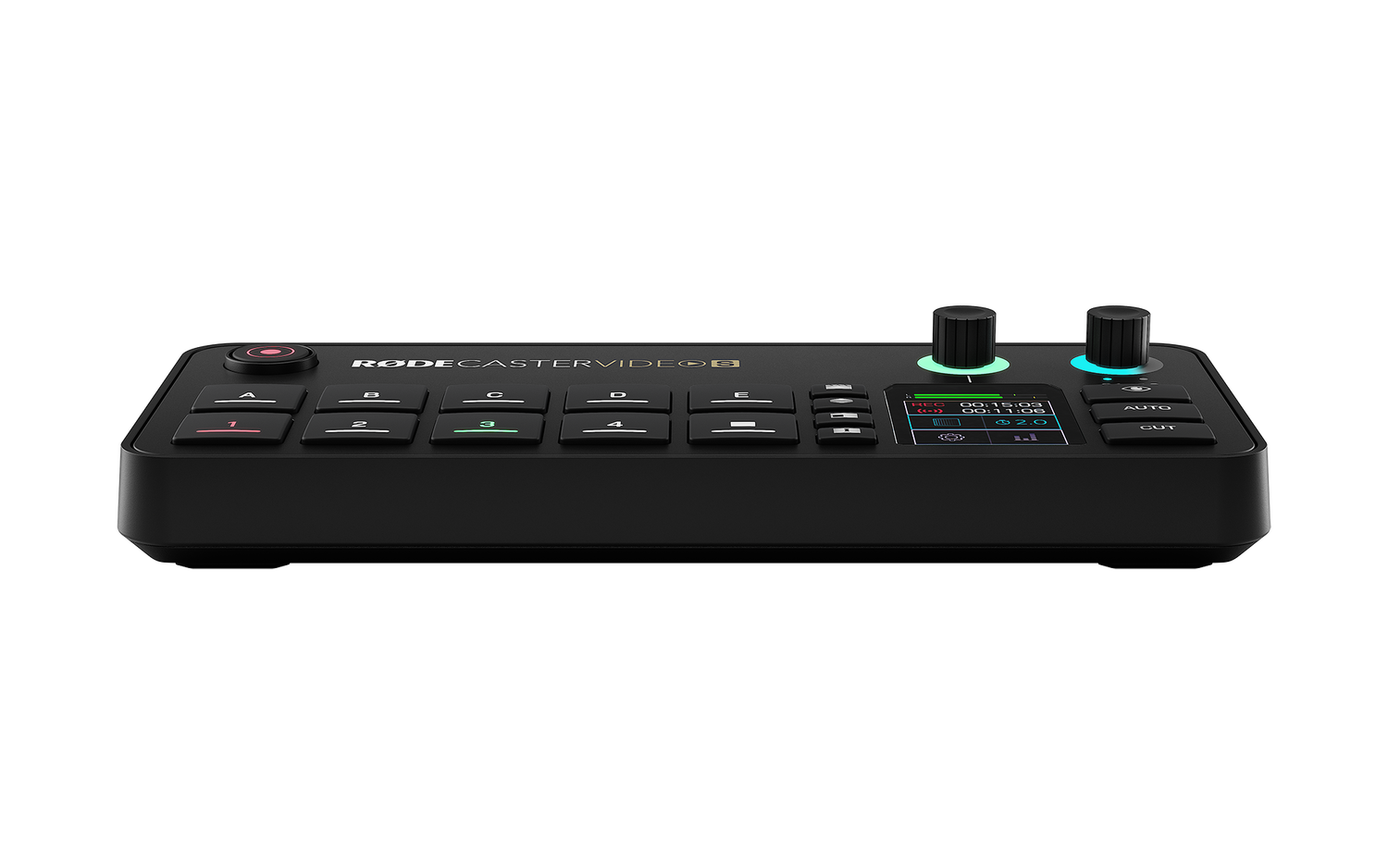

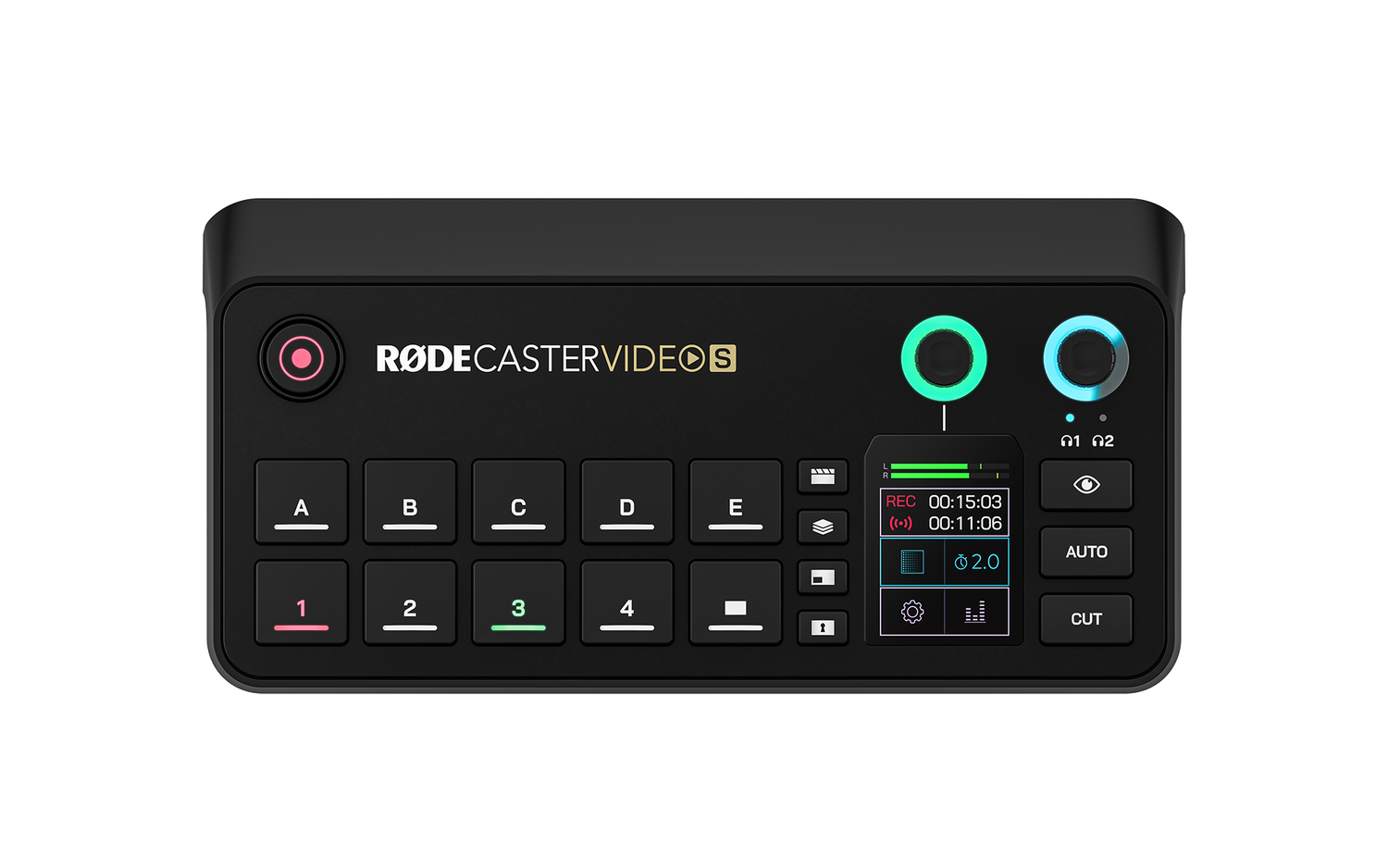

Touchscreen and Rotary Control
Easily control settings and switch scenes with a high-resolution display and dial.

Built-In Media and Effects Playback
Add video clips, sound effects, transitions, and overlays during live production.

Smart Auto Switching
Automatically switches video sources based on audio activity for hands-free control.

Stream to All Major Platforms
Go live via Wi-Fi or Ethernet to YouTube, Twitch, Facebook, and more.

NDI Camera Compatibility
Supports up to four networked cameras, including PTZ control.

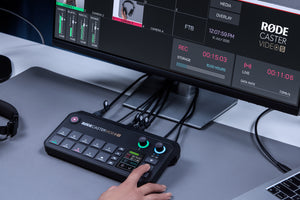

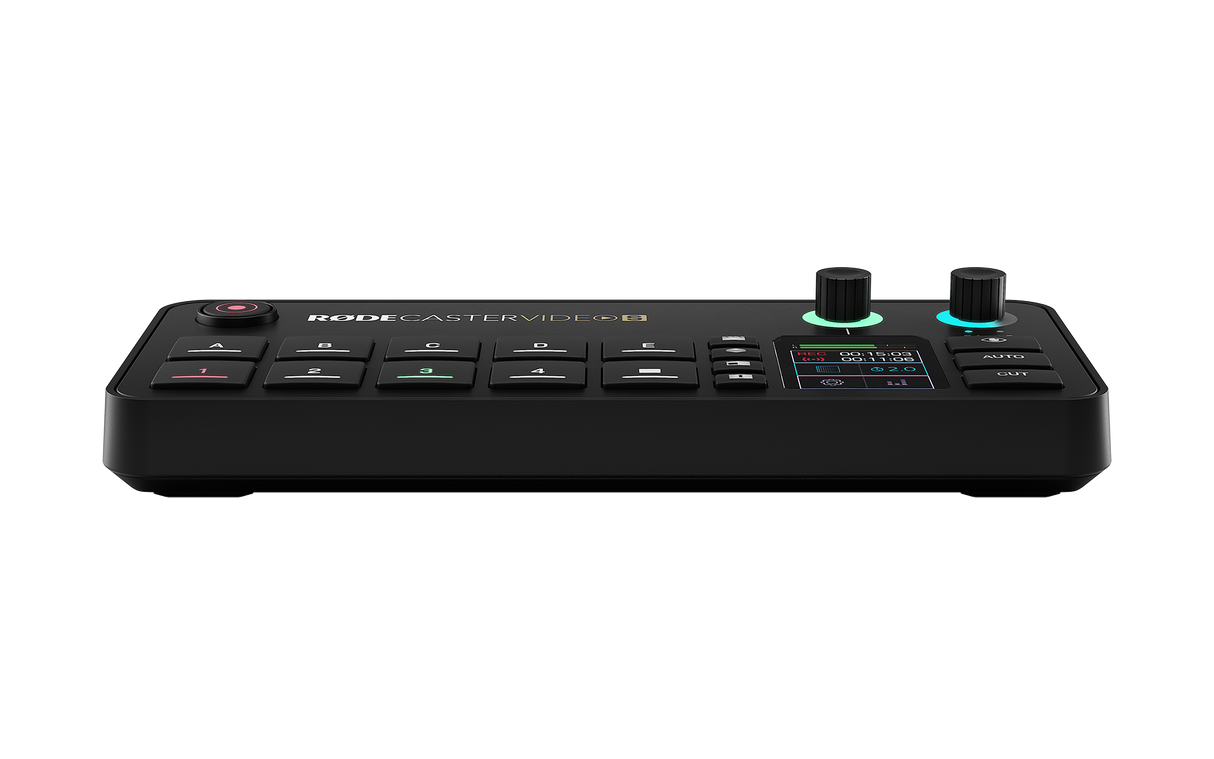

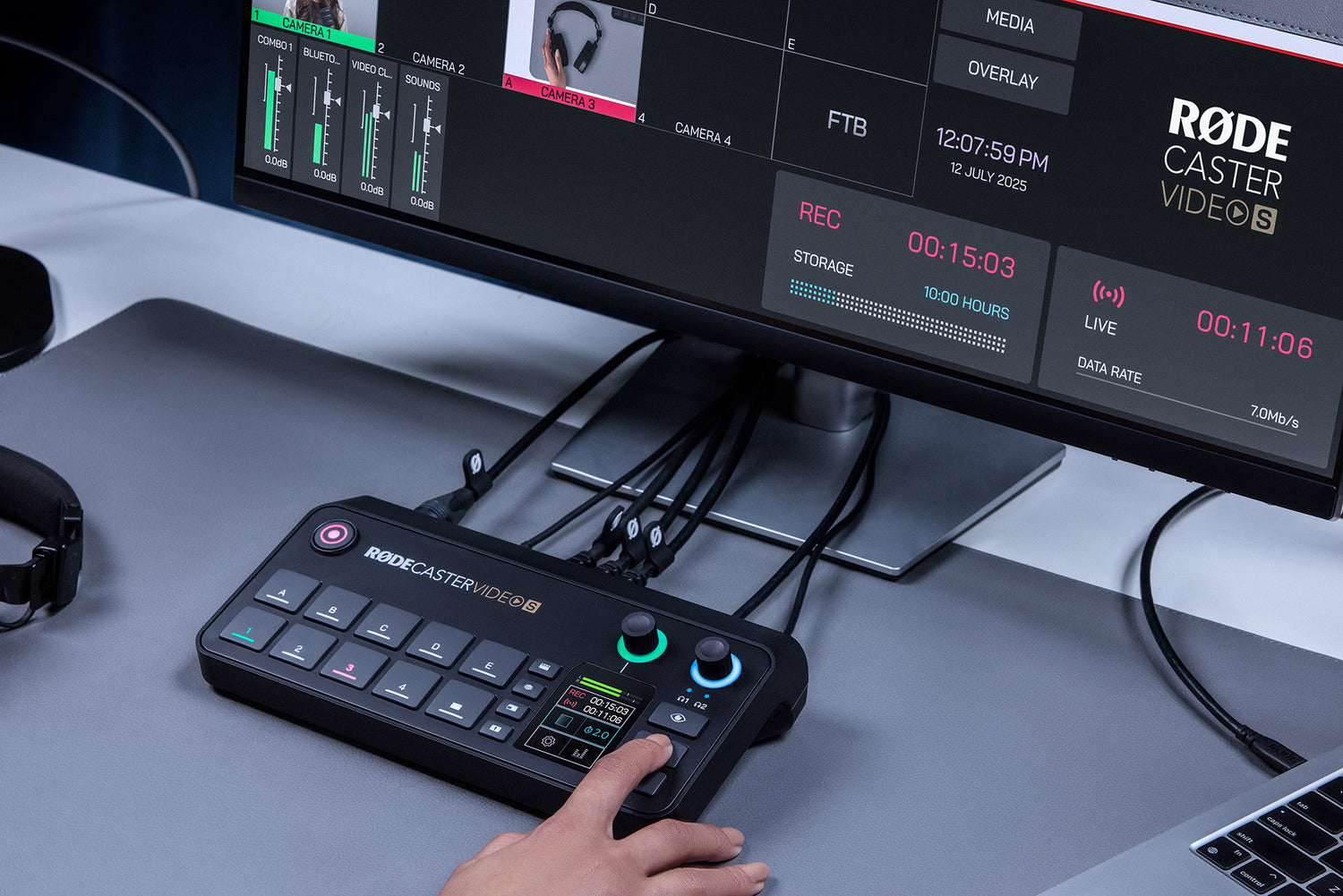

Compact and Portable Design
Fits neatly on a desk while offering powerful production tools.

Remote Configuration via App
Build scenes, route audio, and manage settings using the RØDECaster app.

General Specifications
Device Type: Video and Audio Production Console
Processor: High-Performance Octa-Core CPU
Control Interface: 2" High-Resolution Touchscreen, Rotary Encoder, 5 Scene Buttons, 4 Function Buttons
Construction: Desktop Form Factor
Wireless Receivers: Dual Internal RØDE Series IV
Operating Systems: macOS 11+, Windows 10 (1803)+, Windows 11
Dimensions: 253.5 mm (L) x 128.4 mm (W) x 60.2 mm (H)
Weight: 875 g
Power Supply: USB-C PD 45W, 20V 2.25A

Video Specifications
Video Input Feeds: 4 simultaneous

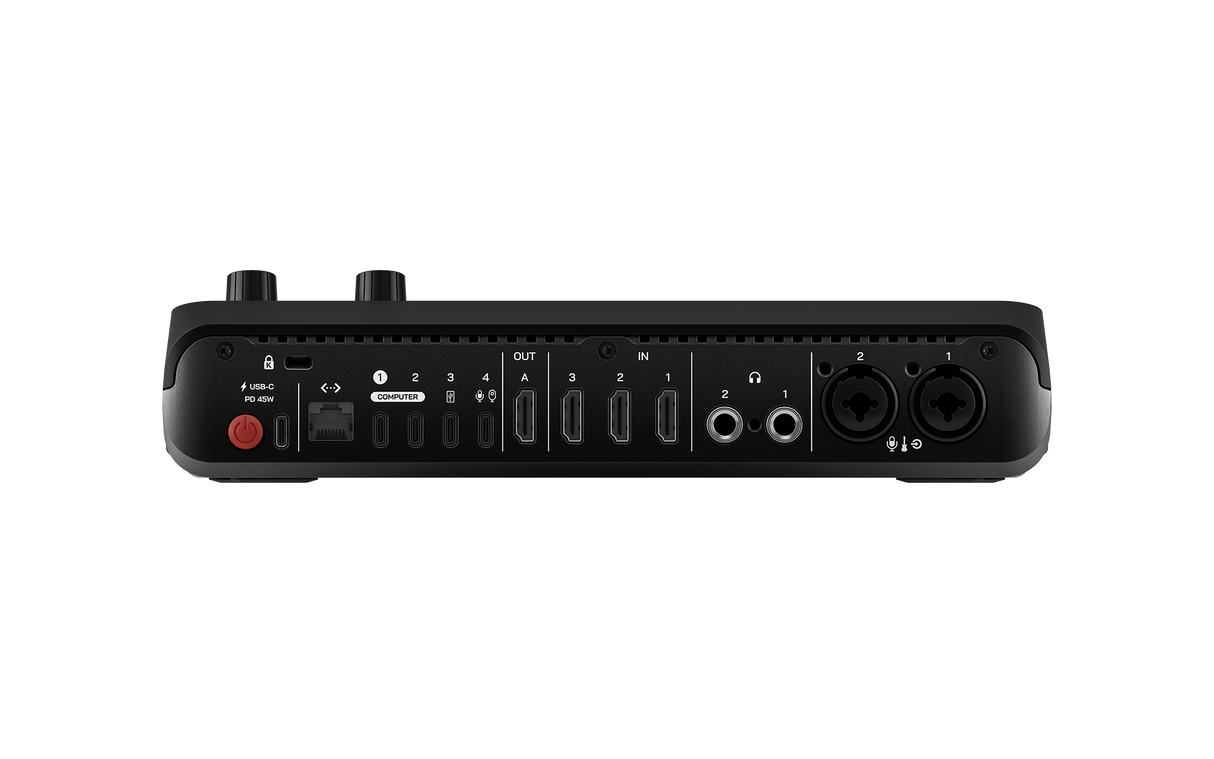

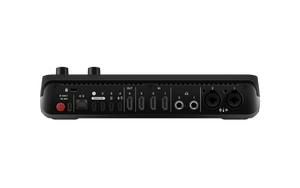

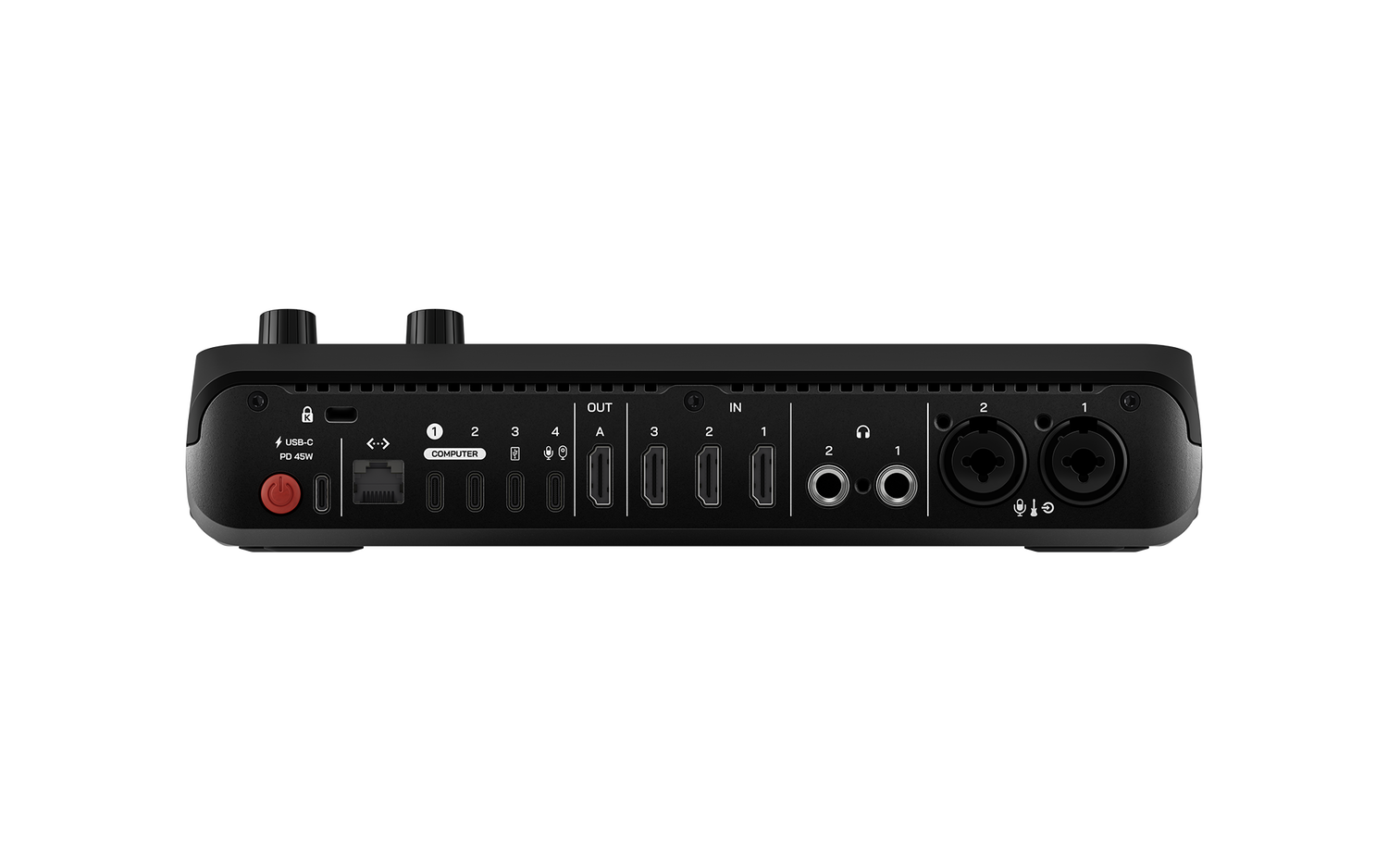

HDMI Inputs: 3 × Type-A (HDMI 1.4b)
USB (UVC) Inputs: 1 × USB-C
HDMI Output: 1 configurable (Preview, Program, Multiview, Inputs 1–4)
Video Input Frame Rates (HDMI only): 1080p (23.98–60 fps), 1080i (25, 29.97, 30 fps)
Video Output Frame Rates: 1080p (24–60 fps)
Streaming Standards: 1080p (23.98–60 fps)
Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
Converters: Format and Frame Rate Converters on all HDMI and USB inputs
NDI Protocols: Single TCP, Multicast
NDI Formats: Hx2, Hx3
NDI Video Codecs: H.264, HEVC/H.265, 4:2:0, 8-bit
NDI Audio Codecs: AAC-LC, L-PCM Stereo 2.0 at 48kHz
NDI Interface: Wired Ethernet

Switching Specifications
Layers: 9 simultaneous (Preview and Program)
Downstream Keyers: 2
Chroma Keyers: 2 (Green and Blue)
Luma Keyer: 1
Media Players: 2 simultaneous
Transitions: SMPTE wipes, dip, fade
Preview Mode: True Preview for scenes and overlays
Generated Borders: All scenes
Multiview Options: Program, Preview, Live Inputs, Scene and Media Thumbnails, Audio Mixer, Recording/Network/Storage Status, Runtime
Media Storage: 24GB onboard
Supported Media Formats: MP4 (Video), PNG/JPG (Images), WAV (Audio)
Bluetooth: Version 5.3

Audio Specifications
Analog Inputs: 2 × Combo Jacks (Mic, Line, Instrument) with Revolution Preamps™
Wireless Inputs: 2 × Internal RØDE Series IV Receivers
Digital Inputs:
USB 1: 2-in/2-out or 20-in multichannel
USB 1 Chat: 2-in/2-out with mix-minus
USB 2: 2-in/2-out with MFi support
USB 4: Compatible with RØDE USB Mics and RØDECaster Pro II/Duo
Analog Outputs: 2 × ¼" Headphone Outputs
Audio Processing:
Per Channel: Compressor, EQ, De-esser, Panning, Noise Gate, HPF, Aural Exciter™, Big Bottom™, APHEX® VoxLab™
Preamps Frequency Range: 20Hz – 20kHz
Preamps Gain: Up to 76dB
EIN: –131.5 dBV (A-weighted)
Streaming Sample Rate / Bit Depth: 48kHz / 32-bit
Recording Sample Rate / Bit Depth: 48kHz / 24-bit
Audio Mixer: 17 sources (9 stereo channels), supports stereo/mono splits
Custom Routing Outputs: 11 configurable outputs (Headphones, USB, Bluetooth, HDMI A, Network)

Streaming and Recording
Streaming Protocol: RTMP/RTMPS over Wi-Fi or Ethernet
Supported Platforms: YouTube Live, Twitch Live, Facebook Live, Twitter/X Live, Custom Server
Network Interfaces: Ethernet (10/100/1000 BaseT), Wi-Fi 6 (2.4GHz and 5GHz)
Companion Software: RØDECaster App (Scene Builder, Audio Mixer, Auto-Switching, Stream Profiles, Device Config)
Recording Storage: External USB mass storage (exFAT)
Video Recording: Program Feed – H.264/AVC MP4 with AAC Stereo
Isolated (ISO) Video Recording: 4 Inputs + Program – H.264/AVC up to 1080p30
Audio Recording: Stereo Mix WAV
Multitrack Audio Recording: 9 Independent Stereo WAV Files
