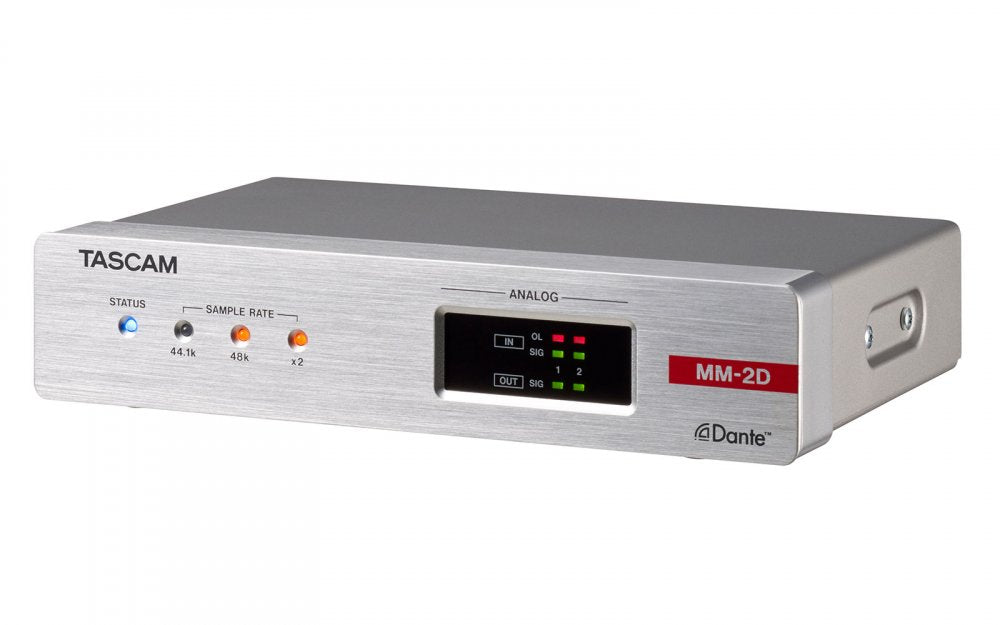

Tascam MM-2D-E

2 Mic/Line Inputs with Phantom Power (Euroblock): Capture high-quality mic or line sources, with +48V phantom power support and remote gain control.

2 Line Outputs (Euroblock): Route processed or Dante audio back out to analog systems with configurable reference levels.

4 Dante Inputs and 4 Dante Outputs: Seamlessly integrates into Dante networks with bidirectional audio support.

Built-In 6 In / 4 Out DSP Matrix Mixer: Mix mic/line and Dante inputs with processing like ducking and ambient noise compensation.

Full DSP Processing Tools Included: Features EQ, compression, auto-level, filtering, delay, limiter, and more.

Studio-Grade Mic Preamps: Low-noise, high-headroom design for clean and accurate voice and instrument capture.

PoE Powered: Operates via Power over Ethernet-no separate power adapter required.

Flexible Remote Control Options: Configure via TASCAM DCP CONNECT (for integrators) or EZ CONNECT (for end users) on desktop or mobile.

Compact, Half-Rack Mountable Size: Ideal for fixed installations with included brackets or optional rack shelf (AK-RS1).

Scene Memory & Signal Monitoring: Store up to 50 presets and view real-time input/output levels and Dante status via front panel indicators.

General Specifications

2 channel mic line input with phantom power support

Remote mic gain control via software or Dante

2 channel line output

4 Dante input and output channels

Built-in DSP with 6 in 4 out matrix mixer

24 bit resolution with sampling rates of 44.1 48 88.2 96 kHz

Half rack mountable size

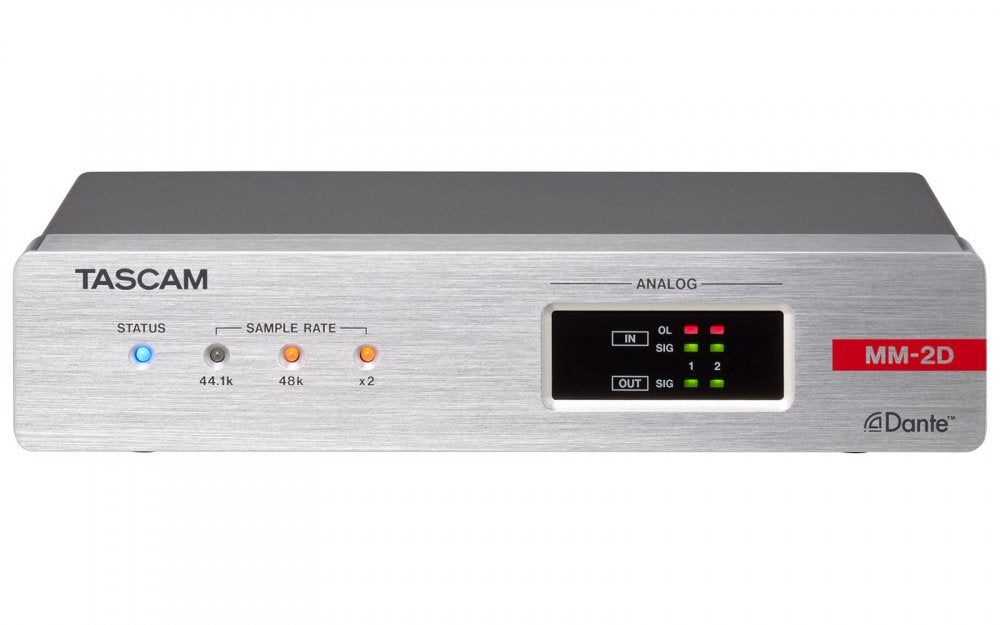

Signal indicators for input and output monitoring

Scene preset function for up to 50 presets

Supports Dante daisy chaining

PoE Power over Ethernet class 0 support

Compatible with TASCAM DCP CONNECT and EZ CONNECT software

Remote control via Dante and GPI

Compatible with Windows macOS iOS and Android

Includes surface mount brackets

Optional rack shelf AK-RS1 for dual unit installation

Audio Performance

Mic amp EIN -125 dBu

Frequency response 20 Hz to 20 kHz at 44.1 48 kHz and 20 Hz to 40 kHz at 88.2 96 kHz

Distortion THD plus N 0.005 percent

Signal to noise ratio 105 dB

Crosstalk 100 dB

Dynamic range 105 dB

Analog Inputs

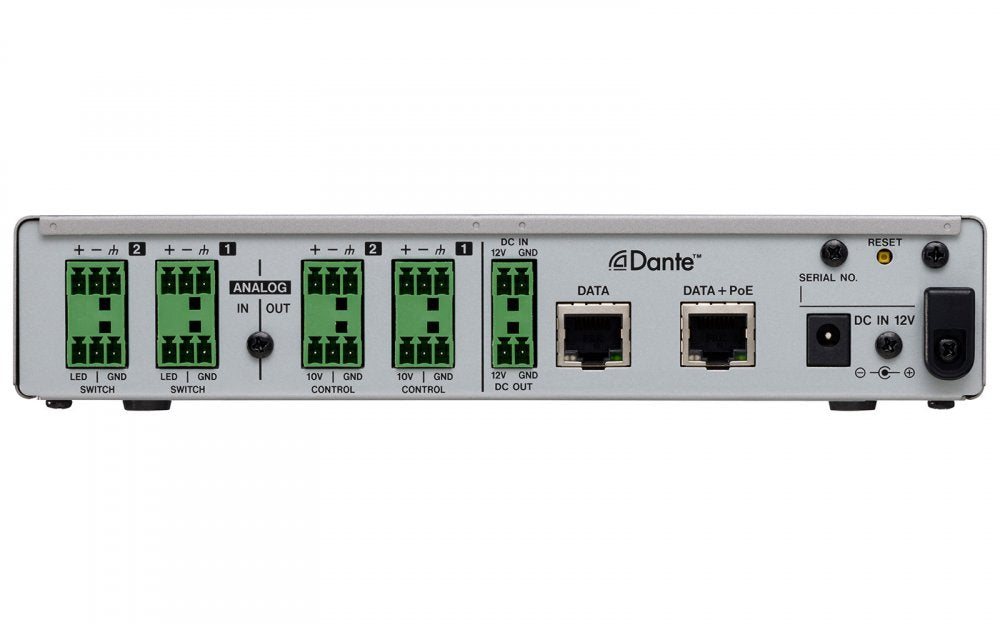

Connector Euroblock balanced 3.81 mm pitch

Minimum input level minus 74 dBu

Maximum input level plus 26 dBu

Input impedance 2 k ohms or higher

Analog Outputs

Connector Euroblock balanced 3.81 mm pitch

Output impedance 200 ohms or lower

Nominal output plus 4 dBu or plus 6 dBu depending on reference level

Max output levels: plus 15 dBu at minus 9 dBFS, plus 18 dBu at minus 14 dBFS, plus 20 dBu at minus 16 dBFS, plus 22 dBu at minus 18 dBFS, plus 24 dBu at minus 20 dBFS

Dante Interface

Connector RJ45

Protocol Dante

Ethernet standard 1000BASE-T IEEE 802.3ab

Cable requirement Cat 5e or higher STP cables

GPI Control Inputs Outputs

Control connectors Euroblock 3.81 mm pitch

Switch input max voltage 5.5 V

LED output open collector 48 V withstand 35 mA max

Power and Environmental

Power supply PoE class 0 or optional TASCAM PS-P1220E

Power consumption 6W

Operating temperature 0 to 40 degrees Celsius

Dimensions 214 x 44.45 x 136.1 mm

Weight 878 grams

Included Items

MM-2D-E unit

Installation brackets x 2

Euroblock plugs x 4

Cable band kit x 1

Owner's manual with warranty
