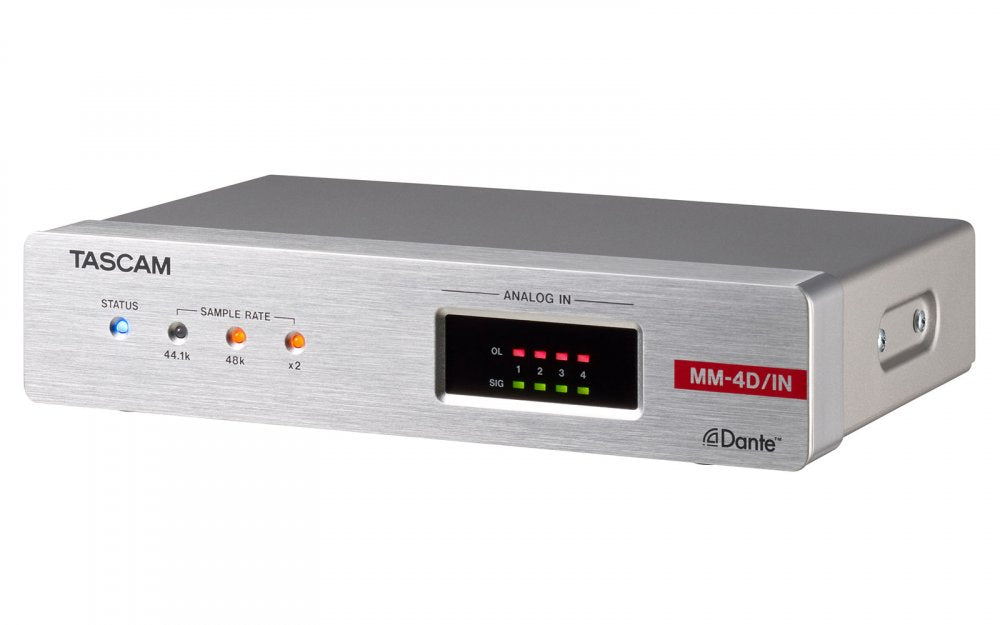

Tascam MM-4DIN-E

4 Mic/Line Inputs with Phantom Power (Euroblock): Accepts microphones or line-level signals and supplies +48V phantom power when needed.

Remote Gain Control: Adjust mic input levels remotely via software or Dante-compatible controllers.

4 Dante Inputs and 4 Dante Outputs: Fully integrates into Dante networks for flexible I/O routing.

Built-In DSP with 8x4 Matrix Mixer: Mix multiple Dante and analog inputs to any output zone with onboard processing tools.

Comprehensive Audio Processing: Includes EQ, compressor, auto-leveler, ducking, noise compensation, and limiter effects.

Studio-Quality Mic Preamps: Delivers low-noise, clean gain with outstanding clarity and dynamic range.

Powered via PoE: Operates with a single Ethernet cable for both data and power-no external adapter required.

Remote Configuration with Control Software: Use DCP CONNECT for advanced setup or EZ CONNECT for basic volume control on any device.

Compact, Half-Rack Design: Easily mounts under desks or in racks with included brackets.

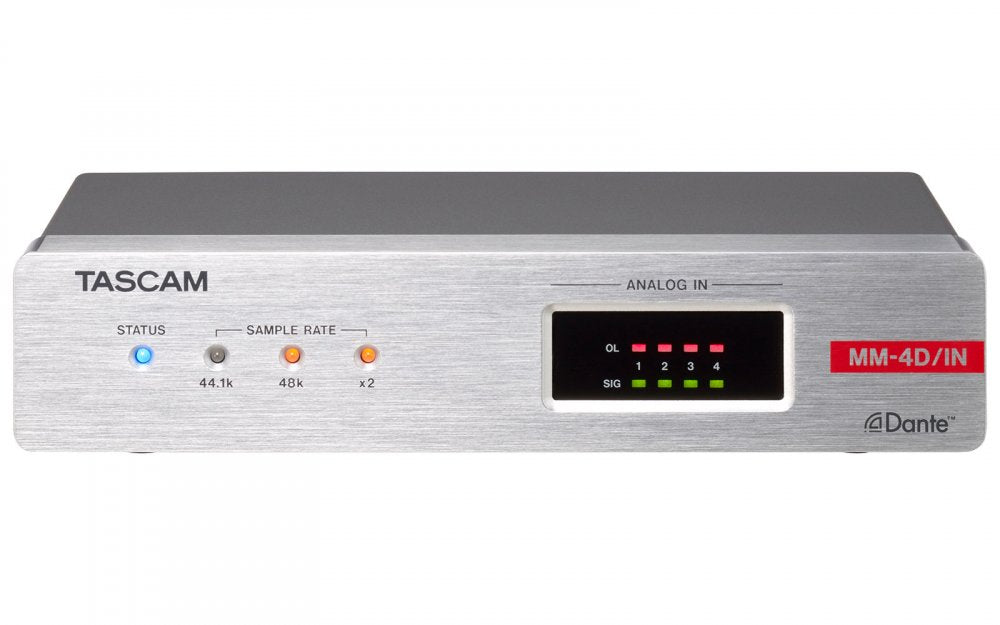

Status and Signal Indicators: Visual feedback for input activity, Dante connection, and network status.

General Specifications

4 channel mic line input with phantom power support Euroblock

Remote mic gain control via Dante or software

4 Dante input and output channels

Built in DSP with 8 in 4 out matrix mixer

24 bit resolution with sampling rates of 44.1 48 88.2 96 kHz

Half rack mountable size

Signal indicators for input monitoring

Scene preset function with up to 50 presets

Supports Dante daisy chaining

PoE Power over Ethernet class 0 support

Compatible with TASCAM DCP CONNECT and EZ CONNECT software

Remote control via GPI and Dante

Compatible with Windows macOS iOS and Android

Includes surface mount brackets

Optional rack shelf AK RS1 for dual unit installation

Audio Performance

Mic amp EIN minus 125 dBu

Frequency response 20 Hz to 20 kHz at 44.1 48 kHz and 20 Hz to 40 kHz at 88.2 96 kHz

Distortion THD plus N 0.003 percent

Signal to noise ratio 108 dB

Crosstalk 100 dB

Dynamic range 108 dB

Analog Inputs

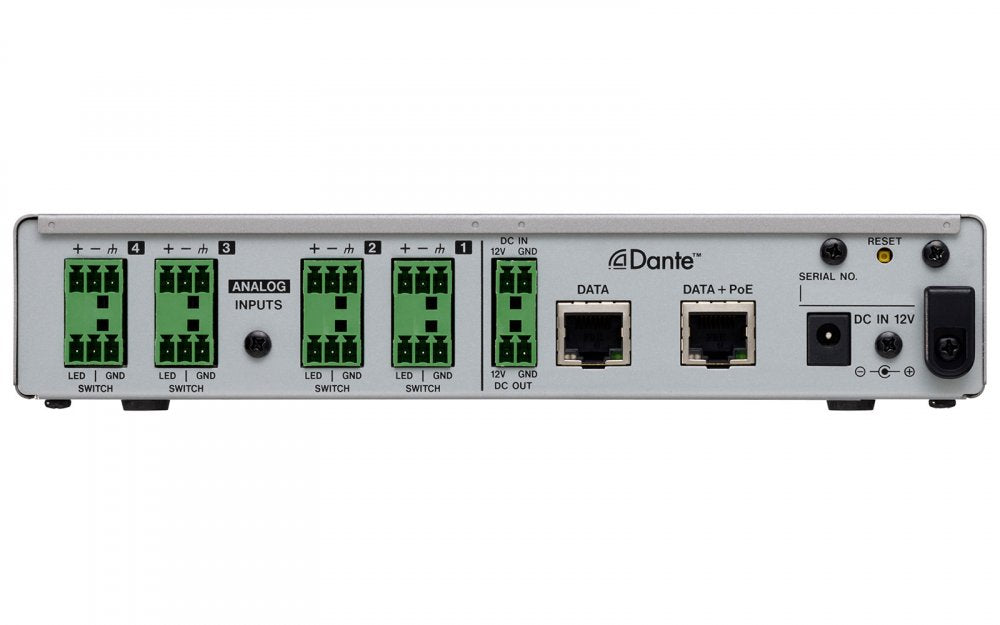

Connector Euroblock balanced 3.81 mm pitch

Minimum input level minus 70 dBu

Maximum input level plus 26 dBu

Input impedance 2 k ohms or higher

Dante Interface

Connector RJ45

Protocol Dante

Ethernet standard 1000BASE T IEEE 802.3ab

Cable requirement Cat 5e or higher STP cables

Control I O

GPI Connectors Euroblock 3.81 mm pitch

LED output format open collector 10 ohms 48V 35mA

SWITCH input voltage max 5.5V min high level 2.31V max low level 0.99V

Power and Environmental

Power supply PoE class 0 or optional TASCAM PS P1220E

Power consumption 7.5W

Operating temperature 0 to 40 degrees Celsius

Dimensions 214 x 44.45 x 136.1 mm

Weight 885 grams

Included Items

MM 4D IN E unit

Installation brackets x 2

Euroblock plugs x 4

Cable band kit x 1

Owner's manual with warranty
