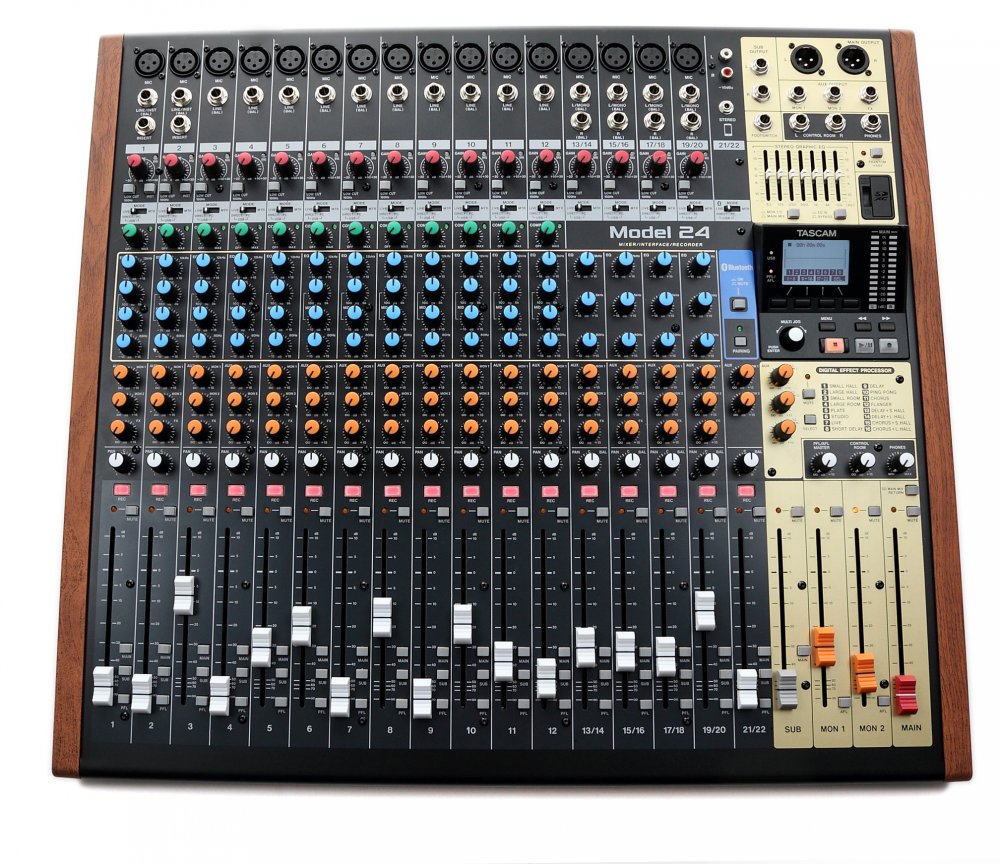

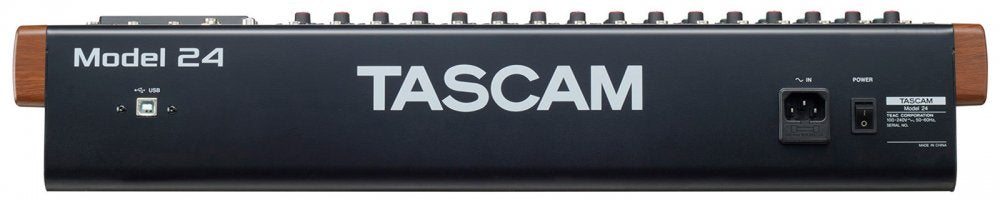

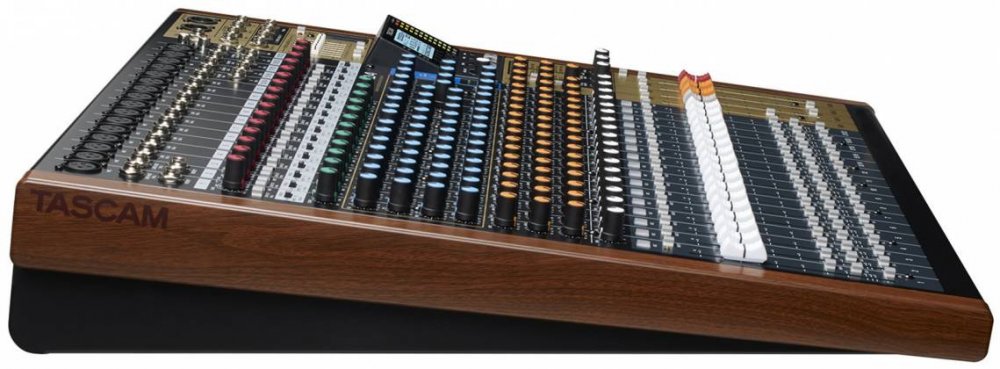

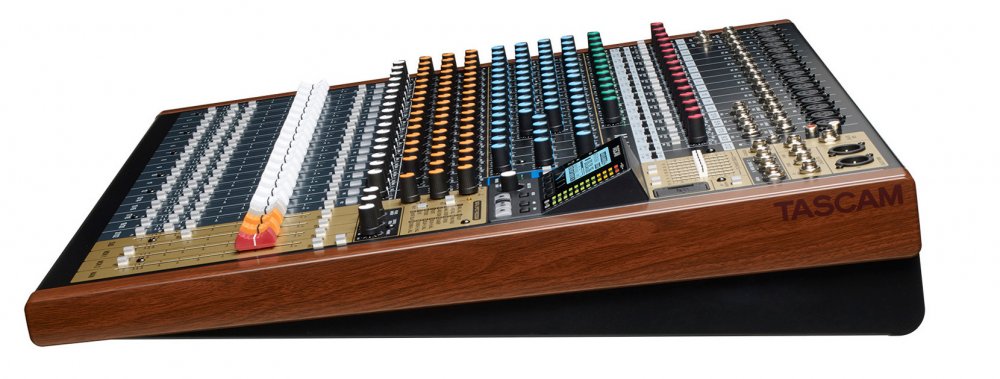

Tascam Model 24

All-in-One, Multitrack Recorder with 22 channel Mixer and USB Audio Interface

WAV 48kHz/24-bit, 24 channel multitrack recording to SD, SDHC and SDXC cards

Built-in USB Audio Interface to send/receive audio data to/from DAW

22 Inputs (20 Balanced, 12 Monaural, and 4 Stereo)

16 TASCAM Microphone Preamps

Input Mode switch on every input channel

TASCAM Ultra-HDDA Mic Pre-amp (Channels 1 to 12)

Preamp Gain Controller with Overload indicator (Channels 1 to 12)

3-band EQ with a sweepable mid-range frequency (Channels 1 to 12)

100kHz Low-cut Filter (Channels 1 to 12)

7-band Graphic EQ

16 Pre-set Effects

100mm Long-throw Faders for precise adjustment

Mute, Main/Sub, PLF switches on every input channel

Bluetooth input supporting both AAC and SBC codecs

SUB Outputs via XLR Balanced and RCA Unbalanced connectors

LINE Inputs via RCA Pin and " Stereo Mini jacks

3 AUX Outputs (Monitor 1, Monitor 2, FX)

1 Stereo Output for Control Room

Phantom Power (+48V)

¼" Stereo Headphone Output

Backlit buttons for key operations such as REC and Play

Multi Jog-dial for quick menu operation

12-segment LED Output Level Meters

Recording section

Supported Media: SD (512MB to 2GB), SDHC (4GB to 32GB), SDXC (64GB to 512GB), Class 10 or higher required.
File System: SD card: FAT16, SDHC card: FAT32, SDXC card: exFAT
Recording File Format: WAV(BWF)
Playback Format: WAV(BWF)
Sampling Frequency: 44.1k / 48k Hz
Bit Depth: 16 / 24-bit
Recordable Channel: Max. 24 channels (22ch + 2 stereo mix)

Audio Inputs

MIC IN CH1 to 12, 13/14 to 19/20

Connector: XLR 3-31 (1: GND, 2: HOT, 3: COLD)
Maximum Input Level: +10dBu
Nominal Input Level: -8dBu
Minimum Input Level: -58dBu
Gain Adjustable Range: 0 to 50dB
Input Impedance: 1.8k
Phantom Power supply: +48V

LINE IN CH1 to 20

Connector: 1/4" (6.3mm) TRS Phone jack (Balanced)
Maximum Input Level: +22dBu
Nominal Input Level: +4dBu
Gain Adjustable Range: -10 to +40dB: CH1 to 12, +20 to +30dB: CH13/14 to 19/20
Input Impedance: 22k

INSERT CH 1 and 2

Connector: 1/4" (6.3mm) TRS Phone jack (T: Send, R: Return, S: GND)

Return (Ring)

Maximum Input Level: +18dBu
Nominal Input Level: 0dBu
Input Impedance: 10k

Send (Tip)

Maximum Output Level: +18dBu
Nominal Output Level: 0dBu
Output Impedance: 100

RCA INPUT

Connector: RCA Pin jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level: -10dBV
Input Impedance: 10k

STEREO INPUT
Connector: 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
Maximum Input Level: +8dBV
Nominal Input Level : -10dBV
Input Impedance: 10k

OUTPUTS
MAIN OUTPUT
Connector>: XLR 3-32 (1: GND, 2: HOT, 3: COLD)
Maximum Output Level: +22dBu
Nominal Output Level: +4dBu
Output Impedance: 100

SUB OUT, MONITOR, FX OUT, CONTROL ROOM OUT
Connector>: 1/4" (6.3mm) TRS Phone jack (T: HOT, R: COLD, S: GND)
Maximum Output Level: +16dBu
Nominal Output Level: -2dBu
Output Impedance: 100

PHONES OUT
Connector: 1/4" (6.3mm) Stereo Phone jack
Output Level: 80mW + 80mW (32 loaded)

REMOTE

Compatible with TASCAM RC-1F Foot Switch

Connector: 1/4" (6.3mm) TS Phone jack
USB Audio: for connection with PC
Sampling Rate: 44.1k / 48k Hz
Bit Depth: 16 / 24-bit
Maximum INPUT and OUTPUT: 24 Inputs / 22 Outputs

USB
Connector: USB B type 4-pin
Format: USB2.0 High-Speed, Mass-storage class/USB Audio Class

Bluetooth
Output Class: Class 2 (Transmission range: approx. 33ft. / 10 m)
* Transmission range may vary, depending on surroundings.
Bluetooth version: 4.0
Supported Profile: A2DP, AVRCP 1.0
Supported A2DP Codecs: SBC, AAC
A2DP Content Protection: SCMS-T

Channel EQ
Low-Cut: 100Hz, -18dB / Octave
Hi-Shelving: +15dB / -15dB, Cut off frequency: 12kHz
Mid: Peaking
(MONO): +15dB / -15dB, 100Hz to 8kHz Variable
(STEREO): +15dB / -15dB, Center frequency = 600Hz
MID Band Q Fix, 0.55
Low-Shelving: +15dB / -15dB, Cut off frequency = 80Hz

Graphic EQ
Band: 7-Band
Frequency: 125 / 250 / 500 / 1k / 2k / 4k / 8k Hz
Gain: +15dB / -15dB

FX
Type: 1: SMALL HALL / 2: LARGE HALL / 3: SMALL ROOM / 4: LARGE ROOM / 5: PLATE / 6: STUDIO / 7: LIVE / 8: SHORT DELAY/ 9: DELAY / 10: PING PONG / 11: CHORUS / 12: FLANGER / 13: DELAY + S.HALL / 14: DELAY + L.HALL / 15: CHORUS + S.HALL / 16: CHORUS + L.HALL
Power: AC 100 to 240V, 50/60Hz
Power Consumption: 52 W
Dimensions (WxHxD): 576 x 513 x 112.5 mm (including side panels, knobs and connectors)
540 x 503 x 112.5 mm (excluding side panels. including knobs and connectors)
including Side panels: 22.67" x 20.20" x 4.43" / 576 x 513 x 112.5 mm (including knobs and connectors)
excluding Side panels): 20.26" x 19.80" x 4.43" / 540 x 503 x 112.5 mm (including knobs and connectors)
Weight: 22.04 lbs. / 10 kg
Operating Temperature: 41 to 95F / 5 to 35C
Included Items: AC Cord, Owner's manual (incl. Warranty card)
Available Accessories: TASCAM RC-1F Footswitch


Audio Performance

Residual Output Noise -100dBu (MAIN OUT, MAIN fader: MIN)
Equivalent Input Noise -128dBu (Mono Input Channel, Rs: 150, GAIN knob: Max)
Total Harmonic Distortion 0.01% or less (MIC IN to MAIN OUT, Max input level, 1kHz, GAIN min.)
0.004% or less (MIC IN to MAIN OUT, +4dBu, 1kHz, GAIN min.)
Frequency Response 20Hz to 30kHz (+0.5/-1.0dB: Analog)
20Hz to 20kHz (+0.5/-1.0dB: Digital)
Crosstalk -80dB, channels/input and output (1kHz, PAN fully counter clockwise/fully clockwise)
Maximum Gain 74dB (MIC to MAIN OUT)
50dB (MIC to INSERT OUT)
74dB (MIC to SUB OUT)
79dB (MIC to CR OUT)
75dB (MIC to MONITOR OUT)
75dB (MIC to FX OUT)
24dB (USB/SD to MAIN OUT)
(EQ and-EQ flatten, PAN fully counter clockwise/fully clockwise)


Supported PC

Windows
Compatible Computers Windows-compatible computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver USB Audio Class 2.0, Model 24 ASIO2.0, WDM (MME)
Screen Resolution 1280 x 800 Dots or more
Macintosh
Compatible Computers Apple Macintosh computer with a USB2.0 port
CPU Dual core / 2GHz or faster
Memory 2GB or more
Driver Core Audio
Screen Resolution 1280 x 800 Dots or more
