TELEFUNKEN

Telefunken U47

Large diaphragm tube mic, classic mid-forward tone, extended low end, M7 capsule, BV8 transformer, VF14k tube, cardioid/omni patterns, studio legend.


$14,945.00 CAD
Shipping calculated at checkout.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The TELEFUNKEN U47 is a meticulously crafted large-diaphragm tube condenser microphone, revered as one of the most iconic studio microphones in recording history. Faithfully recreated by TELEFUNKEN Elektroakustik, this modern production maintains the sonic character and physical design of the original U47, incorporating key components such as the historically accurate BV8 output transformer and the M7 center-terminated capsule. These elements work together to deliver the U47’s legendary sound which is defined by a rich, punchy midrange, extended low-end response, and smooth top-end detail.

Ideal for vocals, electric guitar, orchestral ensembles, and chamber music, the TELEFUNKEN U47 brings a commanding presence to any source, making it a trusted choice in elite recording studios. It offers both cardioid and omnidirectional polar patterns, powered by the included VF14k vacuum tube and external M 940H power supply. Each system is hand-assembled in the USA using point-to-point wiring, and comes complete with a premium tube mic cable, elastic shock mount, wooden mic box, and a rugged flight case. This microphone is a modern classic that stays true to its vintage legacy and is ready to capture timeless recordings with authority and nuance.

Features

Iconic Studio Microphone
A faithful recreation of the legendary U47, used in top recording studios worldwide.

Signature Midrange and Low-End
Delivers punchy mids and extended bass, perfect for vocals, guitars, and orchestral recordings.

Dual Polar Patterns
Switchable between cardioid and omnidirectional for versatile recording setups.

Authentic Vintage Components
Features a US-made M7 capsule, VF14k vacuum tube, and BV8 transformer for historically accurate tone.

Hand-Wired in the USA
Point-to-point wiring ensures durability and tonal integrity, true to the original design.

Complete Microphone System

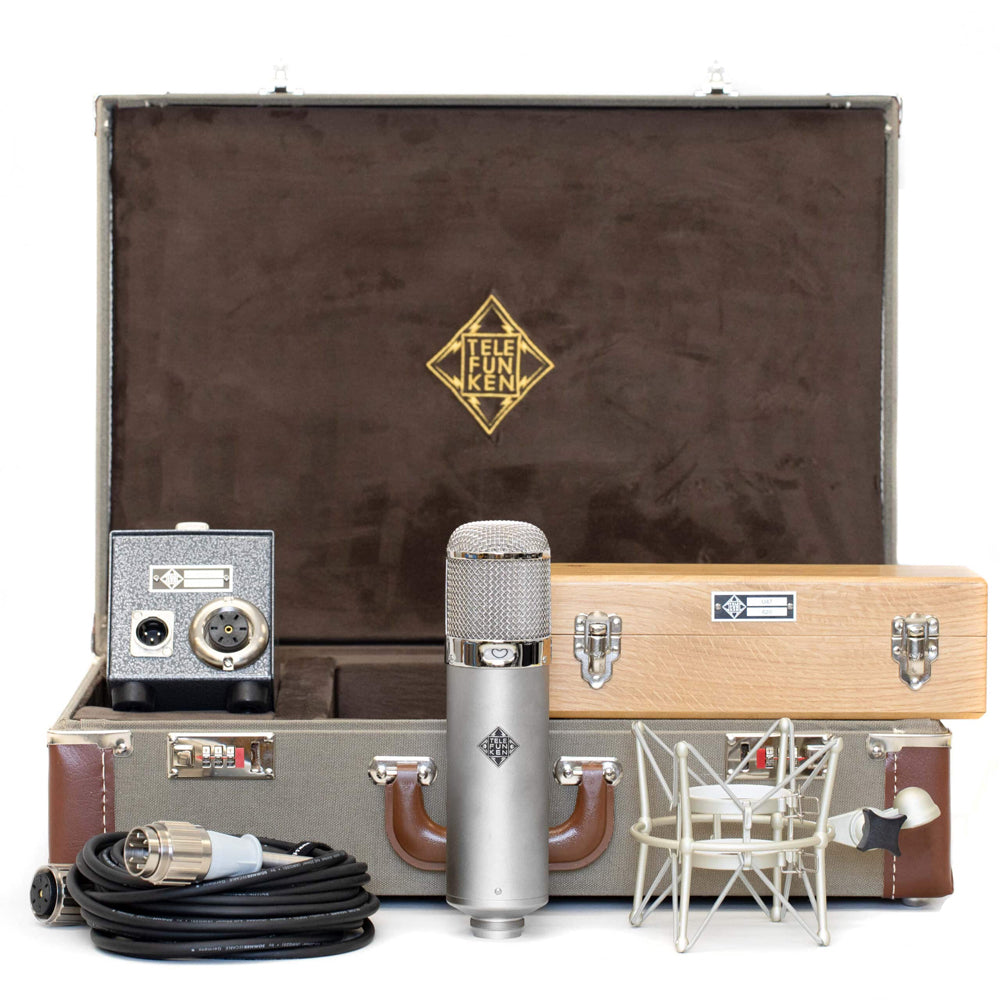

Includes power supply, 10m tube mic cable, shock mount, wooden mic box, and locking flight case.

Specifications

General Specifications
Microphone Type: Large Diaphragm Vacuum Tube Condenser
Polar Patterns: Cardioid, Omnidirectional
Frequency Range: 20 Hz – 20 kHz (±3 dB)
Capsule: TELEFUNKEN Elektroakustik M7, Center-Terminated
Tube: TELEFUNKEN Elektroakustik VF14K
Transformer: TELEFUNKEN Elektroakustik BV8
Power Source: External M 940H Power Supply
Construction: Point-to-point wired in the USA
Cable: M 840TH Sommer Tube Microphone Cable – 10m
Mount: M 740 Elastic Shock Mount
Included Cases: WB40 Wooden Microphone Box, FC40 Locking Flight Case

Performance Specifications
Sensitivity: 24.5 mV/Pa (±1 dB)
THD @ 1 kHz, 1 Pa (Amplifier): < 0.3%
Output Impedance: 200 Ω
Maximum SPL (1% THD): 127 dB
Signal-to-Noise Ratio: 85 dBA
Self-Noise: 9 dBA

Physical Specifications
Dimensions: 240 mm (L) x 60 mm (Diameter)
Weight: 620 g
