TELEX  |  SKU: 1122

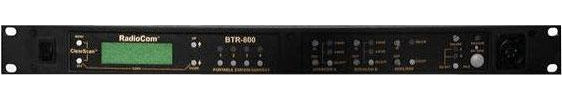

BTR-800

IFB/IEM Systems

Two-channel UHF synthesized wireless intercom base station.

$0.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Two channel UHF frequency agile wireless intercom system with two intercom channel access from each of four full duplex beltpacks, stage announce output with relay closure, wireless talk around (ISO), Enhanced ClearScan™, talk/listen headset station at the base, and much, much more. Combine all of that with an easy-to-use graphical user interface that lets you get started right out of the box, and you've got the most innovative and versatile wireless intercom ever made. But features aren't the only story.

The BTR-800 wireless intercom is a serious performer too. With technology leaps like Intelligent Power Control™ combination tone code/RF noise squelch and DSP digital audio processing, this is one wireless intercom that sounds great, even at a great distance! The BTR-800 is fully compatible with Telex, RTS and Clear-Com hardwired communications systems right out of the box. If your application requires the highest performance and utmost reliability, you need the new Telex Radiocom BTR-800 wireless intercom system.

Features

Backlit Base Station LCD Allows the user to easily monitor the beltpack's status

Base Stations are Table or Rackmountable

Beltpack units contained in a weather and shock resistant die cast magnesium case

ClearScan Function Automatically finds the best channels on which to operate

Compatible with Audiocom, RTS, Clear-Com, & Other Wired Intercom Types

Convenient IEC Power Connector on the Base Station

Frequency-Agile Base Station & Beltpacks

Full Duplex (Simultaneous Talk & Listen) Operation

Relay Contract Closure on the Base when the SA Button is Pressed

SA (Stage-Announce) Beltpack Control

TR-825 Features Two Audio Channel Binaural Operation in Either Stereo or Mono Mode

Two Channels of Intercom Audio

WTA (Wireless Talk About) Beltpack Control

Specifications

4-Wire Input and Output : Level Adjustable 2 Vrms typical

Antenna : ½ Wave (supplied), TNC Male Connector TX and RX

Auxiliary Input : Adjustable 2 Vrms typical

Auxiliary Output : Adjustable 2 Vrms typical into 600

Battery Life : 12 hrs

Battery Type : Standard Alkaline Batteries

Color : Black

Depth : 14" (355.6 mm)

Deviation : 40 kHz (35 kHz Europe)

FCC ID : B5DM514

Form Factor : Rackmount

Frequency Band of Operation : 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands

Frequency Response : 300 Hz-8 kHz

Function : Base Station

Height : 1.72" (43.7 mm)

Local Headset Output : 40 mW output into 600 1% Distortion

Microphone Input Sensitivity : 9 mV

Modulation Limiter : Peak-Responding Compressor

Modulation Type : FM
