TRIDENT

DECA Dent 500

500 Series Racks

10-slot 500 Series chassis, stereo link and feed switches, XLR, 1/4", DB-25 I/O, 130mA per slot, external auto-switching power supply

$862.67 CAD
Shipping calculated at checkout.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

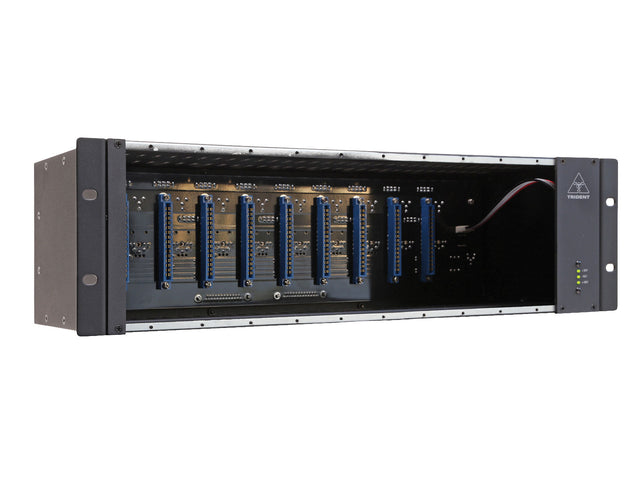

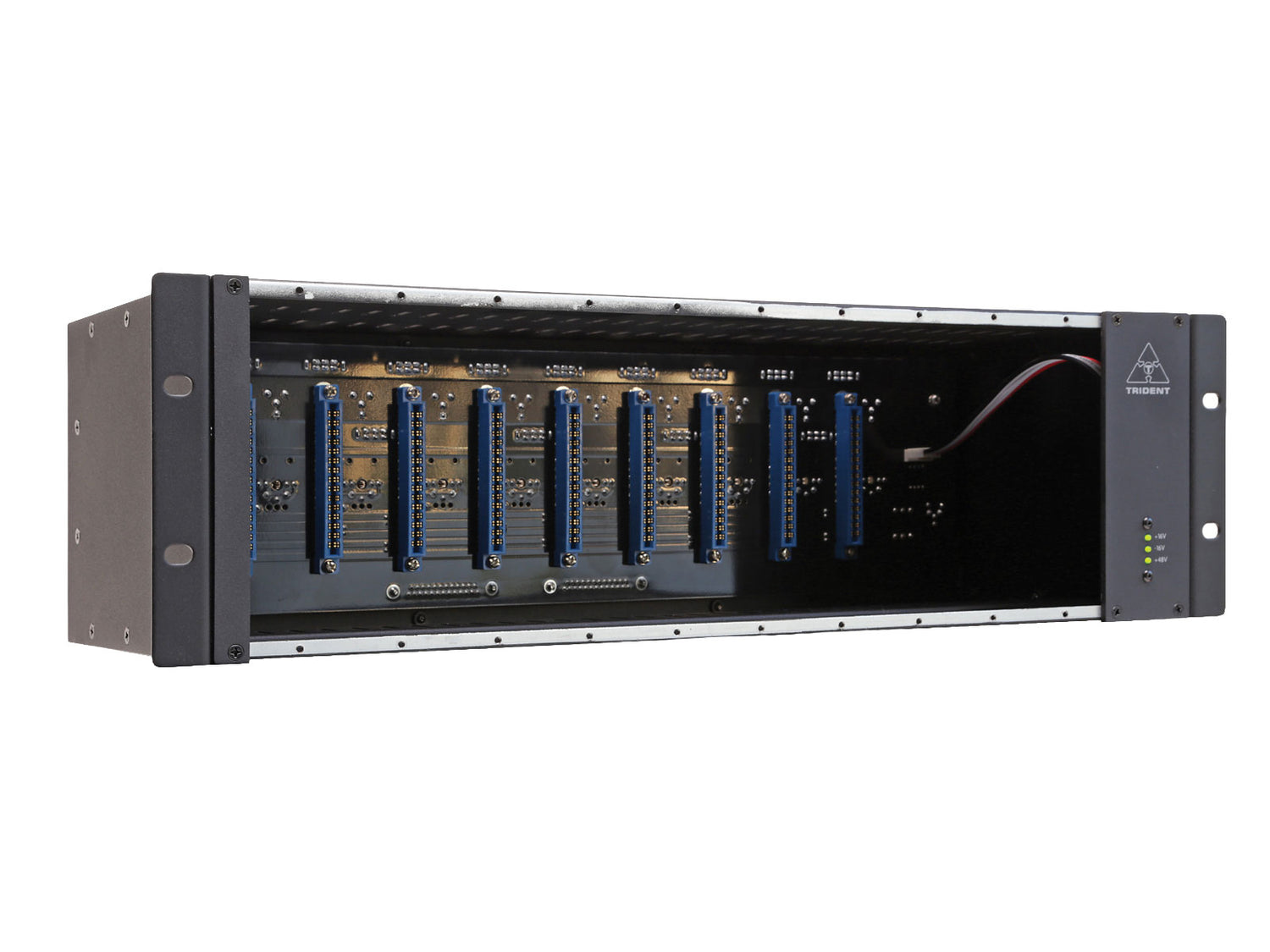

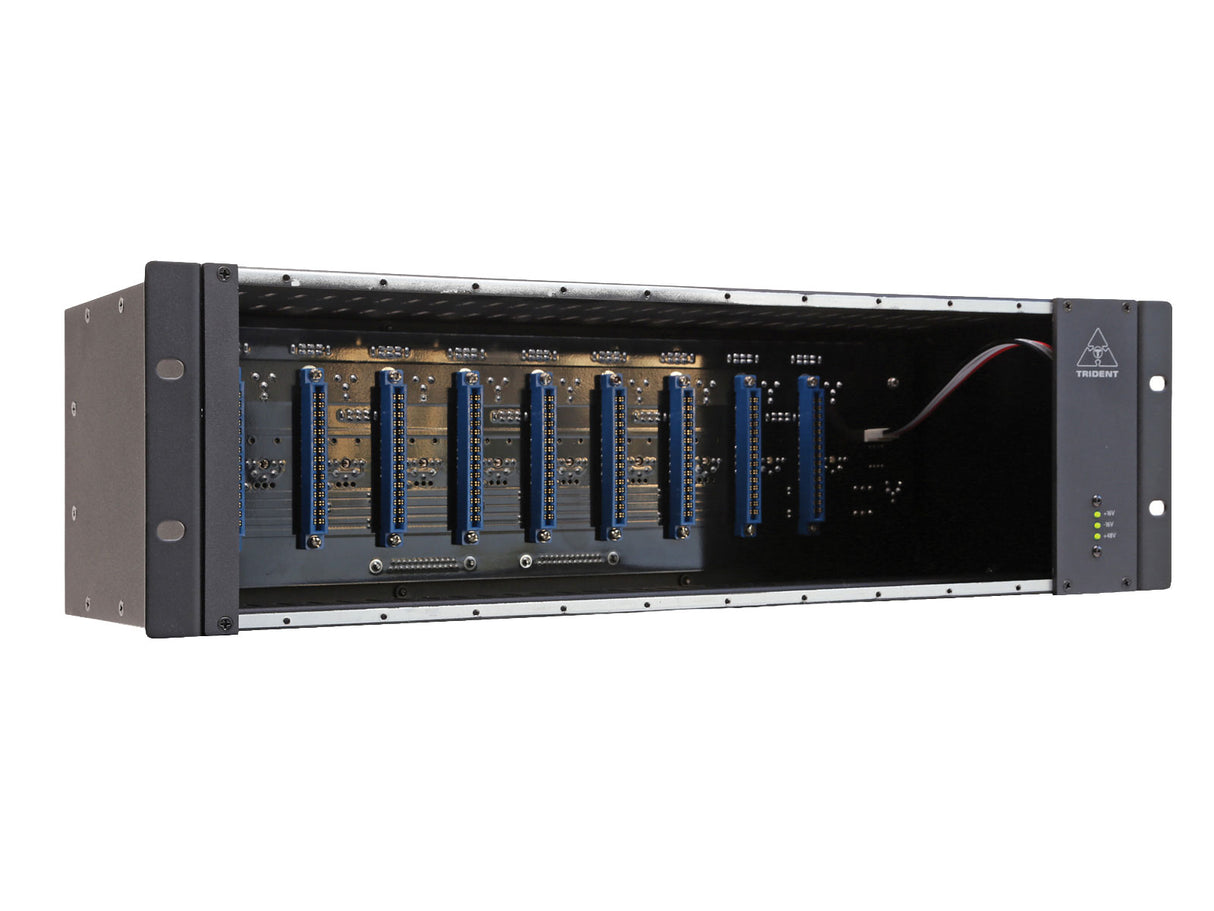

The Trident Audio Developments Deca-Dent 500 Series Chassis is a versatile and forward-thinking 10-slot rack designed to bring ultimate flexibility and ease of use to your 500 Series setup. Engineered for professionals who demand efficient workflows and robust connectivity, the Deca-Dent stands out with a uniquely comprehensive array of I/O options, including combi jacks (XLR/¼”), dedicated XLR outputs, and an integrated DB-25 (D-Sub) connector for channels 1–8 streamlining connections in studio or live environments.

More than just a chassis, the Deca-Dent introduces intelligent signal routing features typically reserved for more complex patching systems. Each adjacent pair of modules can be linked via a rear-panel “Feed” switch, allowing the output of one module to be internally routed to the next without the need for external cables. Additionally, a Stereo Link switch enables seamless stereo pairing of odd/even modules, automatically activating compatible stereo link functions within the modules themselves. This design dramatically simplifies the process of using stereo dynamics processors like compressors or EQs.

Powered by an internationally compatible external switch-mode power supply, the Deca-Dent delivers consistent, isolated power with ±16V rails and dedicated +48V phantom power, ensuring each slot receives the full 130mA spec even when all 10 slots are fully populated. Whether you're building a tracking chain, a mastering rig, or a live sound processing setup, the Deca-Dent offers a rugged, smart, and expandable solution for getting the most out of your 500 Series gear.

Features

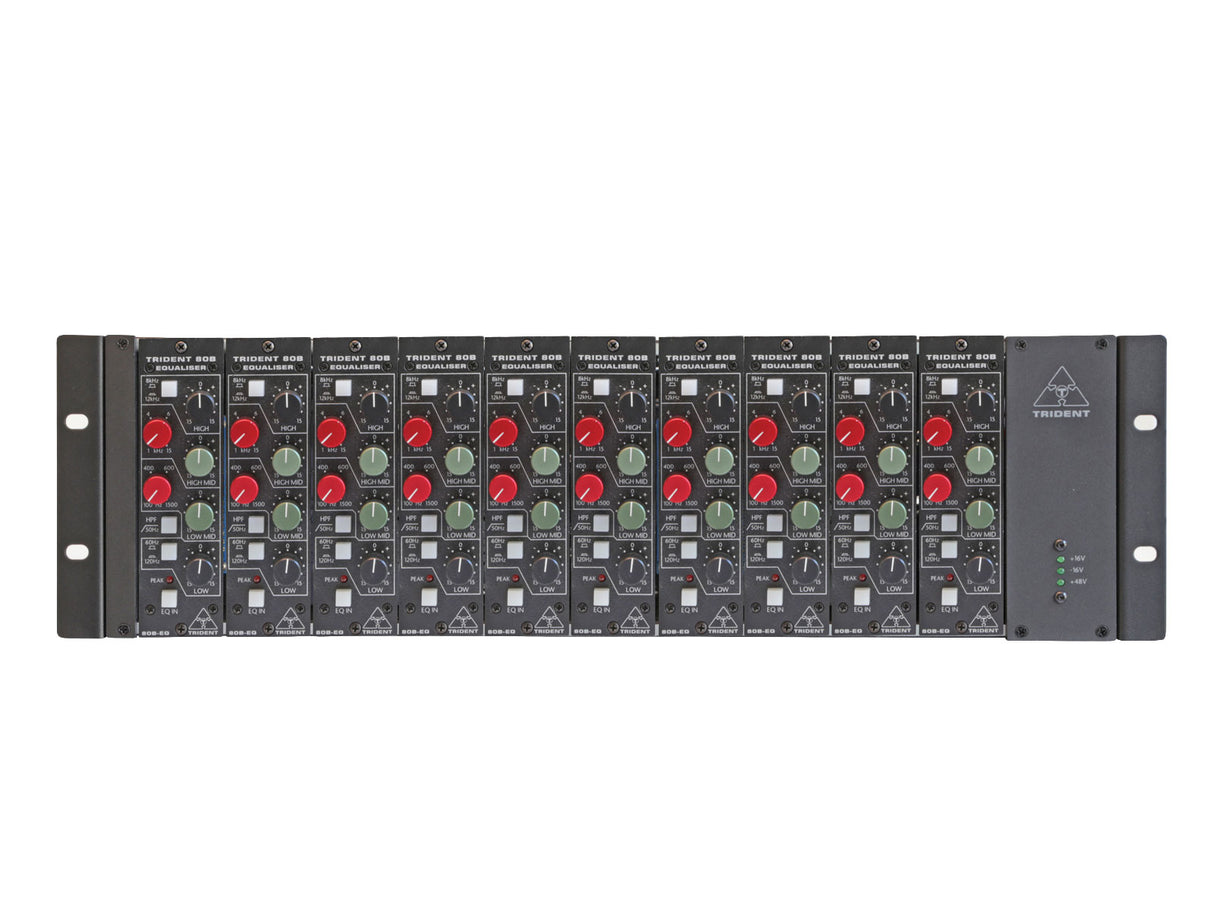

10-Slot 500 Series Rack
Holds up to ten 500 Series modules for building a custom signal processing chain.

Versatile Connection Options
Connect modules using XLR, 1/4" TRS, or DB-25 for flexible routing in any setup.

Built-In Stereo Link Function
Pairs odd/even modules for stereo operation which is ideal for compressors and limiters.

Feed Switch for Module Chaining
Routes output of one module directly into the input of the next without extra cables.

External Auto-Switching Power Supply
Delivers clean, global-ready power with +48V phantom and ±16V rails for all slots.

LED Voltage Indicators
Front panel LEDs show real-time status of all internal supply voltages.

Specifications

General Specifications
Device Type: 10-Slot 500 Series Rackmount Chassis
Compatible Modules: 500 Series Format (10 Slots)
Power Supply: External Trident Switch Mode PSU (Included)
Power Rails: ±16 VDC, +48 VDC
Max Current per Slot: 130 mA (All Slots Populated)
Stereo Link Function: Yes (Odd/Even Slot Pairs)
Channel Feed Function: Yes (Odd → Even Slot Pairs)
LED Indicators: 3 LEDs for Power Rail Status (+16V, -16V, +48V)

Input/Output
Input Connectors: 10 x Combo XLR/TRS (Front Panel)
Output Connectors: 10 x XLR (Front Panel)
DB-25 Connections: 2 x DB-25 (Rear, Modules 1–8 I/O, Tascam Pinout Standard)

Compatibility & Routing
Stereo Link Activation: Pin-6 of EDAC Connector, Activates Stereo Function on Compatible Modules
Feed Switch: Routes Output of Lower-Numbered Module to Input of Next Higher-Numbered Module
Stereo Link and Feed Switches: Independent Per Module Pair
Slot-to-Slot Configuration: Hardware Switches on Rear Panel

Power Supply Specifications
External PSU Connection: 3-Pin XLR
DC Output: ±16V @ 1.8A, +48V @ 150mA
Auto-Ranging AC Input: Yes (100–240V Compatible)

Construction & Layout
Form Factor: 19” Rackmount, 3U
Front Panel: 10 Slots with Visible Modules

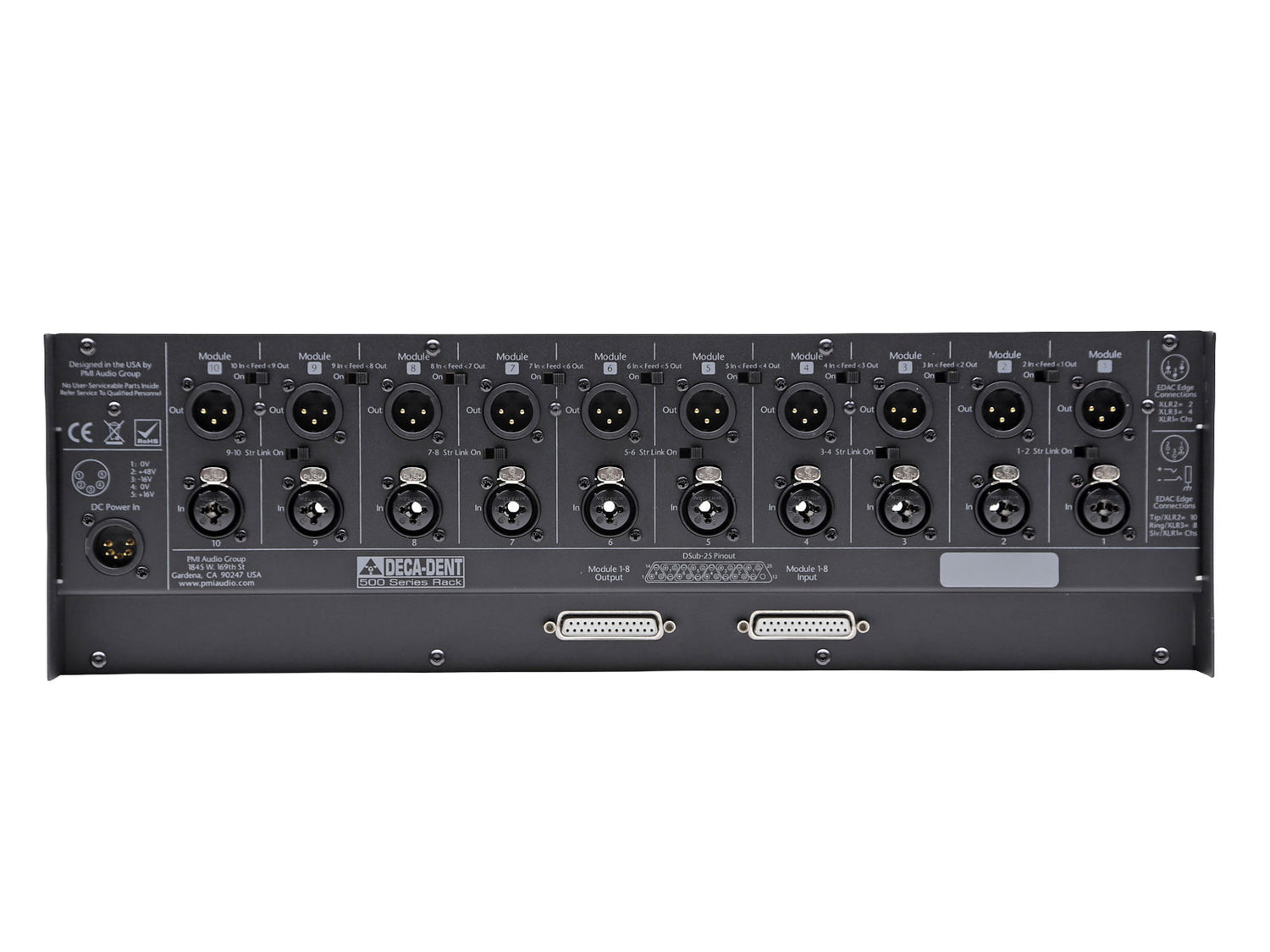

Rear Panel: Full I/O Access for Each Slot, DB-25 for Slots 1–8
Compliance: CE, FCC

Included Items
Included: Deca-Dent 500 Chassis, External Power Supply, IEC Power Cable
