RF VENUE

D-ARCB

Wireless Antennas

Architectural UHF diversity antenna, 470–698 MHz, dual BNC outputs, 3 dBi gain, low-profile wall/ceiling mount, dropout reduction, sleek black enclosure

$979.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

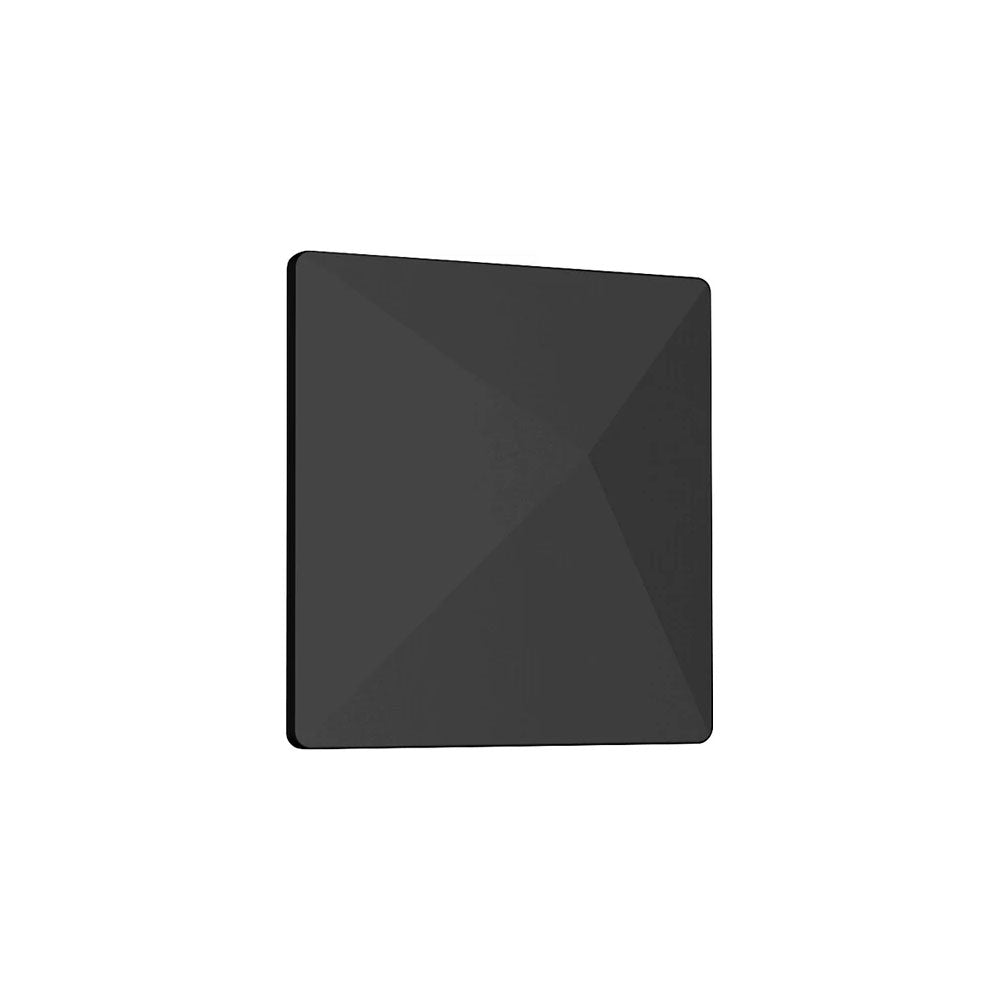

The RF Venue D-ARCB Architectural Diversity Antenna (Black) is a discreet, high-performance solution for improving UHF wireless microphone reception in professional environments. Designed to blend seamlessly into walls or ceilings, it offers enhanced reception and reduced signal dropouts which is ideal for classrooms, conference rooms, training centers, and houses of worship.

Based on RF Venue’s acclaimed Diversity Fin design, this compact antenna combines two antennas into one low-profile panel, eliminating the need for separate A/B units. Its wide UHF bandwidth (470–698 MHz) and 3 dBi gain support stable, high-quality audio performance across a broad frequency range. With dual rear-mounted BNC connectors and an easy-to-install mounting kit included, the D-ARCB offers professional-grade diversity reception in a sleek form that complements any modern interior.

Features

Enhanced UHF Wireless Reception
Reduces signal dropouts and improves clarity for wireless mic systems.

Dual Diversity Antennas in One Unit
Combines A and B diversity feeds into a single low-profile panel sono need for two separate antennas.

Wide Frequency Range
Covers 470 to 698 MHz for compatibility with most UHF wireless systems.

Discreet Architectural Design
Slim, modern enclosure blends seamlessly into walls or ceilings in professional spaces.

Flexible Mounting Options
Includes wall and ceiling mounting kits for easy and cost-effective installation.

Rear BNC Connections
Dual rear-mounted BNC ports simplify connection to in-wall or in-ceiling cabling.

Durable Build
Panel-style antenna with 3 dBi gain, operating between 14°F and 104°F.

Lightweight and Compact
Measures 11 x 11 x 2 inches and weighs only 2 lbs which is ideal for unobtrusive installations.

Specifications

General Specifications
Product Name: RF Venue D-ARCB Architectural Diversity Antenna
Device Type: Diversity Panel Antenna for UHF Wireless Microphones
Color: Black
Mounting: Wall or Ceiling Mountable (Kits Included)
Design: Low-Profile, Dual-Antenna in Single Enclosure
Application: Classrooms, Meeting Spaces, Houses of Worship, Training Centers

Wireless Specifications
Antenna Type: Panel
Number of Antennas: 2
Gain: 3 dBi
Operating Frequency: 470 – 698 MHz
Input/Output Connectors: 2 × BNC Female (Rear Mounted)
Bandwidth: Wideband UHF (470 to 616 MHz optimal performance)

Environmental Specifications
Operating Temperature: –10 to 40°C / 14 to 104°F

Physical Specifications
Dimensions (H × W × D): 50 × 280 × 280 mm / 2.0 × 11.0 × 11.0 in
Weight: 0.9 kg / 2 lb
Color: Black

Packaging Info
Package Weight: 2.73 lb
Box Dimensions (L × W × H): 12.4 × 12 × 2.6 in
