LECTROSONICS

RCWPB4

Wireless Systems

Remote control for audio processors: 4 buttons, LEDs and cover plate included.

$310.00 CAD
Shipping calculated at checkout.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

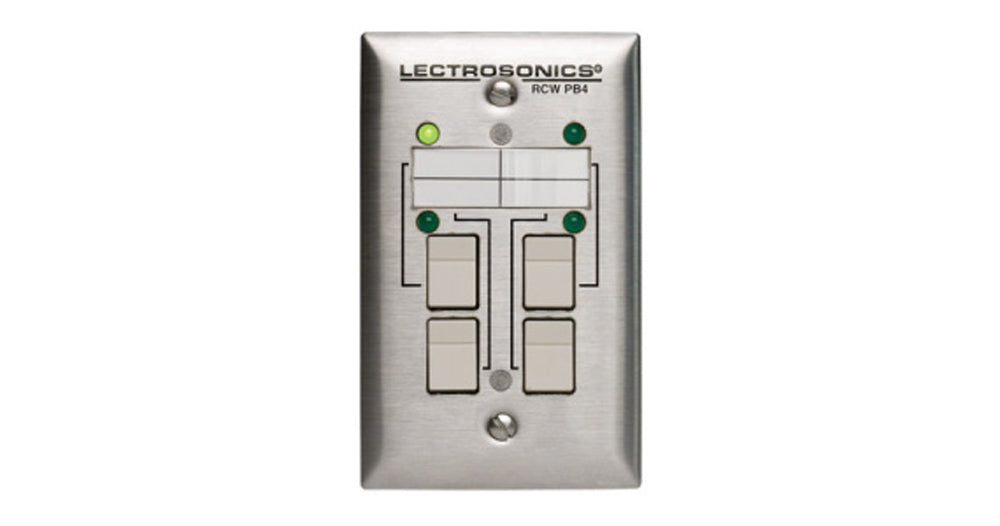

The Lectrosonics RCWPB4 is a compact and intuitive wallplate control interface designed specifically for use with Lectrosonics DM Series processors. Housed in a durable stainless steel faceplate, it provides users with a convenient way to trigger remote control operations such as launching macros or recalling presets. With four clearly labeled push buttons and corresponding LEDs, the RCWPB4 allows for immediate visual feedback—each button press activates a command on the processor and lights up the associated LED to indicate the current state. This streamlined design is ideal for setups requiring quick and reliable changes, like room combining or event presets.

Installation is straightforward, with the unit connecting via a 25-pin D-sub connector to the back of a DM Series processor. Each button on the wallplate sends a pulse to the processor, while the LED remains lit until a different button is pressed, serving as a real-time state indicator. The RCWPB4 also offers flexibility for more advanced configurations: certain LEDs (specifically LED 1 and LED 3) can be controlled directly by the DM processor instead of the button press. This allows the system to display status indicators for processor-driven events—ideal for complex automation scenarios like macros or dynamic room configurations.

Features

Remote Control for DM Processors
Provides hands-on control for Lectrosonics DM Series processors through a wall-mounted interface.

Button-Activated Commands
Each button press sends a command to the processor and lights up a corresponding LED to indicate system status.

Preset and Macro Recall
Allows users to quickly recall presets or launch macros, streamlining configuration changes like room combining.

State Indication LEDs
LEDs stay lit after a button is pressed to show the current active setting, giving clear visual feedback.

External LED Control Option
Two LEDs can be controlled by the processor itself, allowing indication of events or conditions in the DM system.

Easy Integration with DM Series
Connects via a 25-pin D-sub connector and works seamlessly with programmable inputs and outputs on the DM processor.

Specifications

General Specifications
Device Type: Wallplate Control Interface
Compatibility: Lectrosonics DM Series Processors
Connection Interface: 25-pin D-sub Connector
Button Count: 4 Momentary Pushbuttons (B1–B4)
LED Indicators: 4 LEDs (L1–L4)
LED Behavior: Single LED stays lit to indicate last state executed
Jumper Configuration: EXT1 and EXT2 jumpers for external LED control
Labeling: Label space provided next to each LED
Construction: Wallplate-mount with brushed metal finish
Power Requirement: +5V DC via DM processor
Operation Mode: State Indicator (non-toggle behavior)
Application Examples: Macro Triggering, Preset Recall, Room Combining

Input/Output Configuration
Button 1 / LED 1: Pin 2
Button 2 / LED 2: Pin 3
Button 3 / LED 3: Pin 4
Button 4 / LED 4: Pin 5
EXT1 (LED1 Control Input): Pin 6
EXT2 (LED3 Control Input): Pin 7
Power (+5V DC): Pin 1
Ground: Pin 8

Functionality
Basic Operation: Button press triggers pulse to DM processor and lights corresponding LED, turns off others
Repeated Press: Sends pulse each time, LED remains lit (no toggle)
External LED Control: Pins 6 and 7 allow DM to control LEDs 1 and 3
Macro Triggering: Buttons wired to DM programmable inputs
LED Control by DM Events: Via programmable output and EXT jumper removal
