MAMMOTH CABLES

MM2534 XLRF5-XLRM5 15'

XLR & Microphones Cables

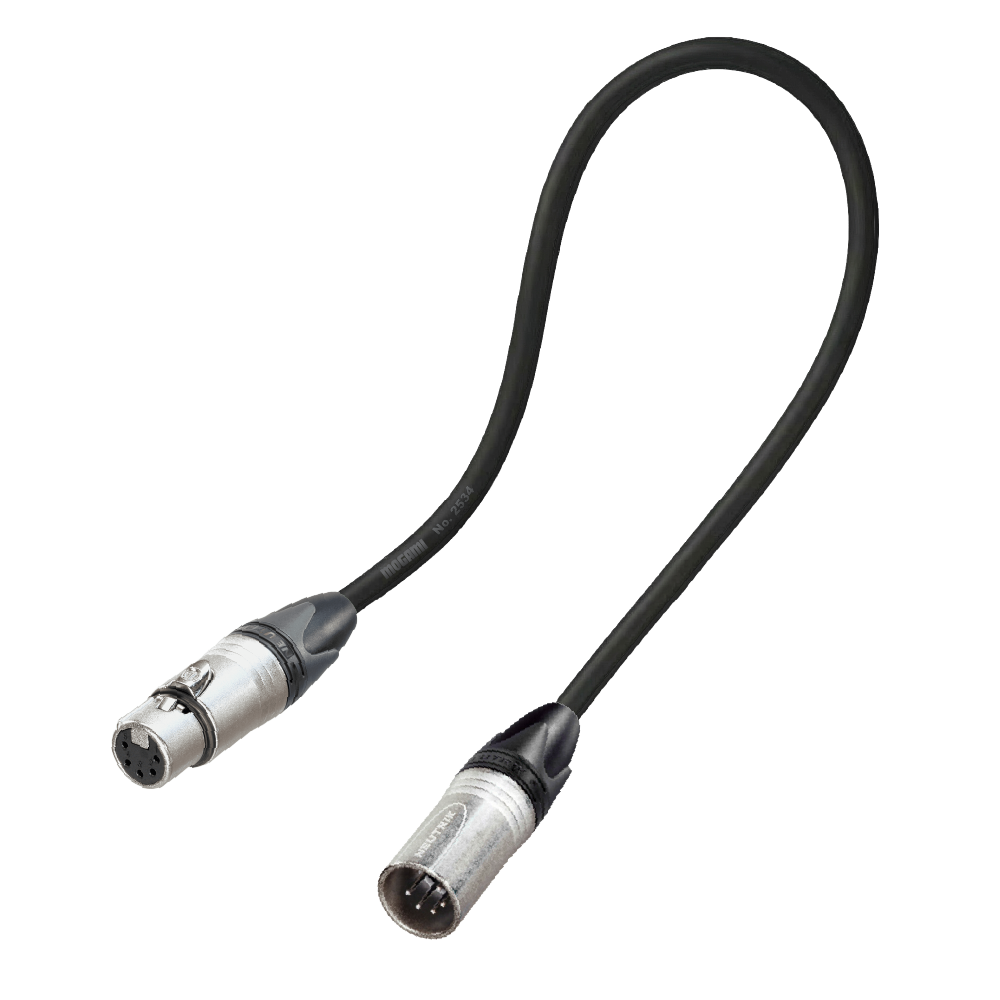

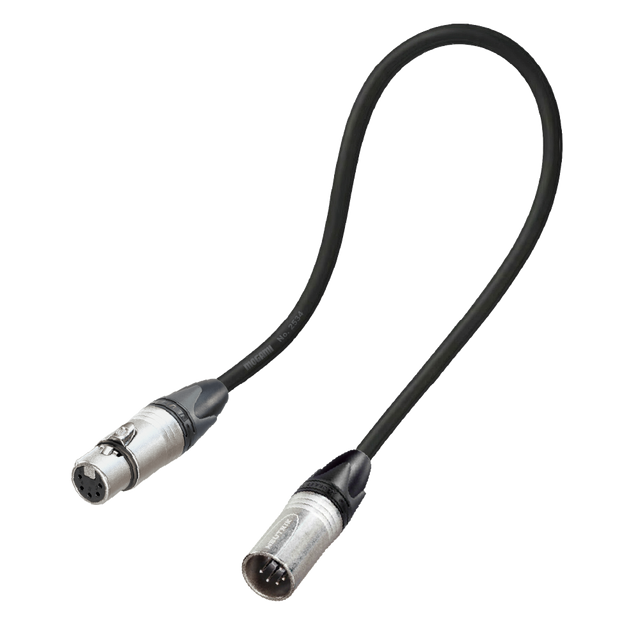

Balanced 5 pin microphone cable, star-quad OFC conductors, XLR5 male to female, low capacitance, full shield, flexible PVC jacket, 15 ft, black

$107.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Mogami W2534 Neglex Quad Microphone Cables
Mogami Neglex quad cable is perfect cable for home studios suffering from wiring and grounding problems. Mogami 2534 should also be used where intense RFI interference is a problem. Mogami 2534 provides an improvement in signal to noise of 10-20db over equivalent twisted pair cables. Double conductors quad cables are more effective in canceling noise that can get past even the best of shields and is critical in an environment of high RF and EM interference.

NC5MXX-B
5 pole male cable connector with black metal housing and gold contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

NC5FXX-B
5 pole female cable connector with black metal housing and gold contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features

Flexible and Easy Routing
Designed for smooth handling and efficient cable management in various setups.

Durable Outer Jacket
Resists wear, bending, and abrasion for long-term reliability.

Clean Signal Transfer
Delivers low-noise, high-quality audio for professional applications.

Studio and Field Ready
Ideal for use in both controlled studio environments and live or mobile setups.

Heat-Resistant Build
Ensures strong, long-lasting internal connections for dependable performance.

Balanced 5-Pin XLR Connection
Supports stable, interference-resistant signal transmission between devices.

Secure Locking Connectors
XLR5 connectors provide a firm and reliable connection during operation.

Reliable Performance
Built for consistent use in both fixed installations and portable rigs.

Multi-Purpose Use
Suitable for audio, video, and professional production applications.

Specifications

General Specifications
Product Type: Balanced Microphone Cable Assembly
Cable Type: Star-quad balanced audio cable
Application: Microphone and line-level signal transmission
Cable Model: Mogami W2534 Neglex Quad
Configuration: XLR5 male to XLR5 female

Cable Construction
Conductor: 4 × 0.226 mm² (24 AWG) Neglex OFC
Stranding: 60 strands of 0.08 mm annealed bare copper per conductor
Insulation: Cross-linked polyethylene (XLPE)
Shield: Served shield, 100% coverage
Construction: Star-quad configuration
Capacitance: Low
Outer Diameter: 6.0 mm
Jacket Material: Flexible PVC
Flexibility: High flexibility for routing and handling

Connector A (XLR5 Male)
Type: 5-pin XLR male
Model: Neutrik NC5MXX-B
Contact Plating: Silver
Housing: Zinc diecast, black finish
Contact Resistance: ≤ 3 mΩ
Capacitance Between Contacts: ≤ 4 pF
Dielectric Strength: 1.5 kV DC
Insulation Resistance: > 10 GΩ
Rated Current: 16 A per contact
Rated Voltage: < 50 V
Mechanical Life: >1,000 mating cycles

Connector B (XLR5 Female)
Type: 5-pin XLR female
Model: Neutrik NC5FXX-B
Contact Plating: Silver
Housing: Zinc diecast, black finish
Locking Mechanism: Latch lock
Contact Resistance: ≤ 3 mΩ
Capacitance Between Contacts: ≤ 4 pF
Dielectric Strength: 1.5 kV DC
Insulation Resistance: > 10 GΩ
Rated Current: 16 A per contact
Rated Voltage: < 50 V
Mechanical Life: >1,000 mating cycles

Electrical
Signal Type: Balanced analog audio
Noise Rejection: Very high (star-quad geometry + full shield)
Microphonic Noise: Very low

Environmental
Operating Temperature: Down to -20°C (-4°F)
Flexibility: Maintains flexibility at low temperatures
Use Case: Studio, broadcast, stage, remote, sound reinforcement

Assembly
Termination: Hand-soldered
Insulation: Heat shrink tubing for strain relief
Compatibility: Mixers, preamps, interfaces, patch bays
Shield Connection: Pin 1 to pin 1

Physical
Length: 15 ft
Color: Black
