ZAXCOM  |  SKU: 24364

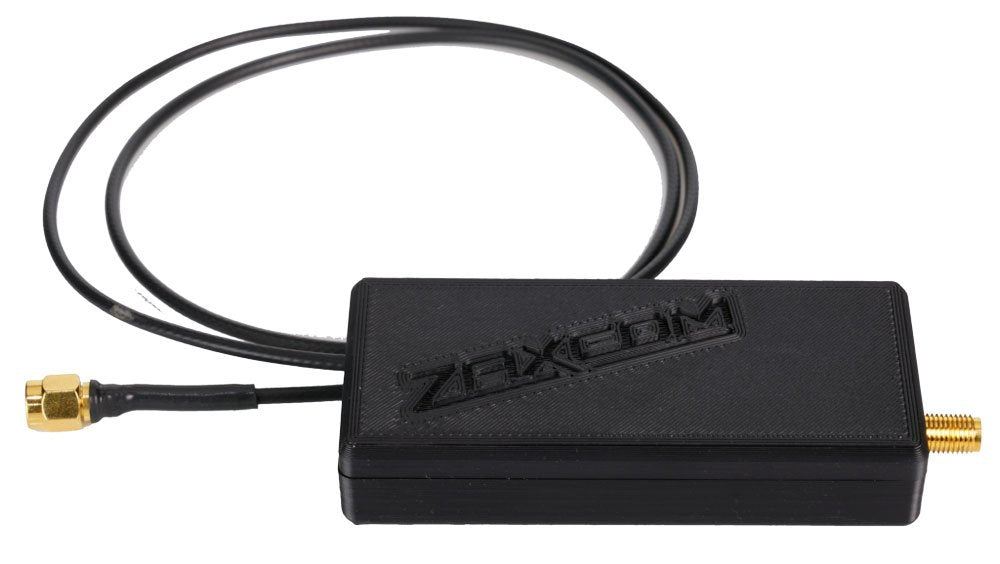

FDP2

Bodypack Transmitters Accessories

Antenna filter with 35 MHz bandwidth, 512-692 MHz tuning, 50 dB out-of-band rejection, 3 dB loss at center, SMA/SSMA connectors, 50 ohm impedance

$425.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The FDP2 Filter Antenna is a precision-engineered RF filter designed to optimize performance in both wireless transmitter and receiver systems. It serves a dual purpose: suppressing out-of-band interference and enhancing signal clarity, especially in environments with multiple RF sources. Factory-tuned to a specific frequency between 512 MHz and 692 MHz, the FDP2 ensures only signals within a 35 MHz window around the selected center frequency are allowed to pass through. This makes it an essential tool for professionals working in live sound, broadcasting, or any application where clean and interference-free RF transmission is critical.

In transmitter setups, the FDP2 significantly reduces out-of-band noise, allowing transmit antennas to be placed near receiving antennas without risking signal desensitization. For receivers, it acts as a barrier against disruptive signals, such as nearby walkie-talkies, by filtering out frequencies outside its tuned range. The unit is universally compatible with RF devices from any manufacturer, and its rugged, compact design includes SMA or SSMA connectors. With multiple block options available, users can select the most appropriate frequency range for their specific application, although some upper-range blocks are no longer permitted for use in the USA.

Features

Reduces Transmitter Noise: Suppresses unwanted RF noise from transmitters to prevent interference with nearby receivers.

Improves Receiver Performance: Blocks out-of-band interference, helping receivers focus only on desired signals, even in noisy environments.

Custom Frequency Tuning: Factory-tuned to a specific center frequency between 512 MHz and 692 MHz for precise filtering.

Broad Compatibility: Works with any RF transmitter or receiver, regardless of brand.

Targeted Bandpass Filtering: Allows signals within a 35 MHz range to pass through while reducing others significantly.

Interference Protection: Helps prevent overload from nearby devices like walkie-talkies or other RF sources.

Specifications

General Specifications

RF bandpass filter for transmitter and receiver applications

Factory-tuned to user-specified center frequency within 512-692 MHz

Compatible with any RF transmitter or receiver

Frequency Specifications

Frequency range: 512-692 MHz

Center frequency options: Any within 512-692 MHz

Bandwidth: 30-35 MHz

Frequency Blocks

Block 20: 518-542 MHz

Block 21: 536-572 MHz

Block 22: 560-590 MHz

Block 23: 590-614 MHz

Block 24: 614-644 MHz (not available for use/sale in USA)

Block 25: 638-668 MHz (not available for use/sale in USA)

Block 26: 662-692 MHz (not available for use/sale in USA)

Performance

Filter loss at center frequency: 3 dB

Maximum out-of-band rejection: 50 dB

Roll-off rate: ~2 dB/MHz outside bandpass

Electrical

Impedance: 50 ohms input/output

Connectors

Input: SMA or SSMA

Output: SMA
