BAE

1084 - Mic Pre/EQ Module

Preamp EQ

The BAE 1084 Module is an authentic reproduction of vintage Neve 1084 console module. It fits the BAE racks for vintage Neve modules as well as fitting into vintage Neve 80 series.

$4,785.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The BAE 1084 is as authentic as you can get to the original, featuring the same St Ives (Carnhill) transformers as the vintage modules, Elma switches and Canford wire.

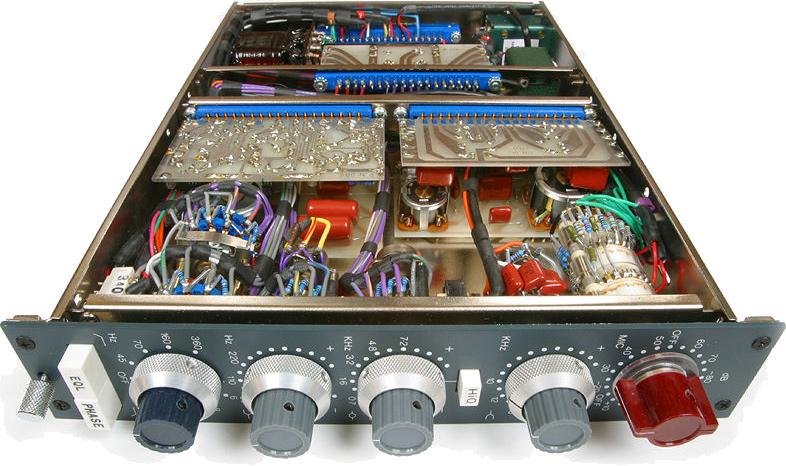

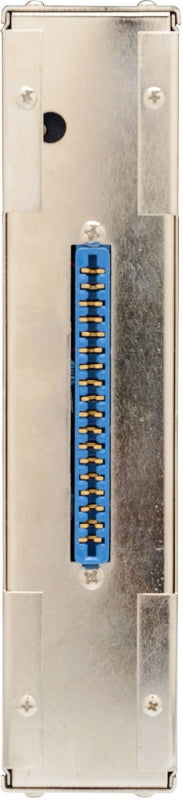

The BAE 1084 looks identical to the original vintage module and will happily retrofit in vintage Neve 80 Series consoles because the entire product is engineered in exactly the same way as the originals: the same chassis construction, connectors, printed circuit board layouts, hand-wired looms, and circuitry.

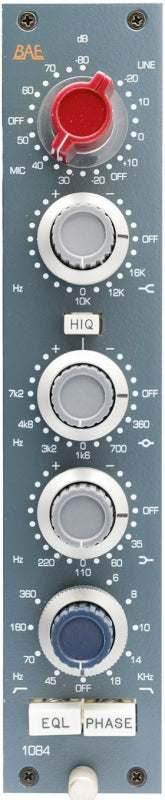

Features

High Frequency: +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz

Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.

Mid Range: +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.

High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz

EQ Button: Switches the equaliser on or off

Phase Button: 180

Specifications

Frequency Response


10Hz to -3dB at 55kHz

3 Band Equaliser


HF:+/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

High Pass Filter


50Hz, 80Hz, 160Hz & 300Hz

Low Pass Filter


6kHz, 8kHz, 10kHz, 14kHz, & 18kHz

Mic Input Impedance


1200/300 ohms

Line Input Impedance


10k ohms

DI Input Impedance


150k ohms

Output Impedance


65 ohms

Common Mode Rejection Ratio


100dB min @ 60Hz

Maximum Output Level


+27.4 dBu @ 600

Power Requirements


115/230 VAC, 28W

Gain dB


0 to 80 dB

Equivalent Input Noise


-110 dBu; Unweighted 300kHz Bandwidth

Weight (Module/Rackmount)


6 LBS/2.72 KG
10 LBS/4.54 KG

Dimensions in Inches (Module/Rackmount)


45 mm W x 8.75 inches H x 10.5 inches D
19W x 1.75L x 9D
