TRINNOV AUDIO

3D Mic

Name: 3D Mic
Brand: TRINNOV AUDIO
SKU: 16701
Price: 1245.00 CAD
Availability: InStock

ID: 16701

MONITORING | Monitoring Controls

Measurement microphone, tetrahedral capsule array, 3D speaker localization, 20 Hz to 24 kHz frequency response

$1,245.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

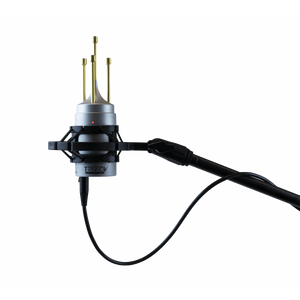

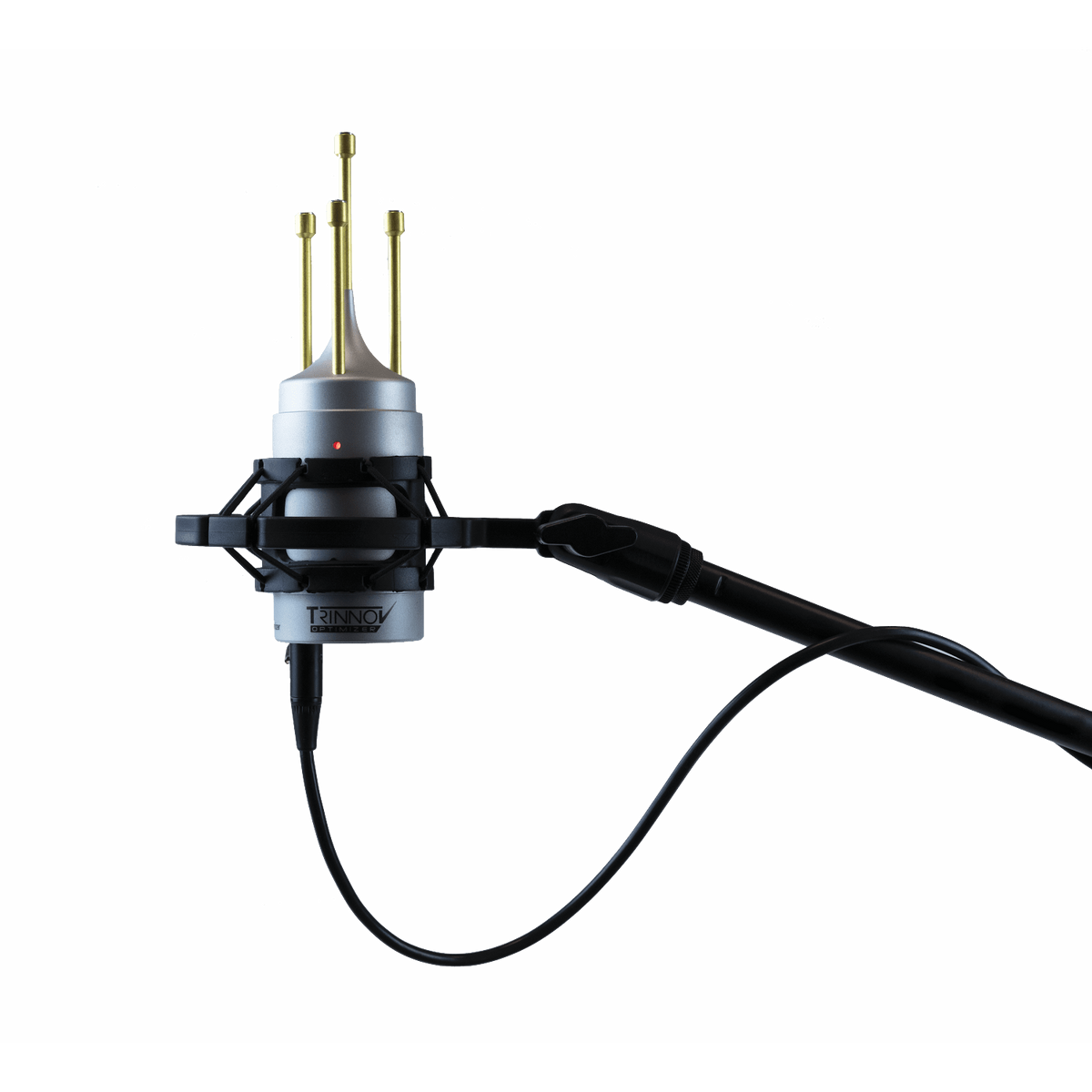

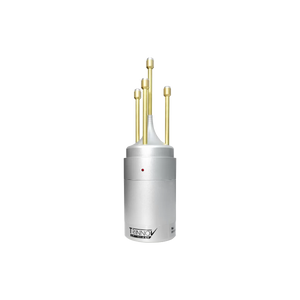

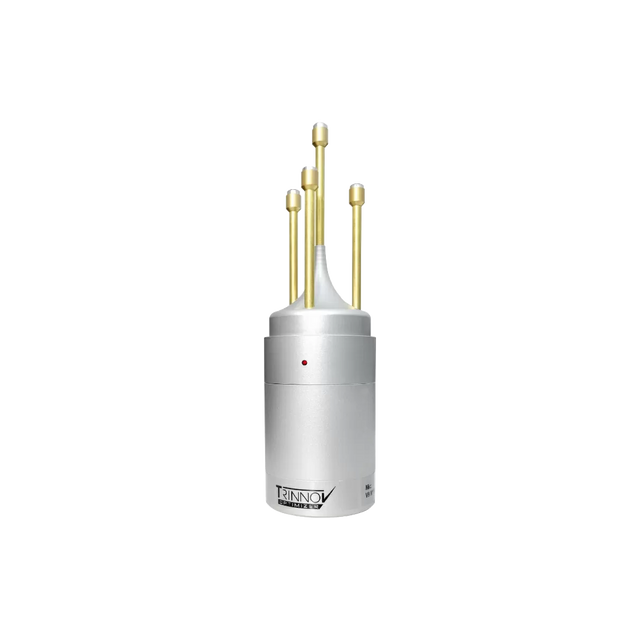

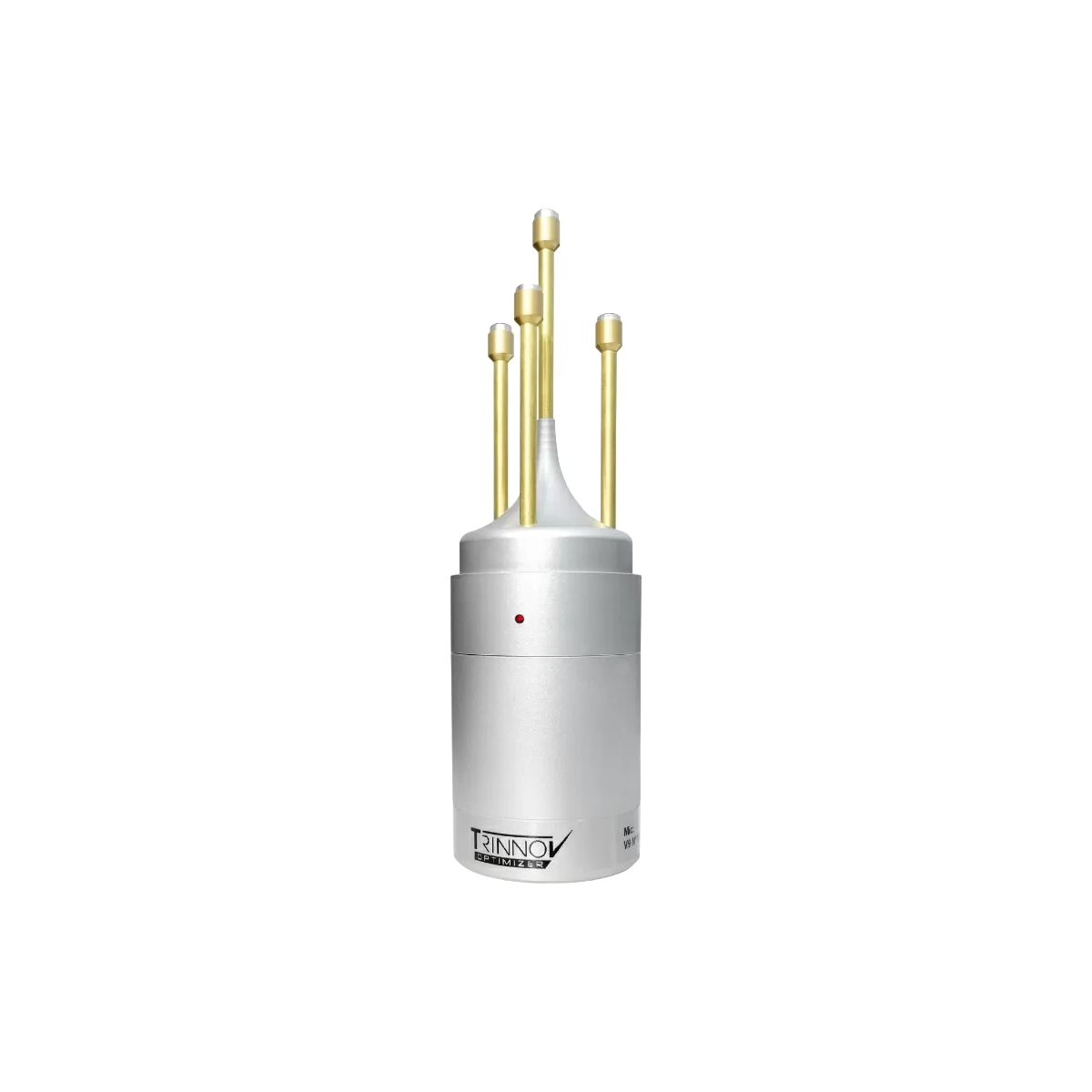

This individually calibrated measurement microphone captures detailed acoustic data for loudspeaker and room calibration. Its tetrahedral capsule arrangement measures frequency response, phase, group delay, impulse response, distance, azimuth, elevation, and absolute sound pressure level while locating each speaker and subwoofer in three dimensions.

Positioned at the main listening location, the microphone helps compatible processors map the physical speaker layout and identify early reflections for acoustic field processing and Remapping. Version-specific cable, power, compatibility, and compensation-file requirements support selected professional and residential processors.

Features

Three-Dimensional Localization
The tetrahedral microphone array triangulates the azimuth, elevation, and distance of each measured speaker and subwoofer.

Comprehensive Acoustic Measurement
Captures frequency response, phase, group delay, impulse response, distance, direction, and absolute sound pressure level.

Individually Calibrated
Every microphone is tested and measured at the factory to support precise acoustic measurements.

Wide Frequency Response
Provides a flat measurement response from 20 Hz to 24 kHz within ±0.1 dB.

Accurate Position Detection
Locates sound sources within 2° of azimuth, 2° of elevation, and less than 1 cm of distance.

Remapping Support
Supplies the three-dimensional speaker-position data required by compatible processors for proprietary Remapping.

Specifications

Technical Specifications
Individual Calibration: Yes
3D Speaker Localization: Yes
Frequency Response: 20 Hz to 24 kHz, ±0.1 dB
Azimuth Precision: 2°
Elevation Precision: 2°
Distance Measurement Precision: Less than 1 cm
Absolute Level Measurement: Yes

Attached-Cable Versions
Microphone Cable: Attached cable with four XLR3 connectors
Compatibility: Compatible processors excluding NOVA and AltitudeCI
Power: Built-in 9 V battery
Compensation File Upload: USB stick or my.trinnov.audio dealer portal

Detachable Battery-Powered Versions

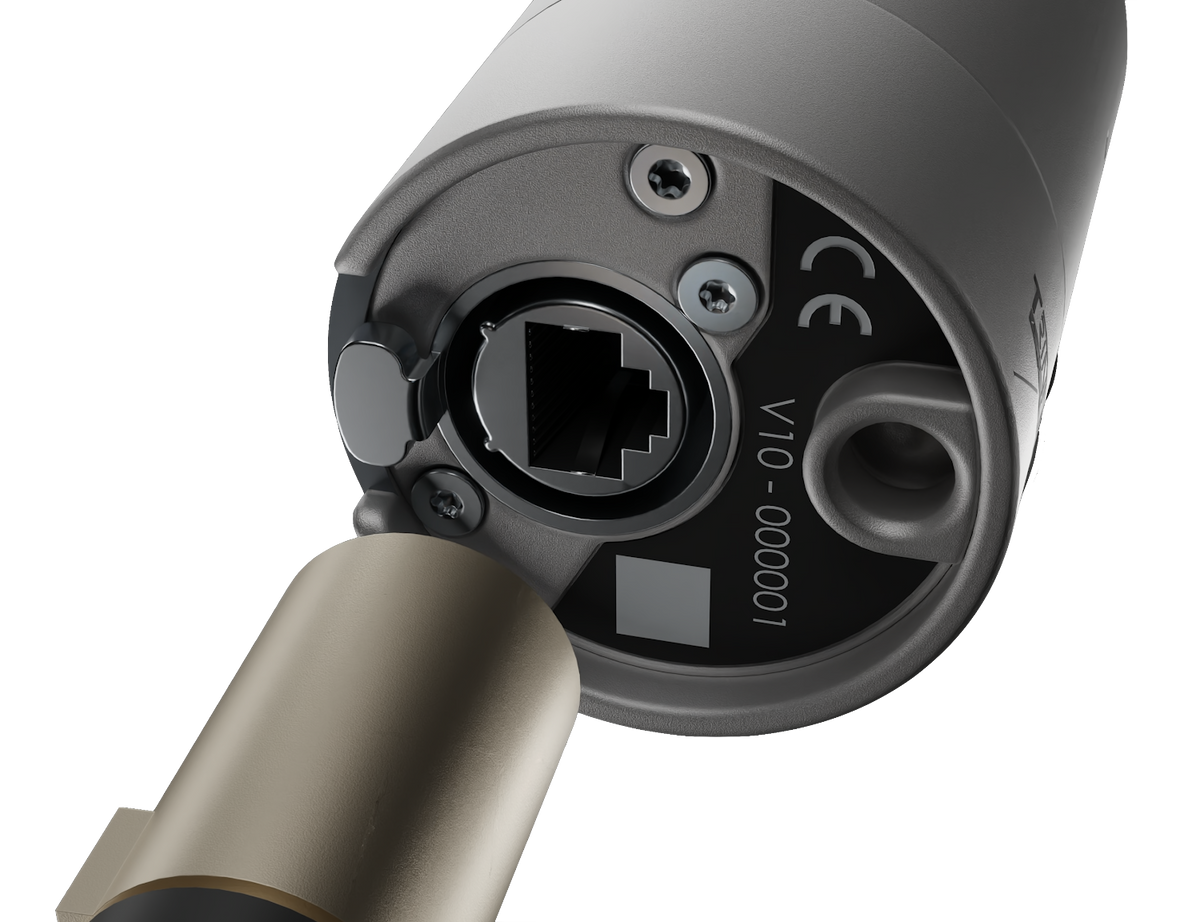

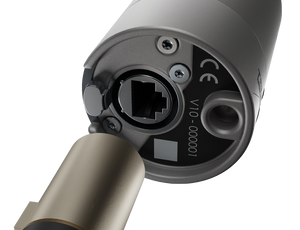

Microphone Cable: Detachable
Compatibility: Compatible processors with the correct cable, excluding NOVA and AltitudeCI
Power: Built-in 9 V battery
Compensation File Upload: USB stick or my.trinnov.audio dealer portal

Phantom-Powered Versions
Microphone Cable: Detachable
Compatibility: NOVA and AltitudeCI
Power: Phantom power supplied by the processor
Compensation File Upload: Automatic through the calibration wizard
