DPA  |  SKU: 23217

4011-DF-G-B01-030

Lavaliers & Headsets

Cardioid condenser mic with 12" gooseneck, 20Hz"20kHz response, 144dB SPL, low distortion, modular design, ideal for podiums, stages, and studio use.

$2,655.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

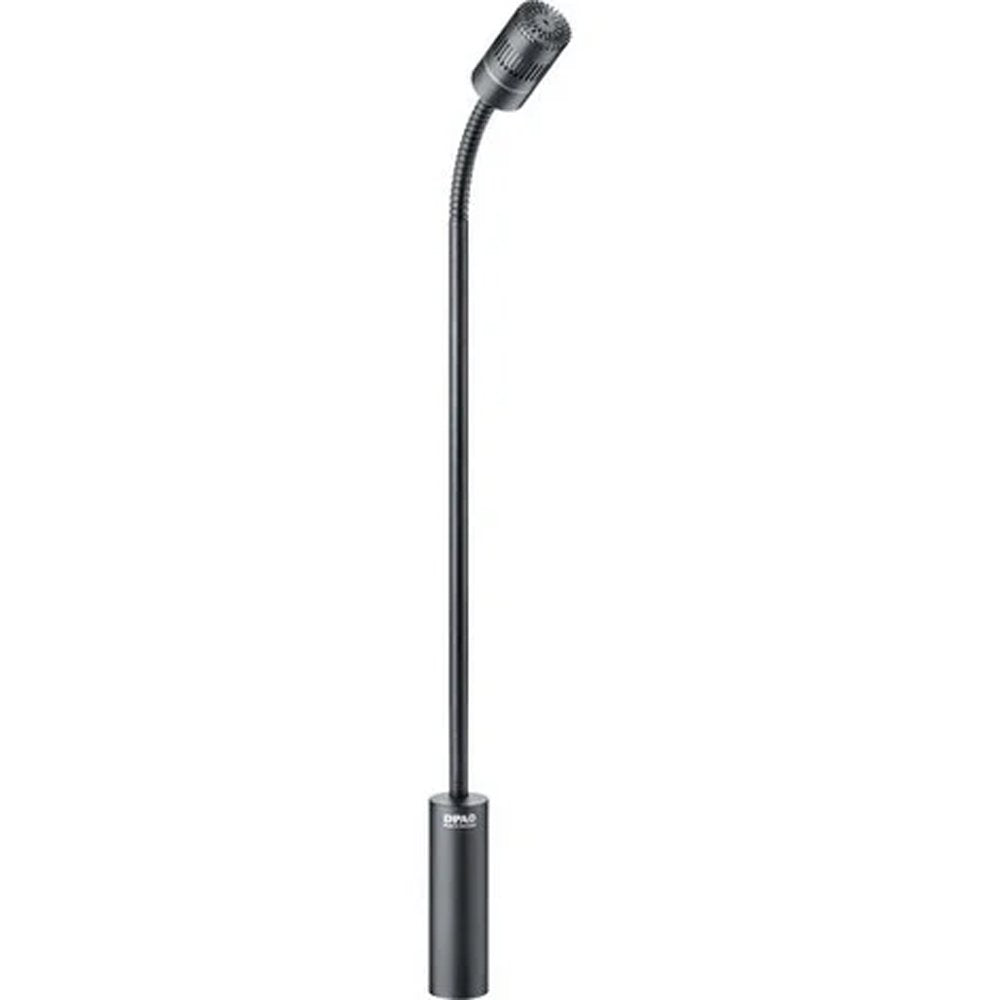

The DPA 4011-DF-G-B01-030 is a professional-grade cardioid condenser microphone mounted on a 32 cm (13-inch) gooseneck boom, designed for applications such as podiums, conference tables, and other settings requiring precise audio capture. Its cardioid polar pattern provides excellent off-axis rejection, ensuring focused sound pickup and minimizing unwanted ambient noise.

Equipped with the renowned MMC4011 cardioid capsule, the microphone delivers a flat on-axis frequency response and excellent phase response, faithfully reproducing the original sound source with low distortion and a wide dynamic range. This makes it suitable for capturing speech and acoustic instruments with high fidelity.

The 32 cm gooseneck allows for flexible positioning, making it ideal for podiums and conference tables where a low-profile microphone is desired. The modular nature of the microphone system enables easy reconfiguration with different DPA capsules and preamplifiers to adapt to various recording scenarios.

Features

High-Quality Audio Capture: Features the renowned MMC4011 cardioid capsule for precise and natural sound reproduction.

Directional Cardioid Pattern: Provides excellent separation between sound sources, ideal for close-miking applications.

Compact Gooseneck Design: Equipped with a 13-inch (32 cm) boom, offering flexible positioning in podium and desktop setups.

Elegant and Durable Construction: Non-reflective black finish suits various professional environments.

Integrated Shock Mount: Minimizes handling noise and vibrations for clear audio output.

Modular System Compatibility: Part of DPA's modular series, allowing interchangeability with other capsules and preamplifiers for versatile configurations.

High SPL Handling: Capable of managing high sound pressure levels, making it suitable for a variety of instruments and vocals.

Specifications

Directional Pattern: Cardioid

Principle of Operation: Pressure gradient

Cartridge Type: Pre-polarized condenser

Frequency Response: 20 Hz " 20 kHz

Effective Frequency Range (±2 dB, at 30 cm): 40 Hz " 20 kHz

Sensitivity (nominal, ±2 dB at 1 kHz): 10 mV/Pa; -40 dB re. 1 V/Pa

Equivalent Noise Level (A-weighted): Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))

Equivalent Noise Level (ITU-R BS.468-4): Typ. 25 dB (max. 27 dB)

Total Harmonic Distortion (THD): < 1% up to 136 dB SPL RMS, 139 dB SPL peak

Dynamic Range: Typ. 121 dB

Max. SPL (THD <10%): 144 dB SPL peak

Rated Output Impedance: 100 ohms

Minimum Load Impedance: 2 kiloohms

Cable Drive Capability: 100 m (328 ft)

Output Balance Principle: Impedance balancing

Common Mode Rejection Ratio (CMRR): > 40 dB

Power Supply: P48 (Phantom Power)

Current Consumption: 3.5 mA

Connector: XLR-3M

Microphone Diameter: 19 mm (0.75 in)

Capsule Diameter: 19 mm (0.75 in)

Microphone Length: Capsule: 23 mm (0.9 in); Boom pole: 32 cm (13 in)
