DPA

4071-OP-C-W90

Name: 4071-OP-C-W90
Brand: DPA
SKU: 62117
Price: 910.00 CAD
Availability: InStock

ID: 62117

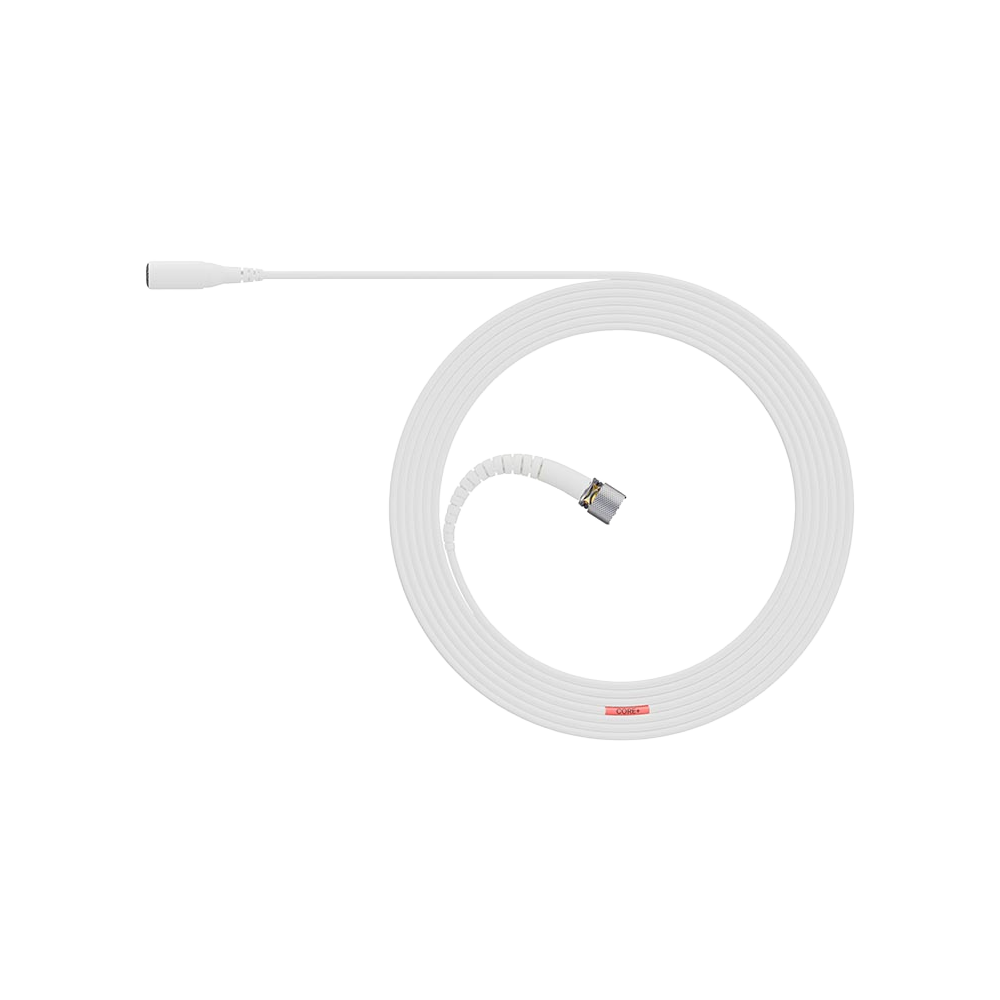

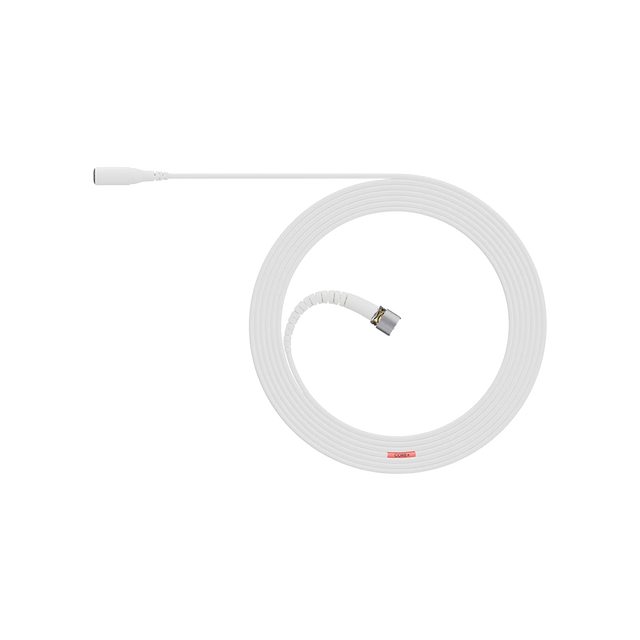

Omnidirectional lavalier microphone, white finish, presence boost, loud-SPL capacity, CORE+ technology, MicroLock connector

$910.00 CAD

Shipping calculated at checkout.

Want an alert when this item is on sale?

Delivery & Shipping

Free shipping is available on eligible orders over $200 CAD. Remote regions and oversized or overweight items may be subject to additional shipping charges.

For full details, please review our View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

This white miniature omnidirectional condenser lavalier microphone is optimized for speech captured from the chest or concealed beneath clothing. A typical 5 dB presence boost from 4 to 6 kHz supports consonant clarity and speech intelligibility, while the integrated 100 Hz acoustic low-cut reduces rumble, handling noise, and proximity effect. It is well suited to ENG production, studio reporting, film, performance, and other body-worn applications.

CORE+ technology neutralizes distortion across the microphone's dynamic range, supporting clear sound at levels up to 144 dB SPL peak. The compact capsule, humidity-resistant Double Vent Protection System, reinforced cable relief, and secure MicroLock connector provide a dependable setup for demanding productions and compatible professional wireless systems.

Features

Speech-Focused Presence Boost
A typical 5 dB boost from 4 to 6 kHz supports clear consonants and improved speech intelligibility from chest placement.

Integrated Acoustic Low-Cut
The 100 Hz acoustic low-cut helps reduce low-frequency rumble, handling noise, and proximity effect while preserving system headroom.

CORE+ Technology
Advanced distortion control supports clean, consistent audio throughout the microphone's dynamic range.

Loud-SPL Capability
The microphone accommodates sound pressure levels up to 144 dB SPL peak for demanding body-worn applications.

Omnidirectional Pickup
The omnidirectional pattern captures sound consistently around the microphone and supports flexible placement.

Moisture-Resistant Construction
The Double Vent Protection System provides increased resistance to humidity and sweat.

Secure MicroLock Connection
The locking connector provides a dependable connection with compatibility across a modular adapter system.

Discreet White Design
The miniature white housing supports unobtrusive placement on light clothing or beneath wardrobe.

Specifications

General Specifications
Product Type: Miniature lavalier microphone
Color: White
SPL Application: Loud SPL
Audio Technology: CORE+
Connector: MicroLock
Grid Type: Fixed

Acoustic Specifications
Directional Pattern: Omnidirectional
Operating Principle: Pressure
Cartridge Type: Pre-polarized condenser
Frequency Response: 20 Hz to 20 kHz
Effective Frequency Range: 100 Hz to 15 kHz, ±2 dB
Presence Boost: Typically 5 dB at 4 to 6 kHz
Acoustic Low-Cut: 100 Hz
Sensitivity: 6 mV/Pa
Sensitivity Level: -44 dB re 1 V/Pa at 1 kHz
A-Weighted Equivalent Noise: Typically 26 dB(A), maximum 28 dB(A)
ITU-R BS.468-4 Equivalent Noise: Typically 38 dB, maximum 40 dB
Dynamic Range: Typically 111 dB
THD Below 0.5%: 127 dB SPL RMS, 130 dB SPL peak
THD Below 1%: 134 dB SPL RMS, 137 dB SPL peak
Maximum SPL at 10% THD: 144 dB SPL peak

Electrical Specifications
Rated Output Impedance: 30 to 40 ohms
Supply Voltage: 5 to 10 V through compatible adapter
Current Consumption: Typically 1.5 mA

Physical Specifications
Microphone Diameter: 5.4 mm (0.21 in)
Microphone Length: 17 mm (0.67 in)
Cable Length: 1.8 m (5.9 ft)
Cable Relief: Kevlar-reinforced

Environmental Specifications
Operating Temperature: -40°C to 45°C (-40°F to 113°F)
Relative Humidity: Up to 90%
