DPA

5006-11A

Condensor Microphones

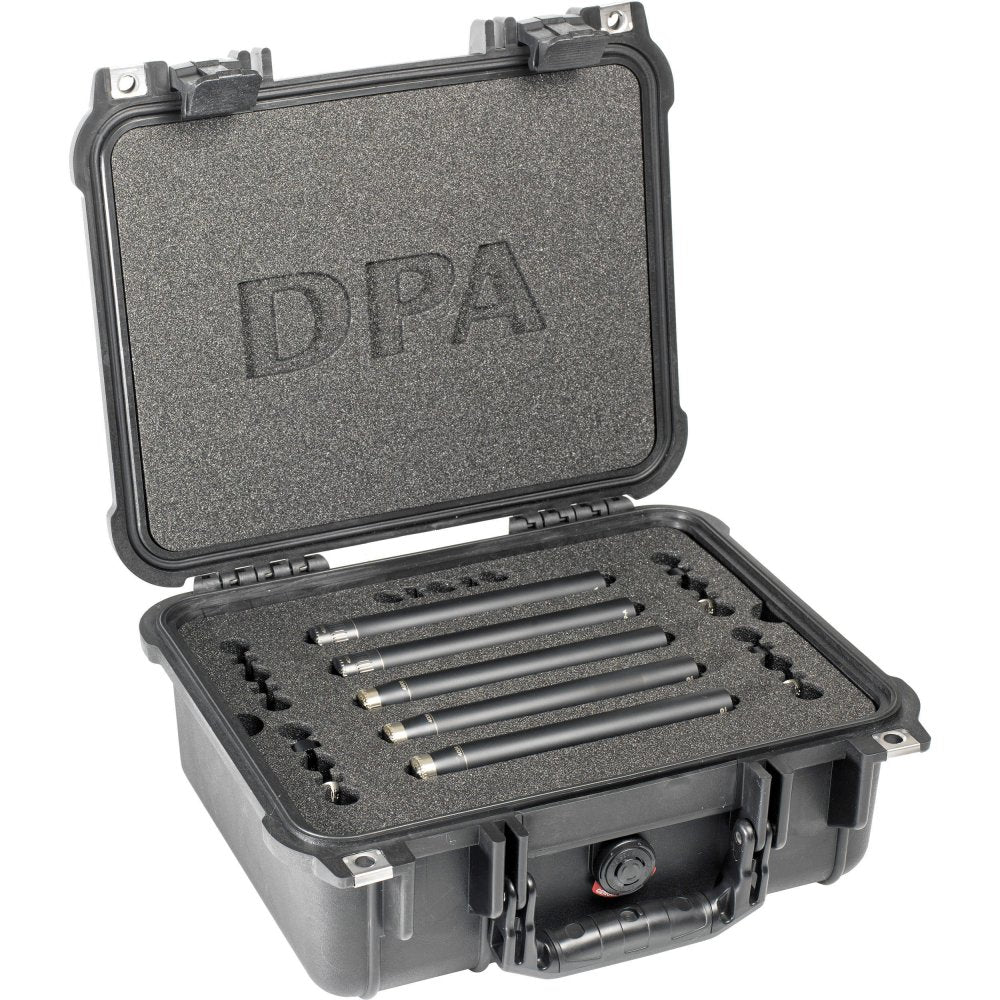

d:mension Surround Kit with 3 x 4006A, 2 x 4011A, Clips, Windscreens in Peli Case

$14,240.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The DPA 5006-11A is a complete surround kit combining three DPA 4006A and two 4011A, carefully factory-matched to achieve full precision. Even though the standard tolerances on DPA Reference Standard Mics are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5. The 4011A's are matched within ±1 dB.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Included in this kit

Carefully matched microphones, sturdy Peli case, holders, grids, and windscreens.

Features

Three Omni + two Cardioid carefully matched microphones

Decca Tree front + cardioids rear

Useful as orchestral main pair

Peli™ Case transportation and protection

Specifications

Directional characteristics: 4006A: omnidirectional. 4011A: cardioid.

Principle of operation: 4006A: pressure. 4011A pressure gradient.

Cartridge type: Pre-polarized condenser

Frequency range: 10 Hz to 20 kHz

Frequency range, ± 2 dB: 4006A: 10 Hz to 20 kHz. 4011A: 40 Hz to 20 kHz.

Sensitivity, nominal, ±2 dB at 250 Hz: 4006A: 40 mV/Pa; -28 dB re. 1 V/Pa

Sensitivity, nominal ±2 dB at 1 kHz: 4011A: 10 mV/Pa; -40 dB re. 1 V/Pa

Equivalent noise level, A-weighted: 4006A: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)). 4011A: Typ. 18 dB(A) re. 20 µPa (max. 20 dB).

Equivalent noise level, ITU-R BS.468-4: 4006A: Typ. 27 dB (max. 29 dB). 4011A: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting).

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL: 4006A: Typ. 79 dB(A). 4011A: Typ. 76 dB(A).

Total Harmonic Distortion (THD): : < 1 % up to 139 dB SPL peak

Minimum load impedance: 2 kohm

Dynamic range: 4006A: Typ. 124 dB. 4011A: Typ. 121 dB.

Max. SPL, peak before clipping: 4006A: 147 dB. 4011A: 159 dB.

Switchable attenuator: 0 dB / -20 dB

Output impedance: < 200 ohm

Cable drive capability: 100 m (328 ft)

Output balance principle: Impedance balancing with Active Drive

Common Mode Rejection Ratio (CMRR): > 60 dB

Power supply (for full specifications): 48 V Phantom power (± 4 V)

Current consumption: 2.8 mA

Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Color: Matte black

Weight: 4006A: 163 g (5.7 oz). 4011A: 158 g (5.6 oz).

Diameter: 4006A: 16 to 19 mm (0.63 to 0.75 in). 4011A: 19 mm (0.75 in).

Capsule diameter: 4006A: 16 mm (0.63 in). 4011A: 19 mm (0.75 in).

Length: 170 mm (6.7 in)

Output voltage, RMS: > 5 V

Polarity: +V at Pin 2 for positive sound pressure

Temperature range: -40 C to 50 C (-40 F to 122 F)

Relative Humidity (RH): Up to 90 %

Matching tolerance: 4006A: ± 0.5 dB. 4011A: ± 1 dB.

Phase deviation for kit: 4006A: < 5. 4011A: < 10.
