AUDIX

ADX40W

Condensor Microphones

Miniature hanging condenser microphone, cardioid pattern, white finish, low-profile overhead design, natural sound reproduction, choir & orchestra use

$379.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

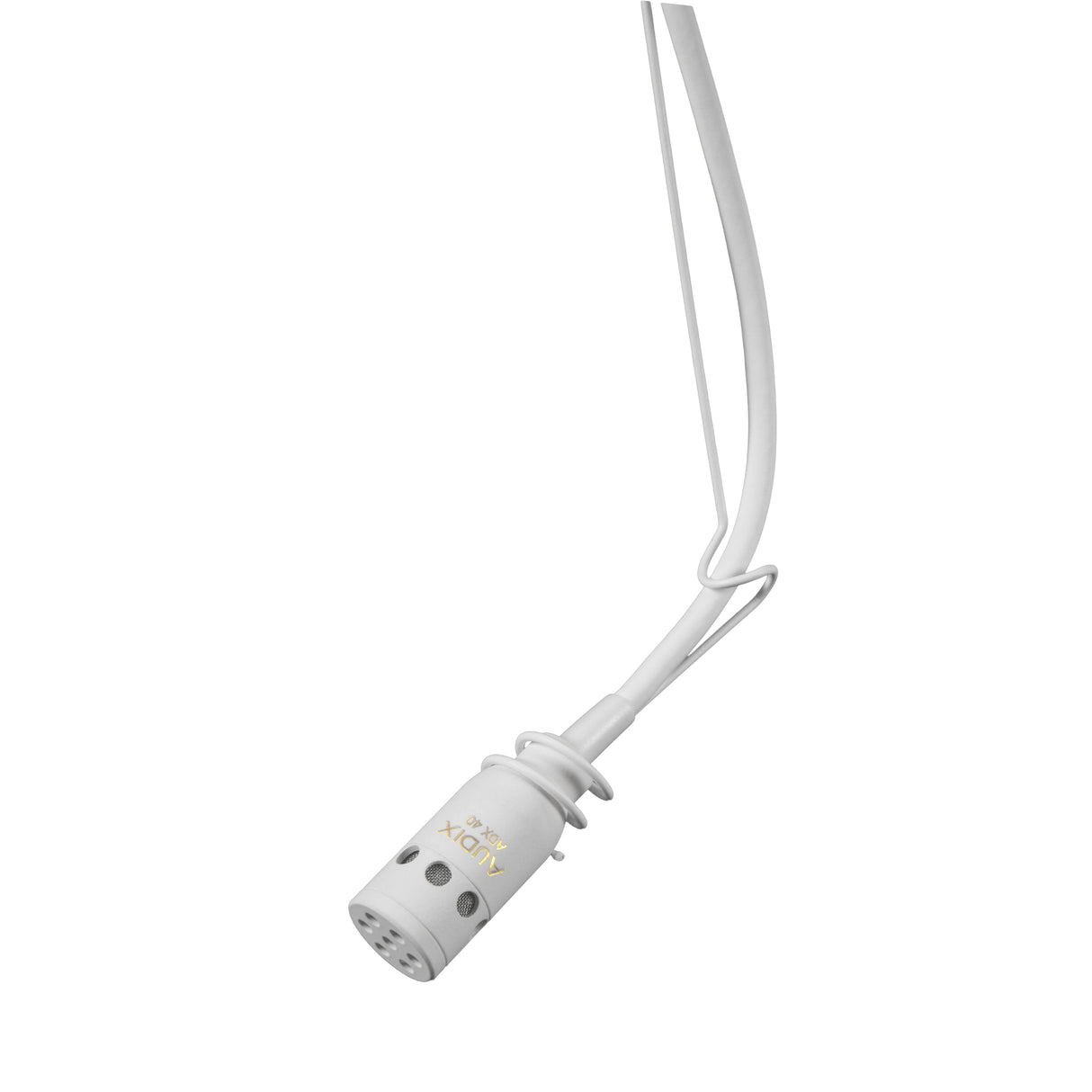

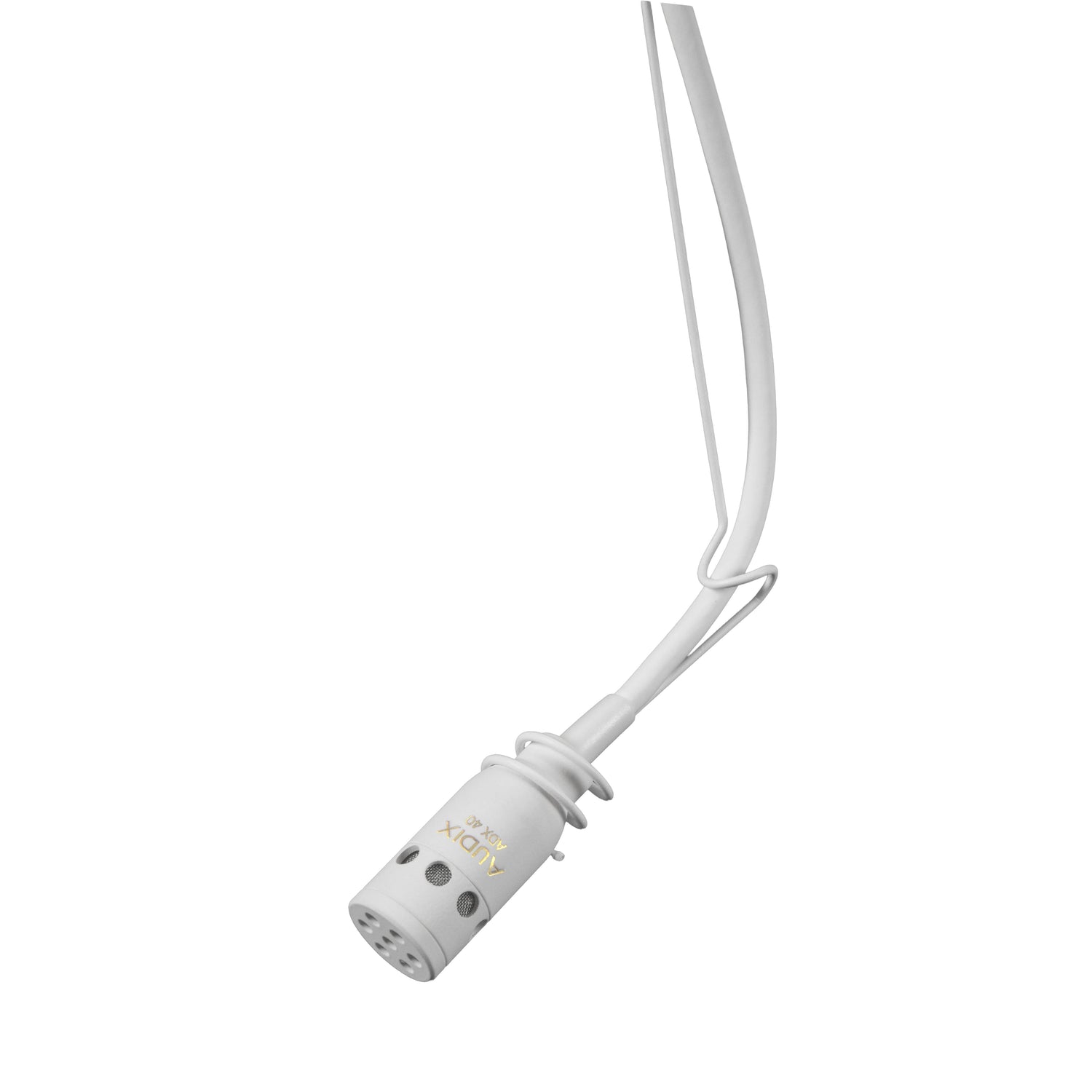

The Audix ADX40W is a miniature hanging condenser microphone designed for overhead audio capture in performance, presentation, and installed sound environments. Finished in a low-profile white housing, the ADX40W blends discreetly into ceilings and stage spaces, making it an excellent choice for choir performances, orchestras, theatrical productions, group vocals, and ambient room miking where minimal visual distraction is important. Its lightweight design and hanging configuration allow it to capture sound naturally from a distance while maintaining a clean and professional appearance.

Equipped with a controlled cardioid polar pattern, the ADX40W helps focus on the intended performance area while reducing unwanted background noise and bleed from surrounding sources. Its smooth 40 Hz to 20 kHz frequency response and detailed transient response provide natural, balanced sound reproduction for vocals and acoustic ensembles. The microphone is especially effective for covering wider areas in live performance settings while preserving clarity and articulation.

The ADX40W includes a 30-foot attached shielded cable, wire hanger for positioning, external windscreen, and phantom power adapter for flexible installation and reliable operation. Built with durable machined brass construction and engineered for professional use, the ADX40W offers dependable performance for theaters, schools, houses of worship, and live production environments requiring accurate overhead sound capture with a discreet visual presence.

Features

Miniature Hanging Condenser Microphone
Designed for overhead audio capture in choirs, orchestras, theaters, and group performances.

Excellent for Distance Miking
Captures clear and detailed sound from overhead positions with reliable performance.

Natural and Accurate Sound
Provides smooth and balanced audio reproduction with excellent clarity.

Small Lightweight Design
Offers discreet placement that stays visually unobtrusive in performance spaces.

Low-Profile Appearance
Blends seamlessly into stage, auditorium, and worship environments.

Cardioid Polar Pattern
Focuses on the intended sound source while reducing unwanted ambient noise.

White Finish Option
Ideal for installations where a less visible microphone appearance is preferred.

Wide Application Flexibility
Perfect for choir, group vocals, orchestras, theatrical productions, and room ambience.

Complete Hanging Setup Included
Supplied with attached cable, windscreen, wire hanger, and phantom power adapter.

Professional Performance Quality
Built for dependable use in live sound, installed audio, and performance environments.

Specifications

General Specifications
Device Type: Miniature Hanging Condenser Microphone
Applications: Choir, Group Vocal, Orchestra Miking, Ambient Room Miking, Symphonic Area Miking, School Plays, Theatrical Productions
Polar Pattern: Cardioid
Color: White
Design: Overhead hanging microphone

Capsule Specifications
Transducer Type: Condenser
Capsule Type: Field replaceable capsule
Replacement Capsule: CPSADXCW cardioid in white

Audio Specifications
Frequency Response: 40 Hz – 20 kHz
Output Impedance: 250 ohms balanced
Sensitivity: 5 mV/Pa @ 1 kHz
Equivalent Noise Level: 29 dB (A-weighted)
Signal to Noise Ratio: 65 dB
Maximum SPL: ≥130 dB
Sound Reproduction: Natural sound with exceptional transient response
Distance Miking: Excellent for distance miking

Power Specifications
Power Requirements: 9 – 52 V phantom power

Connectivity Specifications
Cable Type: Shielded cable
Cable Length: 30 ft
Connector Type: Miniature 3-pin female XLR

Construction Specifications
Material: Brass
Finish: White finish
Design Profile: Small, lightweight, low profile

Physical Specifications
Weight: 110 g / 4 oz
Length: 30 mm / 1.2 in
Capsule Diameter: 12 mm

Included Accessories
Phantom Power Adapter: APS910 cylindrical preamplifier
Wire Hanger: HANGER40
Carrying Case: P1 carrying pouch
Windscreen: WS20W external foam windscreen
Cable: 30 ft attached shielded cable

Optional Accessories
Battery/Phantom Preamplifier: APS911 with on/off switch and roll-off
Hanger Clip: MCHANGER clear plastic clip
Mic Stand Adapter: MCMICRO
Shockmount Adapter: MCSWIVEL ball and socket pivot adapter
Shockmount Stand Adapter: SMTMICRO with shockmount ring
