RME

AoX-MADI-EXT-BNC

Expansion Cards

MADI expansion card, four BNC MADI connectors, BNC word clock I/O, up to 128 channels at 48 kHz, compatible with HDSPe AoX PCIe interfaces

$326.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

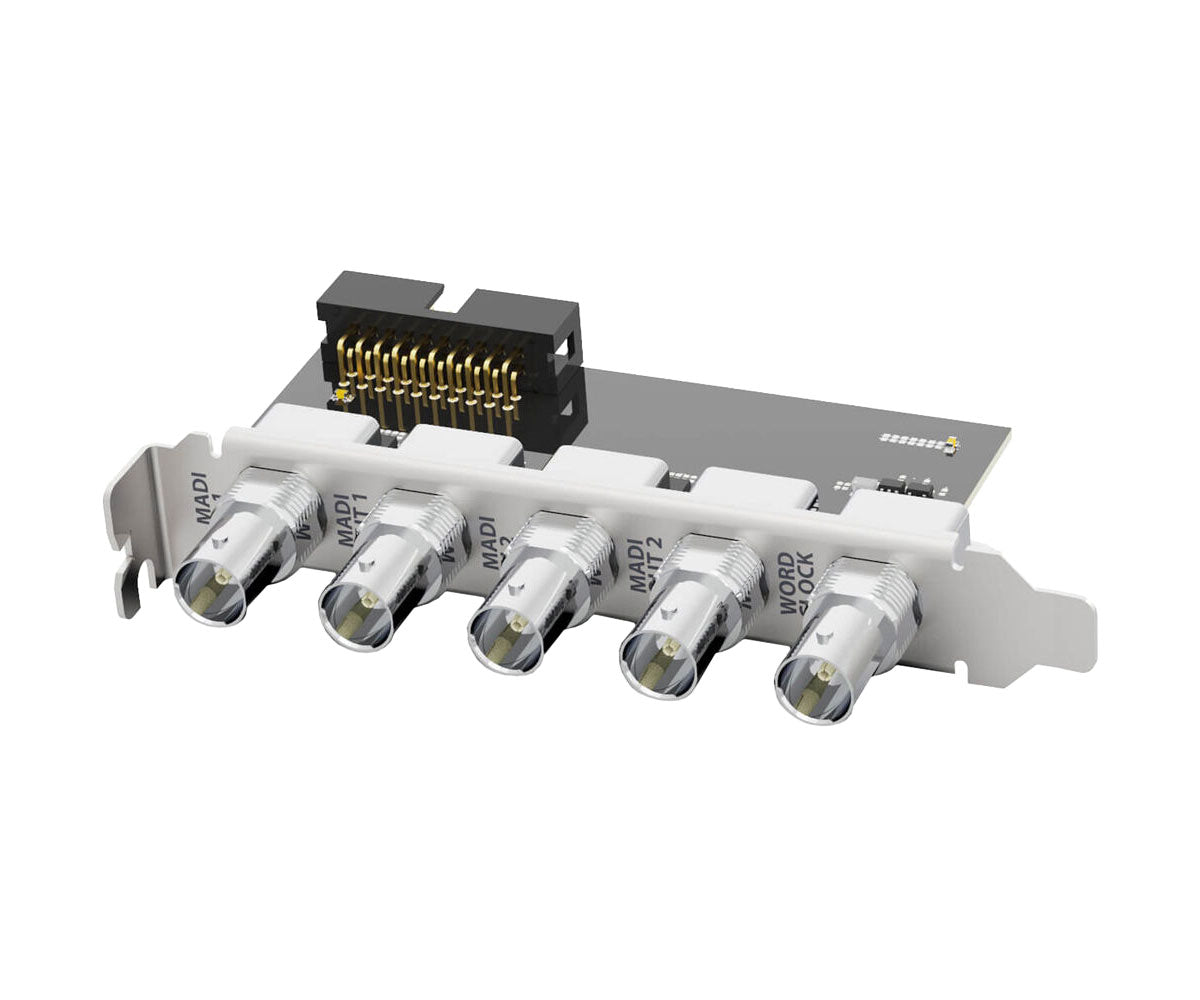

The RME AoX-MADI-EXT-BNC is an expansion board designed for the RME HDSPe AoX PCIe audio interface, providing additional MADI connectivity through BNC coaxial connections. It replaces the standard RJ45 MADI ports on the HDSPe AoX card with professional BNC connectors, allowing integration with systems and equipment that use coaxial MADI infrastructure.

The expansion board adds four BNC connectors for MADI input and output, enabling high-capacity digital audio transmission over coaxial cables. Depending on the sample rate, it supports up to 128 channels at 48 kHz, 64 channels at 96 kHz, or 32 channels at 192 kHz, making it suitable for demanding studio, broadcast, and live production environments. Alongside the MADI connections, the board also includes a BNC word clock connector that can function as either an input or output, ensuring reliable synchronization with external digital audio systems.

Designed specifically for the HDSPe AoX interface, the AoX-MADI-EXT-BNC integrates directly with the card’s existing architecture, maintaining RME’s reputation for stable, low-latency digital audio performance. By adding coaxial MADI connectivity, it provides a flexible solution for facilities that rely on MADI networks for large channel-count routing, recording, or distribution.

Features

MADI Expansion Board for HDSPe AoX

Designed to expand the connectivity of RME HDSPe AoX PCIe audio interface cards.

Coaxial MADI Connectivity

Adds BNC-based MADI connections for reliable multi-channel digital audio transmission.

High Channel Capacity

Supports large channel counts for professional recording, broadcast, and live production environments.

Wide Sample Rate Support

Handles audio operation across multiple sample rate modes for flexible studio workflows.

Word Clock Synchronization

Includes a dedicated BNC word clock connection for precise system synchronization.

Seamless HDSPe AoX Integration

Installs directly onto compatible HDSPe AoX cards for easy expansion.

Reliable Digital Audio Networking

Built around the widely adopted MADI protocol known for stability and professional performance.

Specifications

General Specifications

Device Type: Digital Audio Expansion Card

Application: MADI I/O Expansion for PCIe Audio Interface

Compatible Interface: RME HDSPe AoX

Connector Format: Coaxial BNC

Bit Depth: 24-bit

MADI Connectivity

MADI Connectors: 4 x BNC Coaxial

MADI Input: 1 x BNC

MADI Output: 1 x BNC

Protocol: MADI (Multichannel Audio Digital Interface)

Sync Connectivity

Word Clock Connector: 1 x BNC

Word Clock Function: Input or Output

Supported Sync Sources: MADI, Word Clock

Channel Capacity

48 kHz: 128 Channels I/O

96 kHz: 64 Channels I/O

192 kHz: 32 Channels I/O

Digital Audio Performance

Supported Sample Rates: 48 kHz – 192 kHz

Compatibility

Supported Host Card: RME HDSPe AoX PCIe Audio Interface

Package Specifications

Package Weight: 0.575 lb

Box Dimensions: 7.8 x 5.3 x 2 in
