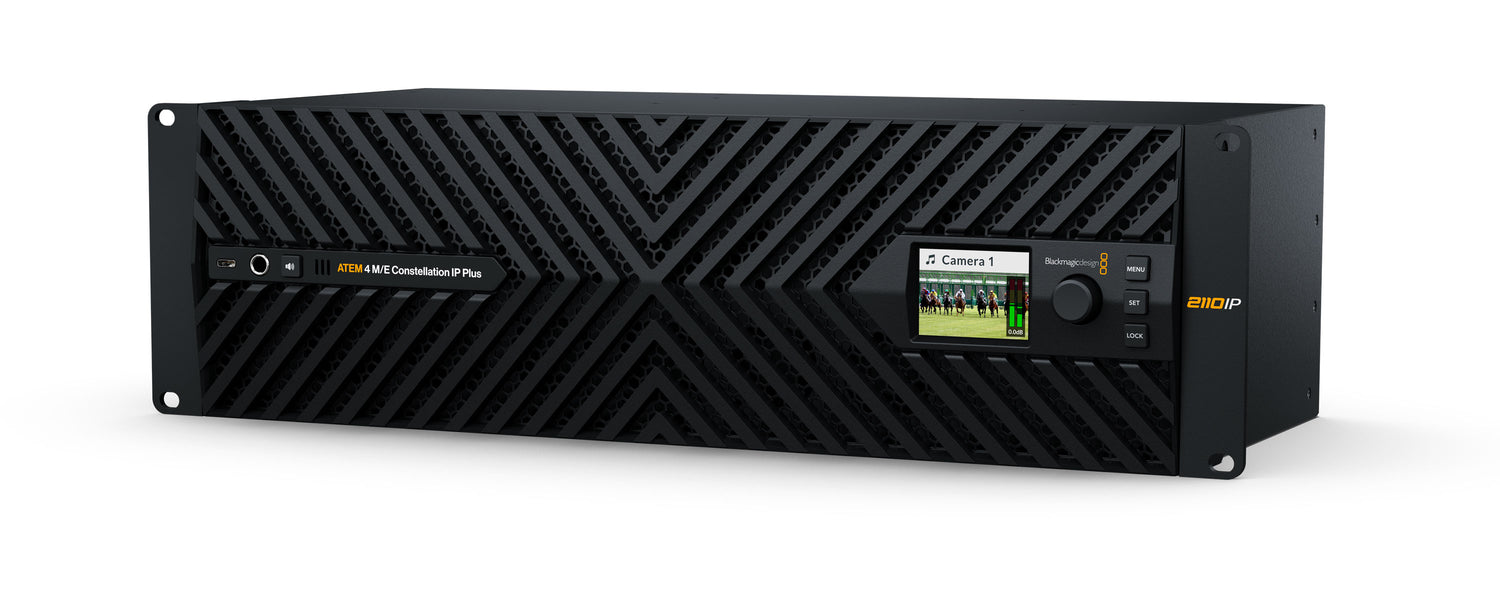

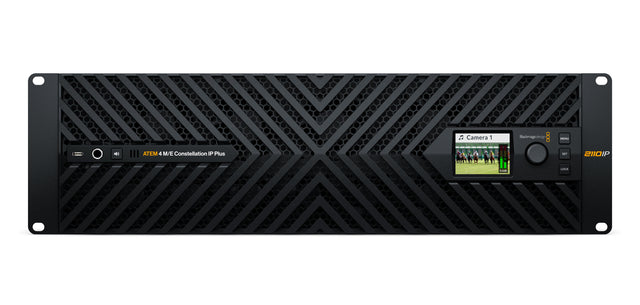

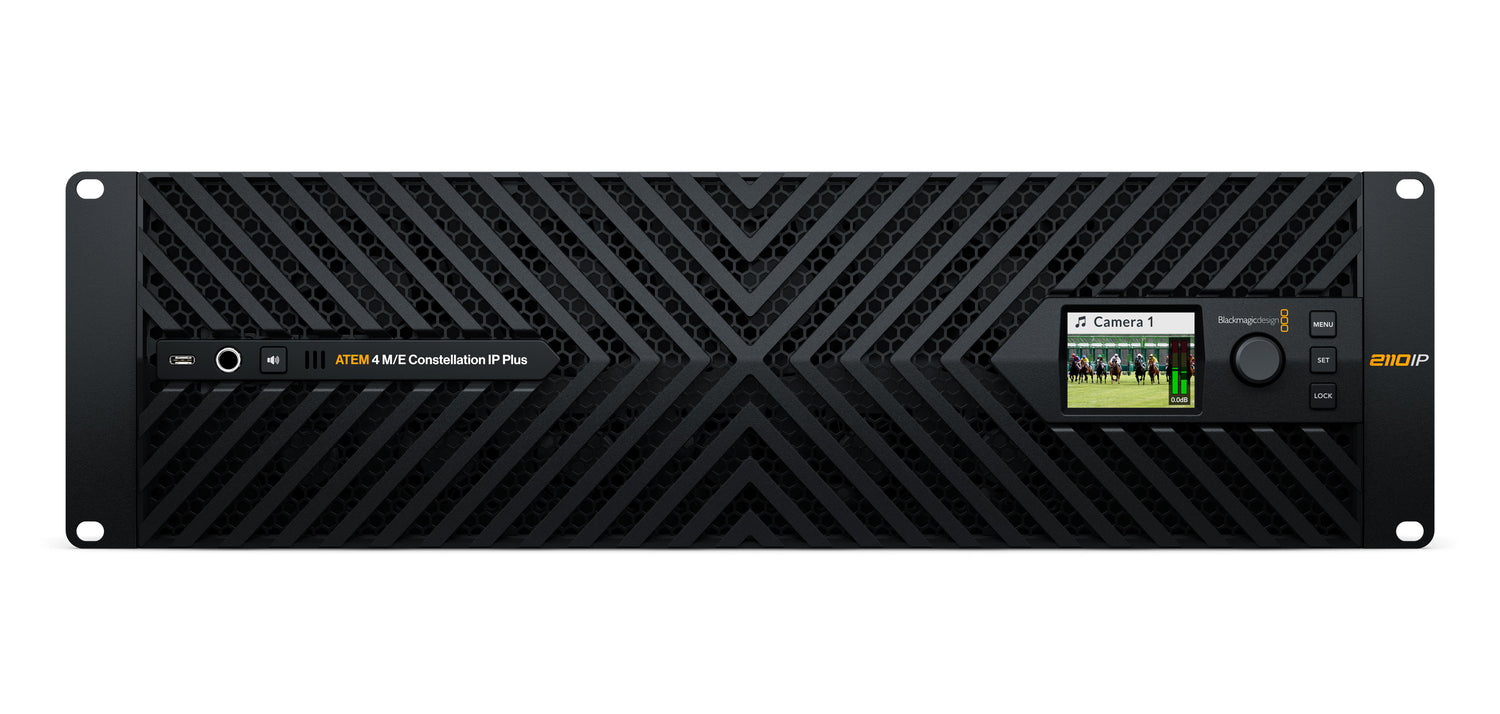

ATEM 4 M/E Constellation IP Plus live production switcher

Switchers

Live production switcher, 64-channel SMPTE-2110 IP workflow, 16 x 100G Ethernet connections, redundant network support, advanced keyers, multiview monitoring, broadcast control

$19,365.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Blackmagic ATEM 4 M/E Constellation IP Plus is a powerful professional live production switcher built for large-scale broadcast and SMPTE-2110 IP video workflows. Designed with a fully native IP architecture, it delivers advanced switching performance over high-speed 100G Ethernet connections while supporting fully redundant SMPTE-2022-7 operation for maximum reliability during critical live productions. With 64 video inputs and 64 outputs, the system is capable of handling complex multi-camera productions, large event coverage, esports broadcasts, concert productions, and advanced studio installations with ease.

Built for demanding broadcast environments, the ATEM 4 M/E Constellation IP Plus includes 16 ATEM Advanced Keyers, four independent multiview outputs, dual SuperSource processors, and a total of 12 DVEs for layered visual effects and dynamic live compositions. Every input includes its own standards converter and re-synchronizer, allowing the switcher to automatically correct mismatched or unstable sources in real time. This flexibility makes it easy to integrate a wide variety of cameras, replay systems, graphics engines, and remote feeds into a unified live production workflow without additional conversion hardware.

The switcher also provides extensive professional control and connectivity options, including dual 10G Ethernet control networks, redundant PTP timing ports, NMOS compatibility, Fairlight audio integration, USB webcam output, and support for advanced ATEM hardware panels and camera control systems. Integrated media players, chroma keying, multiview monitoring, macro automation, and direct compatibility with Blackmagic HyperDeck and Ethernet Switch systems make the ATEM 4 M/E Constellation IP Plus a complete solution for broadcasters and production teams building scalable next-generation IP production infrastructures.

Features

ATEM 4 M/E Constellation IP Plus
High-end live production switcher designed for large-scale SMPTE-2110 IP broadcast workflows and professional live events.

Native SMPTE-2110 IP Design
Built specifically for modern IP video production with full support for SMPTE-2110 broadcast standards.

Massive 64 Input & 64 Output Capacity
Handles large multi-camera productions with extensive routing flexibility for complex live environments.

High-Speed 100G Ethernet Connectivity
Features multiple 100G Ethernet connections for ultra-fast IP video transport and large-scale networked production systems.

Redundant Broadcast Networking
Supports SMPTE-2022-7 redundancy for seamless failover and reliable on-air operation during critical productions.

Professional 4 M/E Workflow
Provides advanced multi-layer live switching capabilities used in broadcast television and large event production.

Advanced Keying & Effects
Includes 16 advanced chroma keyers, multiple DVEs, SuperSource processing, and professional transition effects.

Automatic Standards Conversion
Every input includes built-in standards conversion and re-synchronization for smooth handling of mixed video sources.

Customisable Multi-View Monitoring
Supports multiple configurable multi-view outputs for monitoring cameras, previews, graphics, and program feeds simultaneously.

Integrated Media & Graphics Playback
Built-in media players support broadcast graphics, animated stingers, lower thirds, and motion content.

Powerful Fairlight Audio Mixing
Integrated Fairlight audio tools provide professional live audio mixing with EQ, dynamics, and advanced routing controls.

Professional Broadcast Redundancy
Dual power supplies, redundant networking, and dedicated timing control help ensure dependable live operation.

Flexible Hardware & Software Control
Compatible with ATEM hardware panels, software control systems, camera control panels, and remote workflows.

Built for Large Live Productions
Ideal for broadcast studios, sports, concerts, houses of worship, esports, and high-end live event production.

Specifications

General Specifications
Product Type: Live production switcher
Switcher Architecture: SMPTE-2110 native IP switcher
Mix Effects: 4 M/E
Video Inputs: 64
Video Outputs: 64
Aux Outputs: 64
Redundancy Standard: SMPTE-2022-7

SMPTE-2110 IP Video

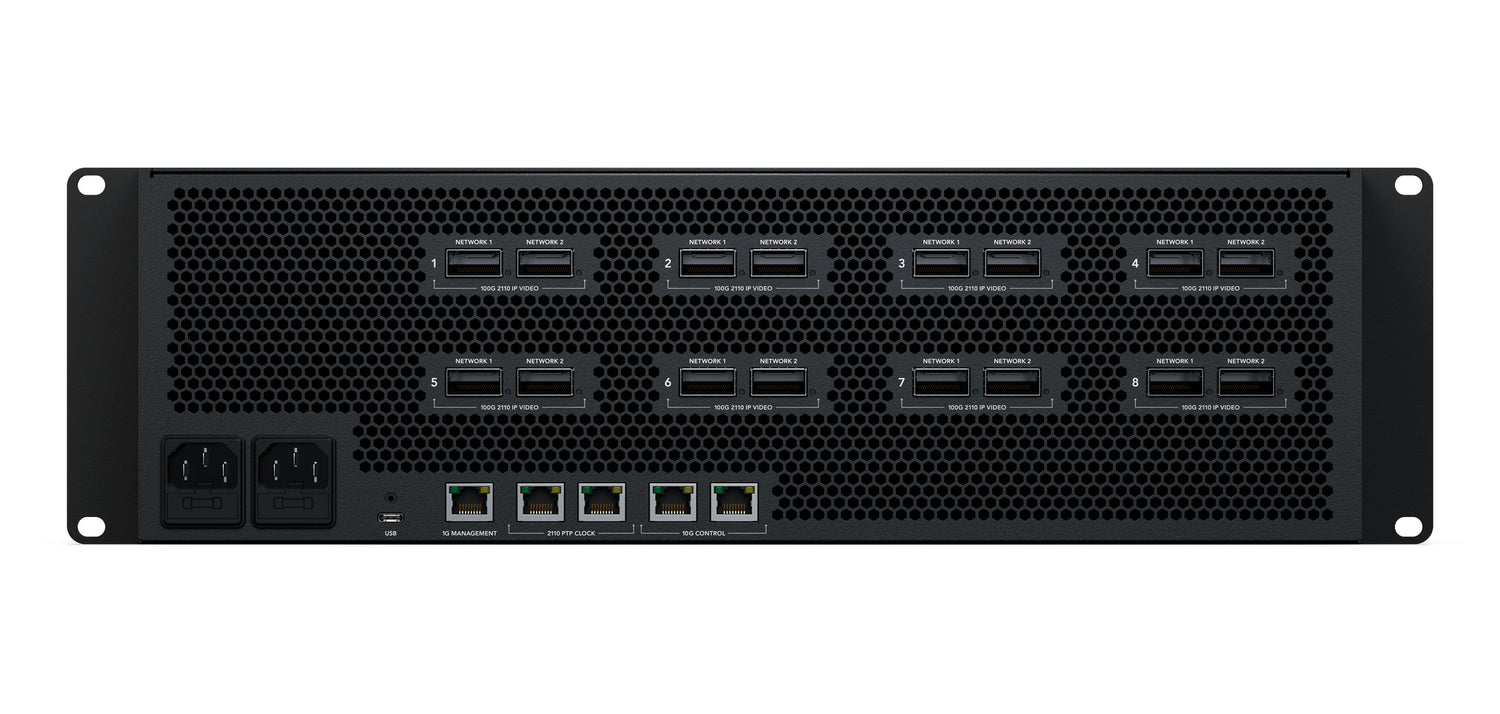

100G 2110 IP Network Ports: 16 x QSFP28
Senders and Receivers per 100G Pair: 8 x Ultra HD
SMPTE Compliance: ST 2110-20, ST 2110-21, ST 2110-30, ST 2110-40, ST 2022-7
Video Sampling: 4:2:2
Color Precision: 10-bit
IP Codec Option: Blackmagic IP10 for 2160p59.94 and 2160p60

Video Standards
HD Standards: 720p, 1080i, 1080p up to 60p
Ultra HD Standards: 2160p up to 60p
Frame Rate and Format Conversion: On all 64 inputs

Control and Network
Control Network: 2 x 10G RJ45 Ethernet
Management Network: 1 x 1G RJ45 Ethernet
Reference Network: 2 x RJ45 PTP clock
PTP Support: IEEE 1588-2008 PTP v2, ST 2059-1, ST 2059-2
NMOS IS-04: v1.3.2
NMOS IS-05: v1.1.2

Switcher Features
Upstream Keyers: 16
Downstream Keyers: 4
Advanced Chroma Keyers: 16
Linear/Luma Keyers: 20
Transition Keyers: 4 stinger, 4 DVE
SuperSource Processors: 2
DVEs: 4
Total Layers: 28
Pattern Generators: 21
Color Generators: 2

Monitoring and Media
Multiview Outputs: 4
Multiview Views: Up to 64 total
Routable Windows: 64
Media Players: 4
Media Pool Still Capacity: 64
Media Pool Clip Capacity: 4
Media Pool Still Formats: PNG, TGA, BMP, GIF, JPEG, TIFF
Media Pool Audio Formats: WAV, MP3, AIFF

Audio
Audio Mixer: 132-channel mixer
Fairlight Live Integration: Yes
Talkback Support: Yes
Mix Minus Support: Yes
Headphone Output: 1 x 6.35 mm
Built-In Speaker: Yes

Physical Specifications
Rack Height: 3 RU
Cooling Design: Front-to-back cooling
Power Supply: 2 x internal 100 to 240 V AC 50/60 Hz
Power Inputs: 2 x IEC C14

Environmental Specifications
Operating Temperature: 0° to 40° C
Storage Temperature: -20° to 60° C
Relative Humidity: 0% to 90% non-condensing
