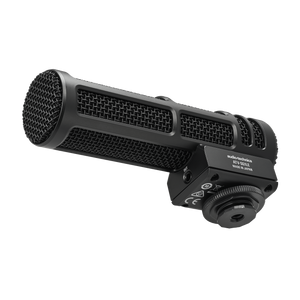

AUDIO-TECHNICA

ATV-SG1LE

On-Camera Microphones

On-camera shotgun microphone, 14 mm diaphragm, directional acoustic tube, plug-in power, integrated shock mount, 20 Hz to 20 kHz response

$159.00 CAD
Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

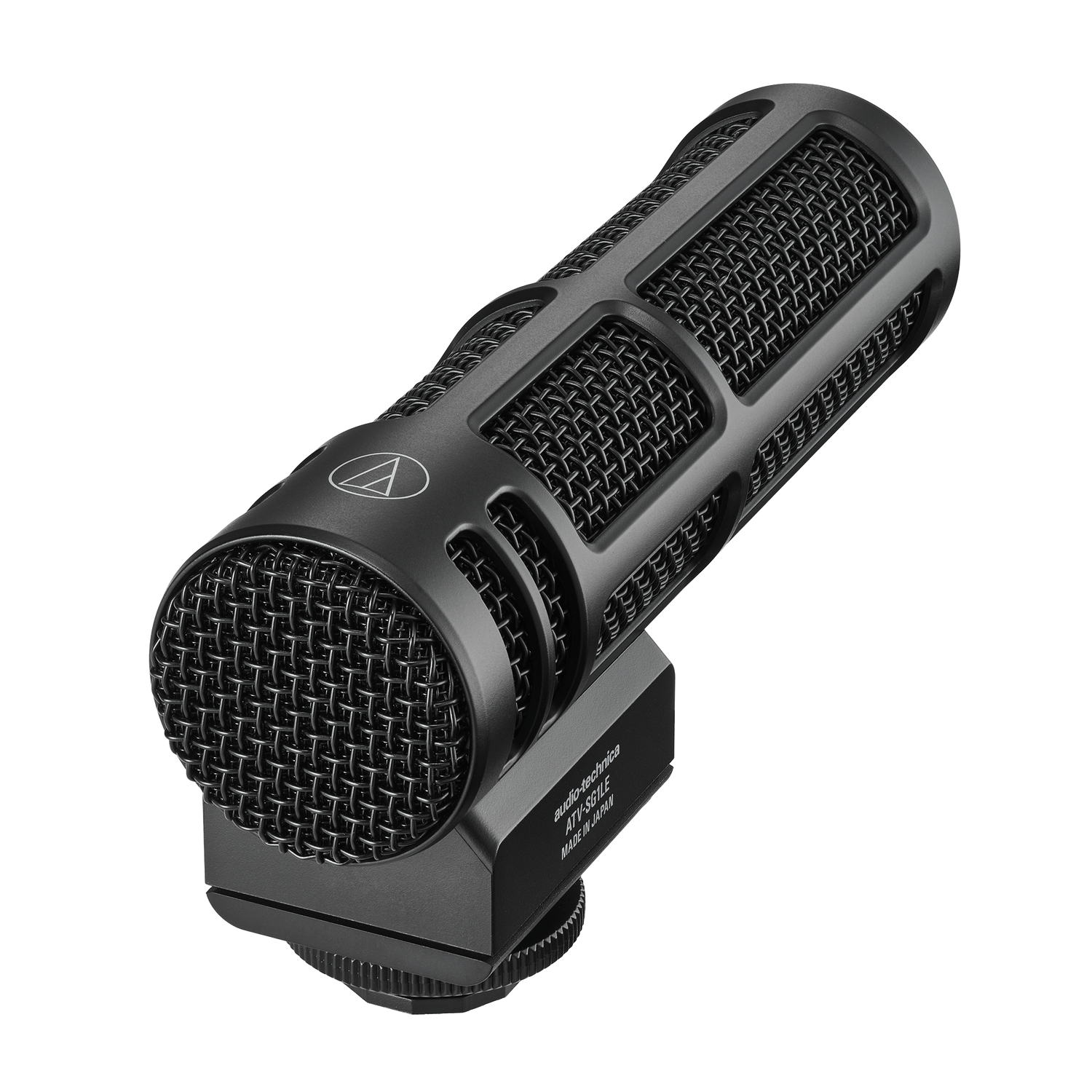

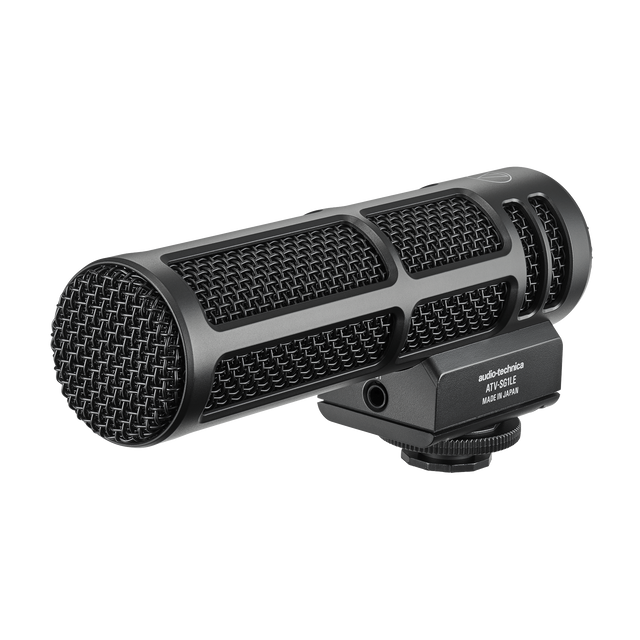

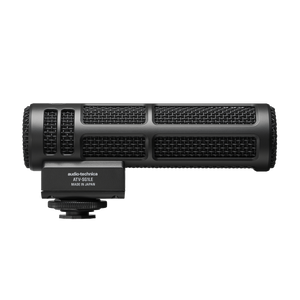

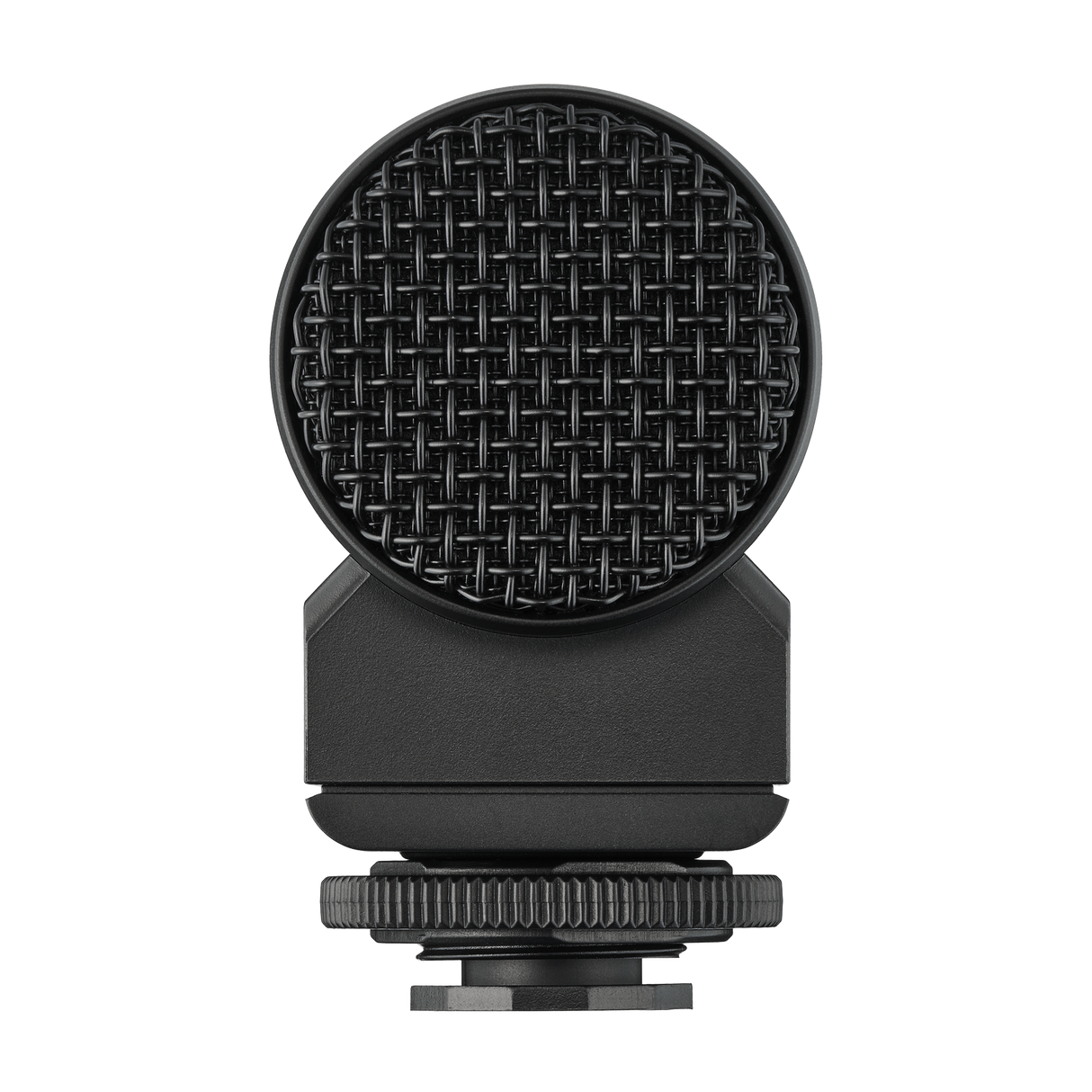

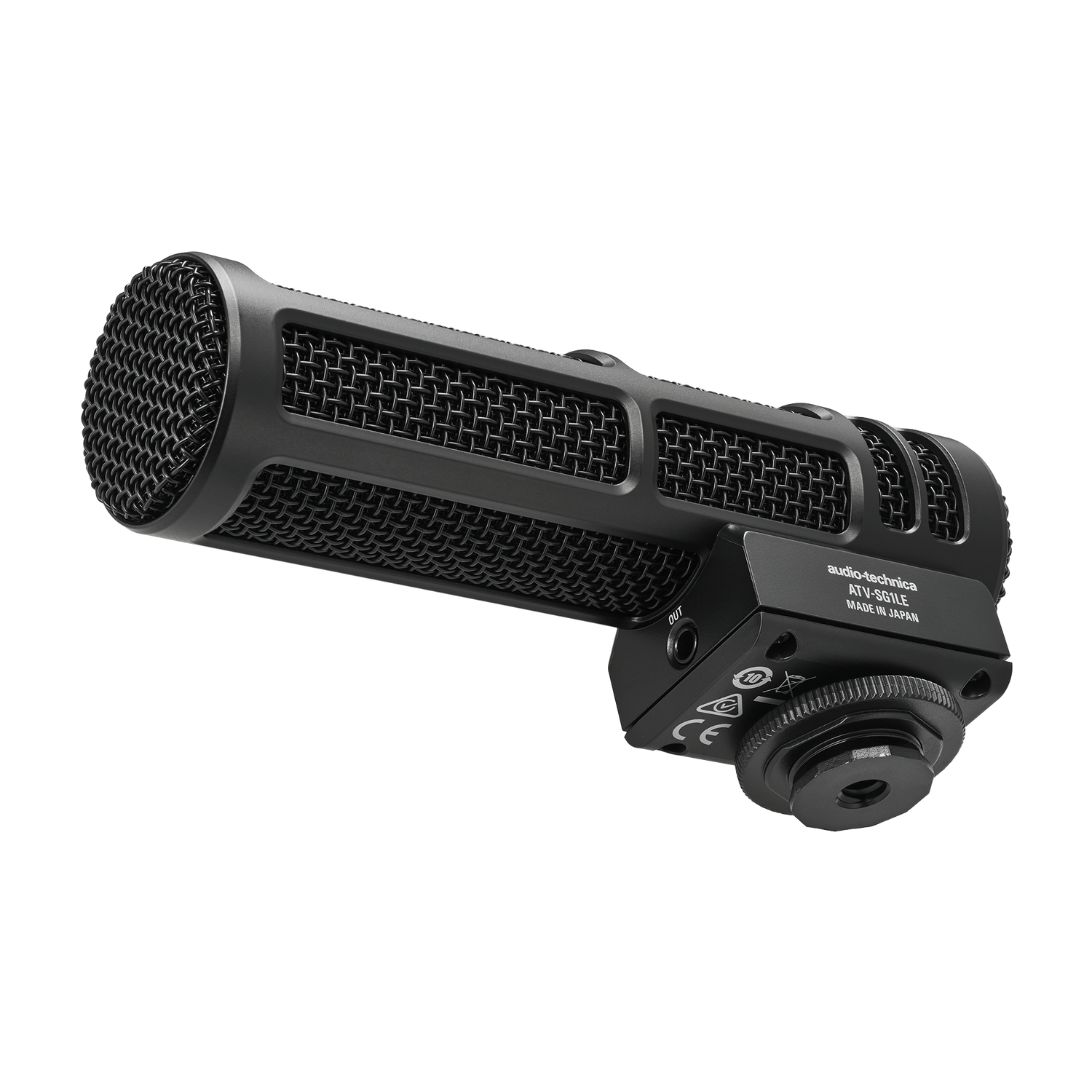

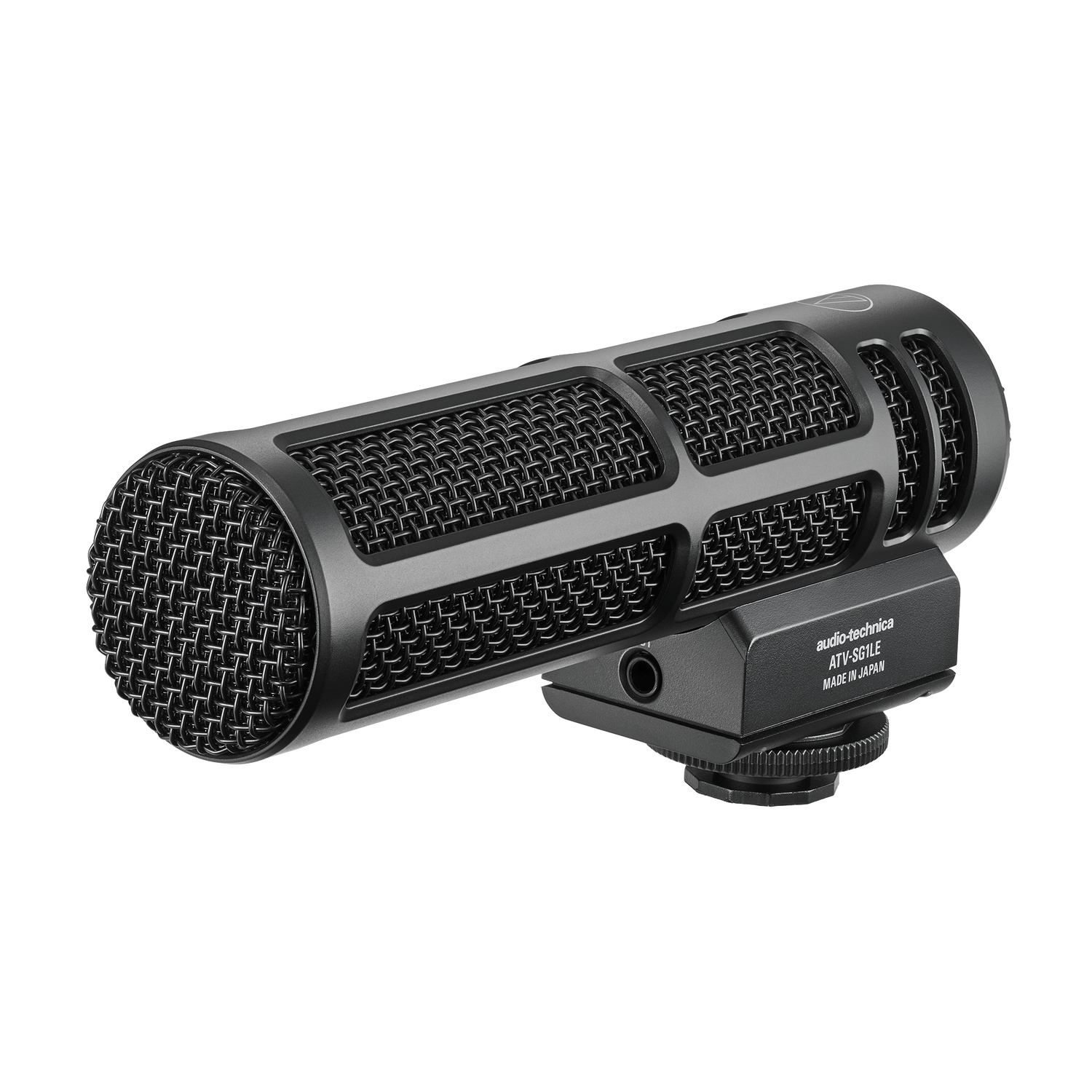

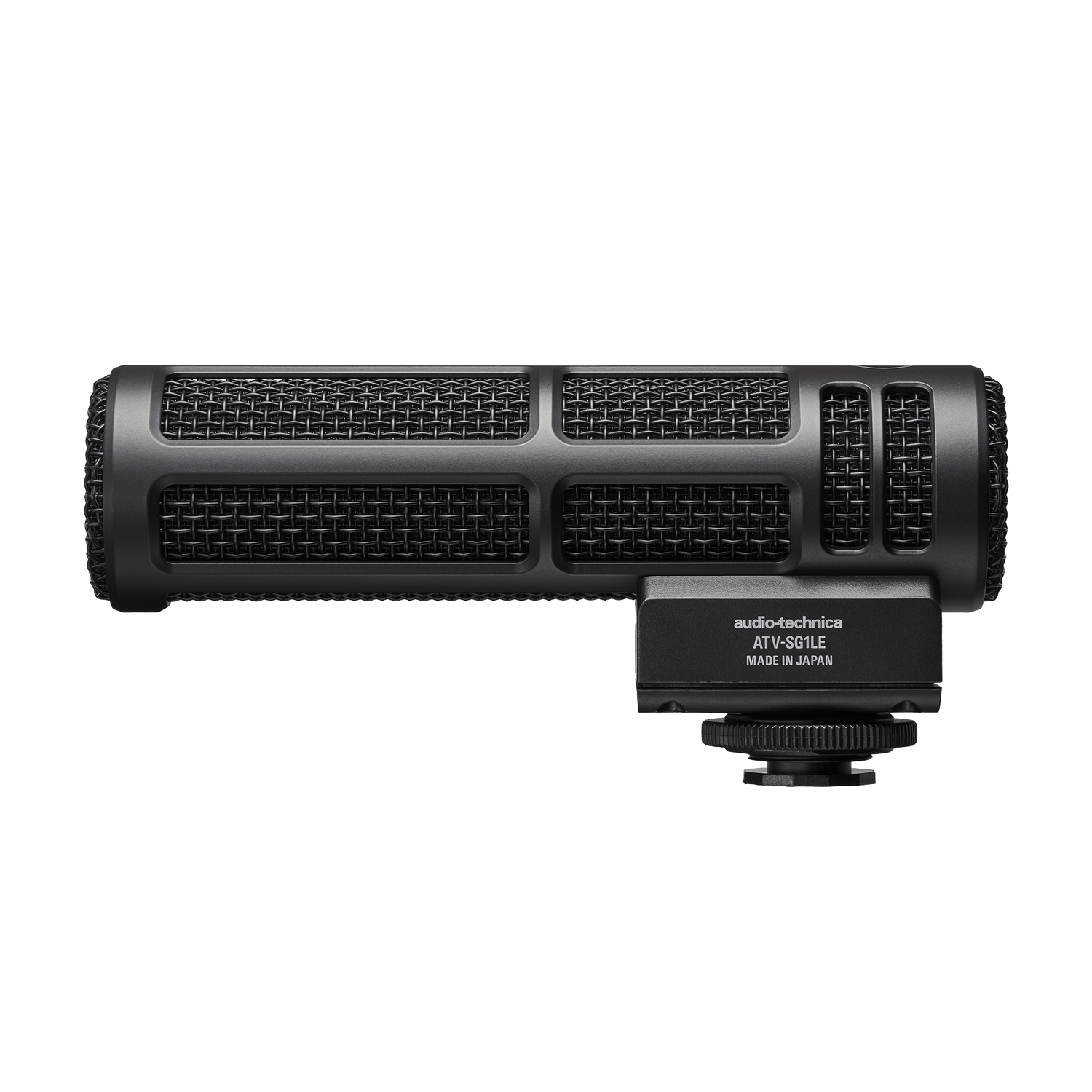

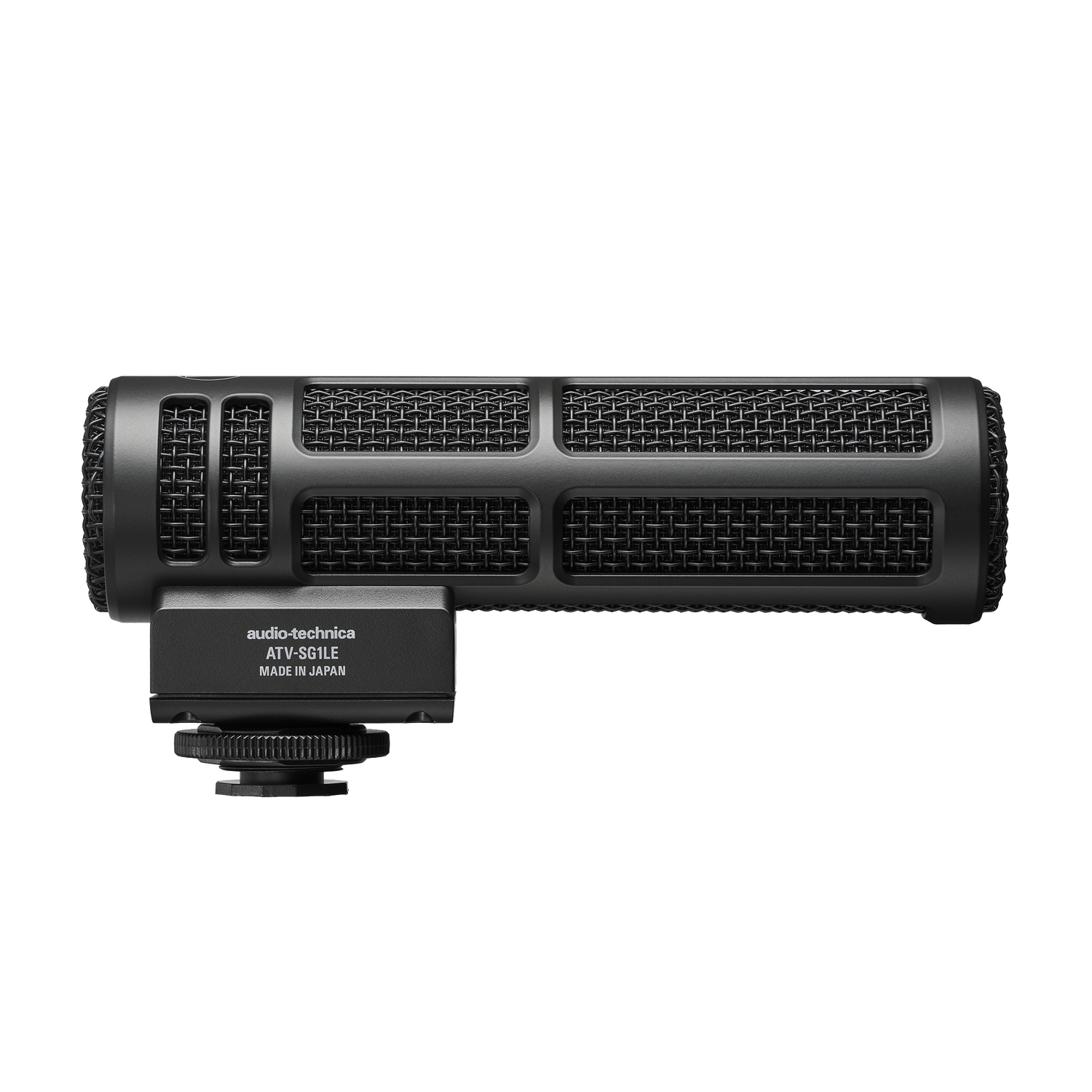

The ATV-SG1LE is a compact on-camera shotgun microphone for content creators, YouTubers and camera operators seeking clear, professional-quality audio. Its large-diameter diaphragm captures voices and other sources with natural detail, while the highly directional acoustic tube focuses pickup toward the subject and reduces unwanted background noise.

Plug-in power enables simple battery-free operation with compatible DSLR, mirrorless and other cameras. The integrated shock mount limits handling noise from movement and vibration, while noise-immunity technology resists interference from nearby smartphones and electronic devices. An adjustable shoe plate supports precise horizontal orientation, and the included wind muff helps maintain clear pickup during outdoor recording.

Features

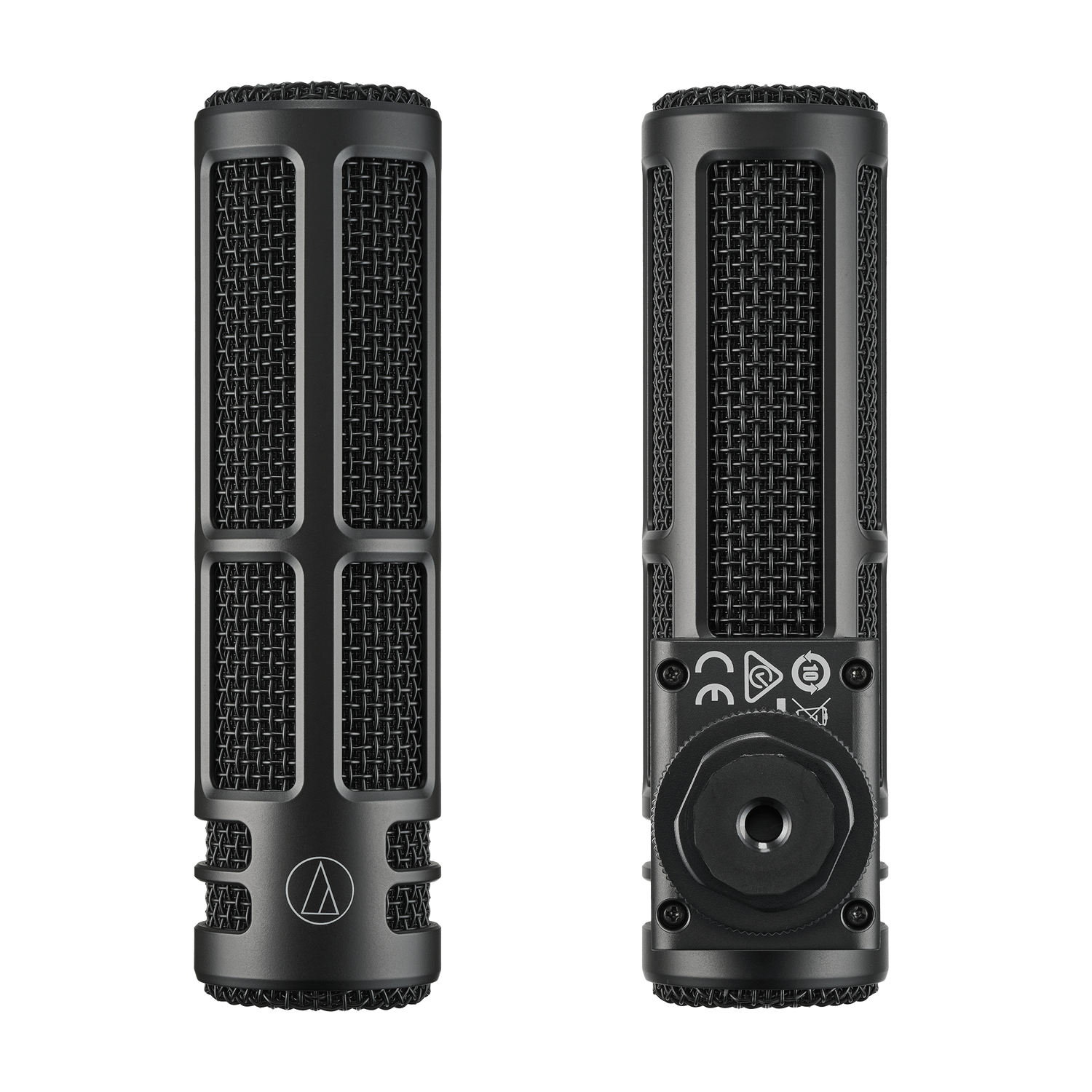

Directional Sound Capture
The acoustic tube focuses pickup on the subject while reducing unwanted background sound.

Detailed Audio
A large-diameter diaphragm captures voices and other sources with natural clarity.

Battery-Free Operation
Plug-in power provides convenient operation through a compatible camera connection.

Integrated Shock Isolation
The internal shock mount reduces handling noise caused by camera movement and vibration.

Interference Resistance
Noise-immunity technology helps prevent hum and radio-frequency noise from nearby electronic devices.

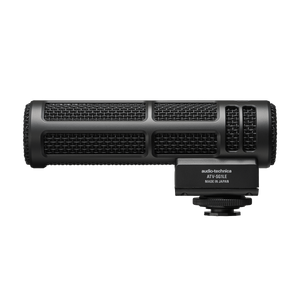

Flexible Orientation
The multi-position shoe plate allows precise horizontal positioning toward off-centre sound sources.

Compact Construction
The lightweight design adds minimal bulk to portable camera setups.

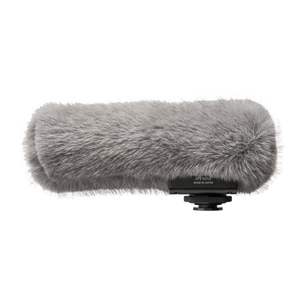

Outdoor Wind Protection

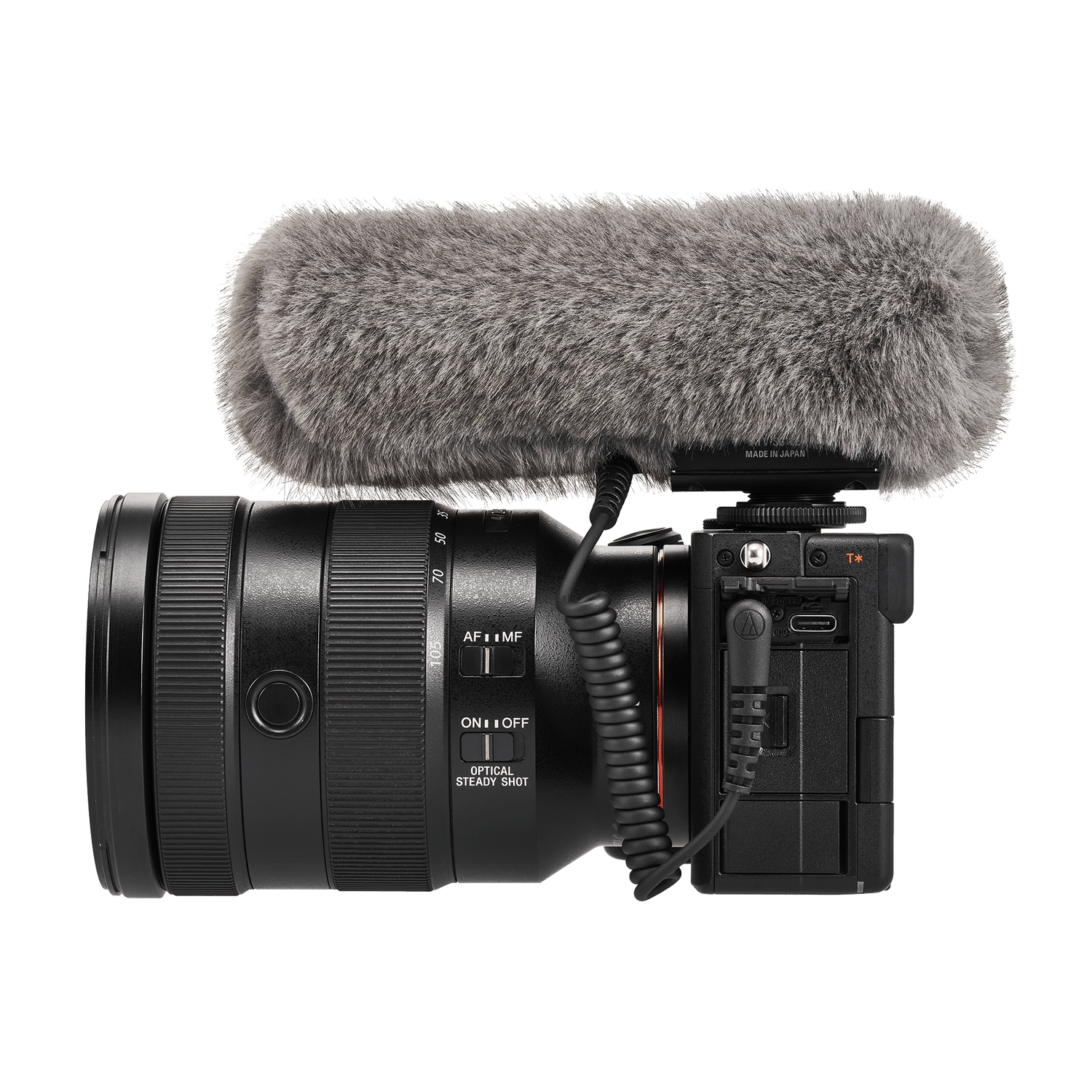

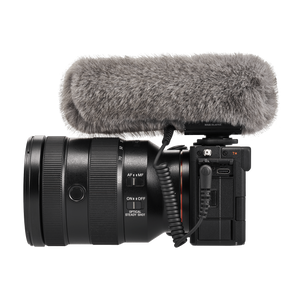

The included wind muff helps reduce wind noise during outdoor and location recording.

Camera Compatibility

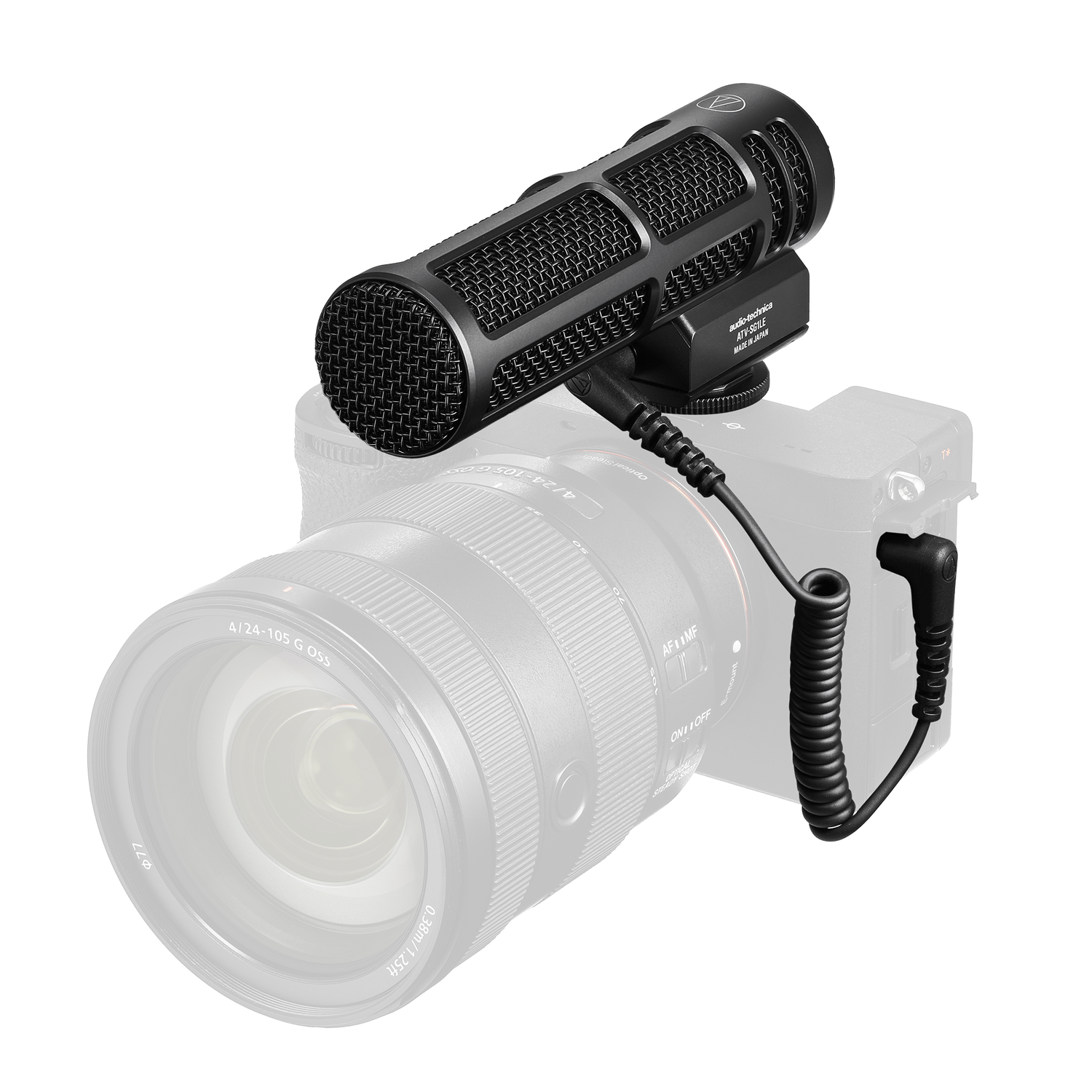

The microphone connects easily to compatible DSLR, mirrorless and other cameras.

Japanese Manufacturing
Designed and manufactured in Japan for dependable audio performance.

Specifications

General Specifications
Device Type: On-camera shotgun microphone
Element: Fixed-charge back plate, permanently polarized condenser
Diaphragm Diameter: 14 mm
Acoustic Tube Length: 100 mm
Polar Pattern: Line and gradient
Frequency Response: 20 Hz to 20,000 Hz

Acoustic Performance
Open-Circuit Sensitivity: -38 dBV
Maximum Input Level: 114 dB SPL at 1 kHz, 3% THD
Dynamic Range: 102.5 dB at 1 kHz and maximum SPL
Signal-to-Noise Ratio: 82.5 dB at 1 kHz, 1 Pa, A-weighted

Power
Power Supply: Plug-in power
Input Voltage: 1.5 V to 5.0 V
Battery Requirement: None

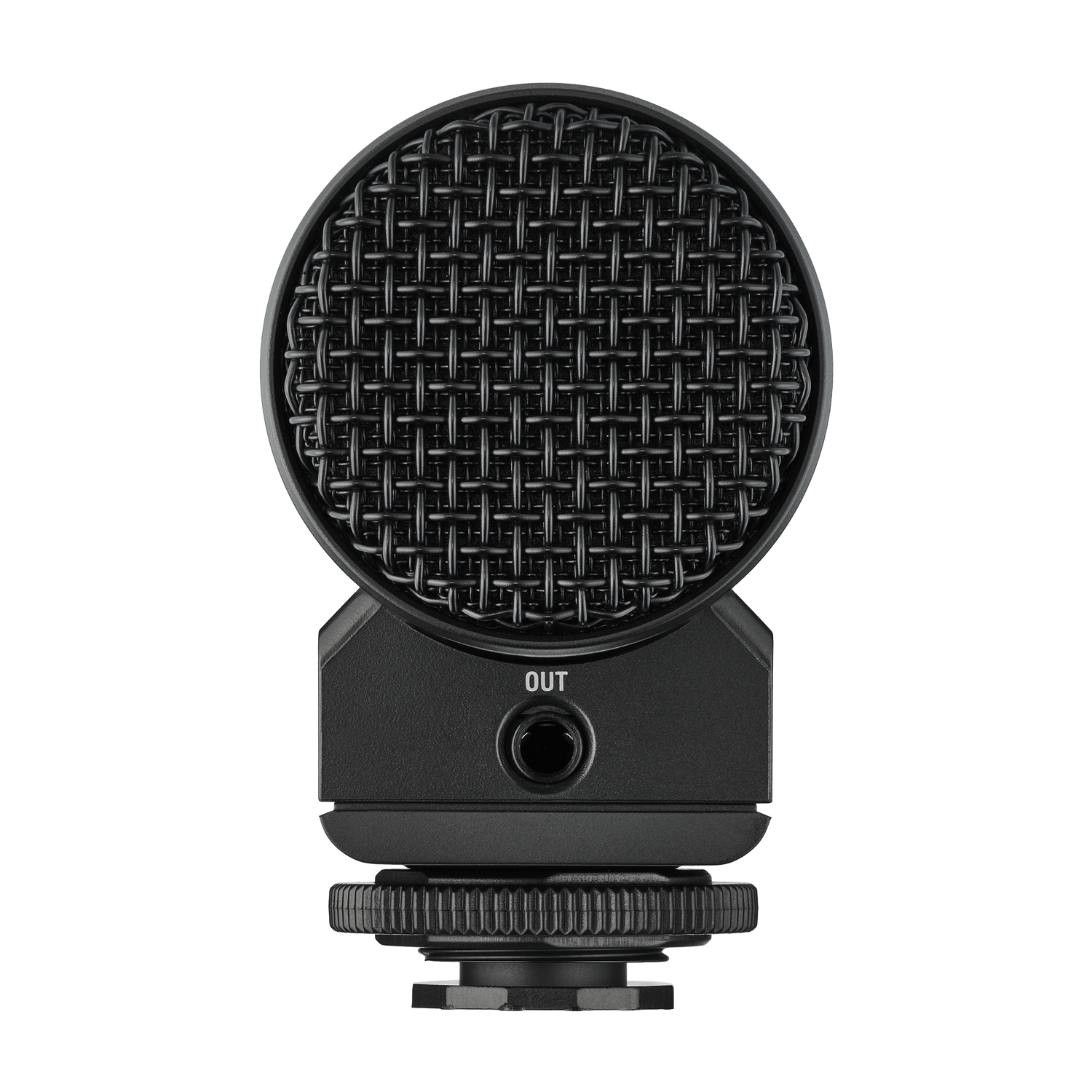

Output

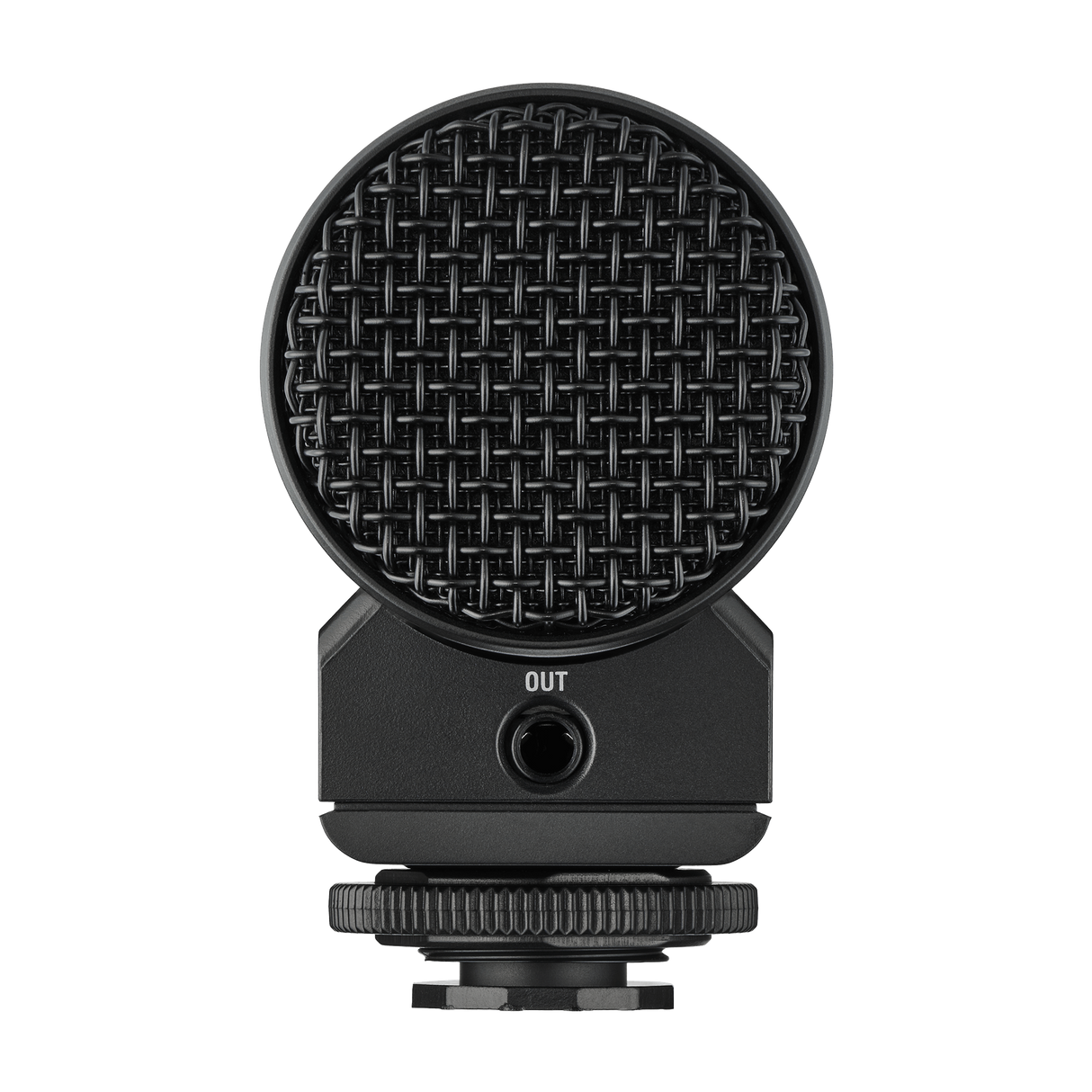

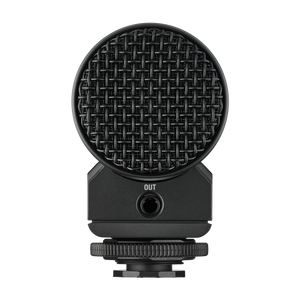

Main Output: 3.5 mm (1/8 in) stereo mini-jack
Cable Connection: TRS to TRS

Mounting
Shoe Plate Positions: 12
Rotation Increments: 30 degrees
Shock Mount: Integrated

Environmental
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Storage Humidity: 10% to 90% RH, non-condensing

Dimensions and Weight
Length: 127.1 mm (5.0 in)
Microphone Body Diameter: 35 mm (1.4 in) maximum
Height: 59 mm (2.3 in)
Weight: Approximately 100 g (3.5 oz)

Construction
Manufacturing Location: Japan
Noise Immunity: Radio-frequency interference resistance

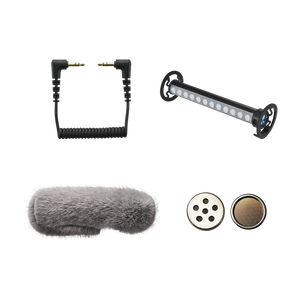

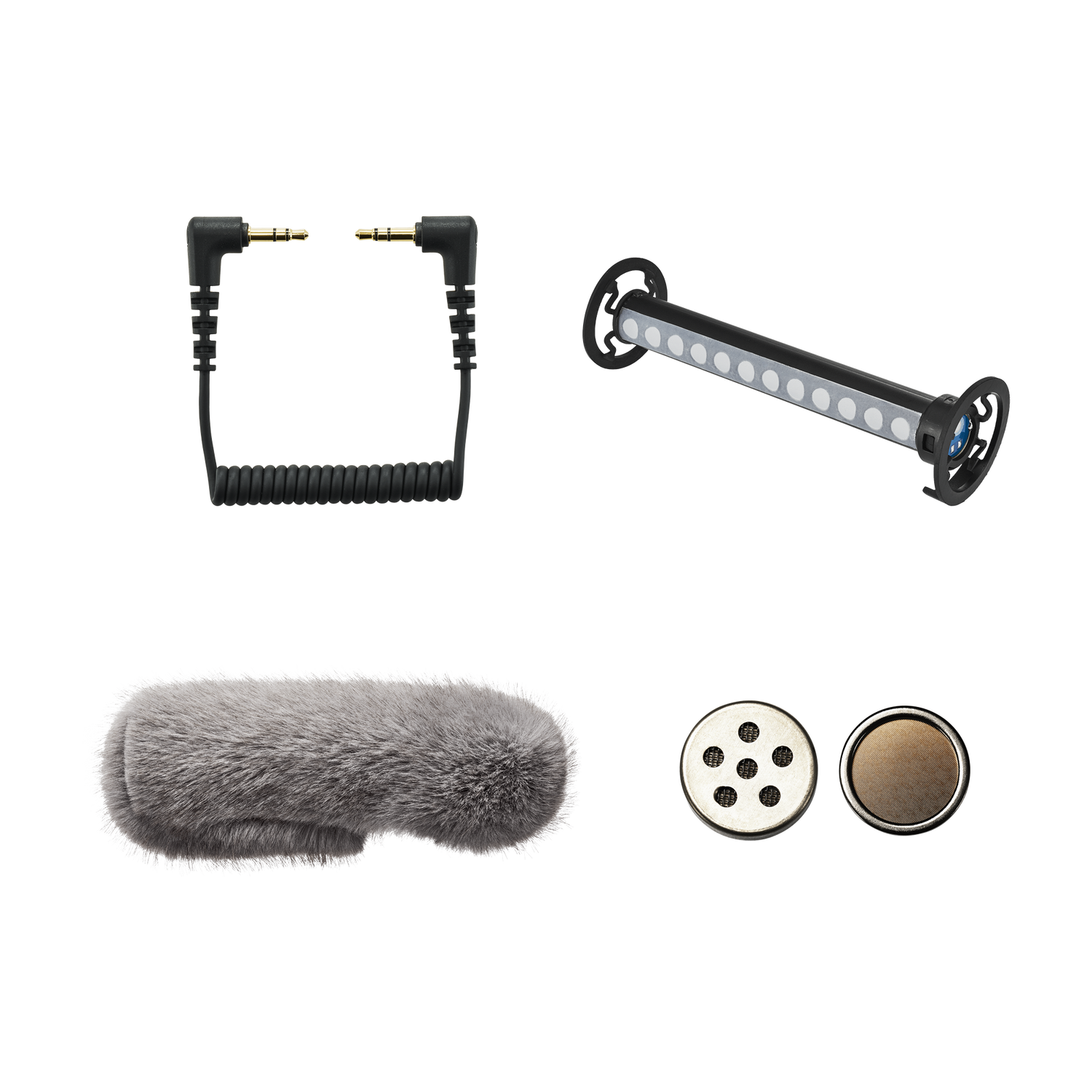

Included Accessories
Audio Cable: Coiled 3.5 mm stereo mini-plug cable
Audio Cable Length: Approximately 5 cm (2.0 in), 50 cm (20 in) extended

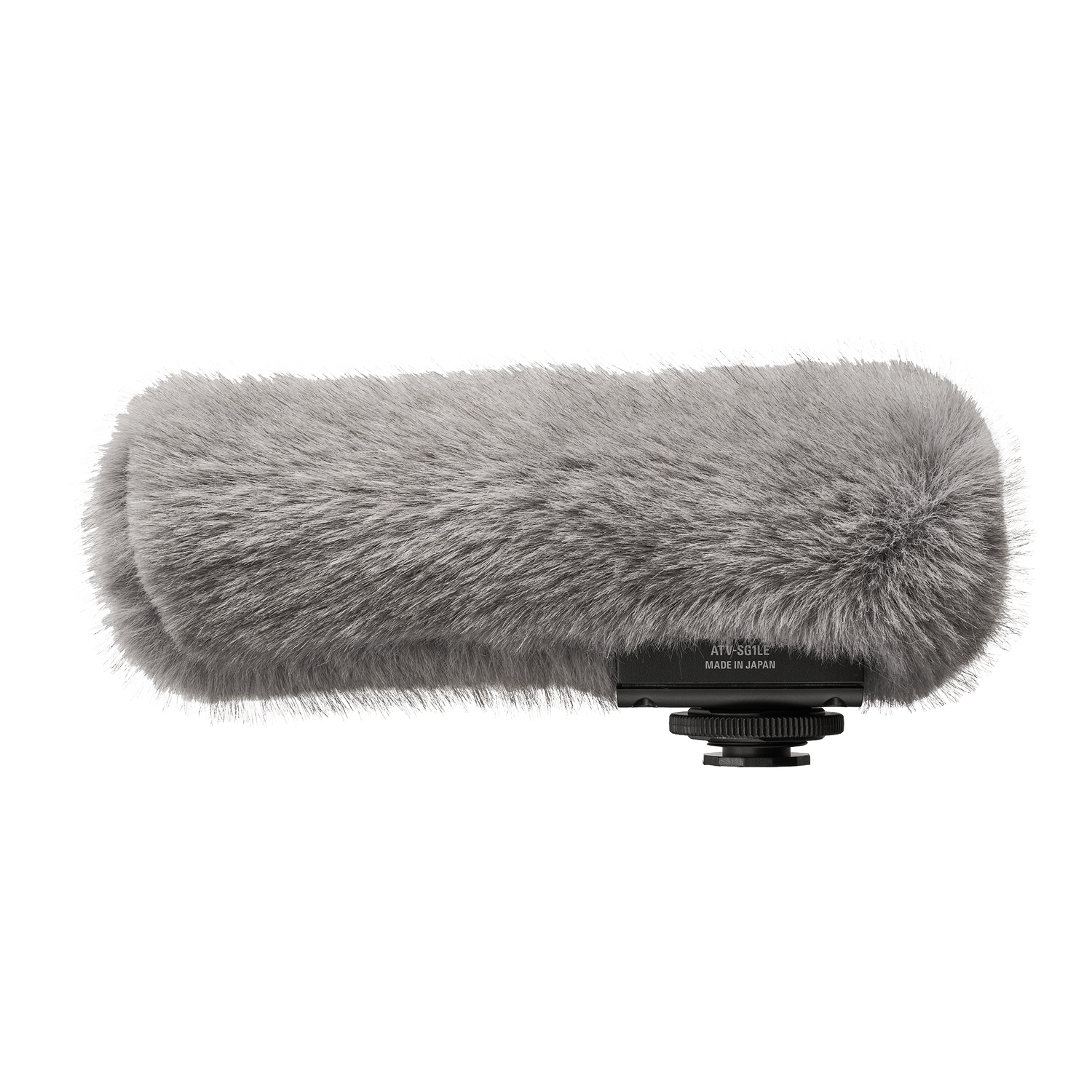

Wind Protection: Dedicated wind muff
