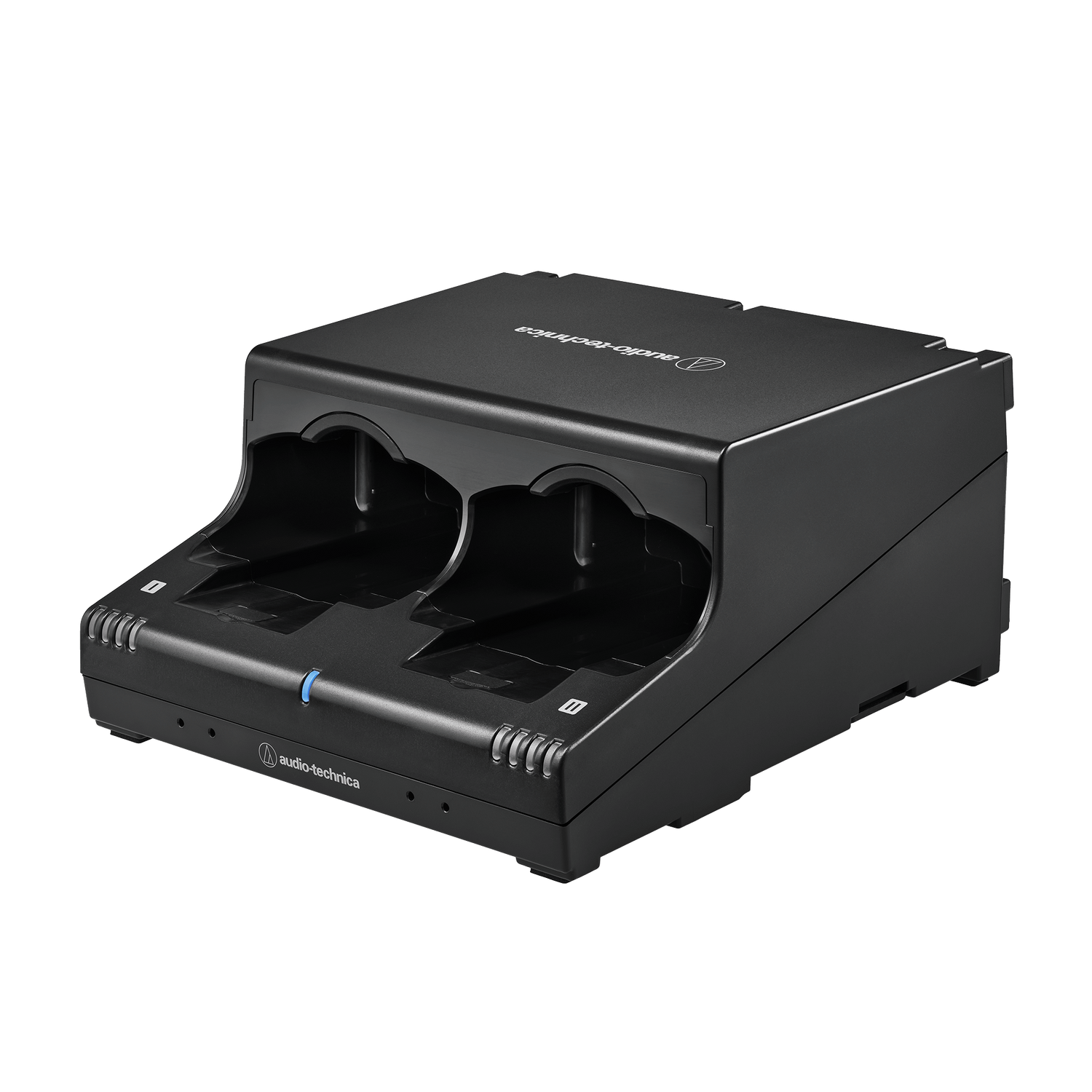

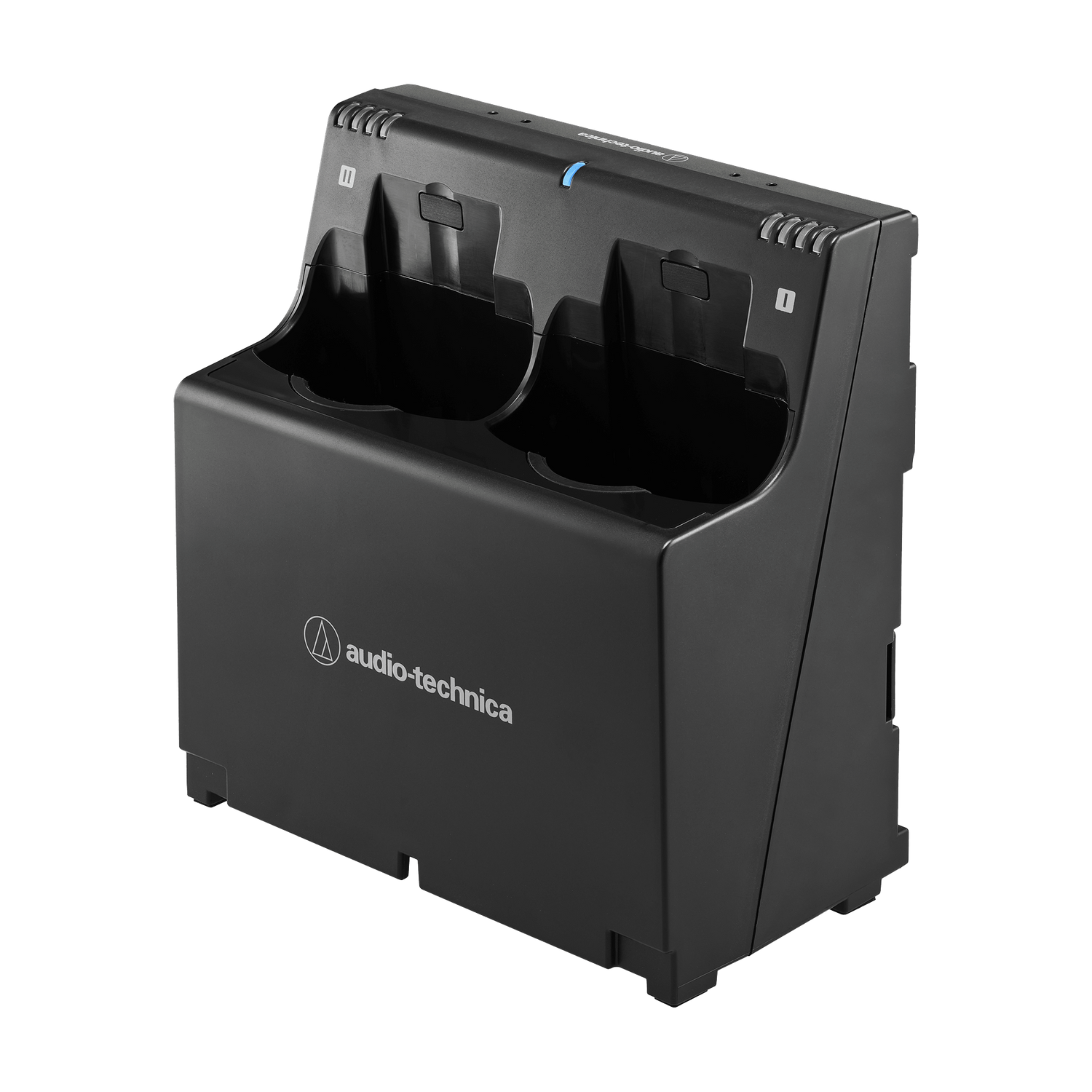

ATW-CHG6

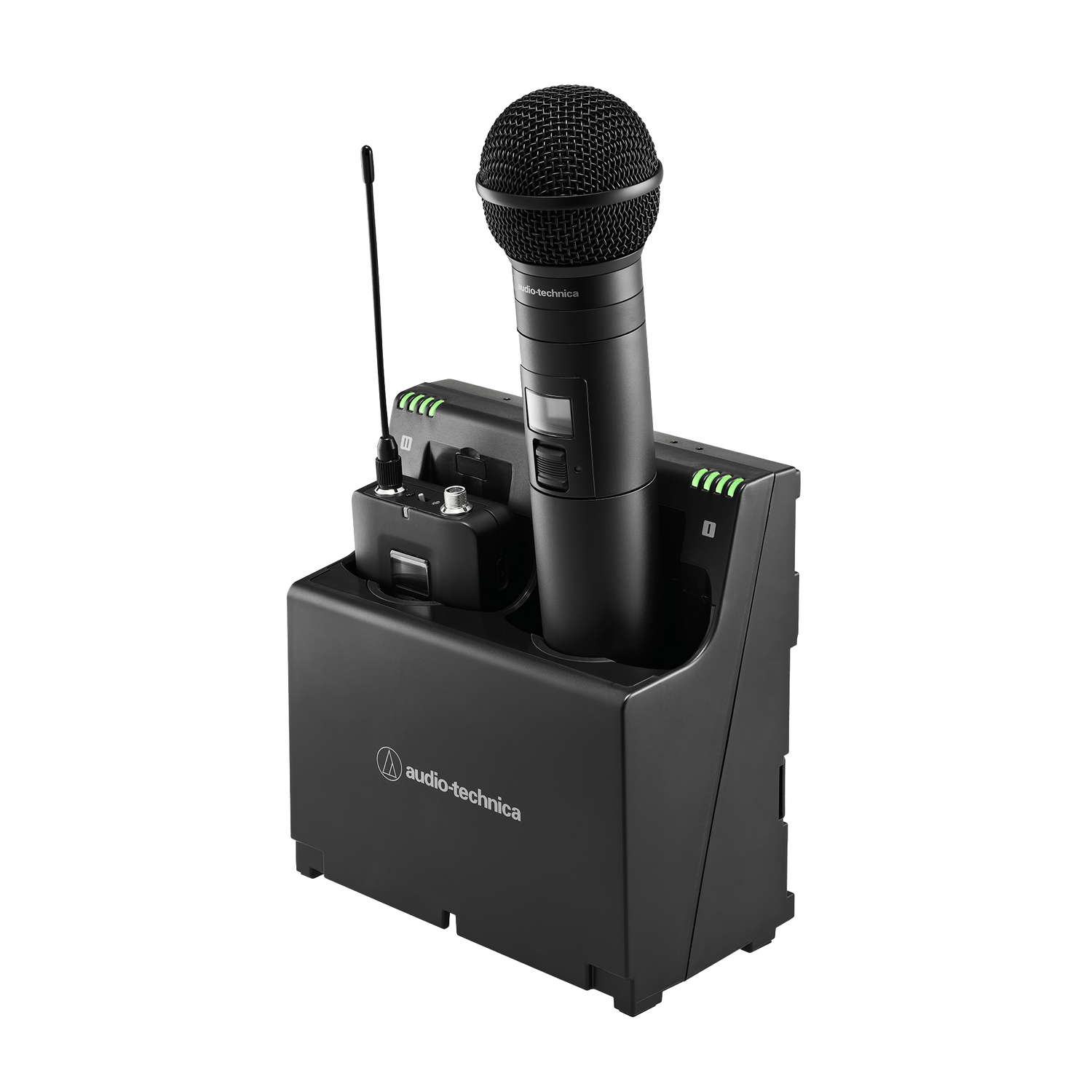

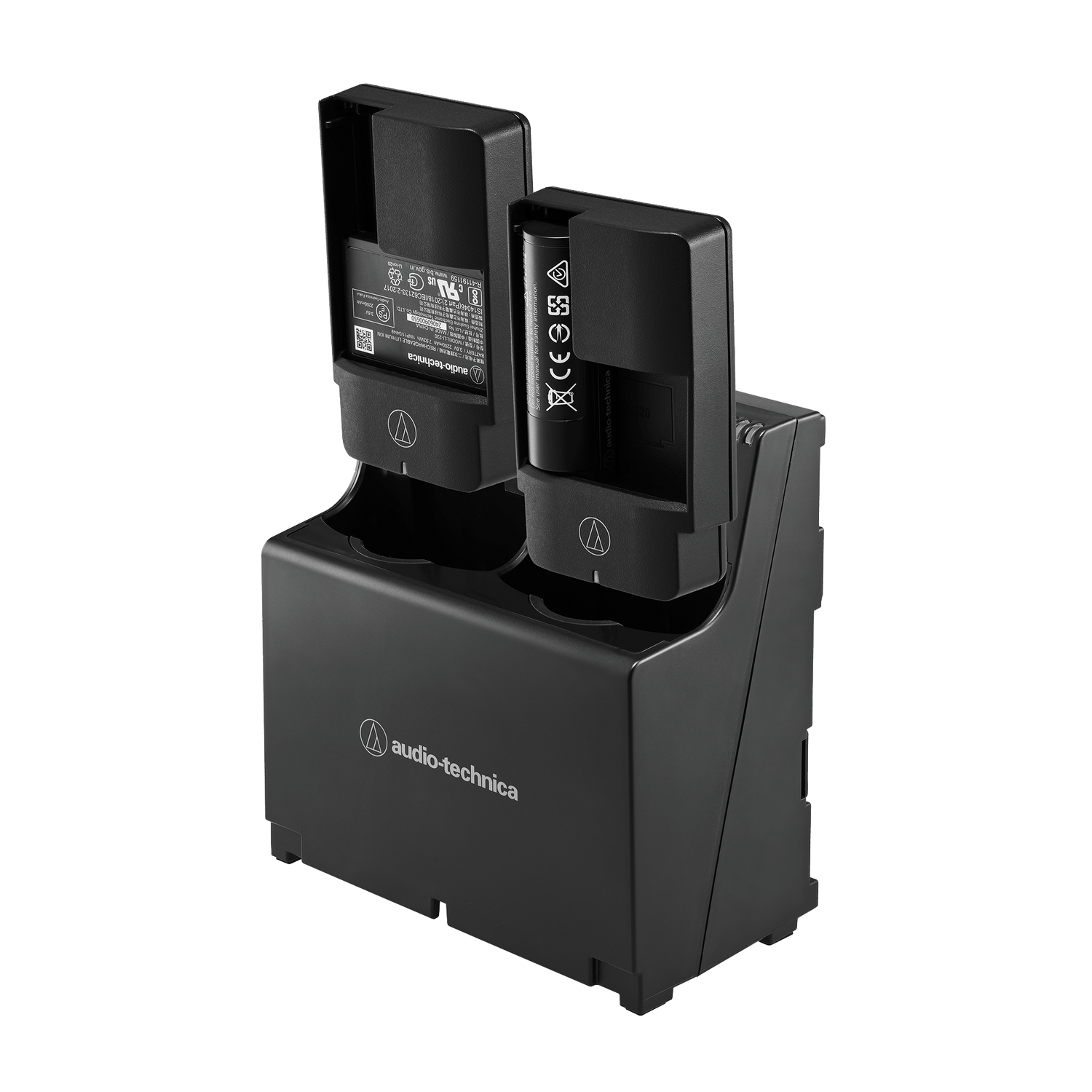

Dual Transmitter Charging
Charges compatible body-pack and handheld transmitters in the same station.

Battery Charger Support
Accepts a compatible single-battery charger for additional flexibility.

Expandable Charging
Links with additional matching stations for larger wireless systems.

Flexible Power Options
Supports operation through a compatible AC adapter or PoE+ connection.

Charging Status Indicators
Front indicator lamps provide a clear view of charging progress and battery levels.

Software Monitoring
Charging information can be viewed remotely through Wireless Manager.

Docked Firmware Updates
Supports transmitter firmware updates while units remain in the charging bays.

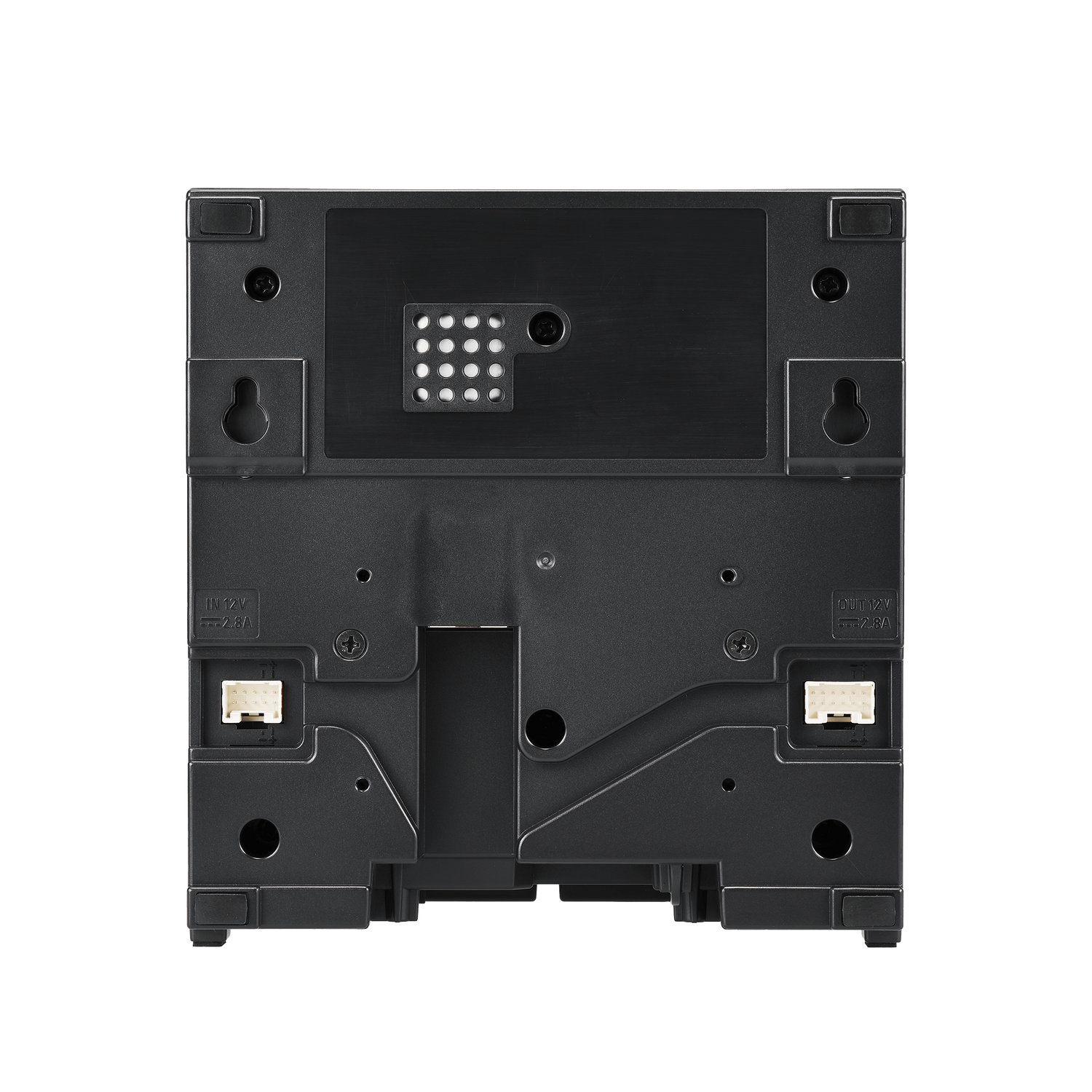

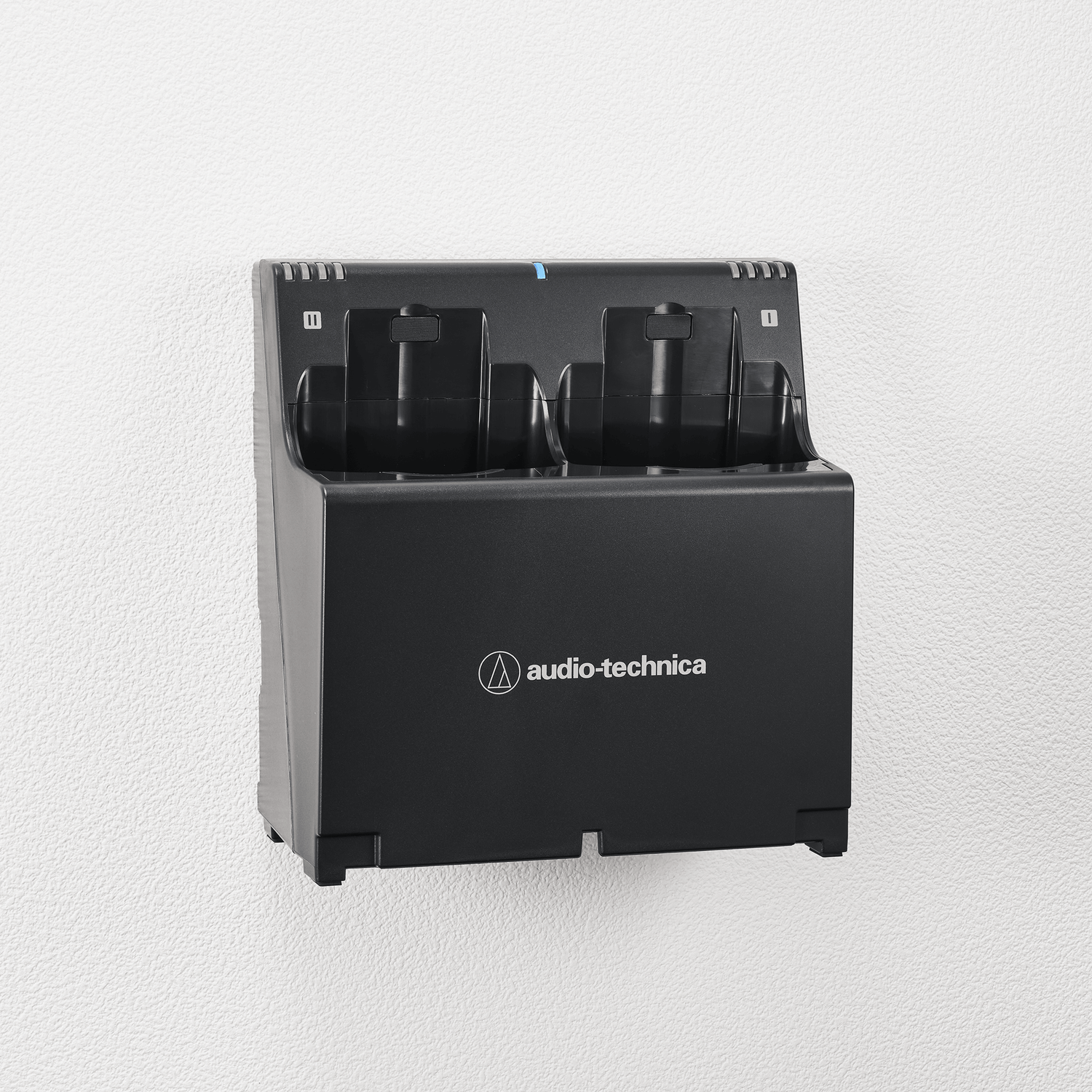

Flexible Installation
Mounts vertically or horizontally on racks, walls, and other suitable surfaces.

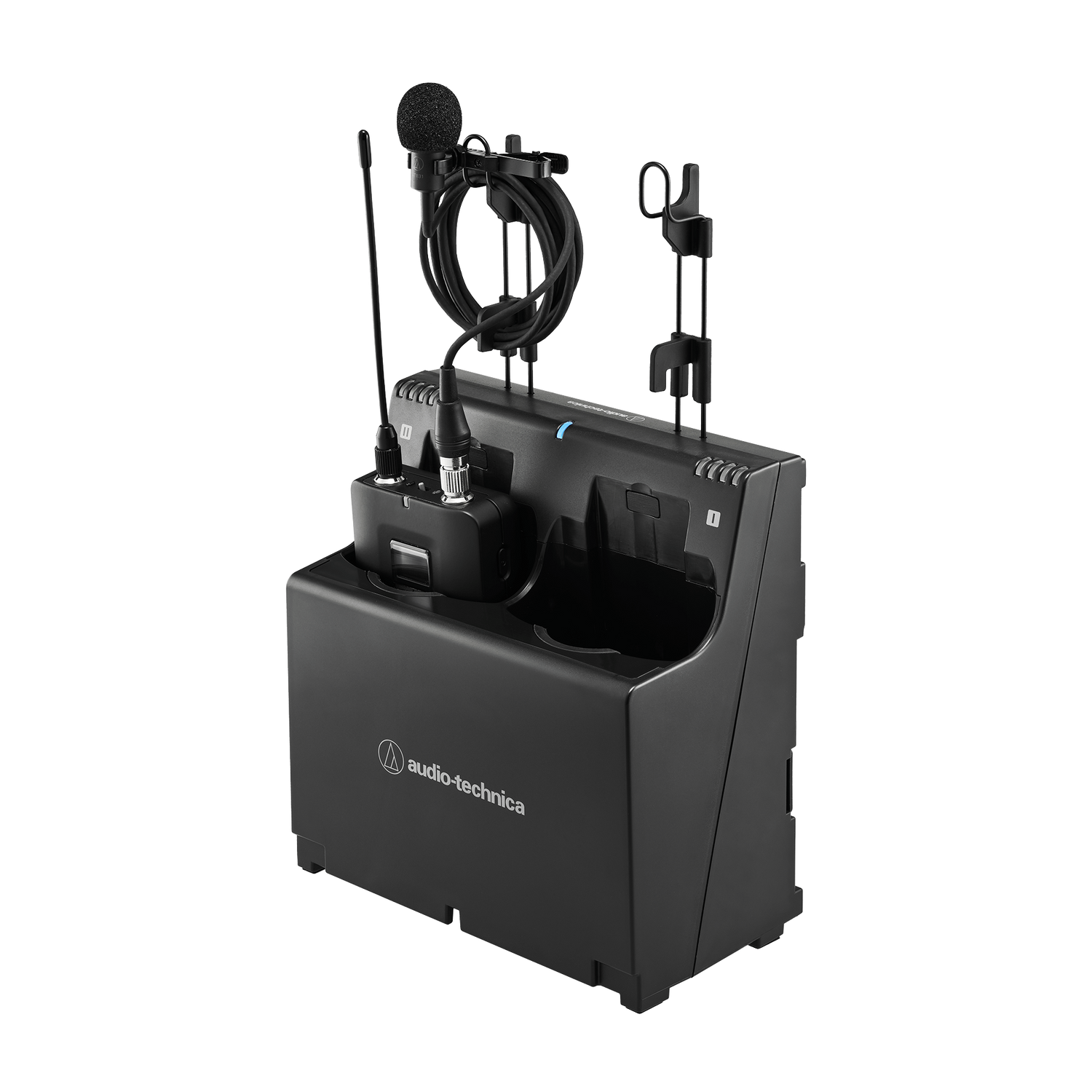

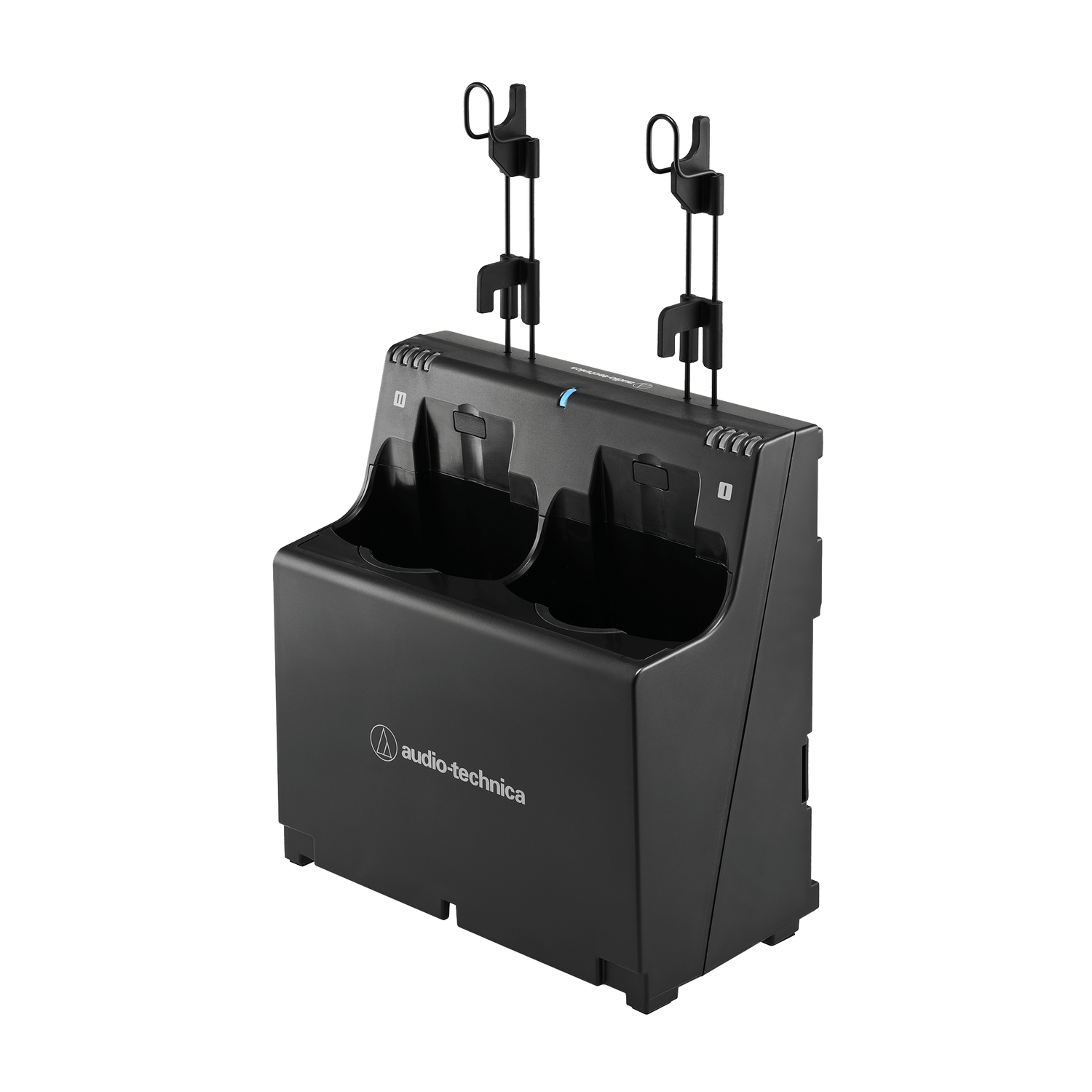

Microphone Storage
Included hangers provide a convenient place to store lavalier microphones.

General Specifications
Device Type: Two-bay transmitter charging station
Charging Bays: 2
Compatibility: D50 body-pack transmitters, D50 handheld transmitters, compatible single-battery charger
Charging Status Monitoring: Front LED indicators, Wireless Manager software
Battery Level Monitoring: Front LED indicators, Wireless Manager software
Docked Firmware Updates: Supported

Station Linking
Connection Type: Cat5e
Maximum Stations with AC Power: 4
Maximum Capacity with AC Power: 8 transmitters
Maximum Stations with PoE+ Power: 3
Maximum Capacity with PoE+ Power: 6 transmitters
Shared Power Support: Supported

Power Specifications
DC Power Supply: 12 V DC, 3.0 A
Network Power: PoE+
Maximum Power Consumption with AC Adapter: 15 W (51 Btu/h) when charging two transmitters
Maximum Power Consumption with PoE+: 16 W (55 Btu/h) when charging two transmitters
Energy-Saving Mode Output: 12 V, 0.2 A

AC Adapter Charging Output
One to Four Transmitters: 5 V, 1.1 A
Five to Six Transmitters: 5 V, 0.8 A
Seven to Eight Transmitters: 5 V, 0.5 A

PoE+ Charging Output
One to Two Transmitters: 5 V, 1.1 A
Three to Six Transmitters: 5 V, 0.5 A

Body-Pack Transmitter Charging Time
AC Power, One to Four Transmitters: Approximately 2 hours 30 minutes
AC Power, Five to Six Transmitters: Approximately 3 hours 10 minutes
AC Power, Seven to Eight Transmitters: Approximately 5 hours
PoE+ Power, One to Two Transmitters: Approximately 2 hours 30 minutes
PoE+ Power, Three to Six Transmitters: Approximately 5 hours
Energy-Saving Mode: Approximately 5 hours

Handheld Transmitter Charging Time
AC Power, One to Four Transmitters: Approximately 3 hours 50 minutes
AC Power, Five to Six Transmitters: Approximately 5 hours
AC Power, Seven to Eight Transmitters: Approximately 7 hours 10 minutes
PoE+ Power, One to Two Transmitters: Approximately 3 hours 50 minutes
PoE+ Power, Three to Six Transmitters: Approximately 7 hours 10 minutes
Energy-Saving Mode: Approximately 7 hours 10 minutes

Network Specifications
Network Speed: 100 Mbps

Mounting Specifications
Mounting Orientation: Vertical or horizontal
Mounting Locations: Rack, wall, other suitable surface
Optional Rack Configuration: 3 charging stations in 2U rack space

Environmental Specifications
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 55°C (-4°F to 131°F)

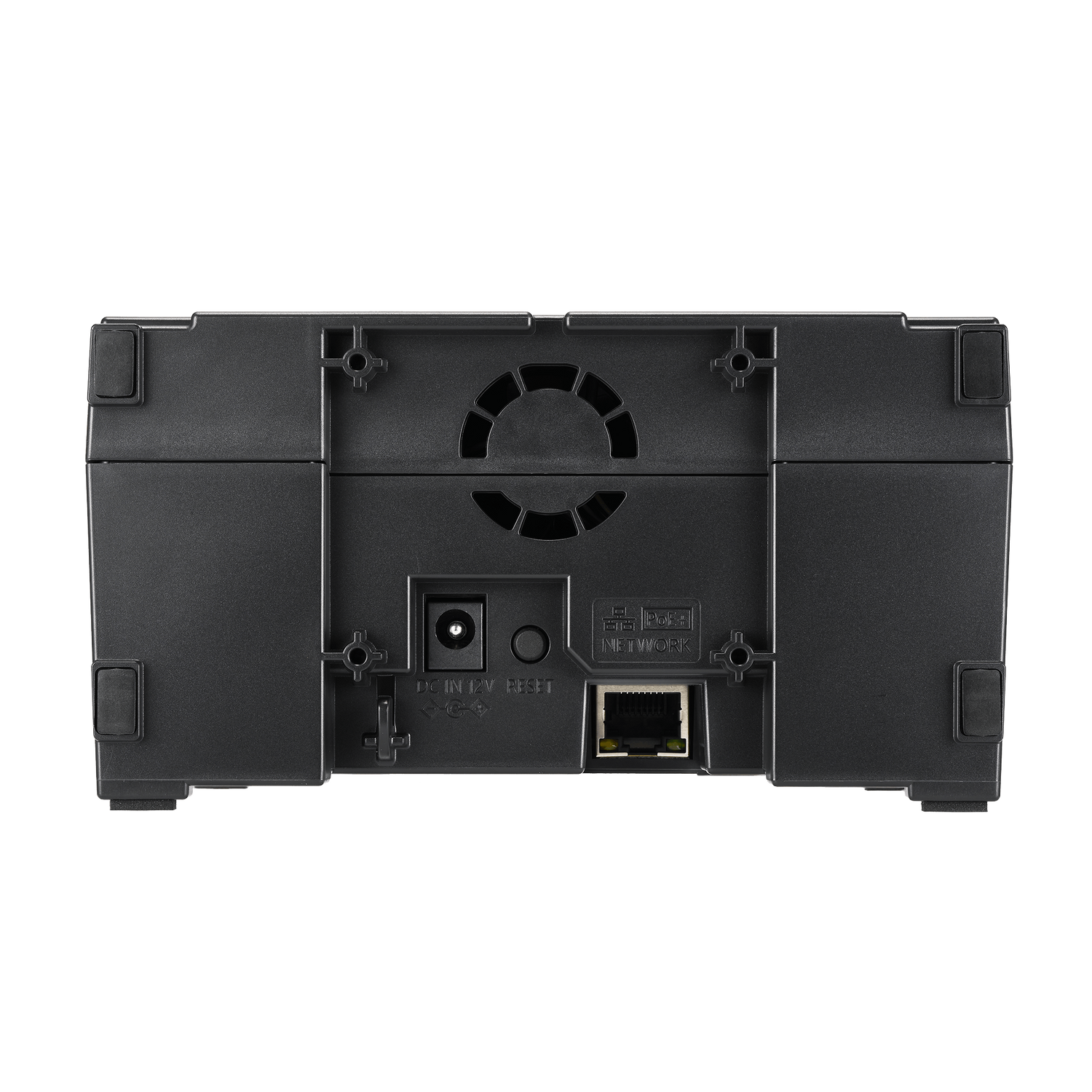

Cooling Method: Fan-assisted air cooling
Airflow Direction: Front intake, rear exhaust

Physical Specifications
Dimensions: 145.6 × 78.3 × 154 mm (5.7 × 3.1 × 6.1 in), W × D × H
Weight: 678 g (24 oz)

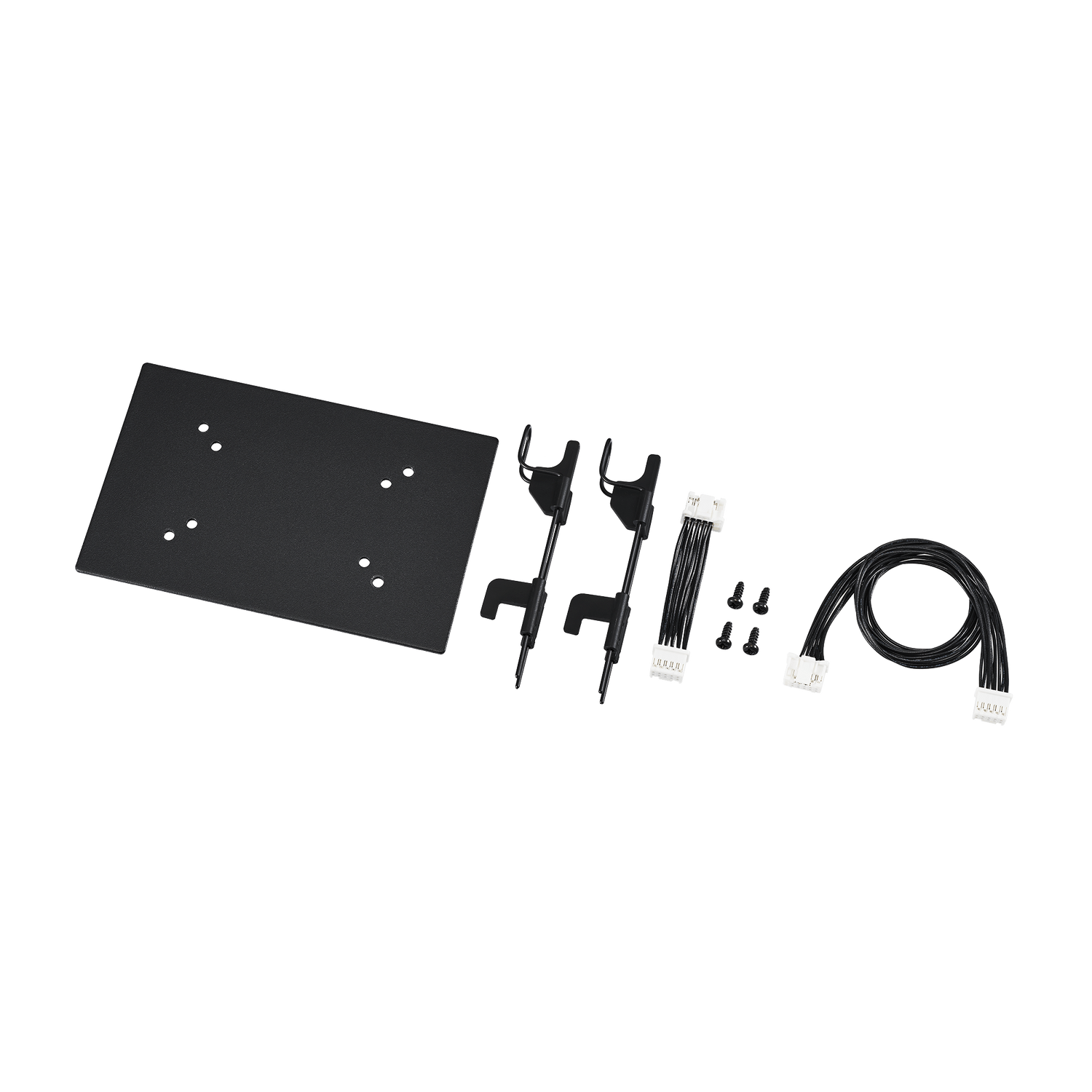

Included Items
Charging Station: 1
Mounting Plate: 1

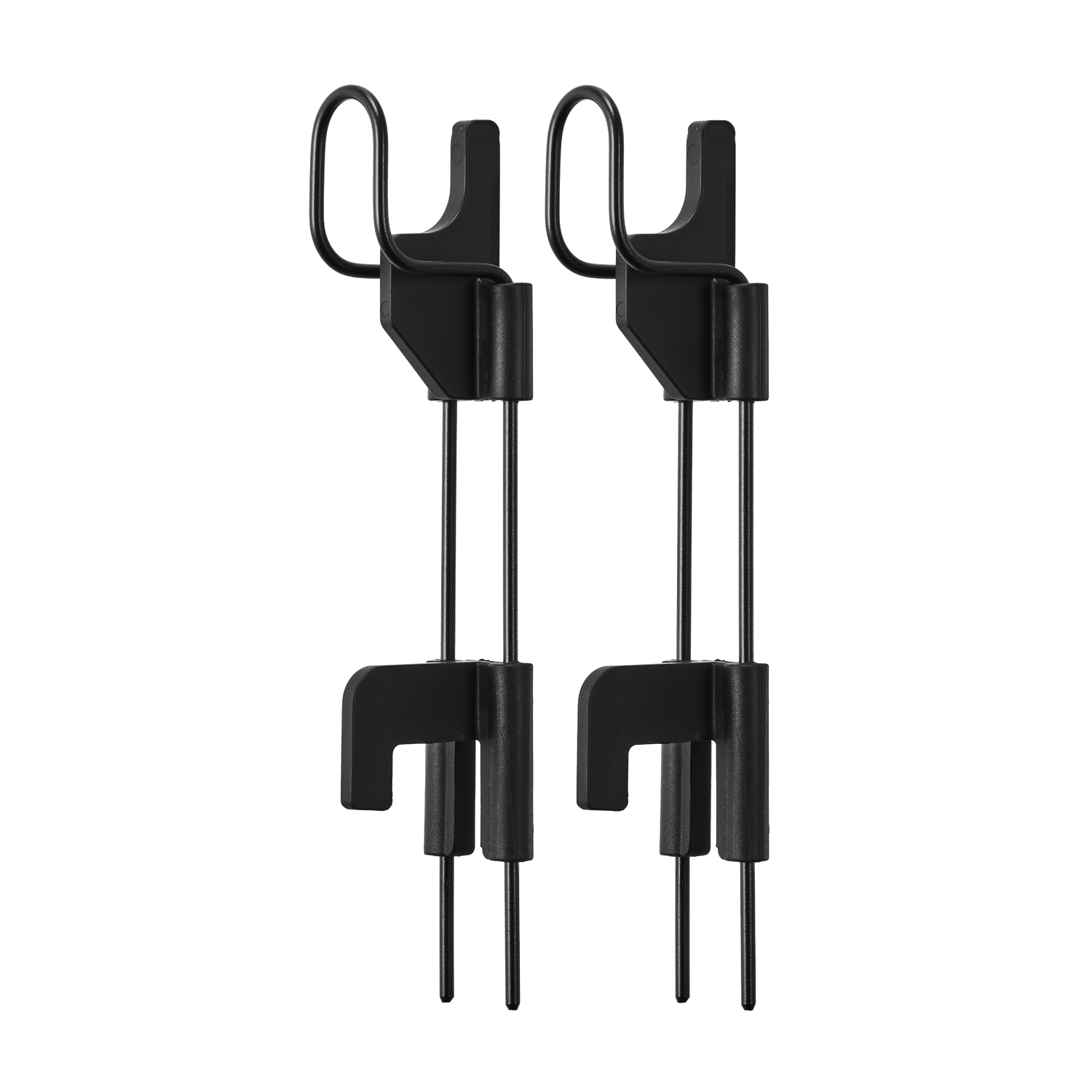

Lavalier Microphone Hangers: 2
Link Cables: Included
Link Plate: 1
Link Plate Screws: Included
