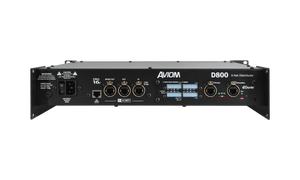

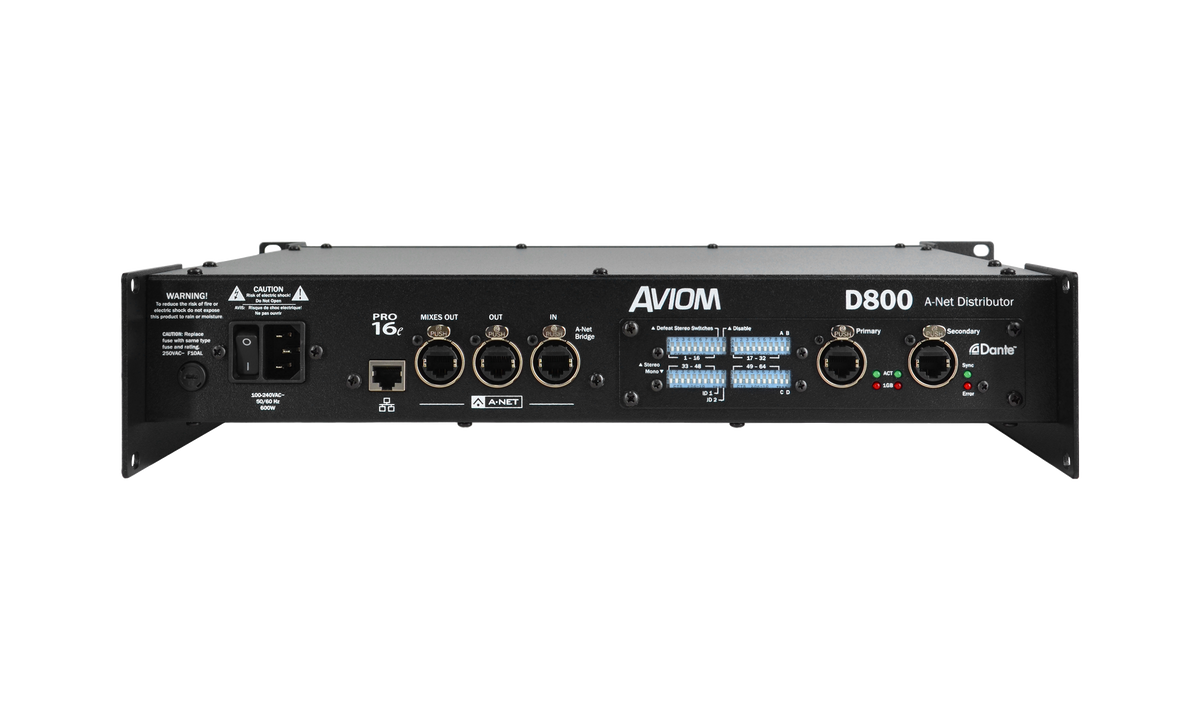

D800-Dante v.2

Direct Dante Connectivity
Connects directly to a Dante audio network through locking primary and secondary RJ45 ports.

Flexible Audio Sources
Distributes audio from either the Dante network or a Pro16e A-Net input to connected Personal Mixers.

Eight Powered Mixer Connections
Supplies digital audio and DC power to as many as eight compatible Personal Mixers through locking RJ45 connections.

Automatic Bidirectional Setup
Automatically configures bidirectional communication with compatible Personal Mixers without front-panel I/II switches.

High-Resolution Dante Support
Accepts Dante audio at sample rates up to 192 kHz and converts higher-rate streams for distribution to A-Net devices.

Network Mix Back
Returns personal stereo mixes through A-Net and the Dante network for streamlined connections to wireless in-ear monitor transmitters.

Channel Pairing Control
Rear-panel DIP switches configure stereo links for channels distributed to Personal Mixers.

iOS Display Support
Connects to a compatible Wi-Fi network through Ethernet for use with supported iOS display applications.

Expandable A-Net System
Passes the incoming digital audio stream to additional A-Net distributors through the rear-panel A-Net Out connection.

General Specifications
Device Type: Dante-enabled A-Net distributor
Rack Height: 2U
Personal Mixer Capacity: Up to 8
Compatible Personal Mixers: A640, A360, A320, A-16II
A640 Firmware Requirement: Version 4.00 or later for full functionality
Bidirectional Communication: Automatic
System Compatibility: Interchangeable with original distributor versions

Dante Audio
Dante Channel Capacity at 44.1 or 48 kHz: 64 channels
Dante Channel Capacity at 88.2 or 96 kHz: 32 channels
Dante Channel Capacity at 176.4 or 192 kHz: 16 channels
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
High-Rate A-Net Conversion: 48 kHz
Static IP Support: Yes
AES67 Support: Yes

Dante Connections
Primary Dante I/O: 1 locking RJ45 connector
Secondary Dante I/O: 1 locking RJ45 connector
Stereo Link Controls: 4 DIP switch blocks
Stereo Link Ranges: Channels 1-16, 17-32, 33-48, 49-64
Maximum Stereo Links: 32 channel pairs
Stereo Link Defeat: DIP switch bypass
Input Source Selection: Dante or A-Net In
Reserved DIP Switches: ID1, ID2, A, B, C, D

A-Net Connections
Personal Mixer Connections: 8 powered locking RJ45 connectors
A-Net Input: Pro16 or Pro16e A-Net, 1 locking RJ45 connector
A-Net Bridge Input: Up to 4 synchronized Pro16 A-Net streams
A-Net Output: Pro16e A-Net, 1 unpowered locking RJ45 connector
A-Net Mixes Output: Pro16e A-Net, 1 unpowered locking RJ45 connector
Mix Back Capacity: Up to 16 channels, 8 stereo pairs
Maximum A-Net Audio Channels: 64

Network and Service Connections
Ethernet: 1 RJ45 connector for supported iOS display integration
USB: Firmware updates

Indicators
Front-Panel LEDs: Power On red, Sync green
Rear-Panel LEDs: Error red, Sync green, 1GB Active red, Network Activity green

Cabling
Front-Panel Cable Type: Shielded Cat-5e or better
Rear-Panel Cable Type: Unshielded Cat-5e supported
Personal Mixer Power Transmission: Over Cat-5e cable

Power
Personal Mixer Output Voltage: 24VDC, 0.5A
Power Supply: Internal universal switching type
Power Connector: IEC
Input Voltage: 100-240VAC, 50-60Hz
Power Rating: 300W
Fuse: 250VAC, T4AL

Physical Specifications
Width: 19 in. (482.6 mm)
Depth: 14.25 in. (362 mm)
Height: 3.5 in. (88.9 mm)
Weight: 12.0 lb. (5.44 kg)
