FRANKLIN AUDIO

DI-80

D.I.

Passive direct box, 8-channel transformer-coupled DI, front override inputs, rear I/O, XLR outputs, throughs, high-headroom low-noise audio

$1,719.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Franklin Audio DI-80 is an 8-channel passive, transformer-coupled direct box designed to keep studio and live setups clean, organized, and ready for everyday use. Regular instruments and machines can stay connected through the rear panel, while the front-panel inputs make it easy to plug in a guest instrument, borrowed synth, bass, guitar, keyboard, or drum machine whenever needed. When a front input is used, it automatically takes priority over the rear connection, making quick changes simple without disrupting your usual setup.

Housed in a rugged 1RU rack enclosure, the DI-80 offers eight channels of clean, high-headroom passive DI performance with transformer-balanced XLR outputs for sending signal to an audio interface, mic preamp, or mixing desk. Each channel also includes a through connection, allowing the original signal to be sent onward to an amplifier or parallel processing chain. With all routine I/O kept neatly at the back and label-friendly space on the front, it is a practical, tidy solution for studios, rehearsal rooms, and live rigs that need reliable multi-channel DI connectivity.

Features

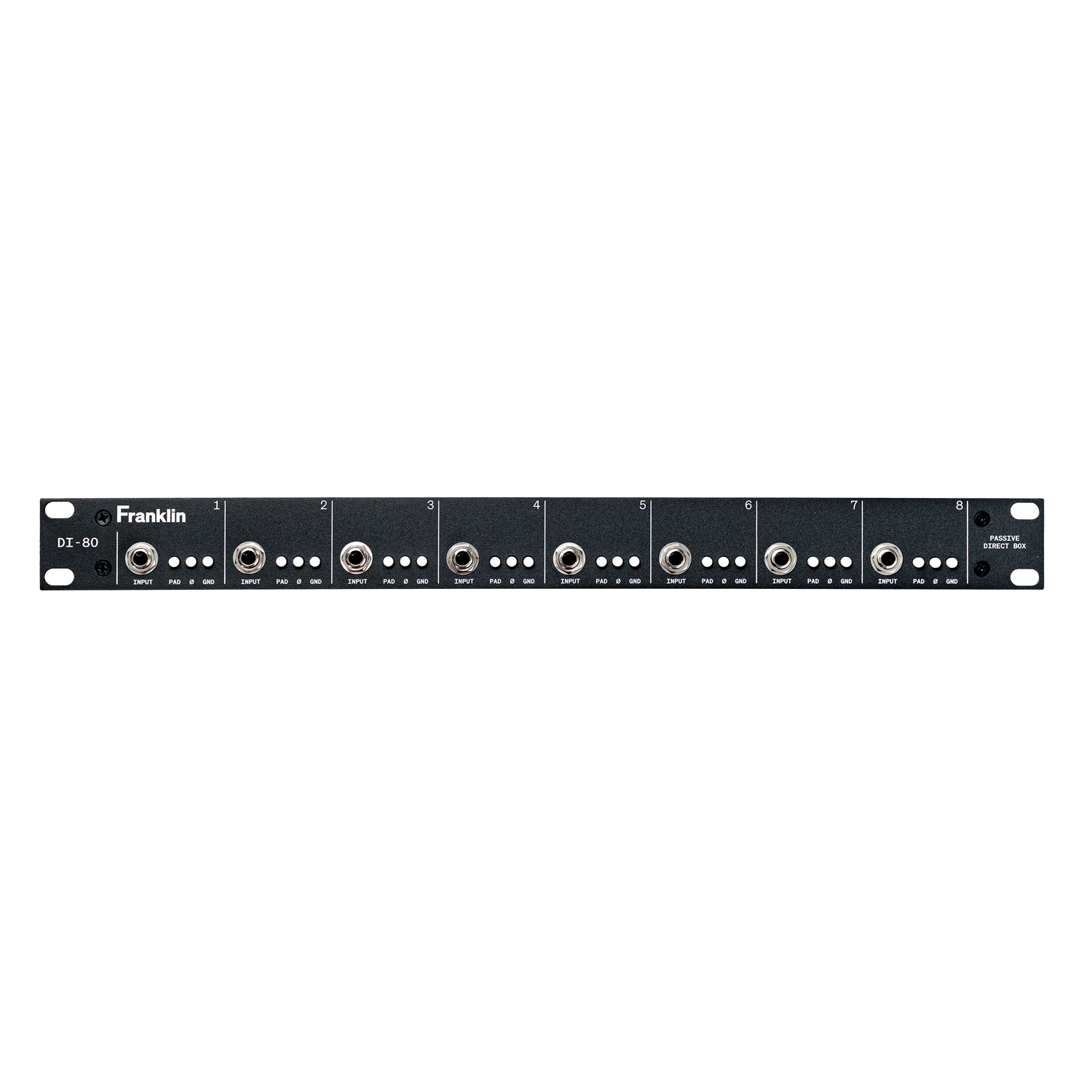

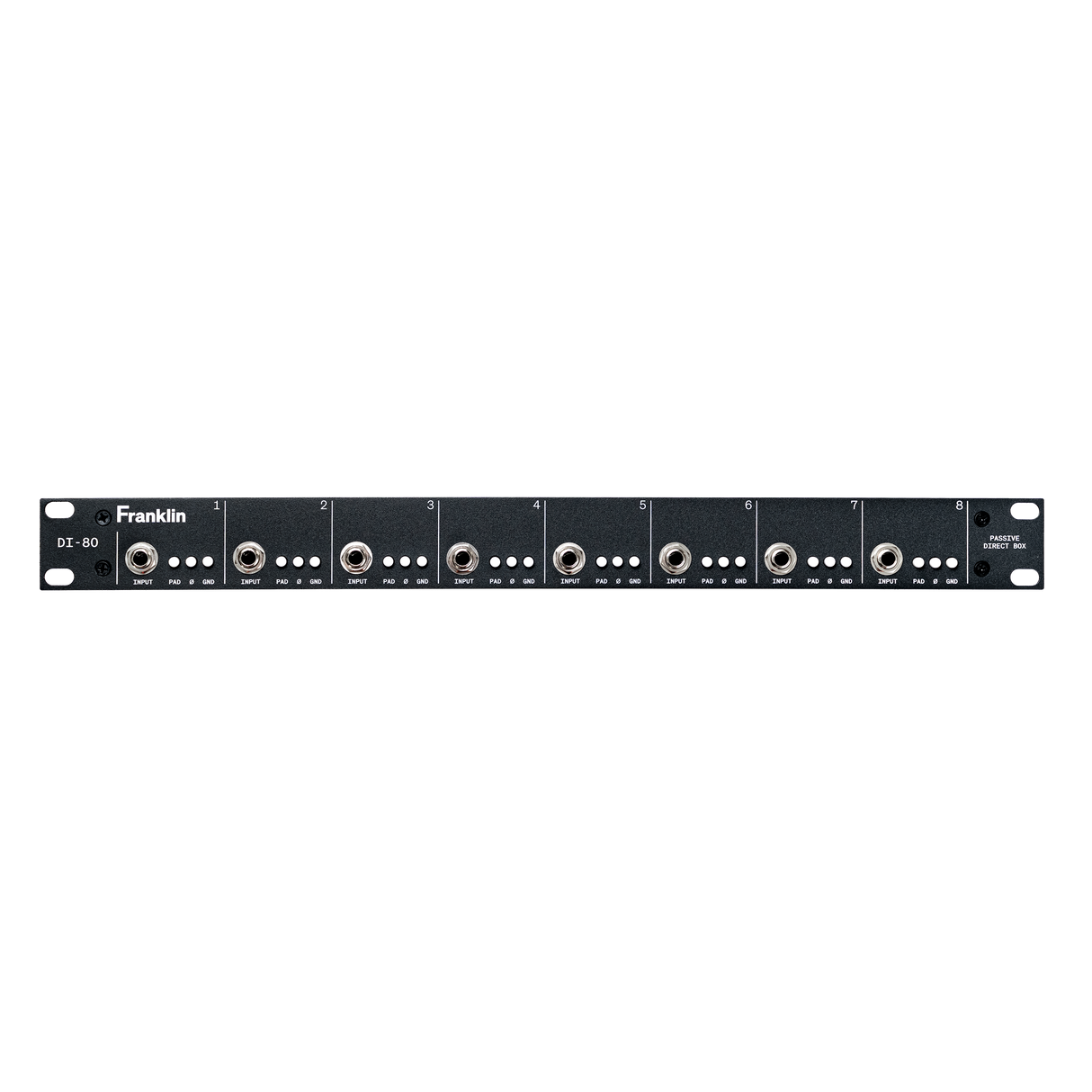

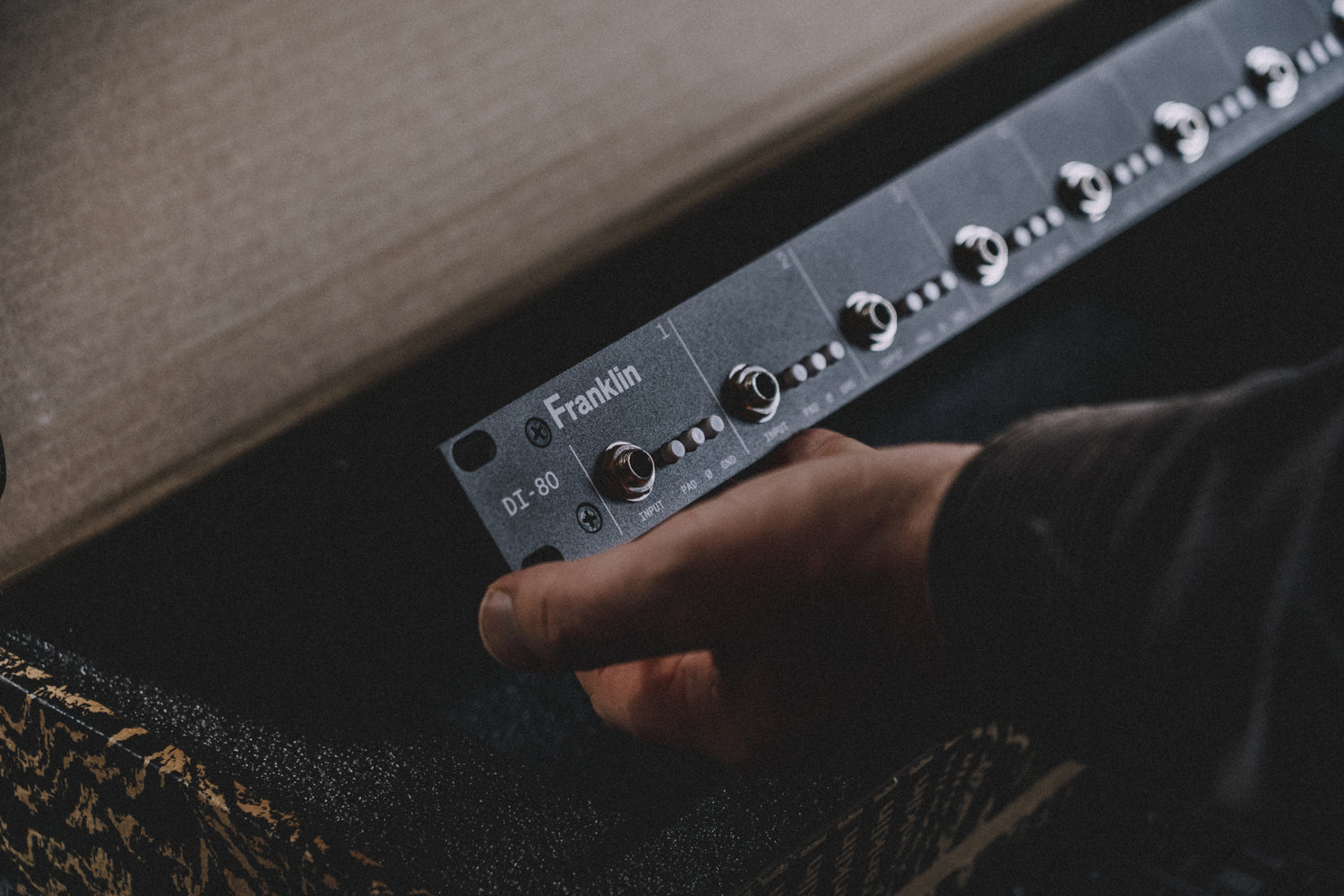

Front Inputs Override Rear Inputs
Plug a temporary instrument into the front panel and it automatically takes priority over the rear connection. Your regular setup stays ready while guests and one-off sources are easy to add.

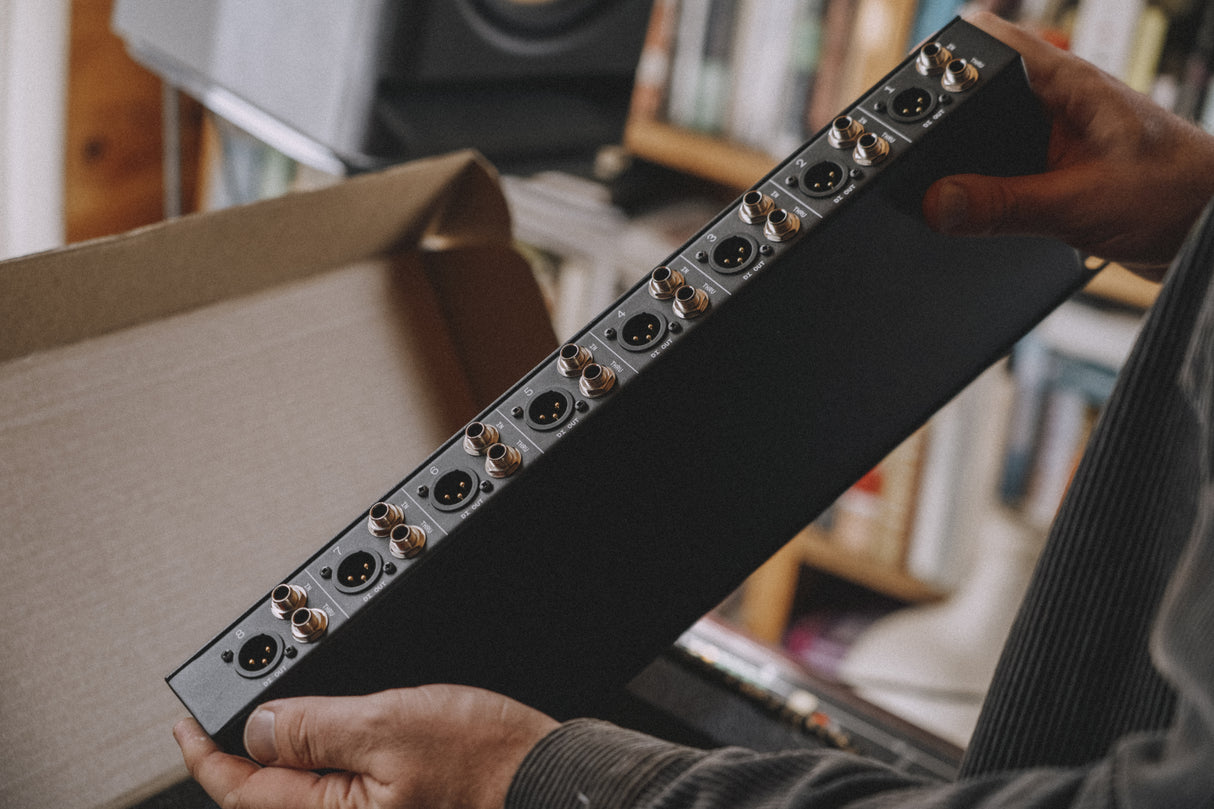

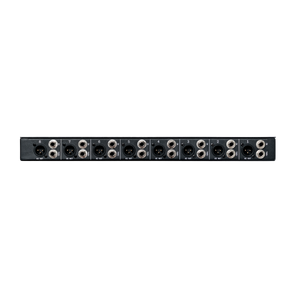

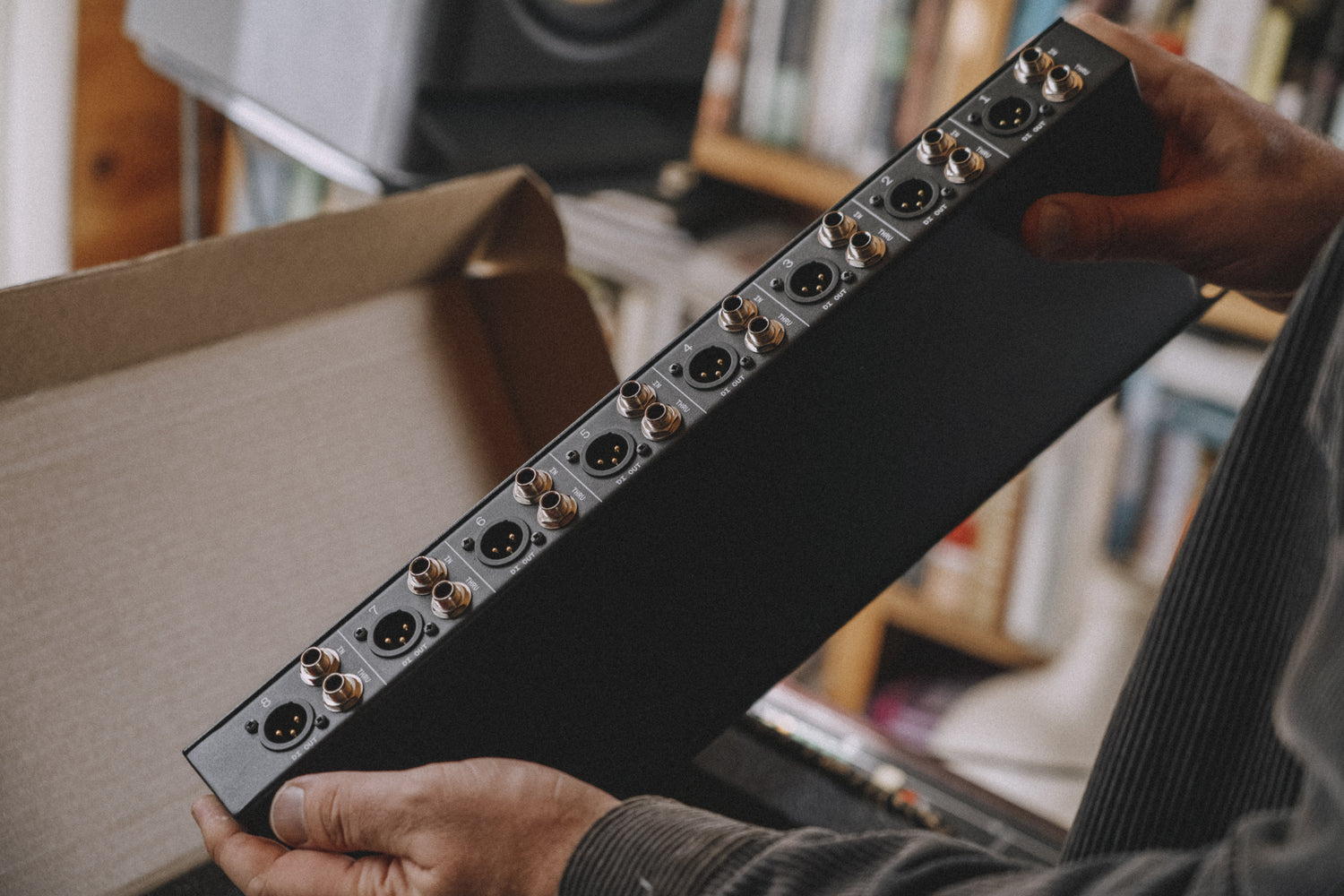

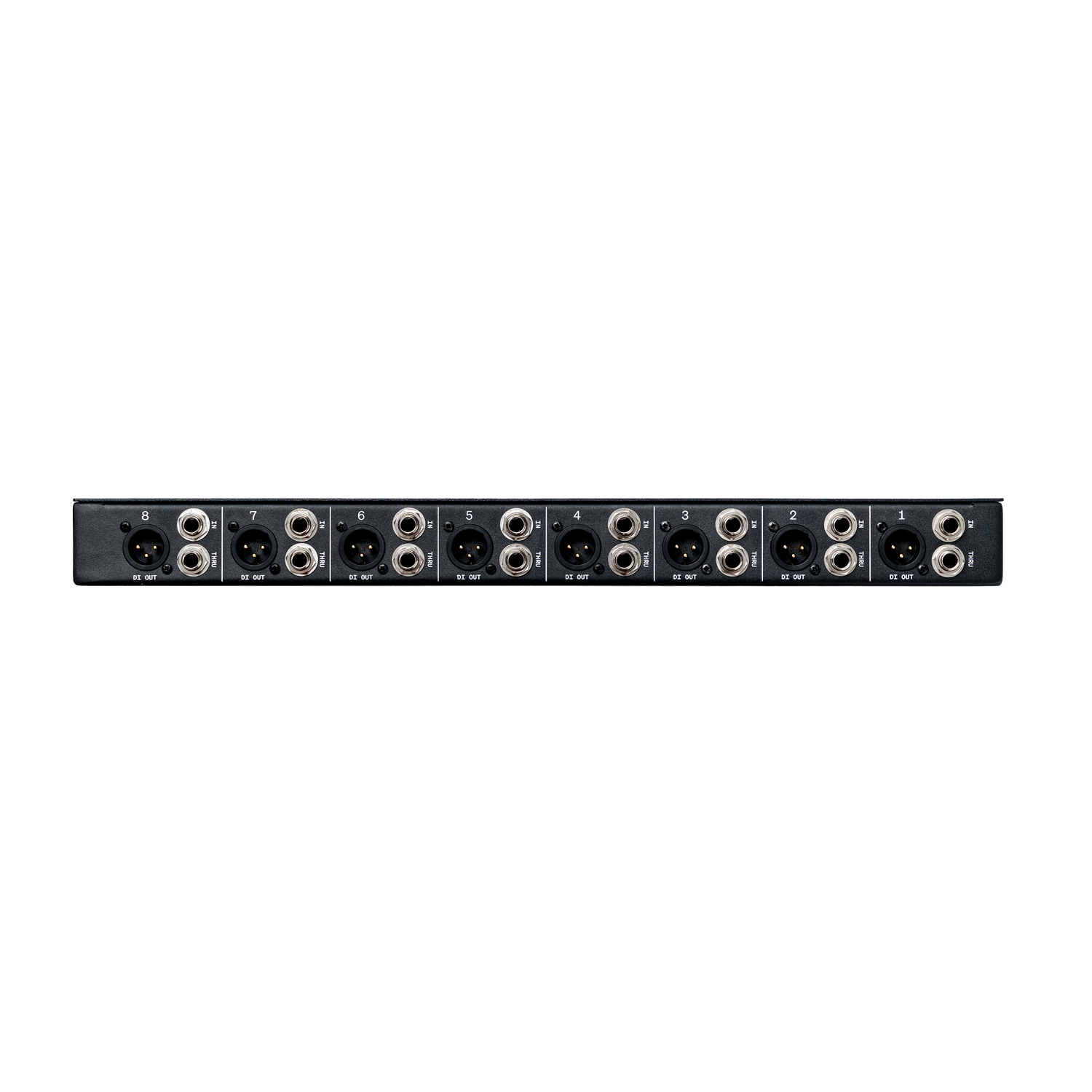

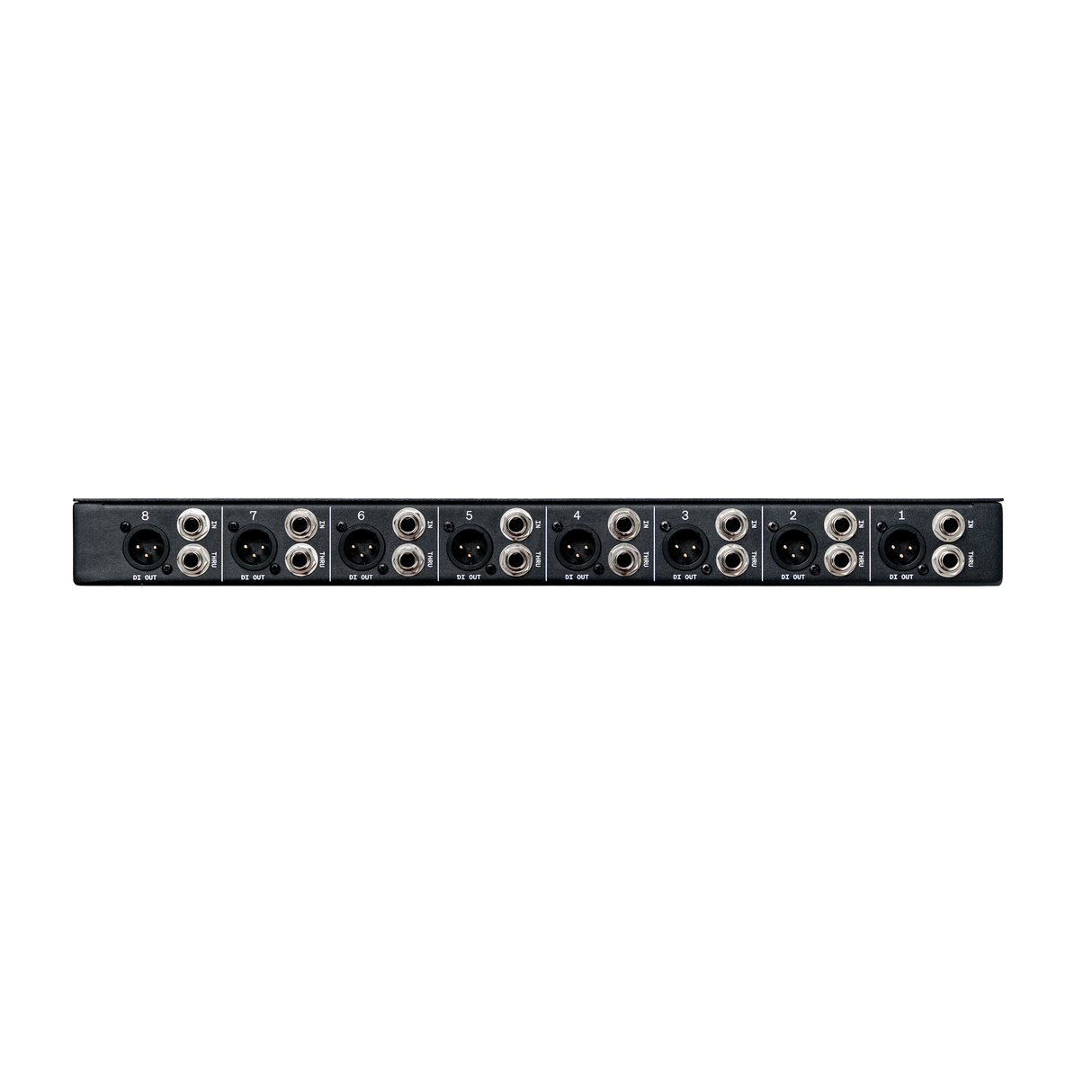

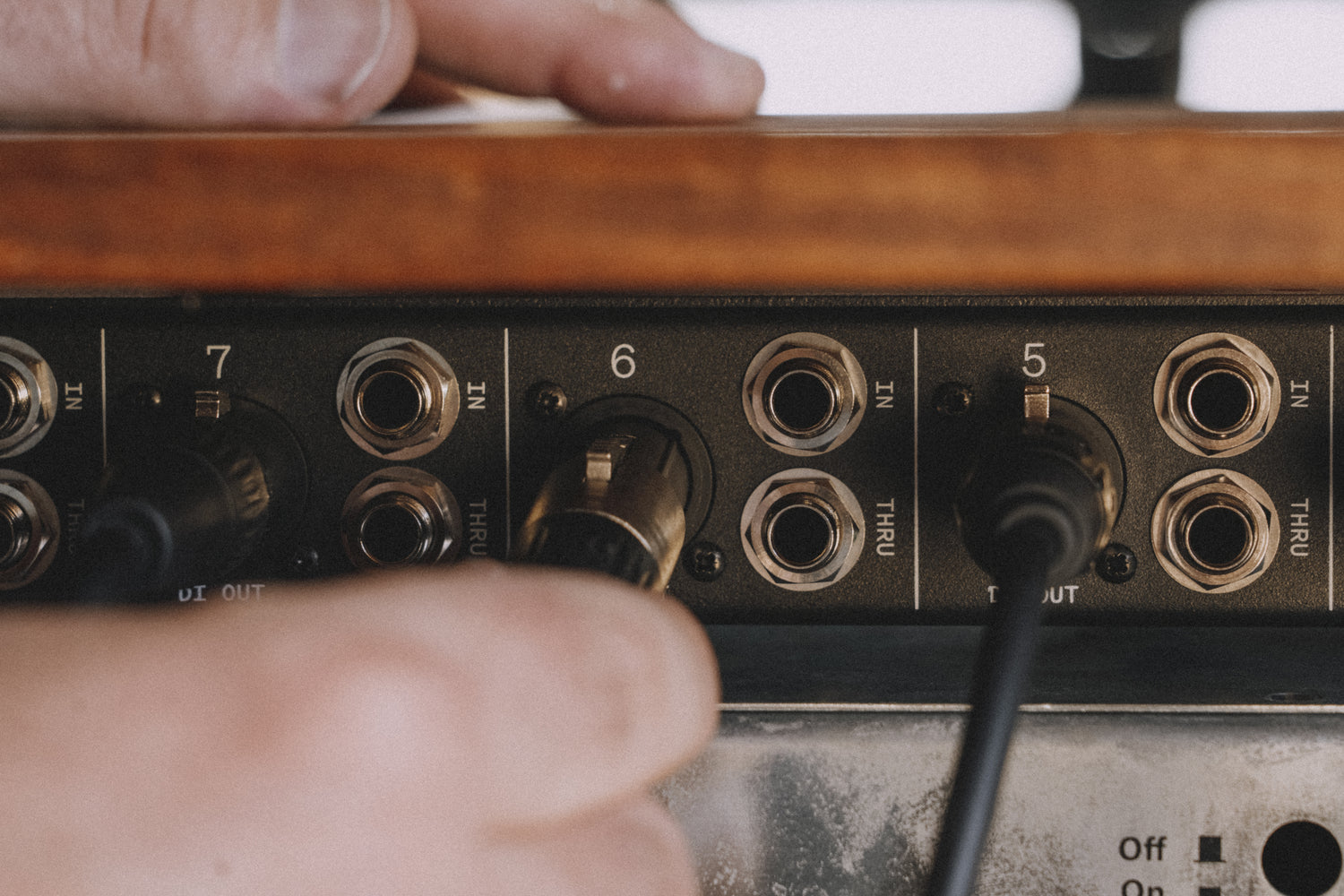

Rear Panel Everyday Connections
Keep your main instruments and studio wiring connected on the rear panel. This keeps the rack clean, organized, and out of the way.

Eight Passive DI Channels
Capture up to eight instruments through passive direct inputs. It is built for synths, keyboards, drum machines, guitars, basses, and other studio sources.

Transformer-Balanced Outputs
Send clean, isolated balanced signals to your interface, mic preamps, or console. The transformer-coupled design helps deliver dependable audio with plenty of headroom.

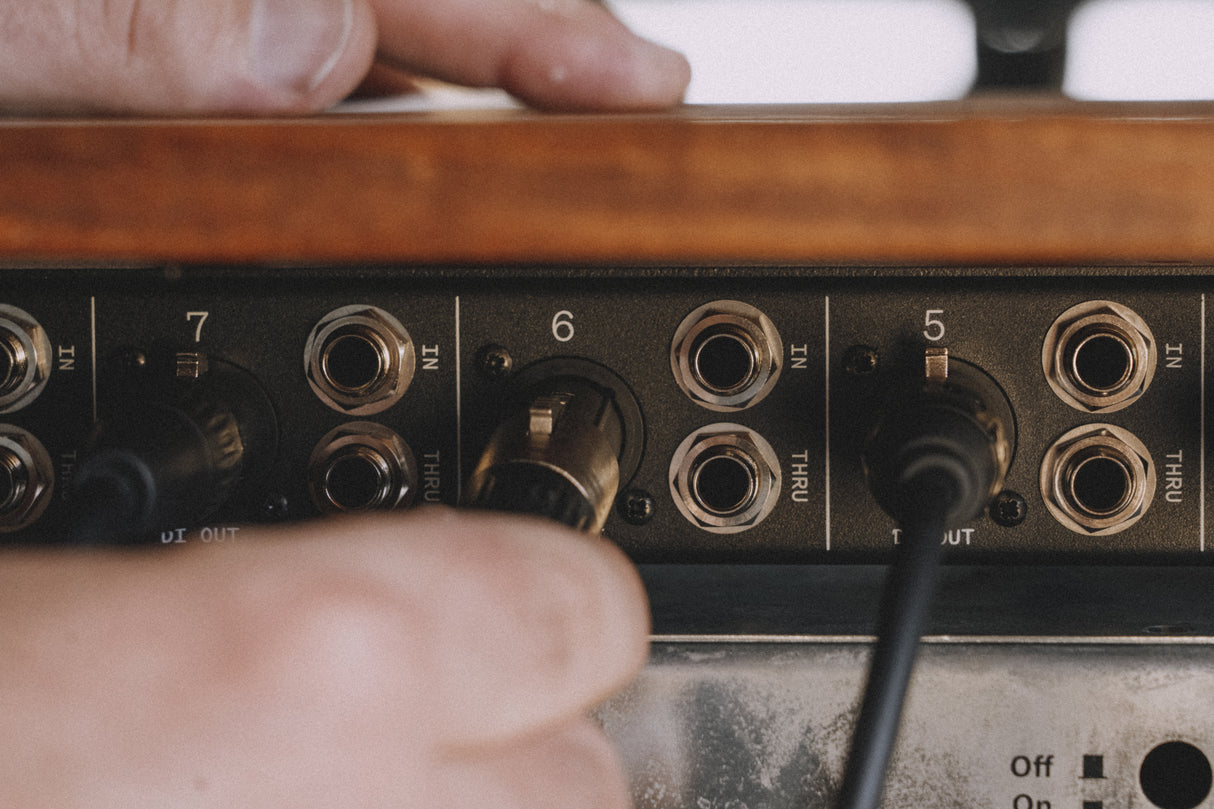

Through Outputs
Each channel includes a through output for sending the original signal somewhere else. Use it for amps, parallel processing, or flexible routing.

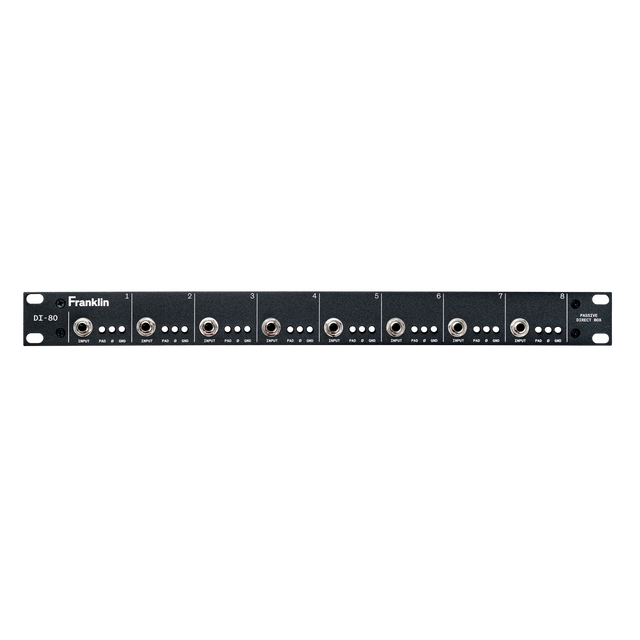

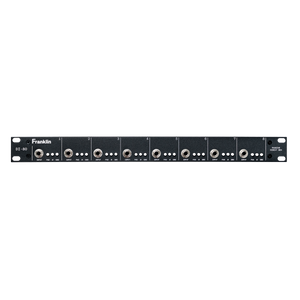

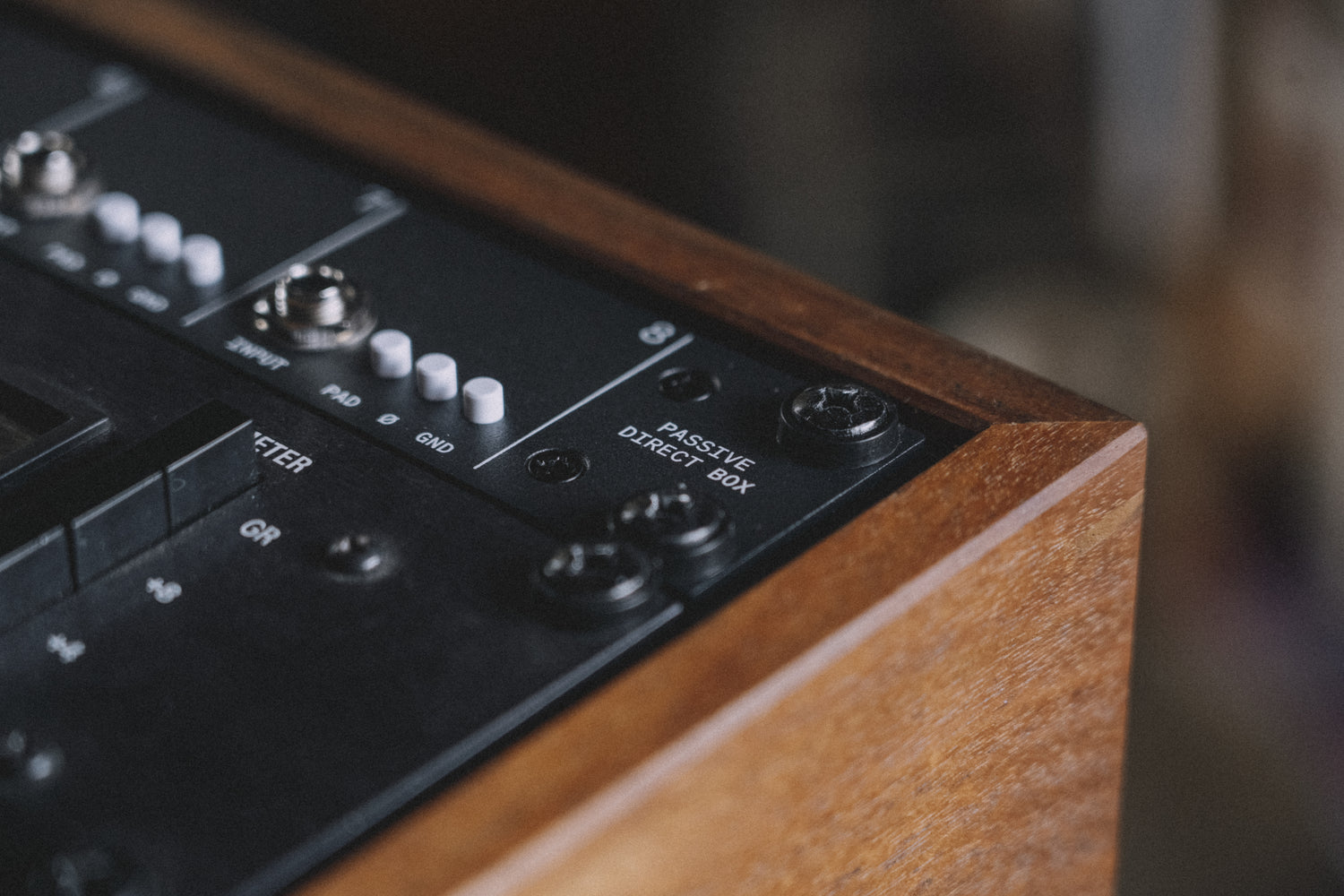

Label-Friendly Front Panel
Each channel has space for tape labels above the input. This makes it easy to identify sources during sessions.

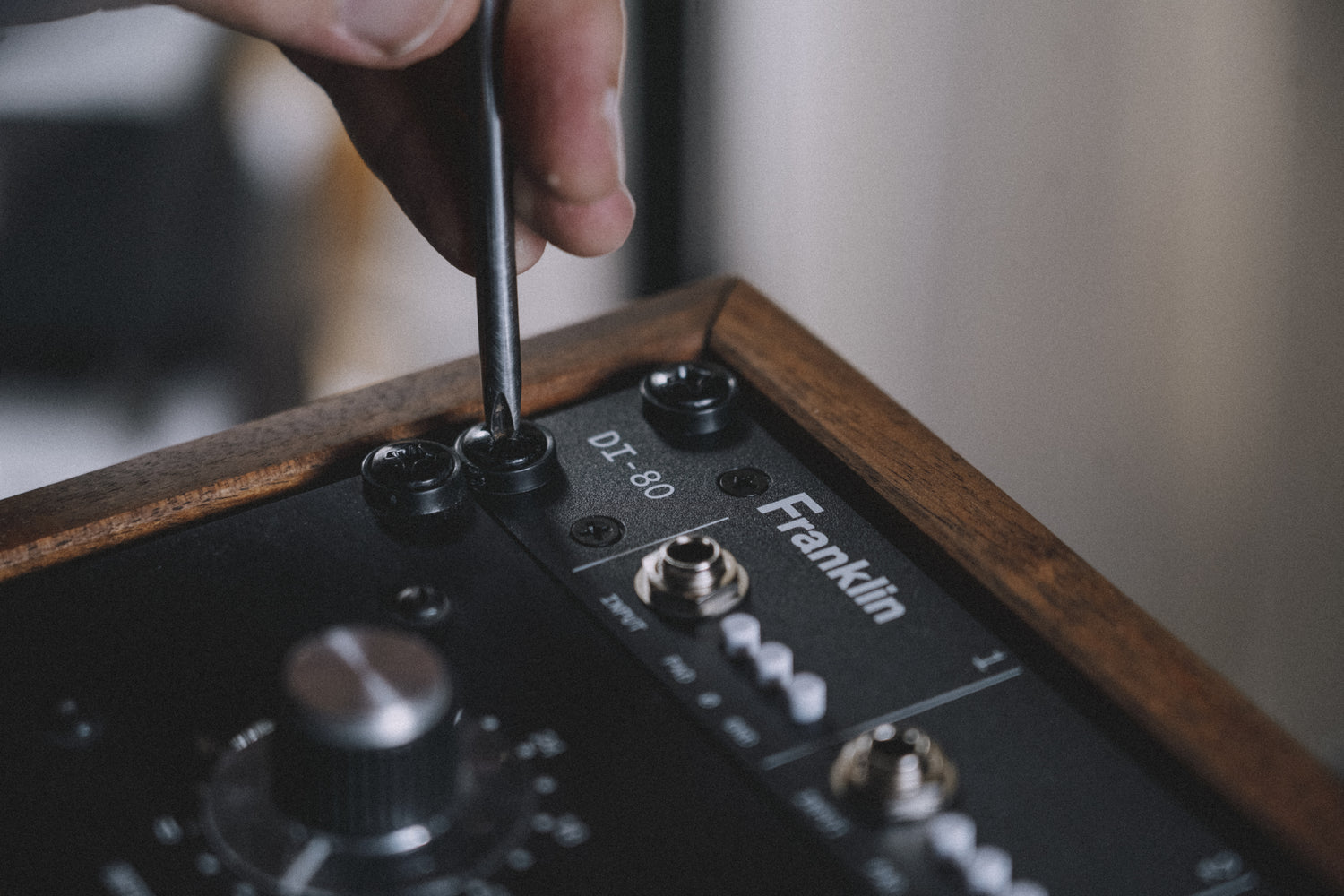

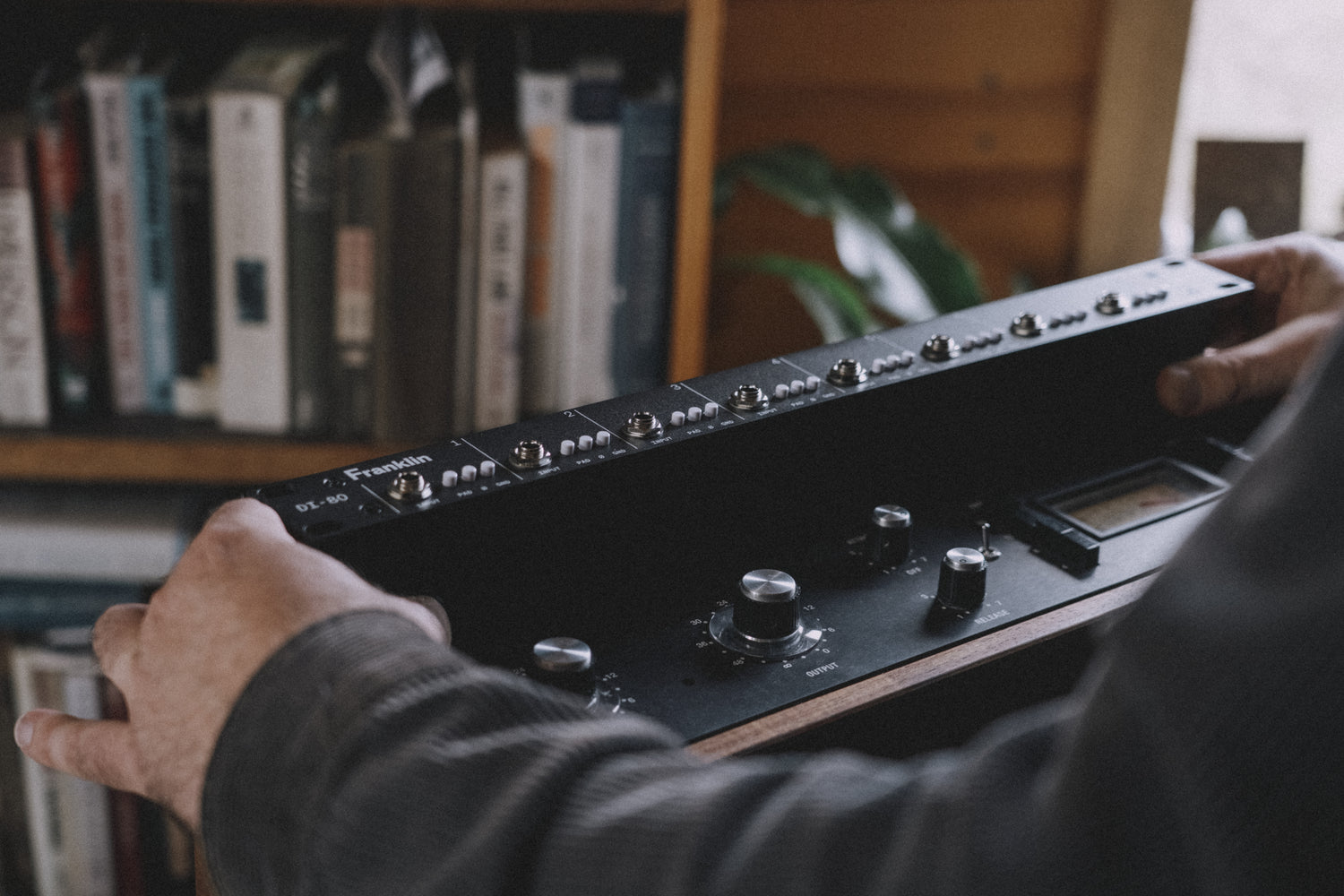

Rackmount Studio Design
The compact rack enclosure keeps eight DI channels in one clean unit. It is designed to stay wired, stay organized, and handle everyday studio use.

Specifications

General Specifications
Device Type: 8-Channel Passive Transformer-Coupled Direct Box
Rack Format: 1RU
Channel Count: 8
Circuit Type: Passive
Output Coupling: Transformer-Balanced
Front Input Behavior: Overrides Rear Input Per Channel
Label Area: Front Panel Space Above Each Channel

Inputs
Front Panel Inputs: 8 × 1/4" TS
Rear Panel Inputs: 8 × 1/4" TS
Supported Sources: Synthesizers, Keyboards, Drum Machines, Guitars, Basses
Input Override: Front Panel Input Overrides Rear Panel Input

Outputs
DI Outputs: 8 × Balanced XLR
Output Destination: Audio Interface, Mic Preamp, Mixing Desk
Output Type: Balanced DI
Isolation: Transformer-Isolated

Through Connections
Through Outputs: 8 × 1/4" TS
Through Signal Type: Untouched Copy Of Input Signal
Through Use: Parallel Processing, Amplifier Feed

Performance
Headroom: High
Noise: Ultra-Low
Audio Character: No Coloration

Chassis
Enclosure: Industrial Rackmount
Rack Height: 1RU
Cable Management: Rear Panel Everyday I/O
