SONNET

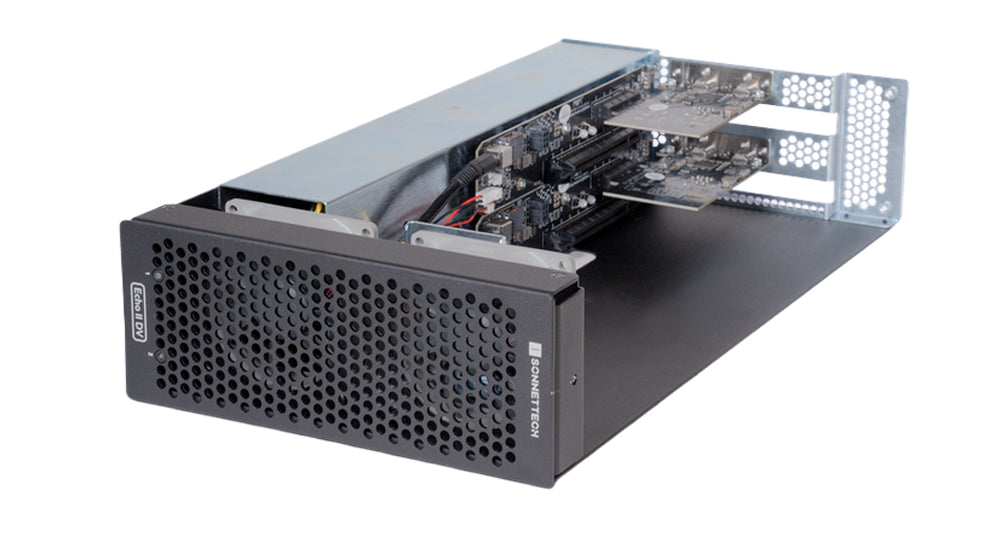

Echo II DV Two-Slot Full-Length Thunderbolt 5 PCIe Card Module

Thunderbolt

PCIe expansion module, Thunderbolt 5 interface, dual PCIe 4.0 x16 slots, full-length full-height card support, dual Thunderbolt interfaces, 400W power supply, quiet cooling fans

$1,825.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Sonnet Echo II DV T5 Module is a high-performance expansion solution designed to bring powerful PCIe capabilities to Thunderbolt-enabled systems. Built to support two full-length, full-height PCIe cards, it enables demanding workflows such as video capture, audio processing, high-speed networking, and storage to run with impressive speed and reliability. Each card slot is paired with its own Thunderbolt 5 interface, allowing both cards to operate at full bandwidth simultaneously when connected to compatible systems.

Engineered for professional environments, the module features a robust internal power supply and dedicated auxiliary power connections to support more demanding expansion cards. Its dual temperature-controlled fans maintain efficient cooling while keeping noise levels low, making it suitable for studio and broadcast use. Designed for integration into compatible enclosures and rack systems, the Echo II DV T5 Module offers a flexible and scalable way to expand system capabilities without compromising performance.

Features

Dual PCIe Expansion Power
Supports two full-length PCIe cards, enabling high-performance workflows in one system.

Dedicated Bandwidth per Card
Each slot has its own Thunderbolt connection for maximum performance without sharing speed.

High-Speed Thunderbolt 5 Connectivity
Delivers extremely fast data transfer for demanding video, audio, and network tasks.

Built for Intensive Workflows
Ideal for broadcast, video processing, storage, and high-speed networking applications.

Flexible Connection Options
Can connect using one or two cables depending on your setup and performance needs.

Power for High-Demand Cards
Provides built-in power support for professional-grade PCIe cards.

Ultra-Quiet Cooling System
Dual temperature-controlled fans keep everything cool while staying very quiet.

Rackmount-Ready Design
Fits into professional rack setups for clean and organized installations.

Expandable System Design
Allows additional modules for even greater expansion and customization.

Reliable Professional Build
Durable construction ensures stability and long-term use in demanding environments.

Specifications

General Specifications
Device Type: PCIe Expansion Module
Form Factor: Rackmount Module
Interface: Thunderbolt 5
Enclosure Compatibility: Sonnet Rackmount and Modular Expansion Systems

Expansion
Expansion Slots: 2 x PCIe 4.0 x16 (x4 Electrical)
Supported Card Type: Full-Length, Full-Height, Single-Width
Card Compatibility: Non-GPU PCIe Cards

Connectivity
Ports: 4 x Thunderbolt 5 (USB-C)
Host Connection: Dual Thunderbolt Interfaces (One per Slot)

Performance
Bandwidth per Slot: Up to 6000 MB/s (Thunderbolt 5)
Bandwidth per Slot: Up to 2880 MB/s (Thunderbolt 4/3)
Interface Architecture: Independent Bandwidth per PCIe Slot

Power Requirements
Power Supply: Integrated 400 W
Auxiliary Power Connectors: 2 x 6-Pin PCIe
Auxiliary Power Output: Up to 75 W per Connector

Cooling
Cooling System: Dual Temperature-Controlled Fans
Fan Type: Noctua Variable-Speed
Noise Level: 17 dBA

Compatibility
Operating Systems: macOS 14 or Later, Windows 11, Linux 6.1–6.12
Host Compatibility: Thunderbolt 5, Thunderbolt 4, Thunderbolt 3, USB4 Systems

Environmental
Operating Temperature: 0 to 35°C (32 to 95°F)

Dimensions and Weight
Dimensions: 19.13 x 16.9 x 3.5 in
Weight: 19.4 lb

Included Accessories
Power Cable: Included
PCIe Power Cables: 2 x 6-Pin Included
Thunderbolt Cables: 2 x 0.8 m Included
Cable Locks: 3 x ThunderLok-A Included
