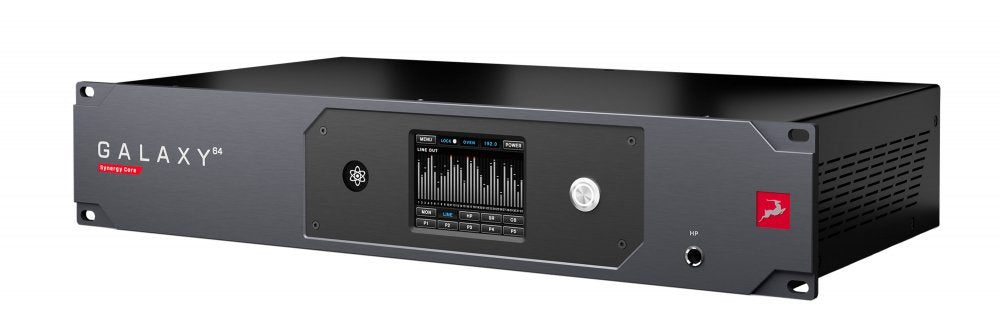

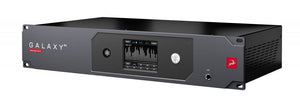

Galaxy 64

Studio Hub
Connect and manage your full studio from one central device.

Analog Audio
Handle large analog recording and playback setups with simple routing.

Dante Networking
Send and receive audio across a professional network setup.

HDX Connectivity
Connect directly with Pro Tools systems for advanced studio workflows.

Thunderbolt Connection
Use fast computer connectivity for recording, playback, and control.

Onboard Effects
Apply built-in Synergy Core effects without relying only on your computer.

Flexible Routing
Route audio between inputs, outputs, effects, monitors, and your DAW.

Monitor Control
Control speaker and headphone listening directly from the device or software.

Touchscreen Access
Use the front touchscreen for quick control, metering, presets, and settings.

Control Panel Software
Manage routing, mixing, effects, trims, metering, and sessions from one clear app.

Dante Setup
Use Dante Controller to connect the device into a networked audio system.

Clocking Support
Sync the device with external studio clocks for stable system operation.

Session Recall
Save and load complete setups for faster workflow changes.

Metering View
Monitor signal levels across inputs and outputs from the software or touchscreen.

General Specifications
Device Type: 64-channel AD/DA converter and recording interface
Analog Audio Channels: 64
Rack Size: 2U
Onboard Processing: Synergy Core FX processing
USB Audio Functionality: No
USB Functionality: Remote control only

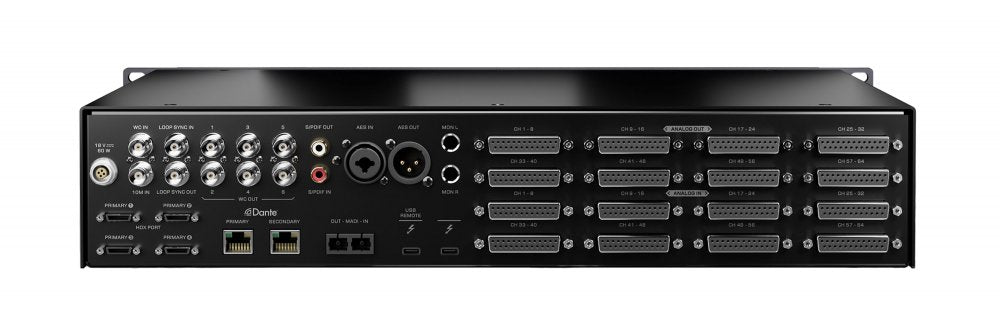

Analog Line Inputs
Input Connection: 8 x D-sub 25-pin
Pinout Standard: TASCAM
Channel Count: 64 mono channels
Input Level Trim: 14 dBu to 22 dBu
Trim Step: 1 dB
Dynamic Range: 121 dB
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
THD+N A-Weighted: -112 dB
Impedance Load: 11.2 kOhms
DC Coupling: Supported

Analog Line Outputs
Output Connection: 8 x D-sub 25-pin
Pinout Standard: TASCAM
Channel Count: 64 channels
Output Level: -inf to 22 dBu
Level Step: 1 dB
Dynamic Range: 128 dB
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
THD+N A-Weighted: -115 dB
Impedance Load: 11.2 kOhms
DC Coupling: Supported

Monitor Outputs
Output Connection: 2 x 1/4 in 6.35 mm 3-pin jack
Channel Count: 2 mono channels
Output Level: -inf to 22 dBu
Level Step: 1 dB
Dynamic Range: 130 dB
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
THD+N A-Weighted: -115 dB
Impedance Load: 11.2 kOhms

Headphone Output
Output Connection: Stereo TRS jack
Output Location: Front panel
Controls: Volume, mute

Thunderbolt Interface
Interface Connection: 2 x Thunderbolt 3 Type-C ports
I/O Channel Count: 64 channels per port
Daisy-Chain: Supported
Remote Control: Supported over USB Type-C
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
Control Panel Support: Yes
Device Charging: Supported
Backward Compatibility: Thunderbolt 2 and Thunderbolt 1 with third-party adapter

Dante Interface
Interface Connection: 2 x RJ-45 ports
Connectivity: 1 x primary port
Redundancy: 1 x secondary port
Channel Count at 44.1/48 kHz: 64 channels
Channel Count at 88.2/96 kHz: 32 channels
Channel Count at 176/192 kHz: 16 channels
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

HDX Interface
Interface Connection: 4 x HDX ports
I/O Channel Count: 128 channels
Channels Per Port: 32
Primary Ports: 4
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM
Delay Compensation: Supported
Manual Delay Compensation: Up to 128 samples
Session I/O Support: 16 x 16

MADI Interface
Interface Connection: 2 x Optical SC connectors
MADI Mode: Dual Wire, Optical
SMUX: Supported
MADI Protocol: AES10-2003
Channel Count at 44.1/48 kHz: 64 channels
Channel Count at 88.2/96 kHz: 32 channels
Channel Count at 176/192 kHz: 16 channels
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

S/PDIF Interface
Interface Connection: 2 x RCA connectors
S/PDIF SRC: Supported
I/O Channel Count: 2 channels
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

AES/EBU Interface
Interface Connection: 2 x XLR connectors
AES Mode: AES/EBU
I/O Channel Count: 2 channels
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

Clocking System
Clocking Technology: 4th Generation Acoustically Focused Clocking
Jitter Management: 64-bit DDS
Word Clock Input: 1 x BNC, 75 Ohms, 3 Vpp
Word Clock Output: 6 x BNC, 75 Ohms, 3 Vpp
Loop Sync Input: 1 x BNC, 75 Ohms, 3 Vpp
Loop Sync Output: 1 x BNC, 75 Ohms, 3 Vpp
Atomic Reference Input: 1 x BNC, 75 Ohms, 1 Vpp
Clock Stability: +/-0.02 ppm
Clock Aging: <1 ppm per year
Clock Calibration: +/-0.001 ppm
Sample Rates: 44.1 kHz to 192 kHz
Bit Depth: 24-bit PCM

Clock Sources
Internal Clock: Supported
Word Clock: Supported
S/PDIF Clock: Supported
AES Clock: Supported
MADI Clock: Supported
HDX Clock: Supported
Dante Clock: Supported

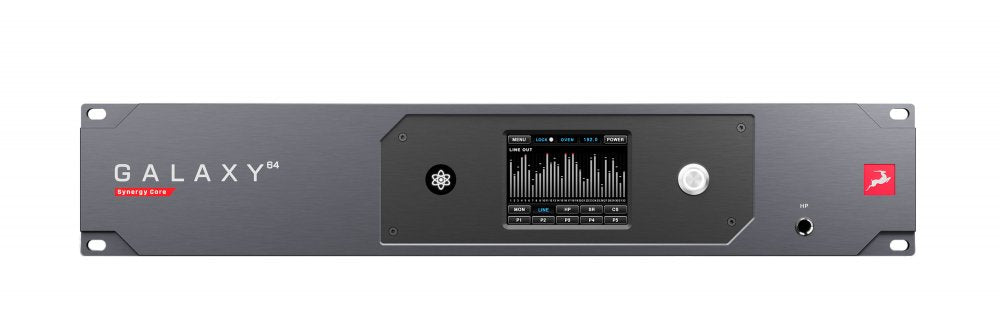

Front Panel
Atomic Clock Indicator: Yes
Touchscreen: Yes
On/Standby Button: Yes
Headphone Output: Stereo TRS
Meter Display: Up to 32 peak meters

Touchscreen Controls
Main Menu: Supported
Preset Save Slots: 5
Factory Reset: Supported
10M Calibration: Supported
Device Info: Supported
Touchscreen Calibration: Supported
Loop Sync Mode: On/Off
Brightness Control: Supported
Screensaver Style: Selectable
Screensaver Time: Selectable
Clock Source Selection: Supported
Sample Rate Selection: Supported
Monitor Output Control: Volume, trim, mute
Headphone Output Control: Volume, mute
Line Output Control: Volume, mute
Interface Selection: USB, Thunderbolt, Dante
Preset Recall: P1 to P5

Control Panel Application
Operating Systems: Windows, macOS
Signal Routing: Routing Matrix
Audio Mixing: 8 virtual mixers
Mixer Channels: 32 channels each
Mixer Channel Controls: Pan, volume, solo, link, metering
Mixer Master Controls: Volume, mute
AFX Processing: Up to 8 effects per mono channel
Session Save/Load: Supported
Routing Save/Load: Supported
Meters Tab: All inputs and outputs
Monitor Controls: Dim, mute, mono, volume
Headphone Controls: Dim, mute, mono, volume
Panning Law: 0 dB to -4.5 dB
Test Oscillators: 2
Thunderbolt Latency Mode: Selectable

Included Synergy Core Effects
Total Effects: 36
Equalizers: 18
Compressors and Limiters: 12
Preamps and Channel Strips: 2
Special Processing FX: 4

Included Equalizers
VEQ-55A: 3-band EQ, HPF, LPF
VEQ-4K BLACK: 4-band EQ, HPF, LPF
VEQ-4K BROWN: 4-band EQ, HPF, LPF
VEQ-4K ORANGE: 4-band EQ, HPF, LPF
VEQ-4K PINK: 4-band EQ, HPF, LPF
VEQ-HA32C: 4-band EQ, HPF, LPF
VEQ-STU 900: 4-band EQ, HPF, LPF
NEU-W492: 4-band EQ
VMEQ-5: 3-band tube mid-range EQ
BAE-1084: 3-band EQ, HPF, LPF
VEQ-STU 089: 3-band EQ, HPF, LPF
BAE-1023: 3-band EQ, HPF
VEQ-1A: 2-band tube EQ
VEQ-HLF: Tube 2-band HPF, LPF
VEQ-STU 169: 3-band EQ, HPF
NEU-PEV: 3-band EQ
NEU-W495: 3-band EQ
Clear Q: Parametric EQ

Included Compressors and Limiters
VCA160: VCA compressor, limiter
X903: VCA compressor, limiter
ALT-436C: Vari-Mu tube compressor amplifier
Tube 176: Vari-Mu tube compressor, limiter
Stay-Levin: Vari-Mu tube compressor
SMT-100A: Tube leveling amplifier, limiter
FET-A78: FET compressor, stereo peak limiter
FET-A76: FET compressor, limiting amplifier
BAE 10DCF: Compressor, limiter
PowerEX: Expander
PowerFFC: Feed-forward compressor
PowerGate: Noise gate

Included Preamps and Channel Strips
BA-31: Germanium mic preamp
Gyraf Gyratec IX: Dual tube mic preamp with HPF

Included Special Processing FX
Marble White AutoWah: Auto-wah pedal
Vari-Speed Tremolo: Tremolo
Auraverb: Reverb
Master De-Esser: De-esser

System Requirements
Windows Compatibility: Windows 10
macOS Compatibility: macOS Mojave 10.14 or later
Dante Setup Cable: Cat5 or Cat6 Ethernet
Software Management: Antelope Launcher
Power Supply: Provided power supply only
