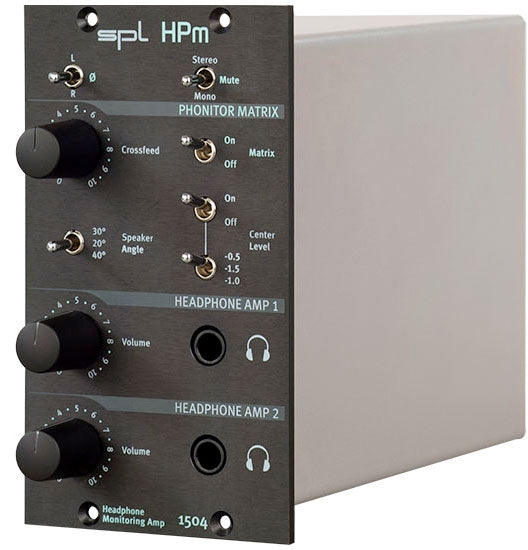

HPm 500

Two separate headphone outputs each equipped with a separate amplifier stage

The Phonitor Matrix eliminates the super-stereo-effect inherent in traditional headphone amplifier designs

Speaker-like listening experience on headphones

Crossfeed and Speaker Angle can be individually adjusted to achieve a headphone playback sounding equal to your loudspeaker playback

Center Level to correctly level the phantom center signals when mixing on headphones

The HPm can easily be inserted between the DAW and a monitor controller because the input signals of the HPm are slaved through to the outputs of the 500 series rack

Phase Inversion of left or right channel as well as a Stereo/Mono/Mute switch round off the feature set of the HPm

Dual-slot 500 series rack module

Made in Germany

Input

Electronically balanced

Impedance: 10kOhm

Max. Input level: +21 dBu

Output

Max. output level:

+18 dBu @ 600 Ohm

+15 dBu @ 300 Ohm

+5 dBu @ 32 Ohm

Frequency Range:

10Hz -100kHz

Noise:

-92,3 dBu (A-weighted)

THD:

0,00024% (at 0 dBu output level, 600Ohms)

Housing:

Dual-Slot 500 series rack module

Weight:

0,8 kg /1.76 lbs

0dBu = 0,775V. Specifications subject to change without notice.
