UNIVERSAL AUDIO

LA-2A

Mono Compressors

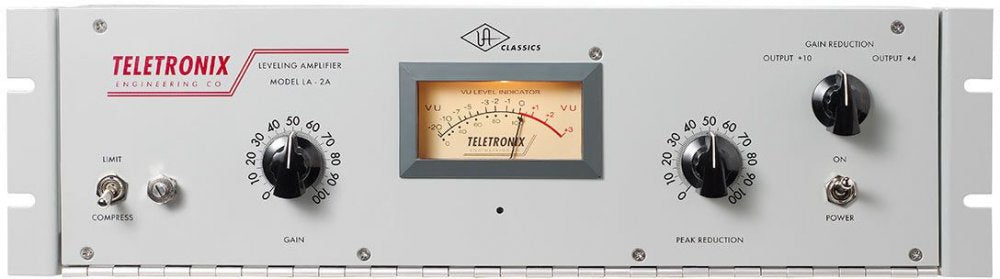

Teletronix LA-2A Classic Leveling Amplifier. True to the Original Design, our Famed Tube-Amplified T4 Electro-Optical Classic Compressor

$6,999.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion an accomplishment at the time, still appreciated today.

Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.

Features

True to the original in design, manufacturing and performance

Lag free, distortion free optical attenuator system

Distortion less than 0.5% THD

0 to 40 dB gain limiting

Balanced stereo interconnection

Frequency response 1 dB, 30 to 15,000 cps

Output level of 10 dBm and 40 dB gain

Low noise less than 70 dB below +10 dBm output

Specifications

Input Impedance


50, 150, 250, 600 ohms

Output Load Impedance


50, 150, 250, 600 ohms

External Connections


Jones Barrier terminals and XLR connectors

Frequency Response


+0/-1 dB 30 Hz to 15kHz

Gain


40 dB Β±1dB

Input Level


+16 dB maximum

Output Level


+10 dB nominal, +16 dB maximum

Distortion


Less than 0.5% THD (0.25% typical) at Β±10 dBm

Noise


70 dB below +10 dBm output level

Attack Time


10 milliseconds

Release Time


0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

Meter


dB gain reduction and dB output

Power Requirements


35 watts, 120/240 volts, 50/60 Hz

Environmental


Maximum operating temperature 160F

Dimensions


19" Rackmount chassis, 3U

Weight


13 lbs.
