LYNX STUDIO TECHNOLOGY

LYN-AN16P04M24-TB3

Audio interface, Thunderbolt 3, 16x16 line I/O, 4 mic preamps, 24-bit 192kHz conversion, monitor outputs, headphone outputs, rackmount design


$8,470.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

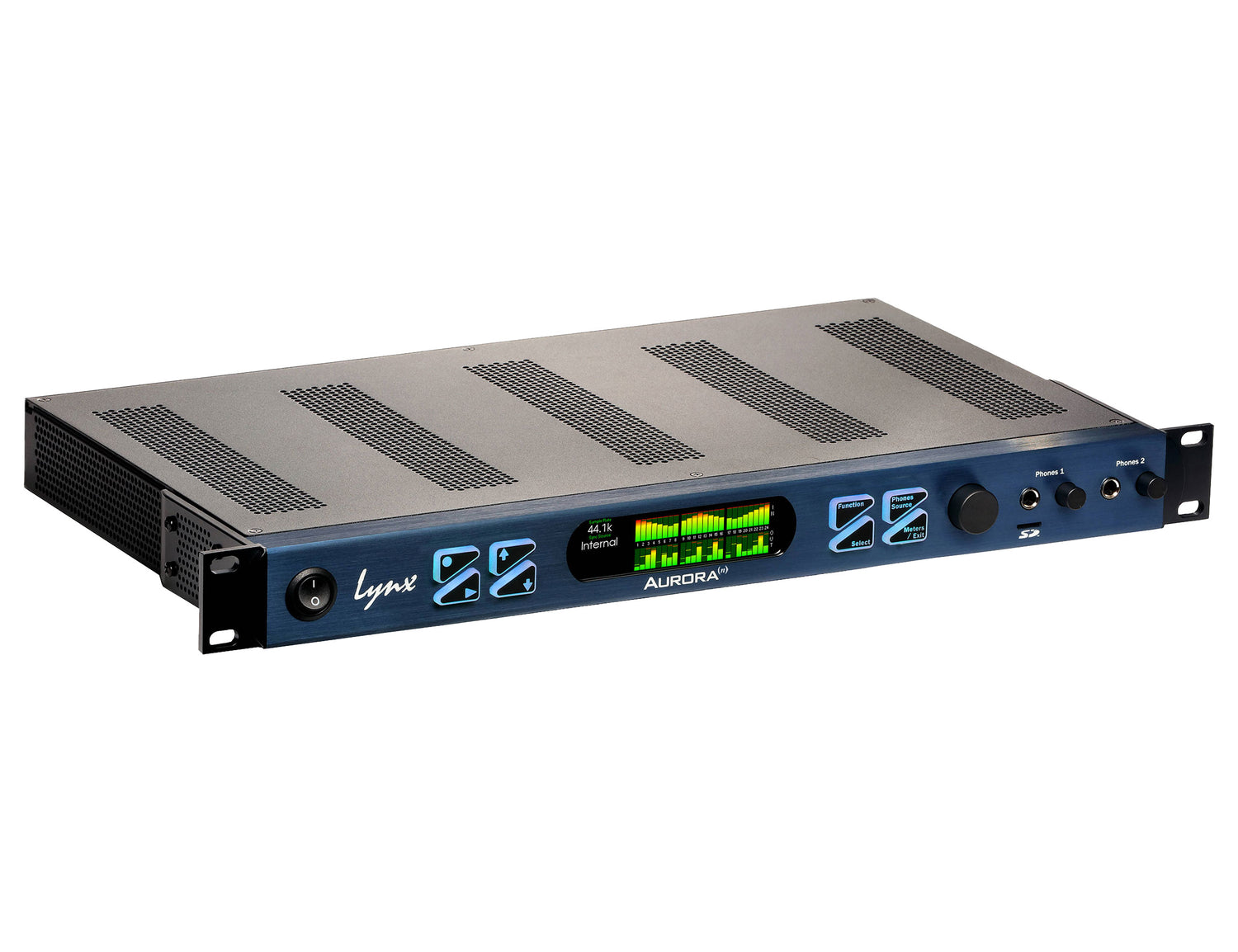

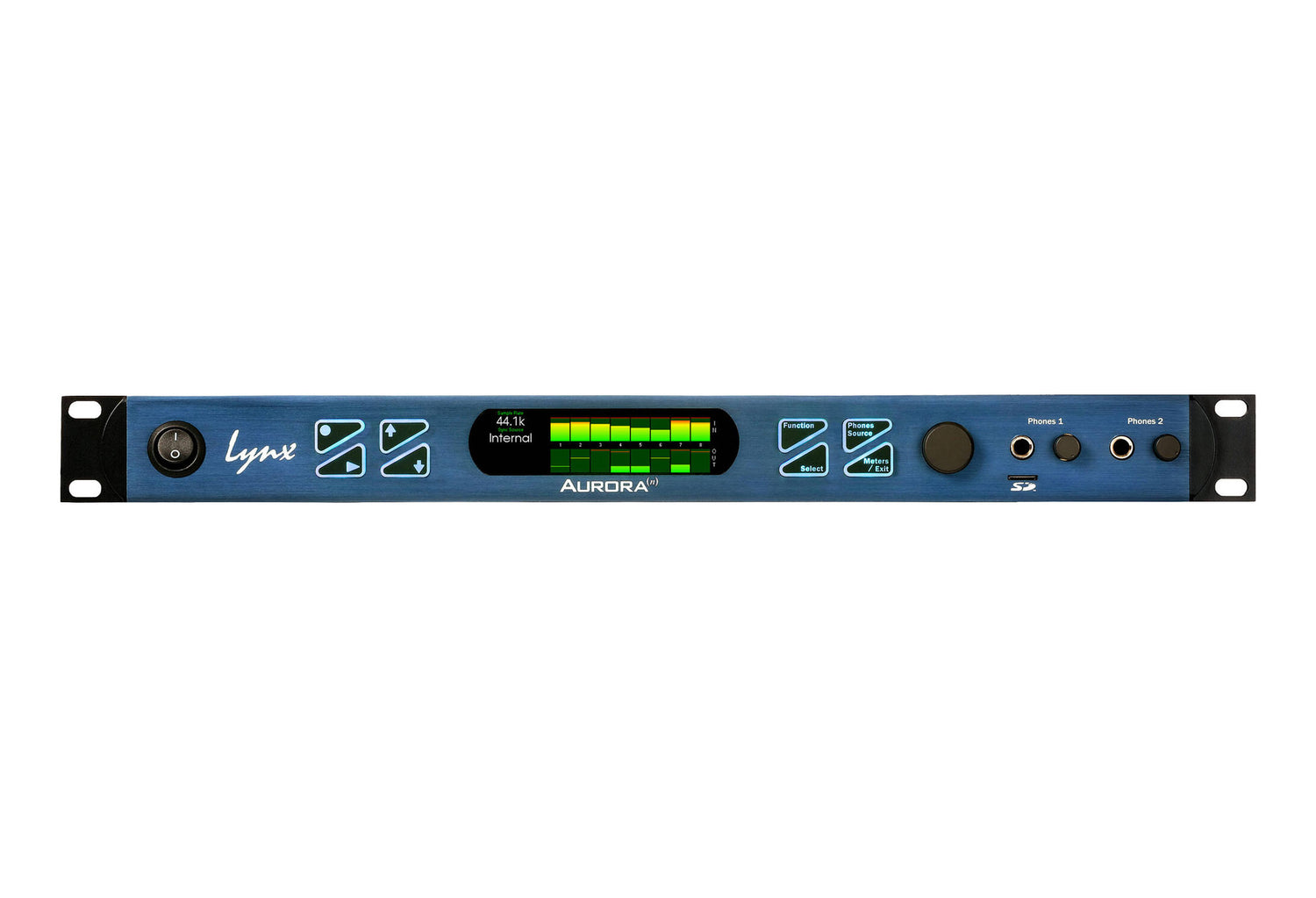

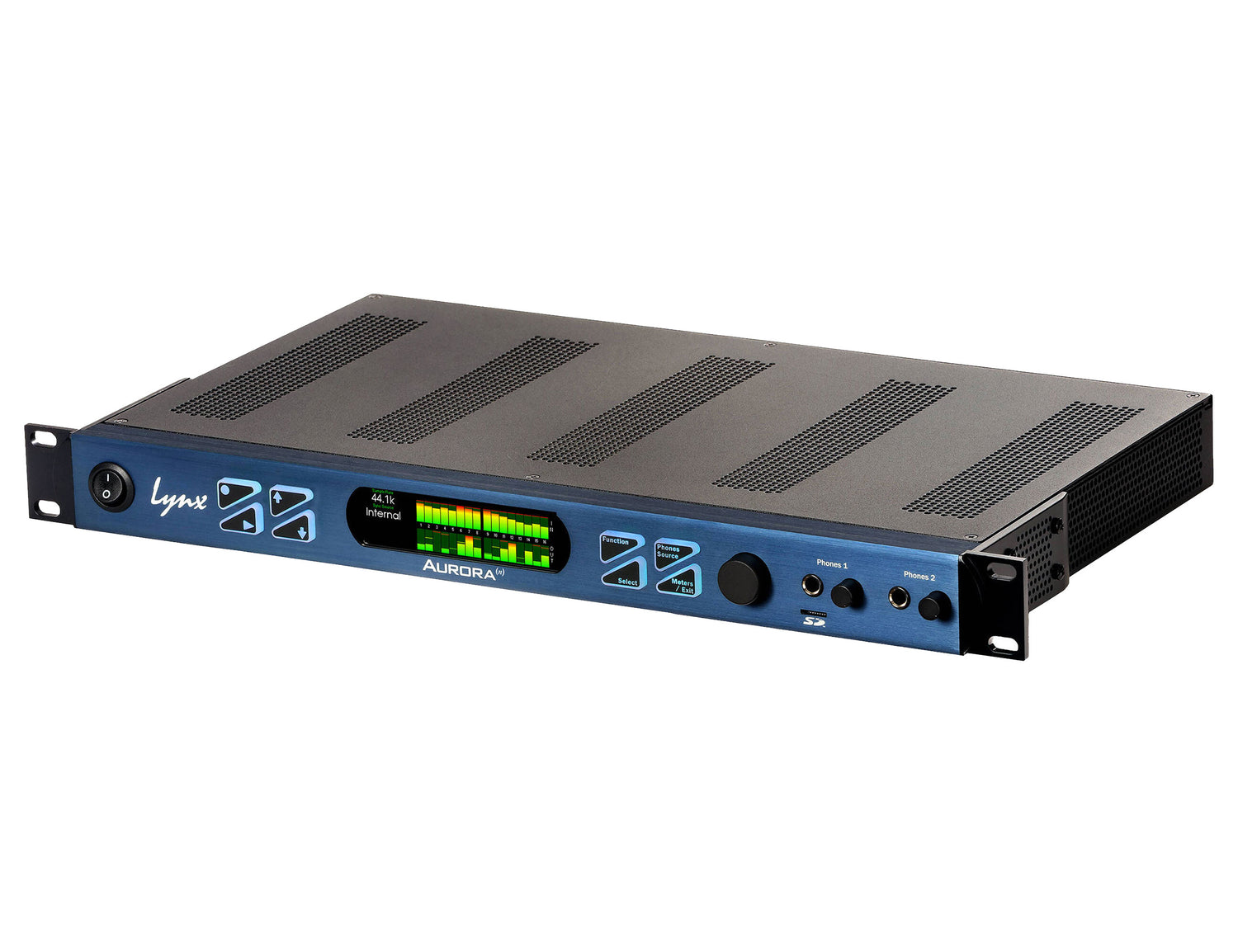

The Lynx Studio Technology Aurora(n) LYN-AN16P04M24-TB3 is a high-end audio interface designed for professional studios that demand precision, flexibility, and reliable performance. Featuring 16 channels of analog line input and output alongside four integrated microphone preamps, it provides a comprehensive solution for recording, mixing, and monitoring within a streamlined 1U rack format. With Thunderbolt 3 connectivity, it integrates smoothly into modern production environments, delivering fast and stable data transfer for complex sessions.

Built with mastering-grade A/D and D/A conversion, the Aurora(n) captures audio with exceptional clarity and detail across a wide dynamic range. Its expanded monitoring capabilities, including multiple TRS monitor outputs and dedicated headphone paths, allow for precise control in critical listening situations. The modular design supports future expansion and evolving workflows, while the rugged chassis ensures durability for both studio installations and mobile setups. Combining versatility with refined audio performance, this configuration is well suited for demanding recording and post-production applications.

Features

Comprehensive Studio I/O
Provides a wide range of inputs and outputs to handle complex recording and mixing setups.

Built-In Mic Preamps
Includes high-quality mic preamps for capturing vocals and instruments with clarity.

High-End Audio Conversion
Delivers detailed and accurate sound for professional recording and playback.

Thunderbolt 3 Connectivity
Offers fast and reliable connection to your computer for low-latency performance.

Flexible Monitoring Control
Multiple monitor outputs allow easy management of different listening setups.

Integrated Recording Capability
Supports direct recording and playback without needing a computer.

Modular and Expandable Design
Allows upgrades and customization to adapt to evolving studio needs.

Dual Headphone Outputs
Enables independent monitoring for multiple users during sessions.

Stable Synchronization
Ensures precise timing and consistent audio performance across connected gear.

Rackmount-Ready Build
Compact and durable design fits neatly into professional studio racks.

Specifications

General Specifications
Device Type: Audio Interface / AD/DA Converter
Form Factor: 1U Rackmount
Host Interface: Thunderbolt 3
Bit Depth: 24-bit
Sample Rate: Up to 192 kHz

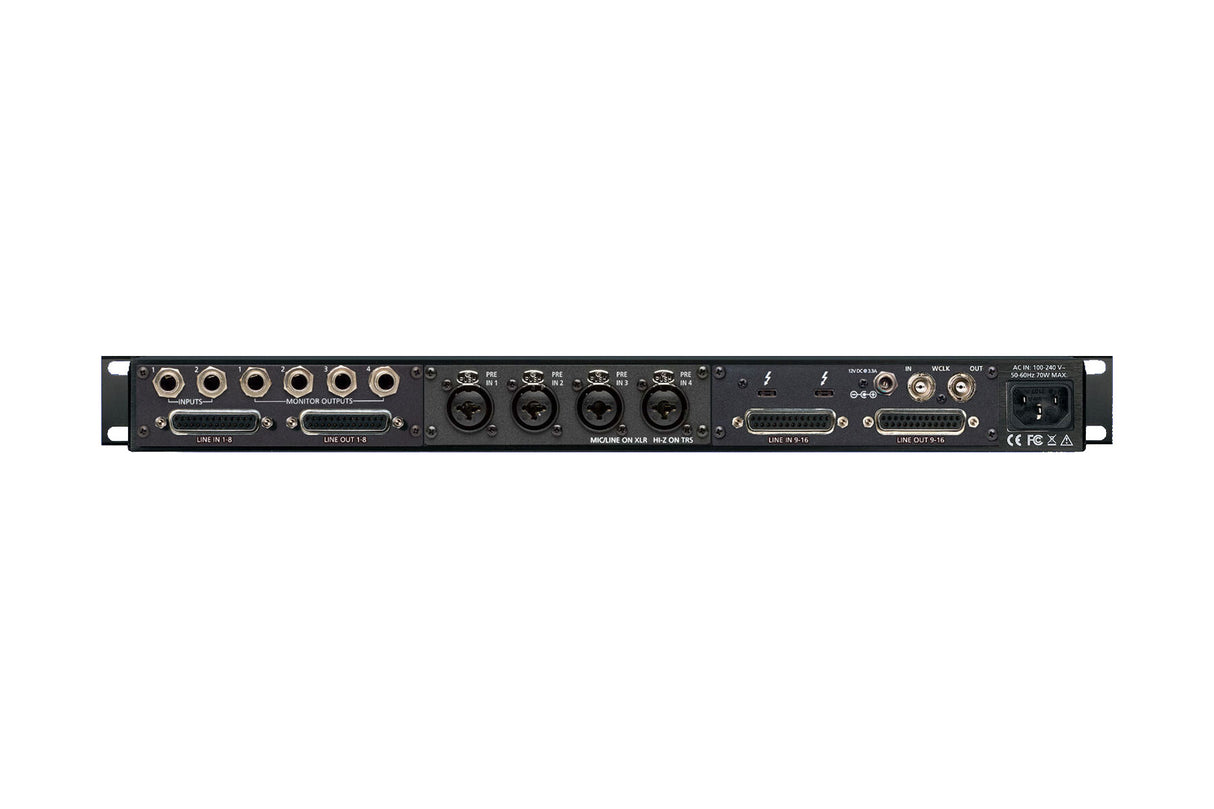

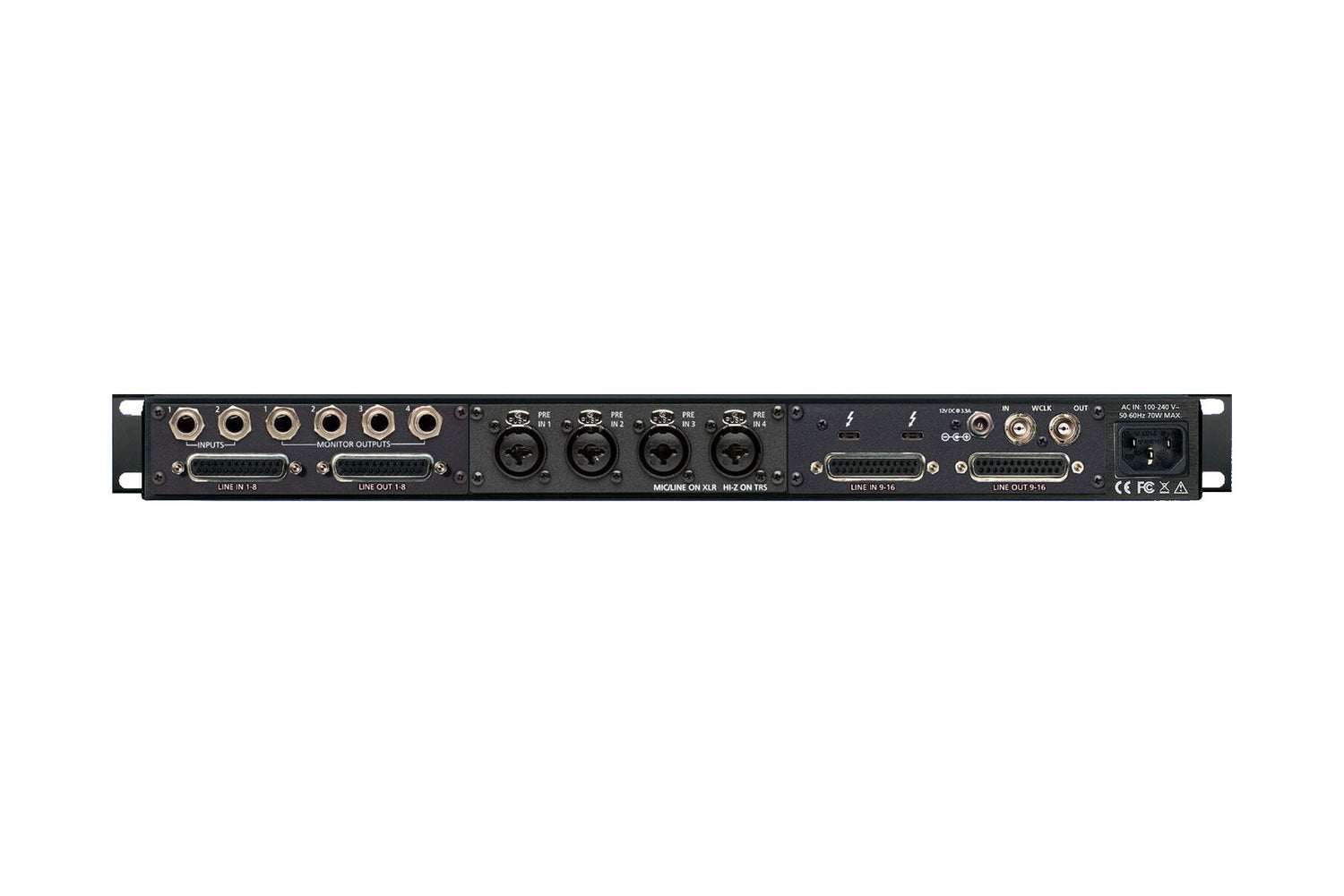

Analog I/O
Line Inputs: 16
Line Outputs: 16
Mic Preamps: 4
Monitor Inputs: 2 (TRS)
Monitor Outputs: 4 (TRS)

Digital and System Features
AES I/O: None
Internal Recording: microSD Recorder, 32 Channels
Word Clock: 1 In / 3 Out
Synchronization: SynchroLock 2

Audio Performance – Line Input (A/D)
THD+N: -113 dB @ 1 kHz, -1 dBFS
Dynamic Range: 119 dB (A-Weighted)
Frequency Response: ±0.010 dB (20 Hz – 20 kHz)
Crosstalk: -130 dB @ 1 kHz
Common Mode Rejection: >80 dB
Full-Scale Trim: +6 dBV, +20 dBu

Audio Performance – Line Output (D/A)
THD+N: -108 dB @ 1 kHz, -1 dBFS
Dynamic Range: 120 dB (A-Weighted)
Frequency Response: ±0.025 dB (20 Hz – 20 kHz)
Crosstalk: -130 dB @ 1 kHz
Full-Scale Trim: +6 dBV, +20 dBu

Audio Performance – Headphone Output
THD+N: -107 dB @ 1 kHz
Dynamic Range: 120 dB (A-Weighted)
Frequency Response: ±0.025 dB (20 Hz – 20 kHz)
Crosstalk: -120 dB @ 1 kHz
Maximum Output Level: 18.4 dBu
Output Power: 68 mW @ 600 Ω
Output Power: 135 mW @ 300 Ω
Output Power: 383 mW @ 60 Ω
Output Power: 212 mW @ 32 Ω
Output Power: 100 mW @ 16 Ω

Compatibility
Operating Systems: Windows, macOS

Construction
Chassis: Reinforced Rackmount

Dimensions and Weight
Width: 19 in
Depth: 10 in
Height: 1.7 in
Weight: 7.1 lb
