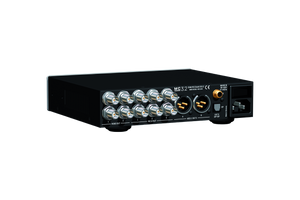

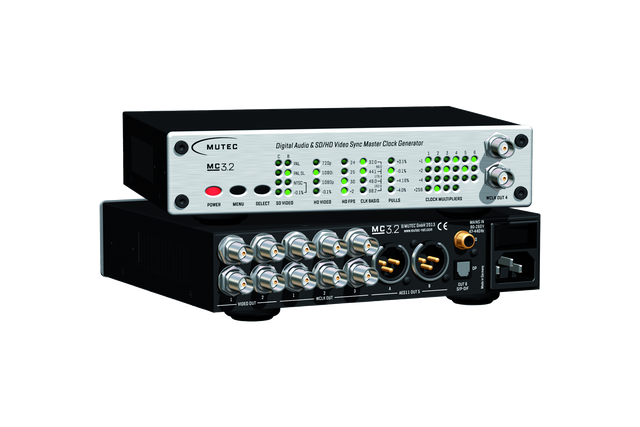

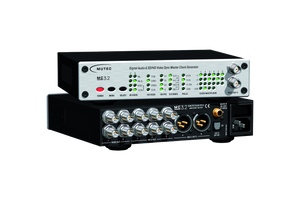

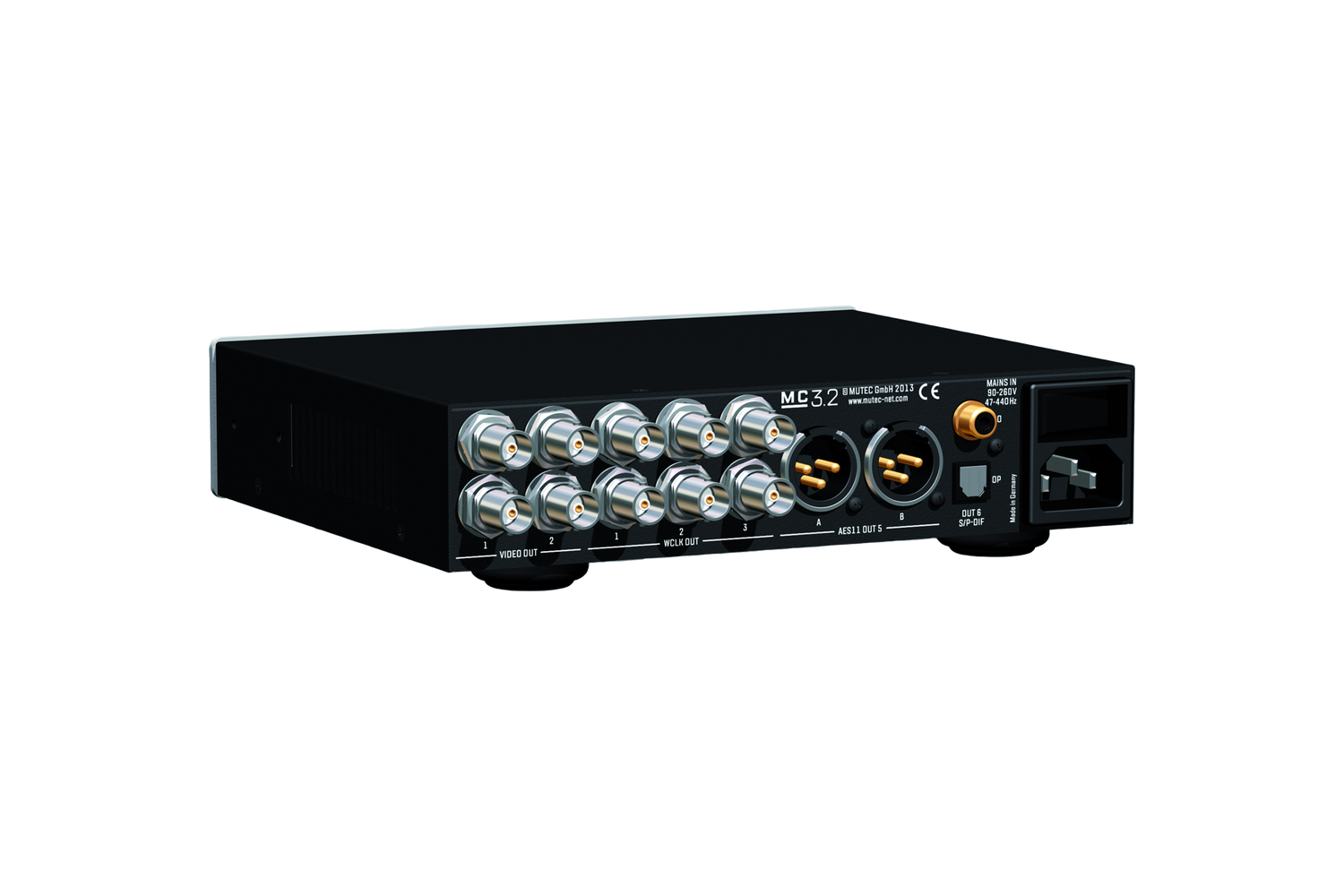

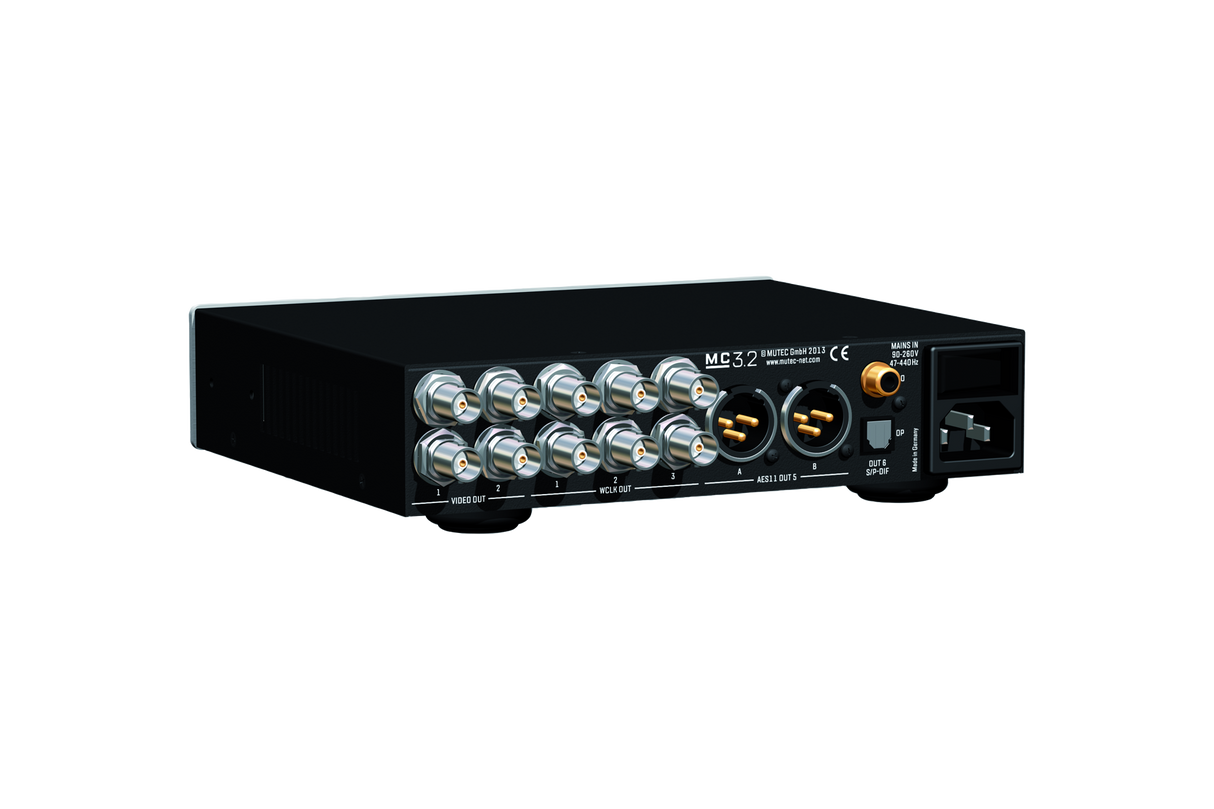

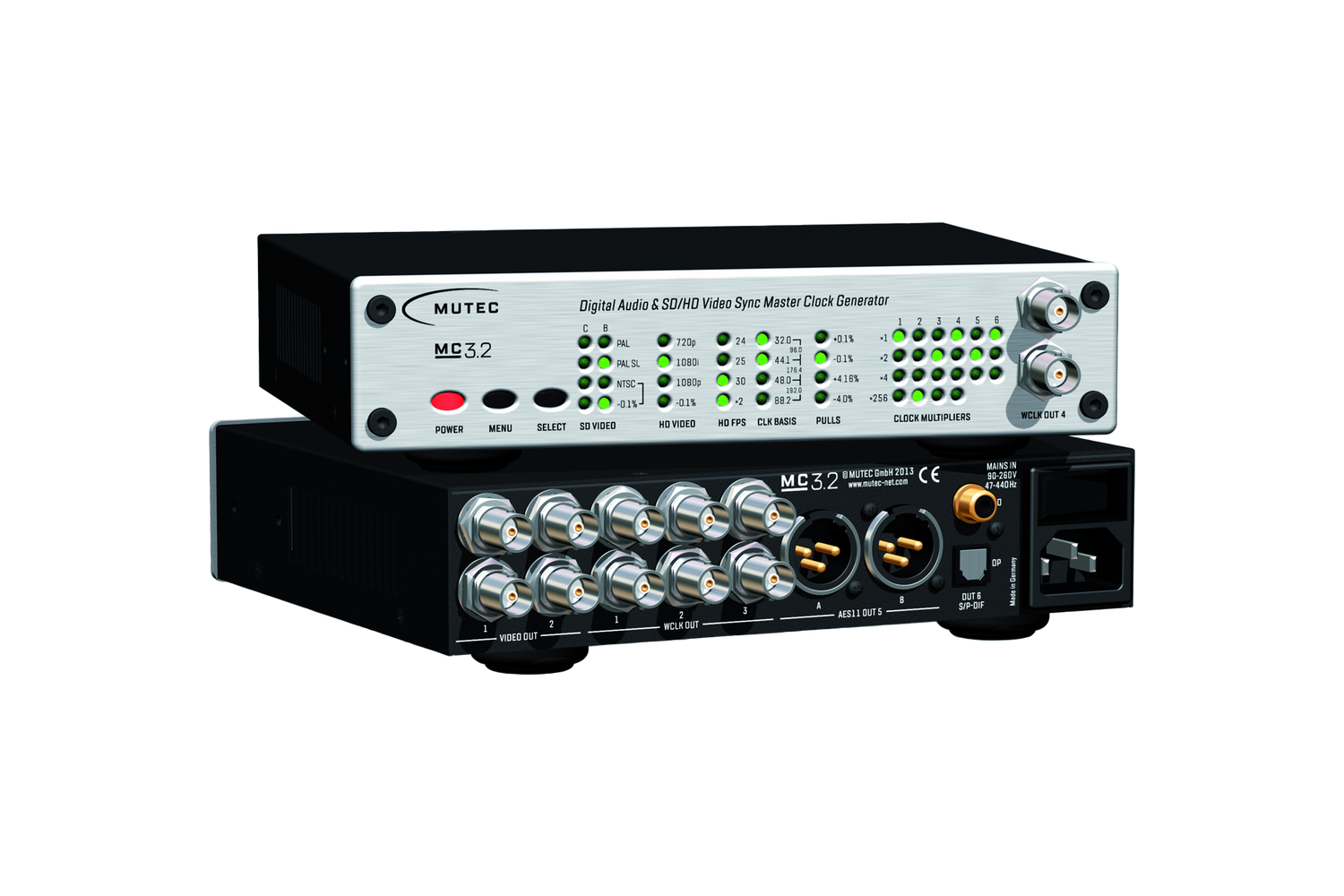

MC3.2

Digital Audio & Video Master Clock
Generates highly accurate reference clock signals for synchronizing professional digital audio and SD/HD video equipment.

Three Clock Generators in One
Combines Word Clock, SD video sync, and HD video sync generation in a single unit for complete studio synchronization.

Ultra-Low Jitter Clock Generation
Provides exceptionally clean clock signals that improve synchronization accuracy and enhance overall audio performance.

Studio-Wide Clock Distribution
Supplies stable clock signals to multiple digital devices from a single centralized timing source.

Multiple Word Clock Frequencies
Generates a wide range of standard Word Clock frequencies to support virtually any professional digital audio workflow.

Independent Clock Rate Outputs
Allows different output groups to operate at different clock rates simultaneously while remaining synchronized to the same master reference.

Word Clock Multipliers
Supports multiple clock multiplication modes, including Super Clock compatibility for legacy Pro Tools® systems.

SD Video Sync Generation
Produces professional SD video reference signals for PAL and NTSC production environments.

HD Tri-Level Sync Generation
Generates HD tri-level sync signals for modern high-definition video production and broadcast systems.

Multiple HD Video Formats
Supports common HD formats including 720p, 1080i, and 1080p with multiple frame rate options.

Audio and Video Phase Synchronization
Keeps audio clocks and video reference signals phase-aligned from a common timing source for reliable A/V synchronization.

AES/EBU & S/PDIF Clock Outputs
Provides synchronized AES/EBU and S/PDIF blank-frame reference signals alongside Word Clock outputs.

Film & Broadcast Pull Factors
Supports common pull-up and pull-down rates for seamless synchronization between film, video, and audio production standards.

AES11 Grade 1 Accuracy
Delivers broadcast-grade timing accuracy that complies with AES11 Grade 1 synchronization standards.

Improved Audio Quality
Helps reduce jitter-related distortion and can improve the performance of connected AD/DA converters and digital audio systems.

Eliminates Clicks & Pops
Maintains stable synchronization across connected devices to prevent digital audio errors during recording and playback.

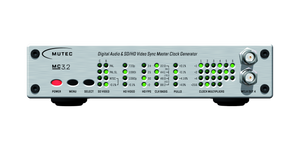

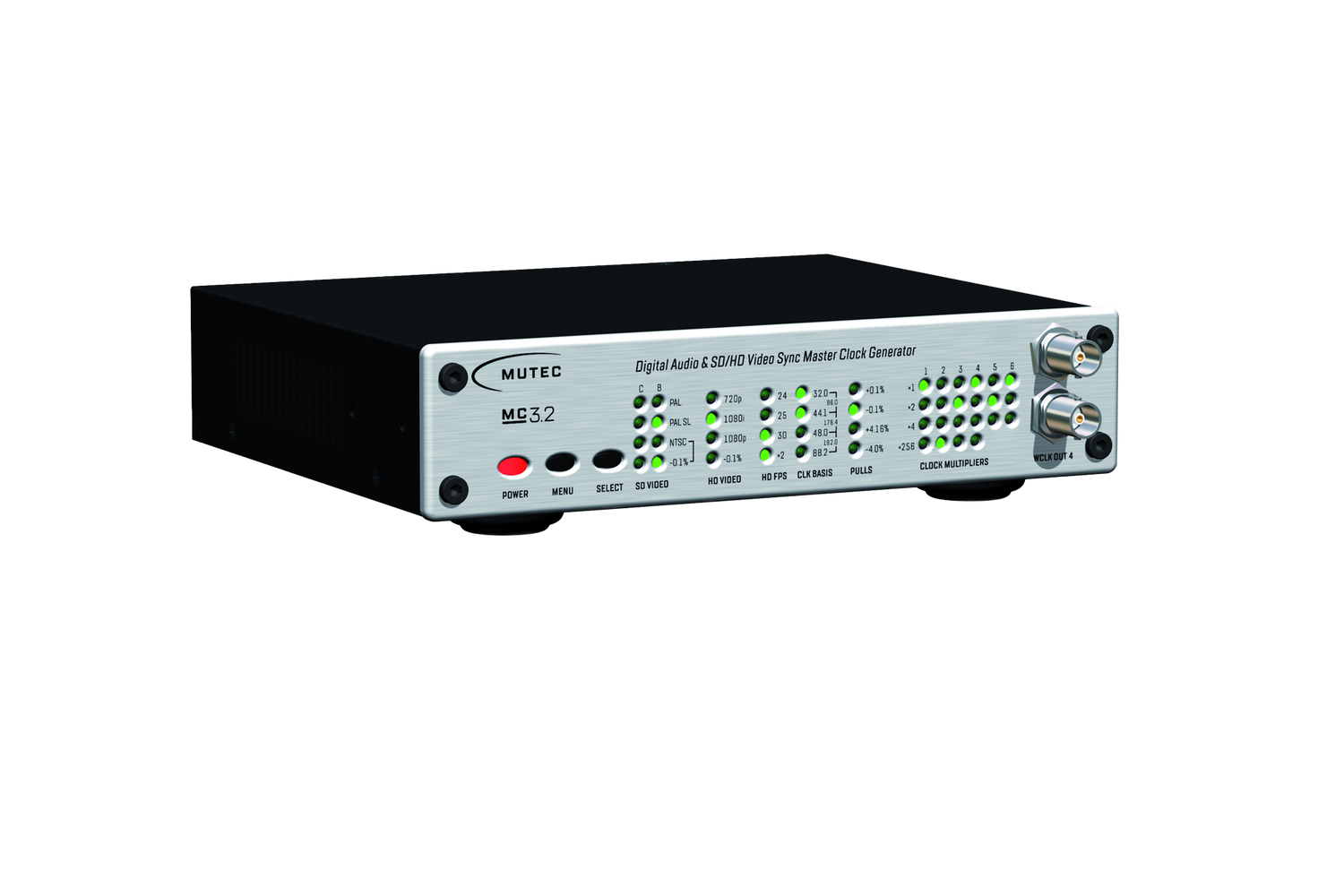

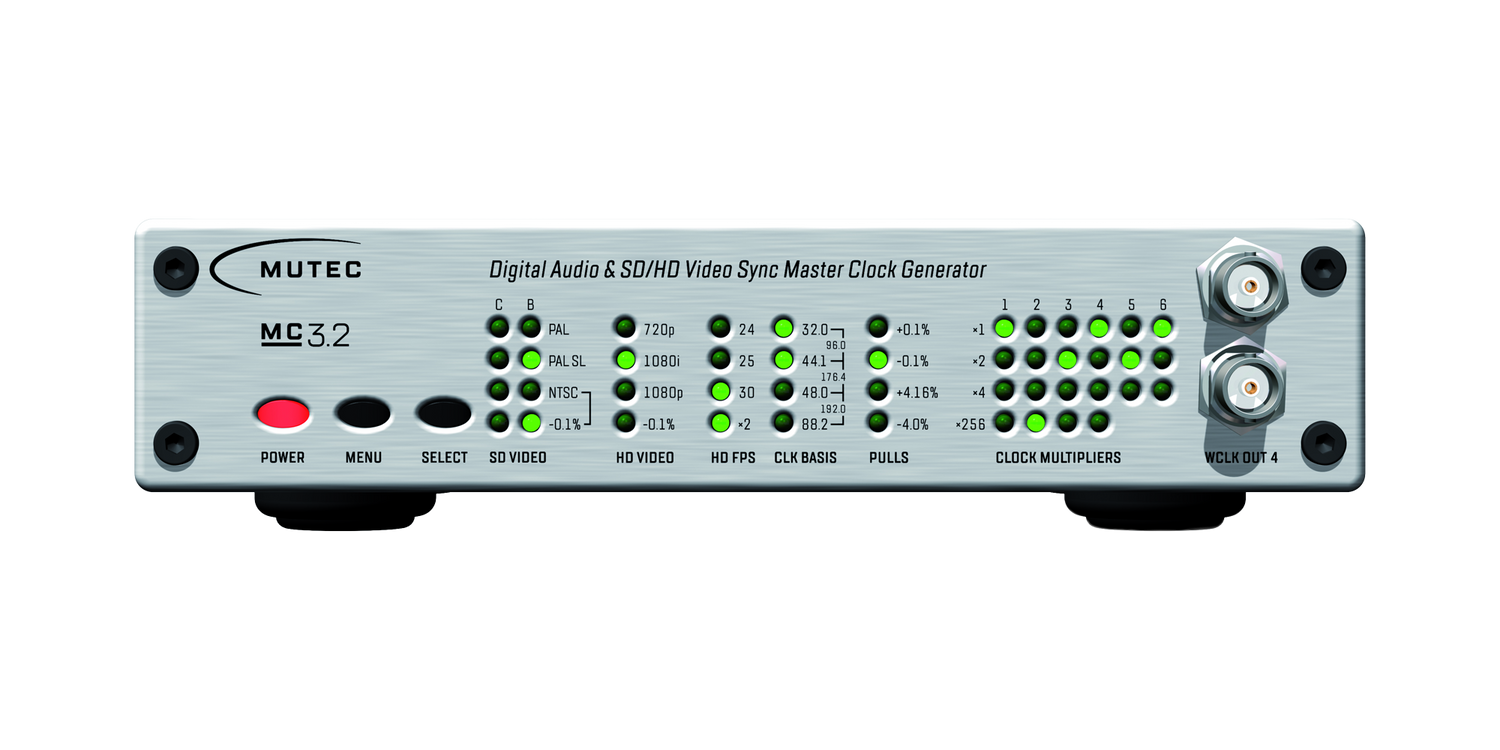

Simple Front Panel Operation
Intuitive controls allow quick selection of video standards, frame rates, clock frequencies, and output settings.

Automatic Settings Memory
Retains all user settings after power is removed, allowing immediate return to the previous configuration.

Compact Rack Design
Half-width enclosure saves rack space while fitting easily into professional studio installations.

Universal Power Supply
Built-in international power supply supports worldwide operation without external voltage selection.

General Specifications
Device Type: Digital Audio and SD/HD Video Sync Master Clock Generator
Reference Signal Generators: SD Bi-Level Video, HD Tri-Level Video, Audio Clock
Operation: Standalone Master Clock Generator
Frequency Accuracy: AES11 Grade 1
Clock Accuracy: < ±0.5 ppm
Clock Jitter: < 10 ps RMS
User Settings Storage: Non-volatile memory
Power Supply: Internal auto-ranging switching power supply
Rack Format: 1/2 19", 1U

Audio Clock Generation
Basis Word Clock Frequencies: 32.0 kHz, 44.1 kHz, 48.0 kHz, 88.2 kHz, 96.0 kHz, 176.4 kHz, 192.0 kHz
Word Clock Multipliers: ×1, ×2, ×4, ×256
Maximum Word Clock Frequency: 768.0 kHz
Super Clock Support: 11.2896 MHz, 12.2880 MHz
AES/EBU Clock Multipliers: ×1, ×2, ×4
S/PDIF Clock Multipliers: ×1, ×2, ×4
Pull Factors: +0.1%, -0.1%, +4.166%, -4.0%
Phase Synchronization: Automatic between all generated reference signals

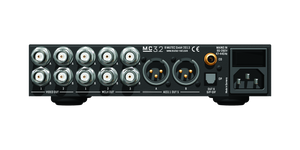

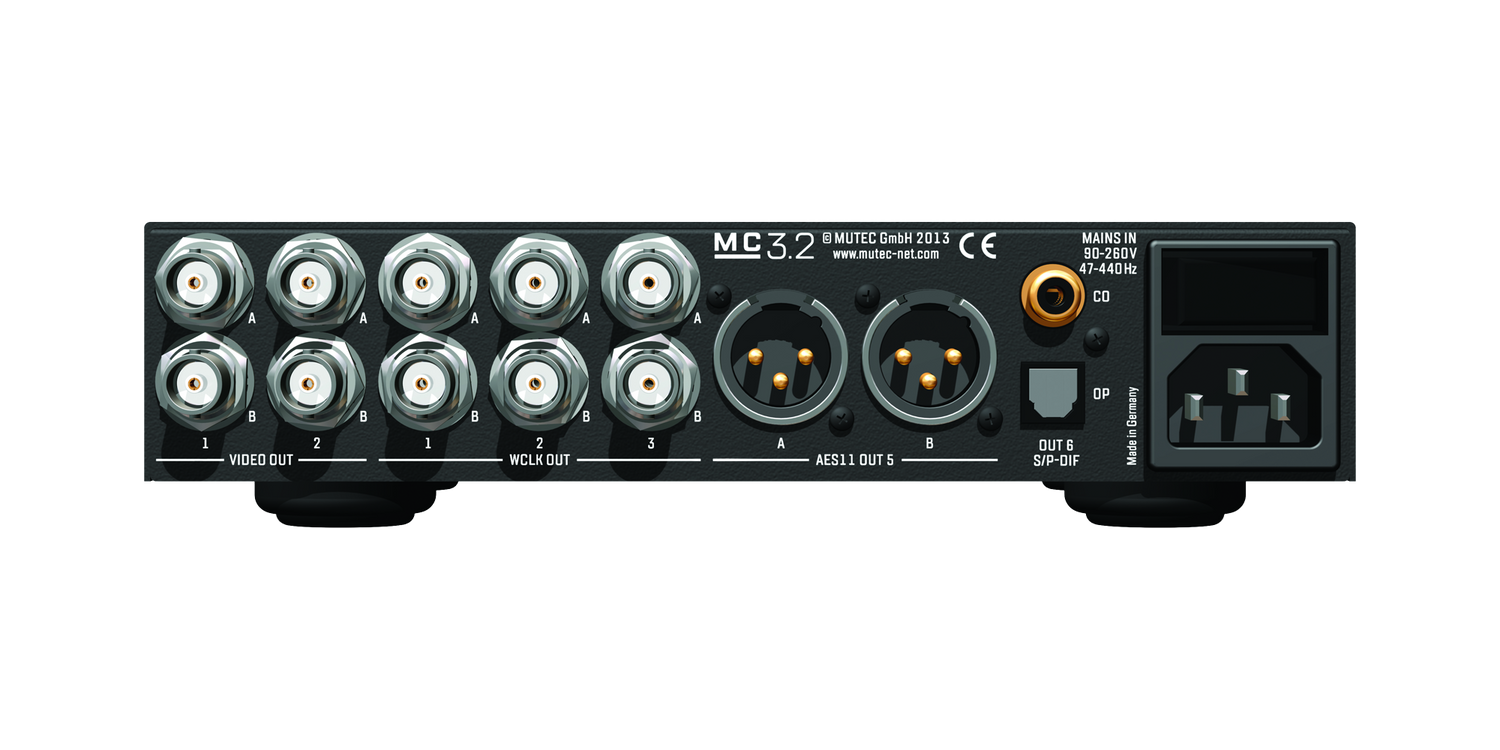

Word Clock Outputs
Outputs: 8 × BNC female (4 independently configurable output pairs)
Signal Type: Word Clock / Super Clock
Output Level: 3.5 Vpp @ 75 Ω
Output Impedance: 22 Ω
Buffering: Individually buffered

AES/EBU Outputs
Outputs: 2 × XLR male
Signal Type: AES11 blank frame sync
Interface: Transformer balanced
Output Level: 3.5 Vpp @ 110 Ω
Output Impedance: 110 Ω
Resolution: 24-bit

S/PDIF Outputs
Coaxial Output: 1 × RCA
Optical Output: 1 × Toslink (EIAJ RC-5720)
Signal Type: IEC 60958 blank frame
Coaxial Output Level: 0.5 Vpp @ 75 Ω
Output Impedance: 75 Ω
Resolution: 24-bit

SD Video Reference
Outputs: 2 × BNC female
Signal Type: SD Bi-Level Video Sync
Output Impedance: 75 Ω
Burst Level: 300 mVpp ±7 mV @ 75 Ω
H/V Sync Level: 300 mVpp ±7 mV @ 75 Ω
Supported Standards: PAL 23.98, PAL 24, PAL 25, NTSC 29.97, NTSC 30
Supported Formats: Black Burst, Composite Sync, Color Bar

HD Video Reference
Outputs: 2 × BNC female
Signal Type: HD Tri-Level Video Sync
Output Impedance: 75 Ω
Output Level: ±300 mVpp ±7 mV @ 75 Ω
Supported Formats: 720p, 1080i, 1080PsF, 1080p
Supported Frame Rates: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps

Internal Clock
Oscillator Type: Temperature compensated crystal oscillator (TCXO)
Clock Accuracy: < ±0.5 ppm
Clock Stability: < ±0.5 ppm (-10 °C to +60 °C)
Operating Temperature: -10 °C to +60 °C
Clock Standard: AES11 Grade 1

Power
Input Voltage: 90–260 VAC
Input Frequency: 47–440 Hz
Power Consumption: 10 W max

Physical Specifications
Enclosure Dimensions: 196 × 42 × 156 mm
Front Panel Dimensions: 198 × 44 × 2 mm
Weight: Approx. 1.36 kg
