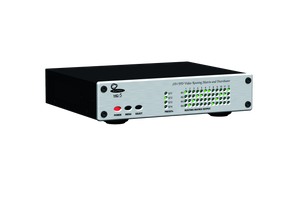

MC5

Name: MC5
Brand: MUTEC
SKU: 61429
Price: 1535.00 CAD
Availability: InStock

Video routing matrix, SD/HD video distributor, 4 BNC inputs, 12 BNC outputs, HD tri-level, PAL, NTSC, SECAM, preset routing, signal distribution.

$1,535.00 CAD

Shipping calculated at checkout.

Talk to our experts

Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

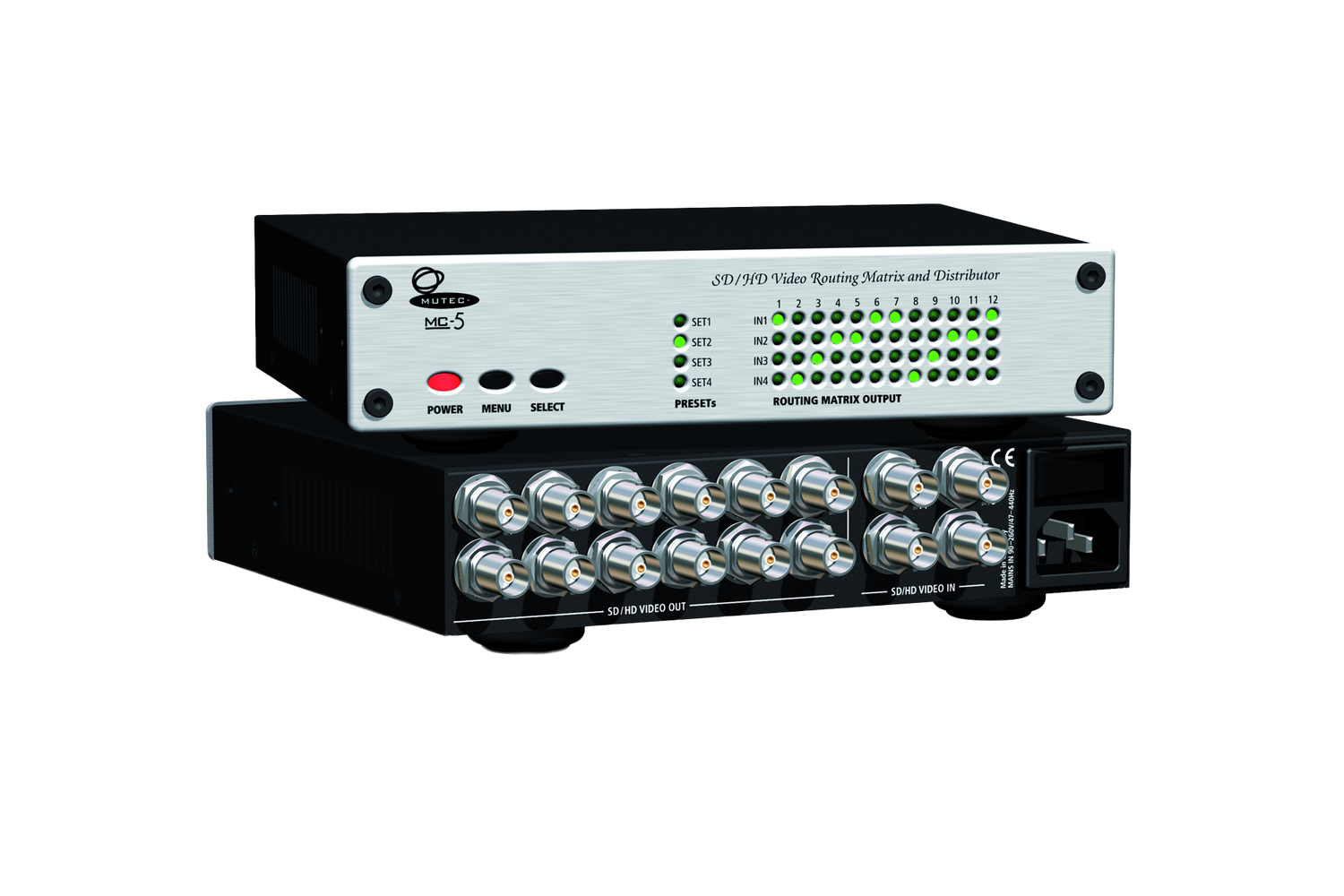

The MUTEC MC5 is a flexible SD and HD video routing matrix and distributor designed to simplify the distribution of reference video signals in professional broadcast, post production, and studio environments. Supporting SD bi-level and HD tri-level video formats, including PAL, NTSC, and SECAM, the MC5 accepts up to four independent video input signals and routes them freely to as many as twelve individually buffered outputs. This allows multiple video sources to be distributed exactly where they are needed while maintaining an organized and efficient signal workflow.

Designed for maximum versatility, the MC5 combines routing matrix and signal distribution functions in a compact unit with an intuitive interface that makes configuration straightforward. Users can assign outputs independently, store up to four routing presets for quick recall, and expand the output capabilities of compatible MUTEC video clock generators such as the iCLOCK series and MC-3.x models. With a built in international power supply and support for mixed SD and HD signal distribution without altering or amplifying the incoming signals, the MC5 provides a dependable solution for video synchronization and reference signal management in installations ranging from small production facilities to broadcast environments.

Features

Video Routing Matrix
Routes up to four independent SD or HD video input signals to any combination of outputs for flexible signal management.

Signal Distribution
Distributes a single video input to multiple outputs or all available outputs, making it ideal for broadcast and production environments.

Free Output Assignment
Allows each output to be assigned independently to any of the available inputs, providing maximum routing flexibility.

SD and HD Video Support
Supports SD bi-level and HD tri-level video signals, including PAL, NTSC, and SECAM formats.

Simultaneous Multi-Signal Operation
Processes multiple independent video signals at the same time without requiring separate routing hardware.

Preset Memory
Stores up to four complete routing configurations for fast recall and quick switching between different system setups.

Non-Destructive Signal Distribution
Routes and distributes video signals without altering or amplifying the original signal.

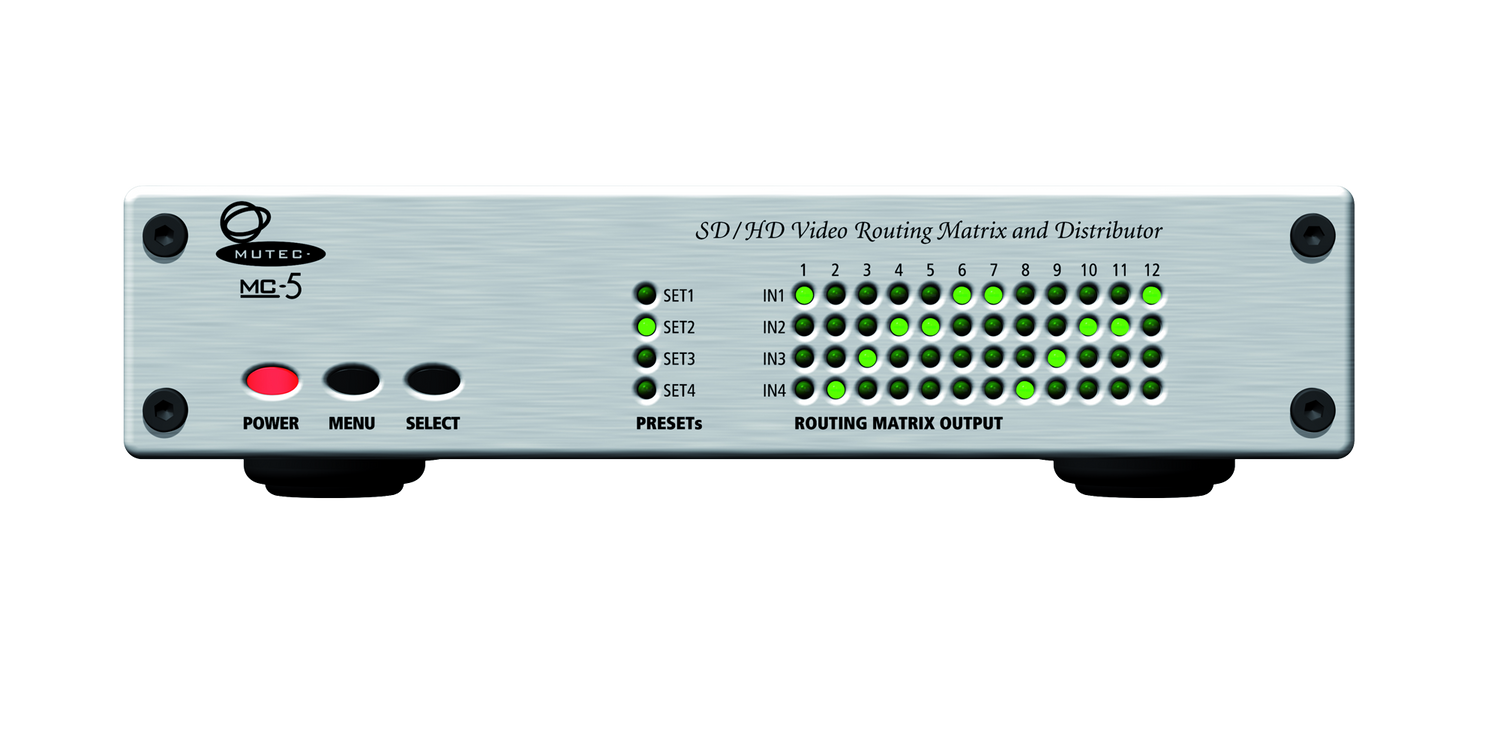

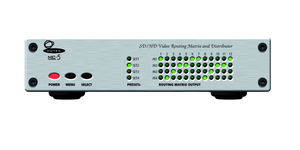

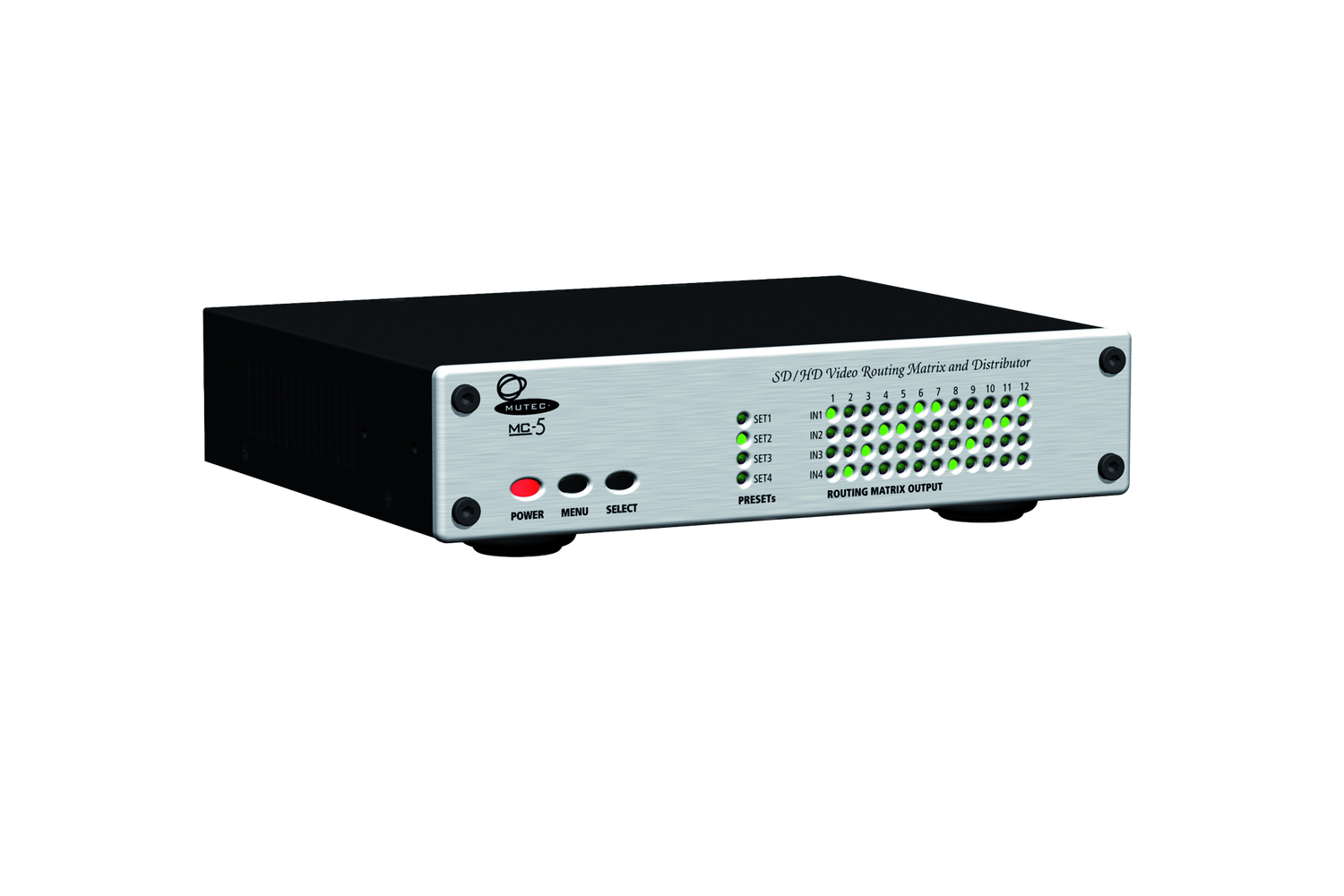

Simple Front Panel Control
Easy-to-use menu and selection controls allow quick configuration without extensive training.

Output Expansion
Expands the number of available video outputs for compatible MUTEC master clock and video synchronization products.

Mixed Video Distribution
Distributes different SD and HD video reference signals simultaneously within the same system.

Settings Memory
Automatically retains all routing and preset configurations after power cycling.

Compact Rack Design
Half-width chassis allows two units to be mounted side by side in a single rack space, saving valuable installation space.

Universal Power Supply
Built-in international power supply automatically adapts to a wide range of input voltages for reliable worldwide operation.

Specifications

General Specifications
Device Type: SD/HD Video Routing Matrix and Distributor
Supported Video Standards: SD bi-level (PAL, NTSC, SECAM), HD tri-level
Routing Matrix: 4 × 12
Simultaneous Inputs: 4 independent video signals
Signal Distribution: Configurable routing from any input to one or more outputs
Preset Memory: 4 user presets
Signal Processing: Passive routing, no alteration, no amplification
Output Assignment: Freely assignable
Settings Retention: Non-volatile memory after power-off
Power Supply: Internal auto-ranging switching power supply
Rack Format: 1/2 19", 1U (optional rack mount kit)

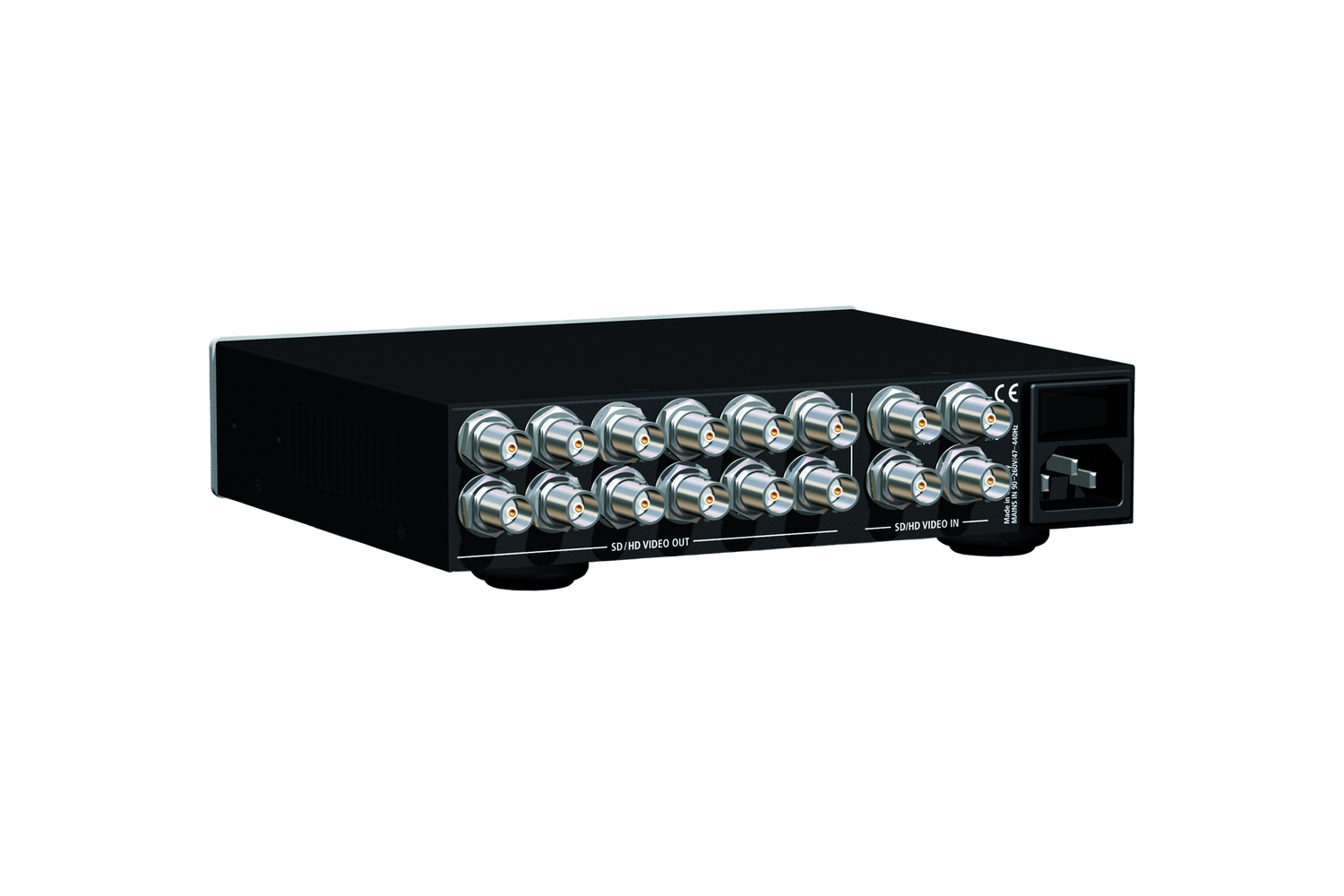

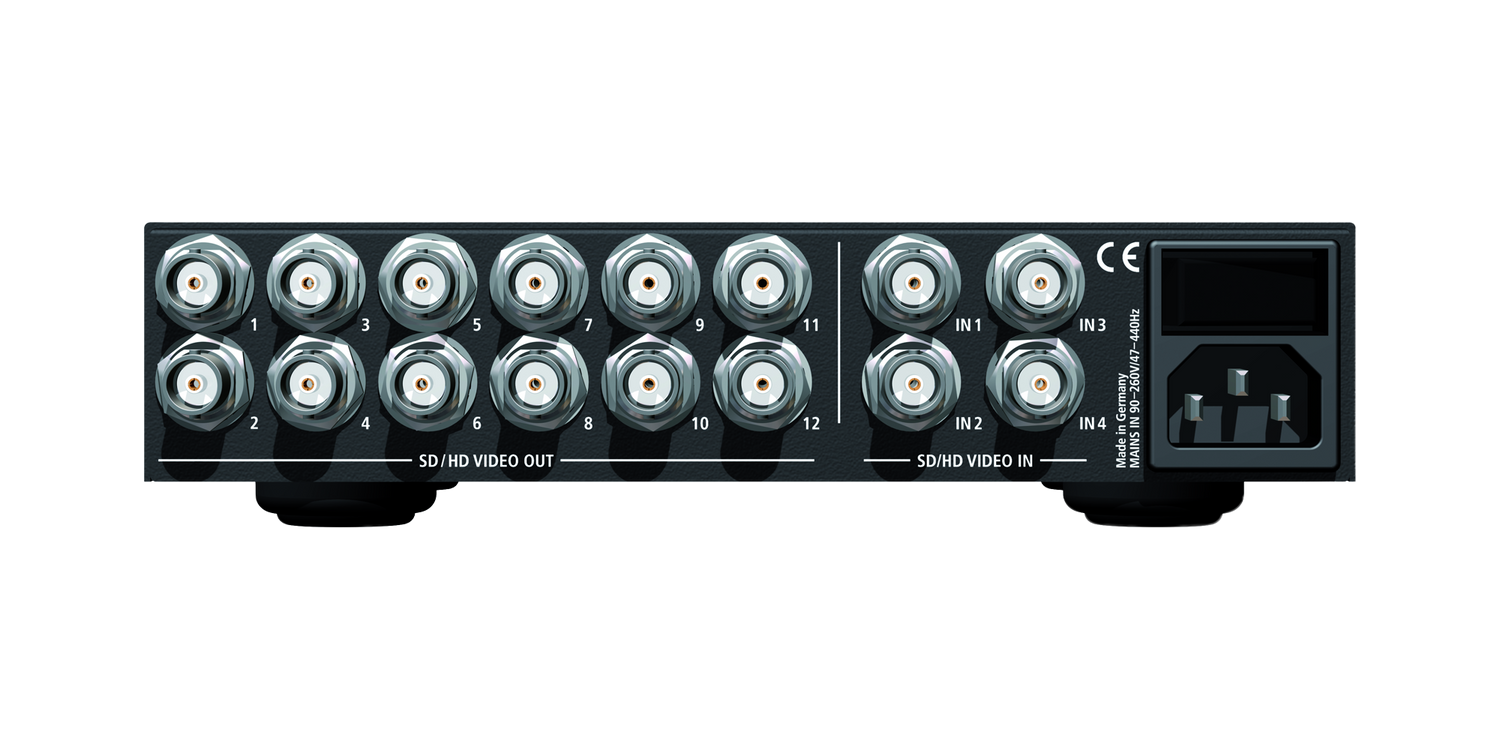

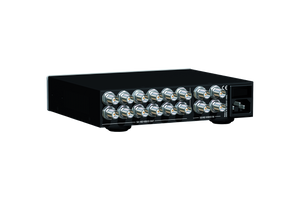

Video Interfaces
Video Inputs: 4 × BNC female
Input Impedance: 75 Ω
Input Signal Level: 0.2–5.0 Vp-p
Video Outputs: 12 × BNC female
Output Impedance: 75 Ω, individually buffered
Output Signal Level: 0.2–5.0 Vp-p
Supported Output Formats: SD bi-level (PAL, NTSC, SECAM), HD tri-level

Routing Functions
Input-to-Output Routing: Any input to one or multiple outputs
Maximum Distribution: One input to 12 outputs
Preset Configurations: 4
Preset Recall: Yes
Independent Output Routing: Yes

Signal Processing
Signal Modification: None
Signal Amplification: None

Power
Power Supply Type: Internal switching
Input Voltage: 90–260 VAC
Input Frequency: 47–440 Hz
Power Consumption: 10 W max

Physical Specifications
Enclosure Dimensions: 196 × 42 × 156 mm
Front Panel Dimensions: 198 × 44 × 2 mm
Weight: 800 g
