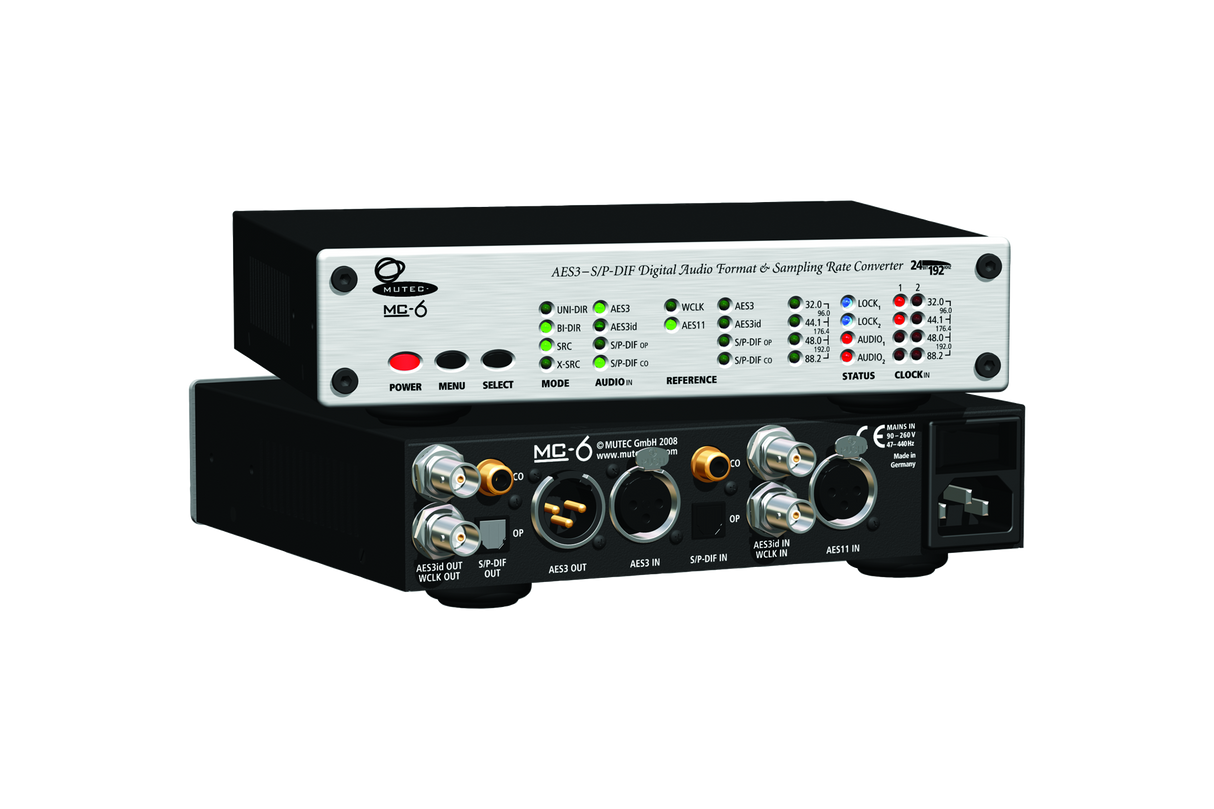

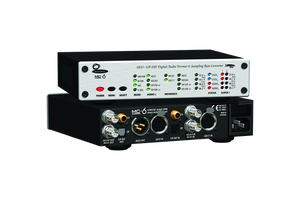

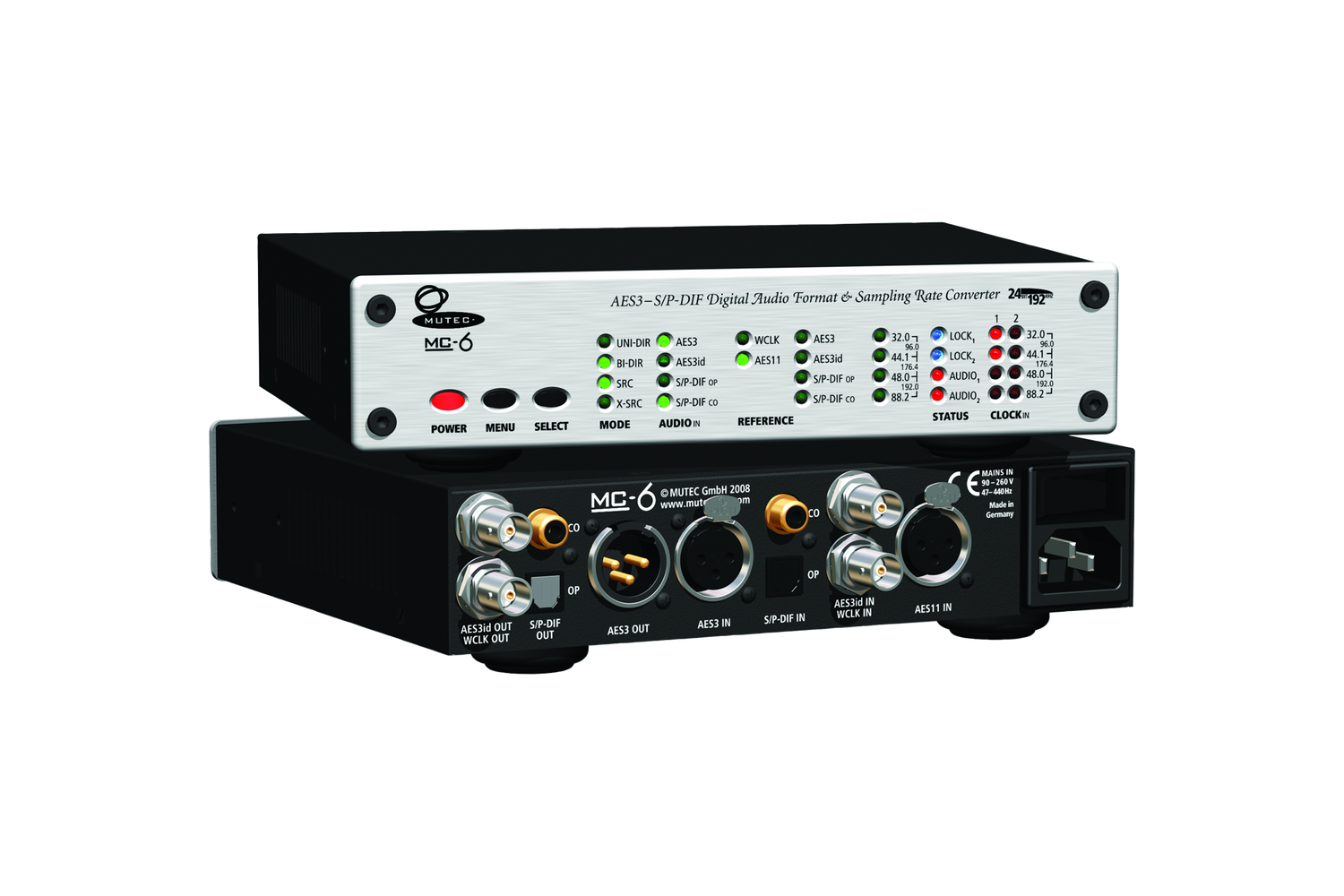

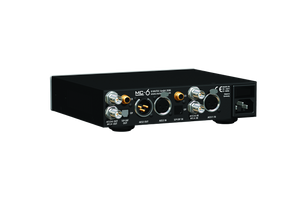

MC6

Multi-Format Audio Conversion
Converts digital audio between AES3, AES3id, and S/P-DIF formats in both unidirectional and bidirectional operation.

Built-In Sample Rate Conversion
Performs real-time sample rate conversion up to 192 kHz, allowing devices running at different clock rates to work together.

Unique X-SRC Mode
Converts two independent digital audio streams simultaneously while preserving each device's own clock, eliminating the need for a shared master clock.

Four-Channel SRC Engine
Processes bidirectional audio conversions with dedicated sample rate conversion for reliable, high-quality signal transfer.

Clock Recovery and Regeneration
Recovers and regenerates clock signals from incoming digital audio to improve synchronization and overall signal quality.

Flexible Clock Synchronization
Synchronizes to Word Clock, AES11, digital audio inputs, or the internal precision clock to suit virtually any digital audio environment.

Standalone Operation
Operates independently using its internal reference clock, without requiring an external master clock source.

Continuous Audio Operation
Maintains uninterrupted clock and audio output even if the external reference signal becomes unstable or is lost.

High-Precision Internal Clock
Features an ultra-stable AES11 Grade 1 reference clock for accurate synchronization and dependable digital audio performance.

Word Clock Output
Provides a clean Word Clock output that can serve as the master clock reference for other connected digital audio devices.

Dedicated AES11 Reference Input
Includes a separate AES11 reference input for professional studio and broadcast synchronization.

Simultaneous Format Conversion
Converts a single input signal to multiple digital audio formats at the same time for maximum system flexibility.

Upsampling Capability
Upsamples digital audio to higher sample rates, helping improve the performance of compatible digital-to-analog converters.

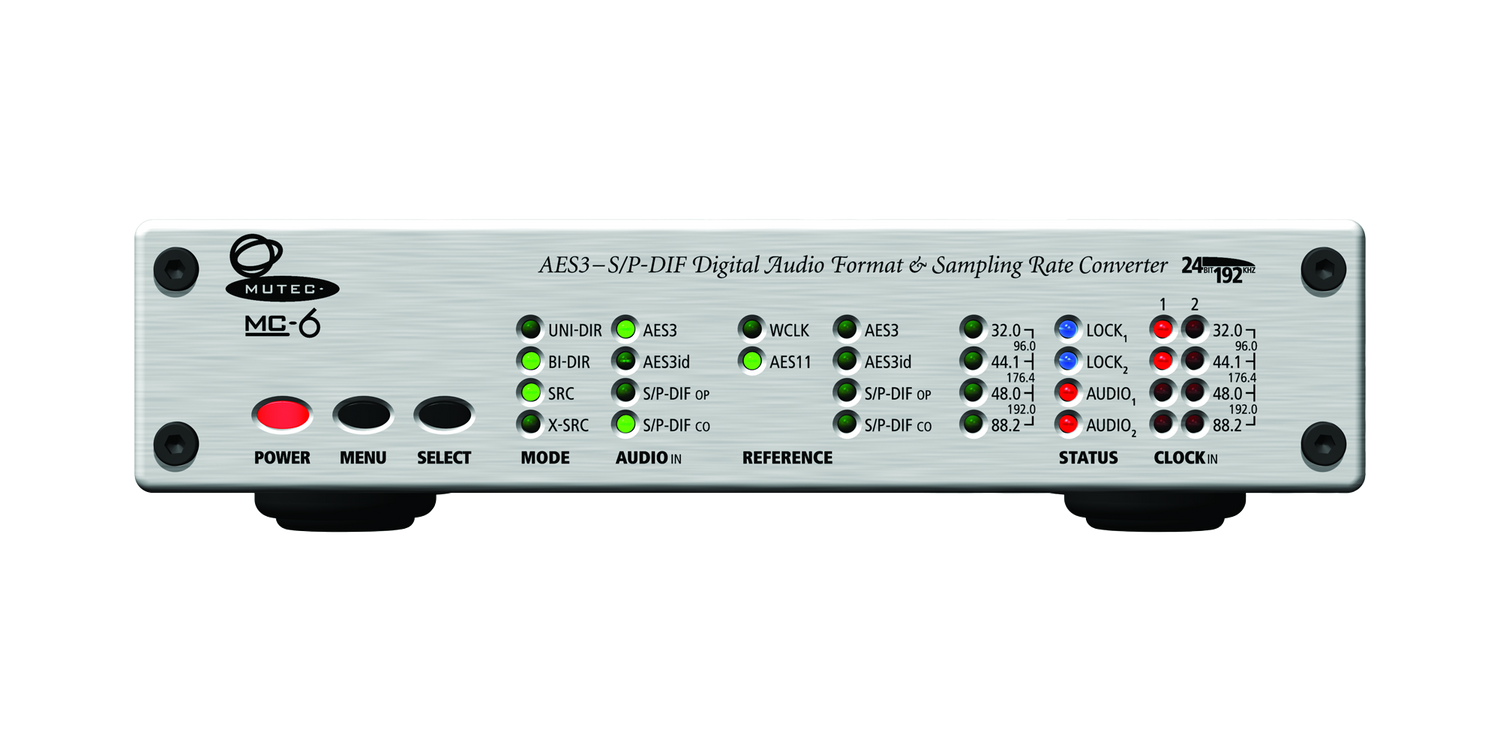

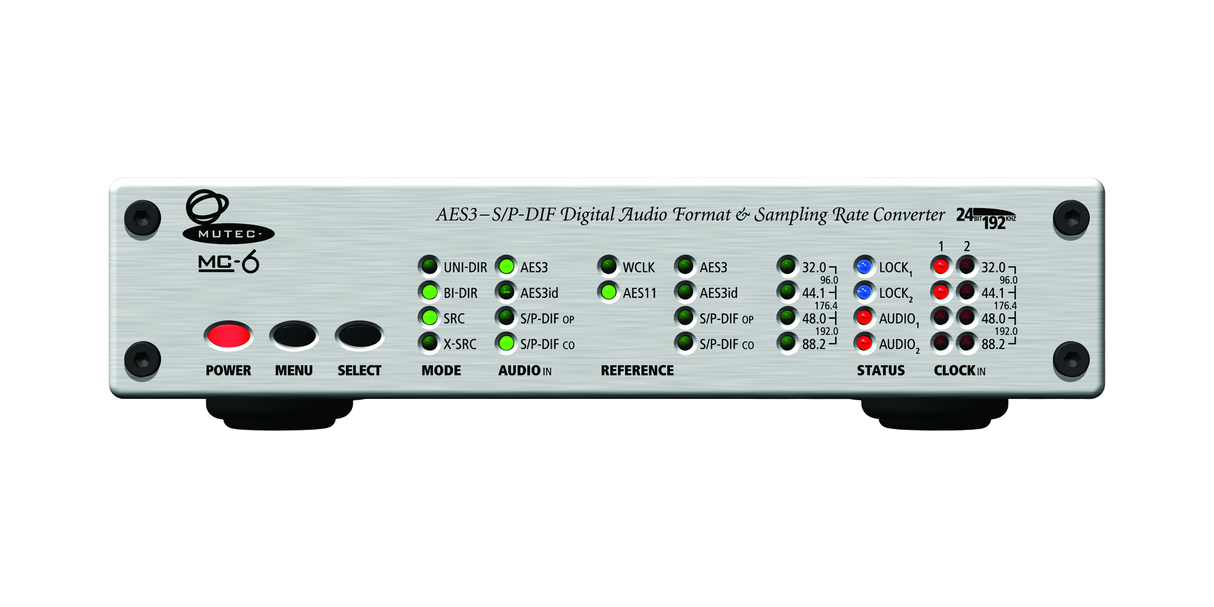

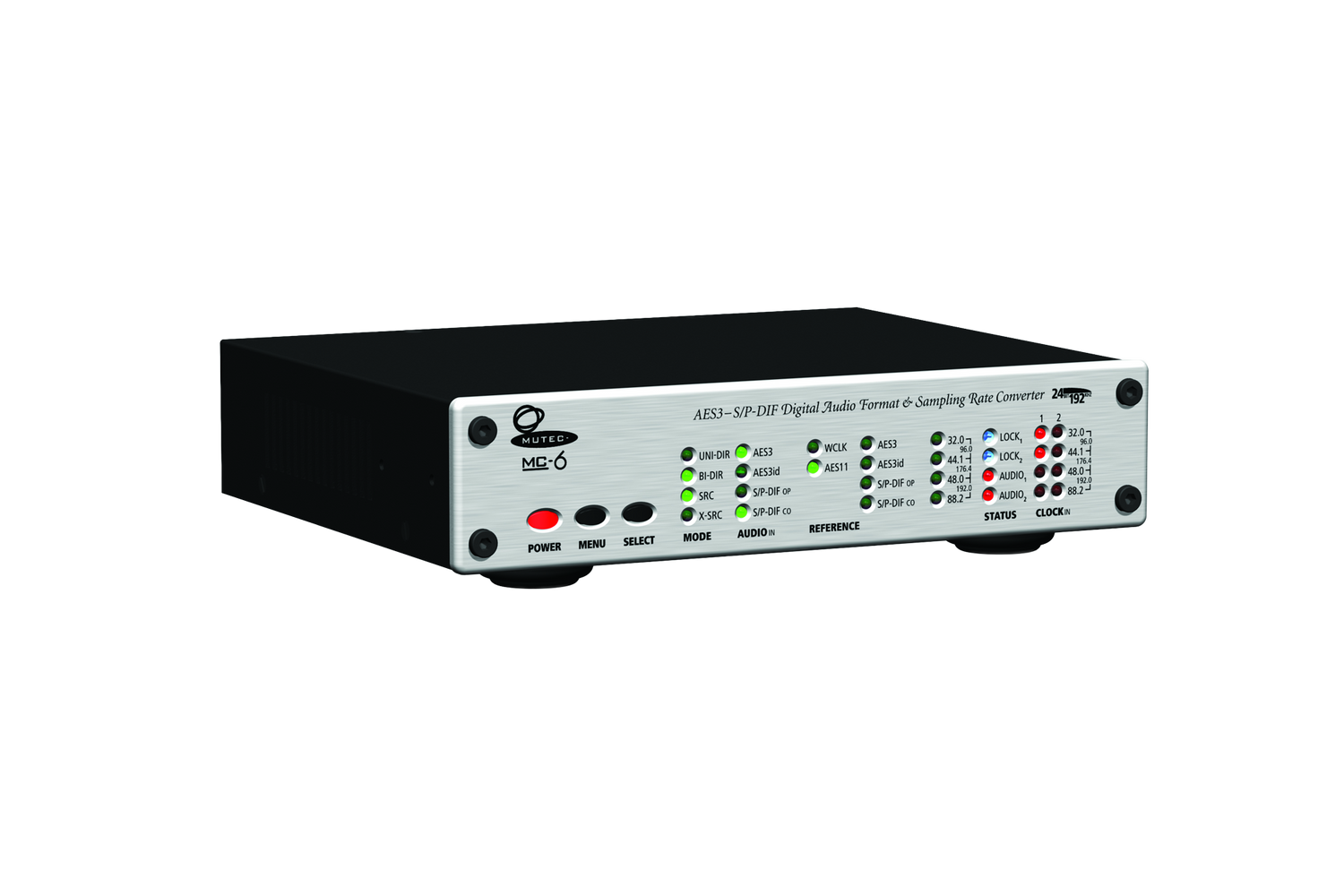

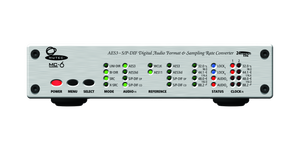

Easy Front Panel Control
Simple menu-driven controls make it quick to configure operating modes, audio formats, and synchronization settings.

Memory for User Settings
Automatically saves configuration settings in non-volatile memory, restoring them after power cycling.

Compact Rack Design
Half-width chassis allows two units to be mounted side by side in a single rack space, saving valuable installation space.

Universal Power Supply
Built-in international power supply automatically adapts to a wide range of input voltages for reliable worldwide operation.

General Specifications
Device Type: Digital Audio Format and Sampling Rate Converter
Supported Formats: AES3, AES3id, S/PDIF (Optical & Coaxial)
Conversion Modes: Unidirectional, Bidirectional, X-SRC
Sampling Rate Conversion: 32.0 kHz to 192.0 kHz
Maximum Sampling Rate: 192.0 kHz
4-Channel SRC Engine: Yes
X-SRC Mode: Yes
Clock Recovery: Low-jitter PLL
Reference Clock Sources: Internal, Word Clock, AES11, AES3, AES3id, S/PDIF Optical, S/PDIF Coaxial
Internal Clock: TCXO, AES11 Grade 1, < ±1 ppm
Clock Jitter: <10 ps RMS
Continuous Clock Supply: Yes
Word Clock Output: Master clock capable
Settings Memory: Non-volatile FLASH
JetPLL Technology: Yes
Rack Format: 1/2 19", 1U

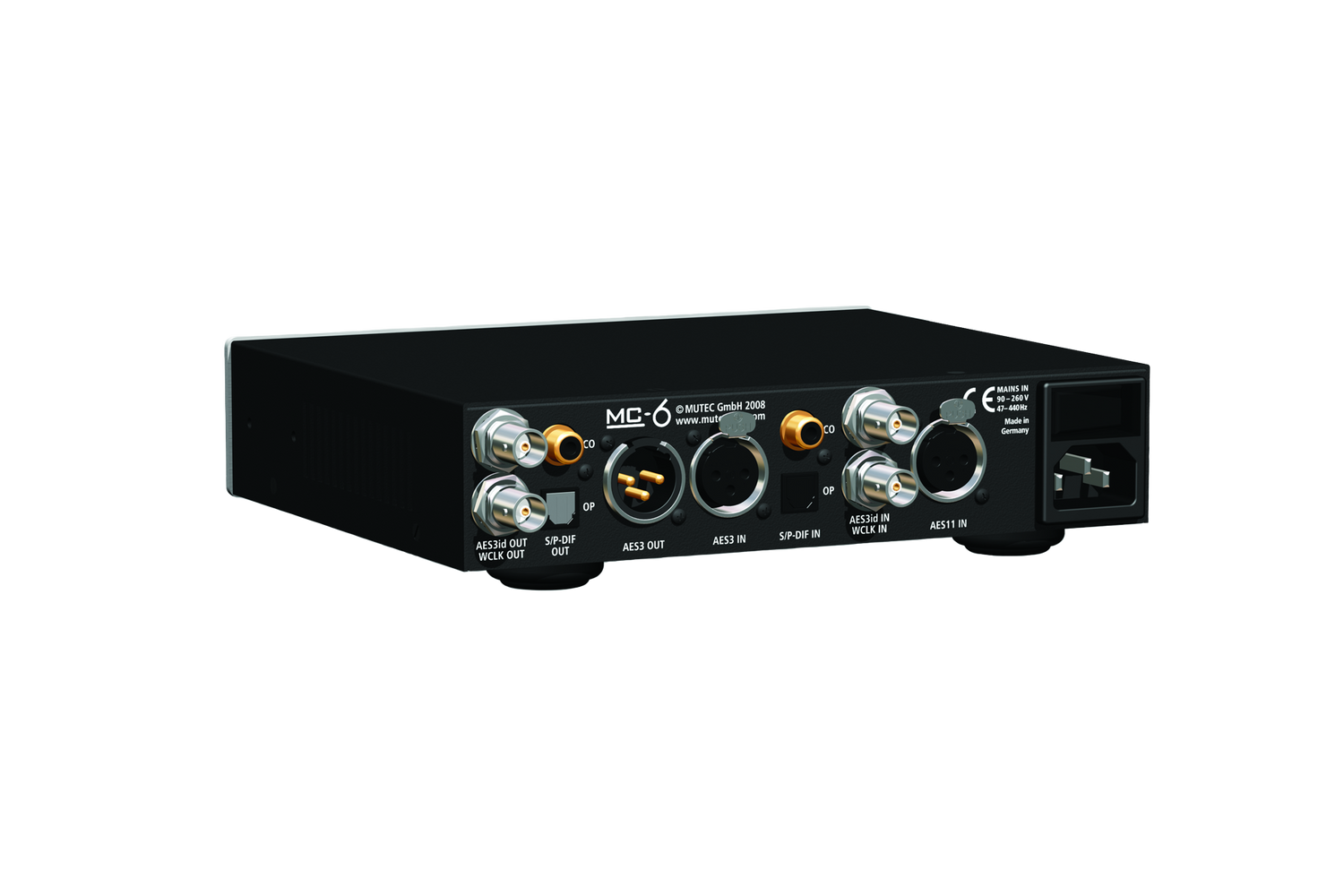

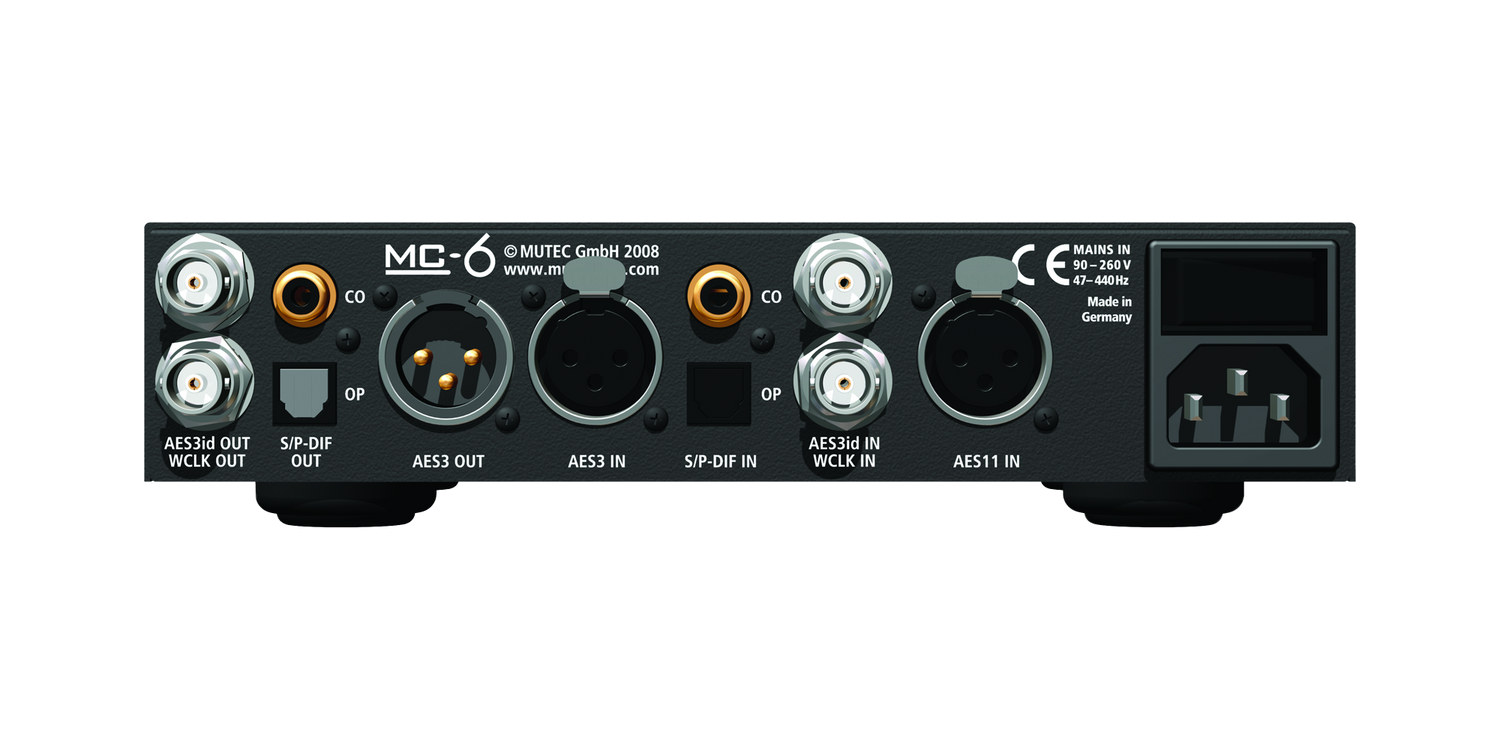

Audio Interfaces
AES3 Input: 1 × XLR female, 110 Ω
AES3 Output: 1 × XLR male, 110 Ω
AES3id Input: 1 × BNC, 75 Ω
AES3id Output: 1 × BNC, 75 Ω
S/PDIF Optical Input: 1 × Toslink
S/PDIF Optical Output: 1 × Toslink
S/PDIF Coaxial Input: 1 × RCA, 75 Ω
S/PDIF Coaxial Output: 1 × RCA, 75 Ω
Supported Bit Depth: 16–24-bit input, 24-bit output

Clock Interfaces
Word Clock Input: 1 × BNC, 75 Ω
Word Clock Output: 1 × BNC
AES11 Reference Input: 1 × XLR female, 110 Ω
Reference Rate: 32.0 kHz–192.0 kHz
Lock Range: 25.0 kHz–200.0 kHz
Super Clock Support: 11.2896 MHz, 12.288 MHz

Signal Processing
Format Conversion: AES3, AES3id, S/PDIF in any combination and direction
Sampling Rate Conversion Ratio: 1:16 (Upsampling), 16:1 (Downsampling)
Dynamic Range: 144 dB (A-weighted)
THD+N: -140 dB

Power
Power Supply: Internal switching
Input Voltage: 85–264 VAC
Input Frequency: 47–440 Hz
Power Consumption: 10 W max

Physical Specifications
Dimensions: 198 × 44 × 156 mm
Weight: 670 g
