MAMMOTH CABLES

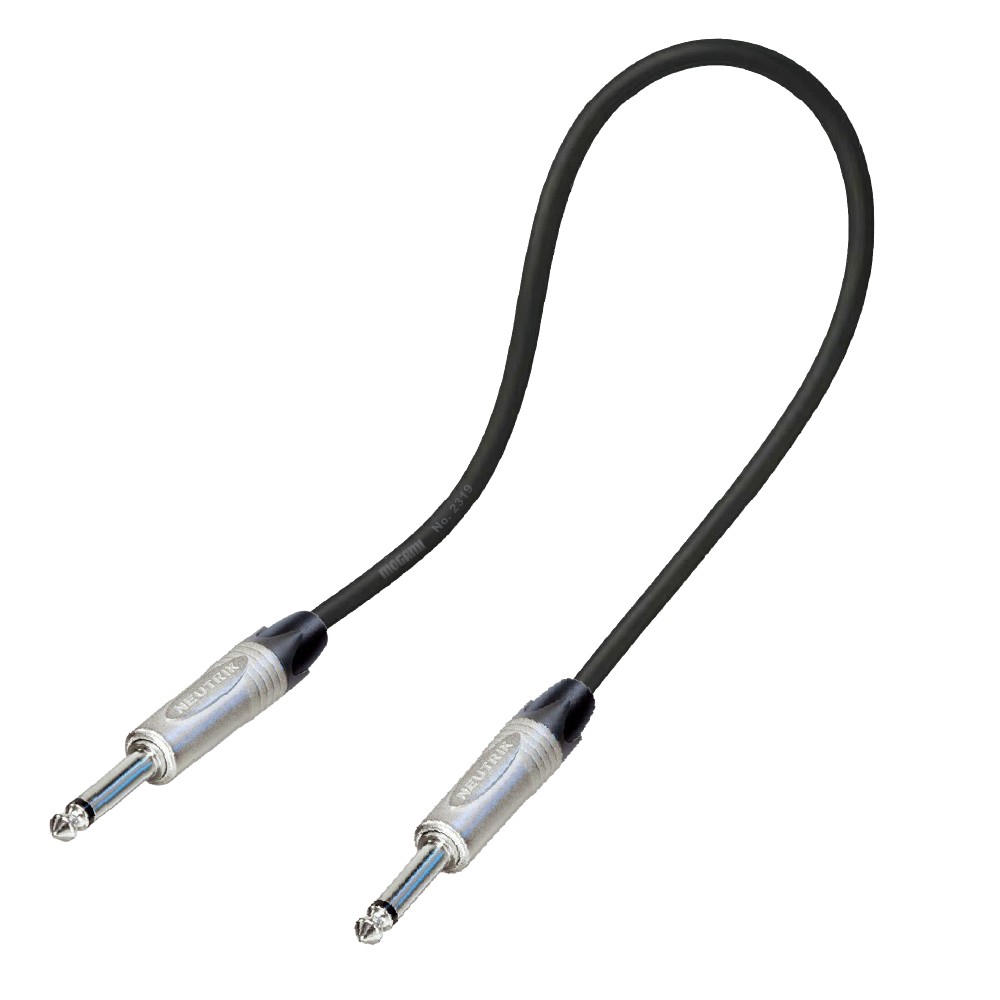

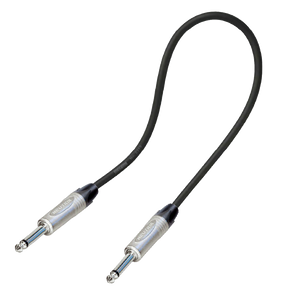

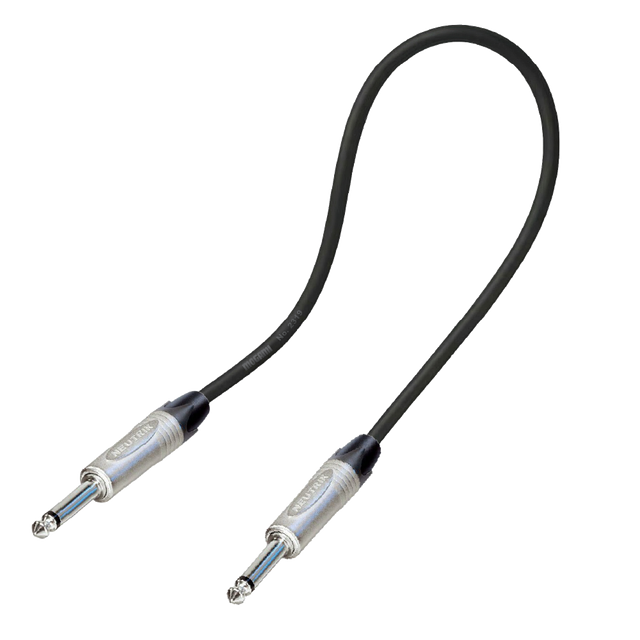

MM2319 TS-TS 03'

Instrument cable made with Mogami General Purpose W2319 Mic Cable and Neutrik male NP2X Connectors. Length: 3 feet


$37.00 CAD
Shipping calculated at checkout.

Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Mogami W2552 Mic Cable
Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

Neutrik NP2X
1/4" professional phone plug, 2 pole, nickel contacts, nickel shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch).

Features

Flexible and Easy Routing
Designed for smooth handling and easy cable management in guitar and instrument setups.

Durable Outer Jacket
Resists wear, bending, and abrasion for long-lasting reliability.

Low Handling Noise Design
Special conductive layer reduces unwanted noise caused by movement and cable flex.

Clean Signal Transfer
Preserves the natural tone of instruments with low-noise performance.

Instrument-Optimized Build
Designed specifically for high-impedance sources like guitars and basses.

Secure TS Connections
1/4" connectors provide a solid and dependable connection to amps and pedals.

Reliable Performance
Built for consistent use in both studio sessions and live performance environments.

Professional Neutrik Connectors
High-quality plugs ensure durability, secure fit, and smooth handling.

Multi-Purpose Use
Ideal for guitars, pedals, amplifiers, and general instrument applications.

Specifications

General Specifications
Product Type: Unbalanced Instrument Cable Assembly
Cable Type: High-impedance instrument cable
Application: Guitar and instrument-level signal transmission
Cable Model: Mogami W2319
Configuration: TS to TS

Cable Construction
Conductor: 0.305 mm² (23 AWG) copper (12/0.18 stranding)
Insulation: Polyethylene (PE)
Sub-Shield: Conductive PVC layer (carbon PVC)
Shield: Served shield (approx. 38/0.16 strands)
Capacitance: 155 pF/m
Inductance: 0.3 µH/m
Outer Diameter: 5.0 mm
Jacket Material: PVC
Flex Life: 11,000 cycles
Tensile Strength: 303 N

Connector A (TS)
Type: 6.35 mm 2-pole (TS) phone plug
Model: Neutrik NP2X
Contact Plating: Nickel
Housing: Zinc diecast, nickel plated
Shell Diameter: 14.5 mm
Strain Relief: Chuck-type
Cable Entry Range: 4 – 7 mm
Mechanical Life: >1,000 mating cycles
Standard Compliance: IEC 60603-11 / EIA RS-453

Connector B (TS)
Type: 6.35 mm 2-pole (TS) phone plug
Model: Neutrik NP2X
Contact Plating: Nickel
Housing: Zinc diecast, nickel plated
Shell Diameter: 14.5 mm
Strain Relief: Chuck-type
Cable Entry Range: 4 – 7 mm
Mechanical Life: >1,000 mating cycles
Standard Compliance: IEC 60603-11 / EIA RS-453

Electrical
Signal Type: Unbalanced analog instrument signal
DC Resistance (Conductor): 0.064 Ω/m
DC Resistance (Shield): 0.026 Ω/m
Electrostatic Noise: ≤ 0.13 mV
Electromagnetic Noise (10 kHz): ≤ 0.07 mV
Microphonics: ≤ 0.3 mV

Environmental
Operating Temperature: -20°C to +60°C
Insulation Resistance: ≥ 100000 MΩ·m @ 500 V
Voltage Breakdown: 500 V DC / 15 sec

Assembly
Termination: Hand-soldered
Insulation: Heat shrink tubing for strain relief
Compatibility: Guitars, amplifiers, pedals, audio interfaces
Shield Connection: Sleeve to sleeve

Physical
Length: 3 ft
Color: Black
