PRESONUS

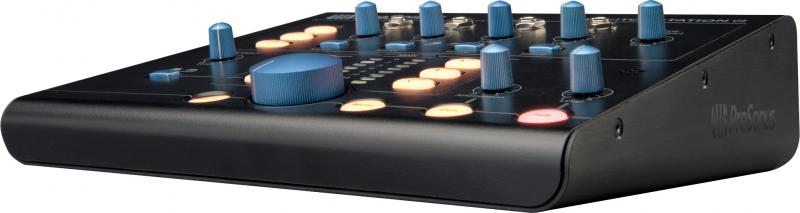

Monitor Station V2

Monitoring Controls

Take Control of Your Monitors with the Monitor Station V2. The complete desktop speaker-management solution.

$549.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Equip your studio with pro monitoring features for a song. Manage multiple audio sources and sets of monitor speakers, track using illegally loud headphone amplifiers, and talk back to your drummer all from your desktop.

Consider your sources. Switch quickly and easily between up to four audio sources with a selection of input types.

Manage Your Destinations. Audition your music with your choice of three stereo pairs of speaker outputs, each with separate level control. Four screaming-loud headphone outs and a talkback mic ensure your musicians hear every note and your instructions clearly.

Customize your system for the way you work. There's more to managing a monitoring system than I/O, level controls, and talkback. The Monitor Station V2 offers powerful options that allow you to configure it for the way you like to work.

Take control of your monitor system. With its ergonomic, intuitive layout; extensive features and I/O; and PreSonus' famed sound quality, Monitor Station V2 provides a versatile, convenient, and affordable solution for managing your studio monitoring system from your desktop. So sashay down to your PreSonus dealer and take control of your monitoring system the way the professionals do!

Features

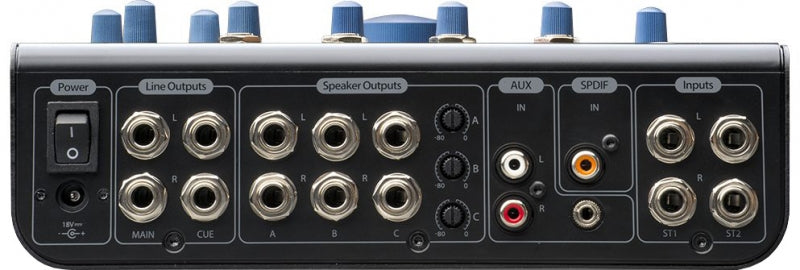

Inputs and Outputs

2 Stereo pairs of ¼" TRS inputs

1 Stereo pair of RCA Aux inputs

1 Stereo S/PDIF coaxial (RCA) digital input (44.1/48/88.2/96 kHz)

3 Stereo pairs of ¼" TRS speaker outputs with level controls

1 Stereo pair of ¼" TRS Main outputs

1 Stereo pair of ¼" TRS Cue outputs

4 ¼" TRS screaming-loud stereo headphone outputs

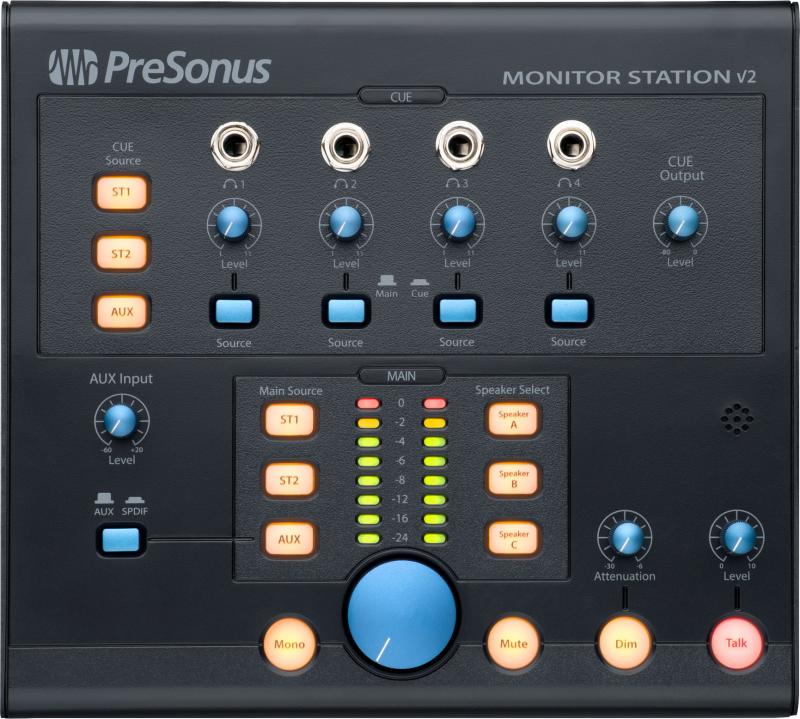

Controls

Large Main level control

3 Individual Main Source (ST1, ST2, Aux) select switches

3 Individual Speaker Select switches

Cue section with Source select (ST1, ST2, Aux) and output-level control

Aux-S/PDIF Select switch

Aux Input level control

Main Mute, Mono, and Dim switches with variable Dim attenuation


Additional Features

8-segment color LED input meters with selectable reference level

Built-in electret-condenser talkback microphone with input-gain control and Talkback button

Convenient desktop design

Specifications

Audio Inputs


Internal Talkback Microphone

Gain Range: +15 to +55 dB

Type:: Electret condenser

Sensitivity:: -42 dB


Stereo 1 and Stereo 2 Inputs

Type:: ¼" TRS Active Balanced

Input Impedance (Balanced): 10 k

S/N Ratio (1 kHz @ +10 dBu, Unity Gain): >105 dB

THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.0075%

Frequency Response (±0.5 dB):: 10 Hz to 65 kHz

Noise Floor (20 Hz to 20 kHz, 150 input termination): -96 dBu

Maximum Input Level (Minimum Gain, 1 kHz @ 0.5% THD+N): +22 dBu


Auxiliary Inputs

Type: RCA Active Unbalanced

Input Impedance: 47.5 k

S/N Ratio (1 kHz @ 0 dBu, Unity Gain): >115 dB

THD+N (unwtd, 1 kHz @ 0 dBu Output, Unity Gain): <0.01%

Frequency Response (±0.5 dB): 10 Hz to 50 kHz

Gain Range: 80 dB to +10 dB


S/PDIF

Types: RCA 75 coax

Dynamic Range: 113 dB

THD+N: 0.0025% (1 kHz @ -1 dBFS)

Maximum output at 0 dBFS: +18 dBu

Sample Rates: 44.1, 48, 88.2, 96 kHz


Input Meters (ST1, ST2, and Aux only)

Type: Dual 8-segment LED w/peak hold

Sensitivity Range: -24 dB to 0 dB

Audio Outputs


Type: ¼" TRS Active Balanced

Output Impedance (Balanced): 51

THD+N (unwtd, 1 kHz @ 0 dBu, Unity Gain): <0.01%

Frequency Response (±0.5 dB): 10 Hz to 50 kHz


Speaker A, B, and C

Trim Range: -80 dB to 0 dB

Main Level Range: -80 dB to 0 dB

Dim Attenuation Range: -30 dB to -6dB


Cue

Cue Level Range: -80 dB to 0 dB

Dim Attenuation (Talkback activated): -20 dB


Headphones

Type: ¼" TRS Active Stereo

Maximum Output (60 load): 150 mW / channel

Frequency Response (±1.0 dB): 10 Hz to 50 kHz

Power


Power Supply Type: External DC Transformer/Internal Line
Input Connector Type: Barrel, 5.5 mm outside diameter, 2.1 mm inside diameter
Monitor Station Input Voltage Range: 18 VDC
Power Requirements (Continuous): 10W

Physical Dimensions


Height: 2.5" (63.5 mm)
Depth: 8.5" (216 mm)
Width: 9" (228.6 mm)
Weight: 6 lbs. (4.54 kg)
