NEUTRIK  |  SKU: 16702

NC3FX-S

Connectors

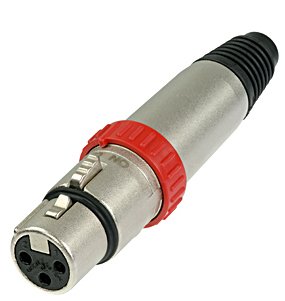

The NC3FX-S is a 3 pole female cable connector, Nickel housing.

$25.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

FX cable connector with noiseless ON-OFF switch short-circuiting contacts 2+3. For use with a microphone without switch.

Features

Built in noiseless ON-OFF switch short-circuiting contacts 2 + 3

For use on a microphone without switch

Rugged zinc diecast shell, long lasting and durable

Rugged metal boot

Chuck type strain relief system for secure clamping of cables

Boot with rubber gland gives high protection against bending stresses

Specifications

Title: NC3FXS
Connection Type: XLR
Gender: female

Electrical


Capacitance between contacts: 4 pF
Contact resistance: 3 m
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 G (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V

Mechanical


Cable O.D.: 3.5 - 7.0 mm
Insertion force: 20 N
Withdrawal force: 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock

Material


Boot: Polyurethan
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
Contacts: Bronze (CuSn6)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)

Environmental


Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range :-30 C to +80 C
