NEUTRIK  |  SKU: 854

NC3MXX-B

Connectors

Three-pole XLR male, black metal shell, gold-plated contacts, latch lock, solder terminals, zinc diecast housing, strain relief boot, high durability, IP40 rated

$7.59 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

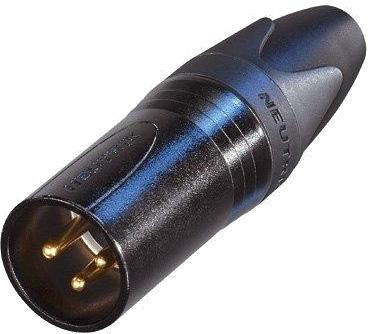

The NC3MXX-B is a 3-pole male XLR cable connector featuring a black zinc diecast housing and gold-plated contacts for superior conductivity and long-term reliability. As the next generation of the industry-standard X series, it offers improved durability, easier assembly, and enhanced contact integrity.

Its chuck-type strain relief ensures secure cable retention with higher pull-out force, while a polyurethane boot protects against cable bending stress. A sleek ergonomic design, color-coding options, and rugged construction make it ideal for professional audio applications requiring dependable performance and frequent use.

Features

Professional Male XLR Connector: Built for balanced audio applications with high signal integrity and a secure, reliable connection.

Durable Black Metal Housing: Rugged zinc diecast shell with black KTL coating provides a sleek, professional look and long-lasting durability.

Gold-Plated Contacts: Features gold over nickel contact plating for improved conductivity and corrosion resistance.

Secure Locking Mechanism: Reinforced latch lock without side window ensures strong mating and added protection.

Advanced Strain Relief: Chuck-style design and flexible polyurethane boot protect against cable tension and bending stress.

Quick and Easy Assembly: Internal threading and ergonomic design streamline the installation process.

Wide Cable Compatibility: Supports cable diameters from 3.5 mm to 8.0 mm and wire sizes up to 14 AWG.

Color Coding Options: Accepts interchangeable color rings and boots for easy channel identification.

Specifications

General Specifications:

Product name: NC3MXX-B

Connector type: 3-pole XLR cable connector

Gender: Male

Housing: Black KTL-coated zinc diecast

Contact plating: 0.2 micrometer gold hard alloy over 2 micrometer nickel

Contact material: Brass (CuZn39Pb3)

Shell coating: Black KTL

Locking device: Latch lock

Wiring type: Solder contacts

Lifetime: Greater than 1,000 mating cycles

Compliance: IEC 61076-2-103

Electrical Specifications:

Capacitance between contacts: Less than or equal to 4 picofarads

Contact resistance: Less than or equal to 3 milliohms

Dielectric strength: 1,500 volts DC

Insulation resistance: Greater than 10 gigaohms (initial)

Rated current per contact: 16 amperes

Rated voltage: Less than 50 volts

Mechanical Specifications:

Cable outer diameter compatibility: 3.5 millimeters to 8.0 millimeters

Insertion force: Less than or equal to 20 newtons

Withdrawal force: Less than or equal to 20 newtons

Maximum wire size: 2.5 square millimeters

Maximum wire size: 14 American Wire Gauge

Strain relief: Improved chuck type with polyacetal construction

Material Specifications:

Boot material: Polyurethane

Insert material: Polyamide (PA66)

Locking element material: Zinc diecast (ZnAl4Cu1)

Shell material: Zinc diecast (ZnAl4Cu1)

Shell coating: Black KTL

Strain relief material: Polyacetal (POM)

Environmental Specifications:

Flammability rating: UL 94 V-0

Protection class: IP 40

Operating temperature range: minus 30 degrees Celsius to plus 80 degrees Celsius

Solderability standard: Complies with IEC 68-2-20
