NEUTRIK

NC4MXX-B

Connectors

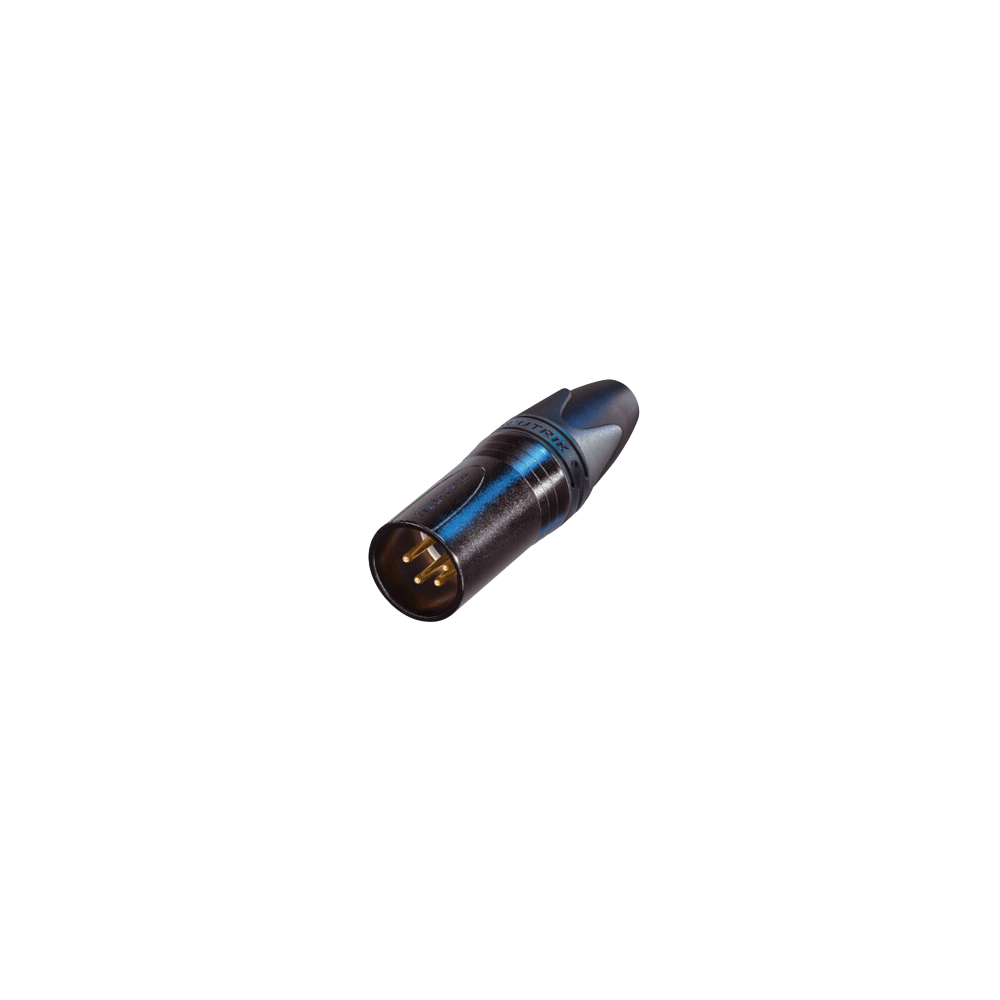

4-pole XLR male cable connector, black metal housing, gold contacts, zinc diecast shell, solder terminals, latch lock, 10A rating.

$10.27 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Neutrik NC4MXX-B is a 4-pole male XLR cable connector designed for dependable performance in professional audio, communication, and custom wiring applications. Featuring a durable black metal housing with gold-plated contacts, it combines a refined appearance with the rugged construction needed for demanding environments. As part of Neutrik's next-generation XX series, it offers improved reliability, stronger contact integrity, and a more robust locking design for secure connections.

Built with ease of assembly and long-term durability in mind, the NC4MXX-B incorporates an enhanced chuck-style strain relief system that helps protect cables from pull-out forces while simplifying installation. A polyurethane boot helps reduce stress caused by repeated cable bending, making it well suited for applications where connectors are frequently handled or moved. The ergonomic design, sturdy zinc die-cast shell, and support for cable identification through optional colored rings and boots make this connector a practical choice for both permanent installations and portable equipment setups.

Features

4-Pole XLR Male Connector
Designed for secure and reliable audio and signal cable connections.

Durable Metal Housing
Strong black metal shell helps protect the connector from wear and everyday use.

Gold-Plated Contacts
Provides dependable contact performance and helps maintain signal integrity.

Improved Locking Design
Enhanced locking mechanism helps create a secure connection and increases durability.

Enhanced Strain Relief
Reduces stress on the cable and helps prevent accidental cable pull-out.

Cable Bend Protection
Polyurethane boot helps protect the cable from bending and repeated movement.

Color Identification Options
Compatible with colored rings and boots for easy cable labeling and organization.

Ergonomic Shape
Comfortable and easy to handle during assembly and daily use.

Rugged Construction
Built with robust materials for long-lasting performance in demanding environments.

Protected Internal Threads
Thread design helps reduce damage during assembly and maintenance.

Reliable Solder Connections
Supports soldered wiring for secure and dependable cable termination.

Specifications

General Specifications
Device Type: Cable Connector
Connection Type: XLR
Gender: Male
Contact Configuration: 4 Pole
Contact Finish: Gold
Housing Color: Black
Locking Mechanism: Latch Lock
Wiring Method: Solder Contacts

Electrical Specifications
Capacitance Between Contacts: ≤ 7 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVdc
Insulation Resistance: > 10 GΩ (Initial)
Rated Current Per Contact: 10 A
Rated Voltage: < 50 V

Mechanical Specifications
Cable Outer Diameter: 3.5 – 8.0 mm
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Mating Cycles: > 1000
Maximum Wire Size: 1.5 mm²
Maximum Wire Size: 16 AWG

Materials
Boot Material: Polyurethane
Contact Material: Brass (CuZn39Pb3)
Insert Material: Polyamide (PA66)
Locking Element Material: Zinc Diecast (ZnAl4Cu1)
Shell Material: Zinc Diecast (ZnAl4Cu1)
Shell Coating: Black KTL
Strain Relief Material: Polyacetal (POM)

Environmental Specifications
Flammability Rating: UL 94 V-0
Protection Class: IP40
Operating Temperature Range: -30 °C to +80 °C
Standard Compliance: IEC 61076-2-103
Solderability Compliance: IEC 68-2-20

Features
Improved Locking Recess: Windowless Design
Strain Relief Type: Improved Chuck Type
Cable Bend Protection: Polyurethane Gland
Identification Options: Colored Rings and Boots Available
Housing Construction: Rugged Zinc Diecast Shell
Shell Thread Protection: Internal Thread Protected Against Damage
