NEUTRIK

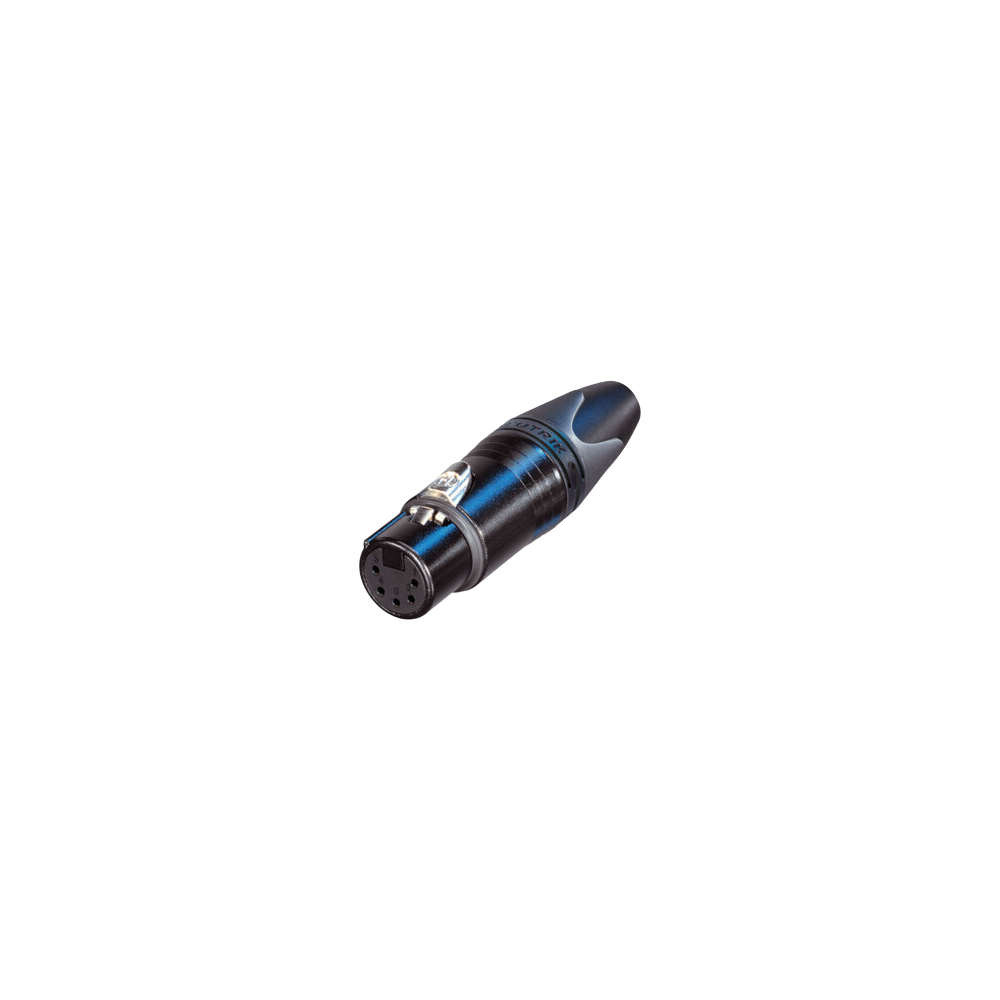

NC5FXX-BAG

Connectors

5-pole female XLR cable connector, black metal housing, silver contacts, solder terminals, latch lock, strain relief, 7.5A rating.

$15.95 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The Neutrik NC5FXX-BAG is a 5-pole female XLR cable connector designed for dependable audio, lighting, control, and communication applications where secure signal transmission is essential. Finished with a durable black metal housing and silver-plated contacts, this connector is part of Neutrik's XX Series, a widely trusted evolution of the classic XLR design that focuses on improved reliability, easier assembly, and enhanced cable protection.

Built for long-term performance, the NC5FXX-BAG features a precision female contact design that helps maintain a strong, low-resistance connection while reducing wear over repeated use. An improved metal latch offers secure locking and comfortable handling, while additional ground spring contacts help ensure consistent shell grounding. The connector also incorporates an advanced chuck-style strain relief system and a polyurethane boot that helps protect cables from bending and pulling stresses, making it well suited for demanding stage, studio, installation, and touring environments.

Its rugged zinc die-cast shell provides excellent durability, and the streamlined ergonomic design makes handling and assembly straightforward. Compatible with cable diameters from 3.5 mm to 8.0 mm and designed for solder termination, the NC5FXX-BAG is a reliable choice for creating professional-quality custom cables that require a secure and dependable 5-pin XLR connection.

Features

5-Pole Female XLR Connector
Designed for professional audio and signal connections with a reliable female XLR interface.

Black Metal Housing
Durable metal construction provides long-lasting performance and a premium appearance.

Low-Resistance Contacts
Special contact design helps maintain a stable connection and dependable signal transfer.

Solder Barrier Protection
Prevents solder from reaching the contact mating area, helping ensure consistent performance.

Improved Metal Latch
A larger, stronger latch makes connecting and disconnecting easier and more secure.

Enhanced Ground Continuity
Additional ground contacts help maintain reliable shell grounding.

Advanced Strain Relief
Improved cable grip helps reduce cable pull-out and simplifies assembly.

Cable Bend Protection
A polyurethane boot helps protect the cable from bending stress during everyday use.

Easy Identification Options
Compatible with colored rings and boots for quick cable coding and organization.

Ergonomic Design
Comfortable shape makes handling and installation more convenient.

Rugged Construction
Built to withstand regular professional use while maintaining dependable performance.

Protected Internal Threads
Internal threading is designed to resist damage and support long-term durability.

Specifications

General Specifications
Device Type: 5-Pole Female Cable Connector
Connection Type: XLR
Gender: Female
Contact Configuration: 5-Pole
Housing Color: Black
Contact Finish: Silver Contacts

Electrical
Capacitance Between Contacts: ≤ 7 pF
Contact Resistance: ≤ 3 mΩ
Dielectric Strength: 1.5 kVdc
Insulation Resistance: > 10 GΩ (Initial)
Rated Current Per Contact: 7.5 A
Rated Voltage: < 50 V

Mechanical
Cable Outer Diameter: 3.5 – 8.0 mm
Insertion Force: ≤ 20 N
Withdrawal Force: ≤ 20 N
Mating Cycles: > 1000
Wire Size: Max. 1.0 mm²
Wire Size: Max. 18 AWG
Termination: Solder Contacts
Locking Device: Latch Lock

Materials
Boot Material: Polyurethane
Contact Plating: 2 µm Ag over 2 µm Ni
Contact Material: Brass (CuZn39Pb3)
Insert Material: Polyamide (PA66)
Locking Element Material: Zinc Diecast (ZnAl4Cu1) / Ck 67 Spring Steel
Locking Element Plating: Nickel
Shell Material: Zinc Diecast (ZnAl4Cu1)
Shell Coating: Black KTL
Strain Relief Material: Polyacetal (POM)

Environmental
Flammability Rating: UL 94 V-0
Standard Compliance: IEC 61076-2-103
Protection Class: IP40
Solderability: IEC 68-2-20 Compliant
Operating Temperature: -30 °C to +80 °C

Features
Female Contact Design: Cage Type
Solder Barrier: Integrated in Female Contact
Ground Continuity: Additional Ground Spring Contacts
Strain Relief Type: Improved Chuck Type
Cable Bend Protection: Polyurethane Gland
Identification Options: Colored Rings and Boots Available
Latch Type: Improved Solid Metal Latch
Shell Construction: Rugged Zinc Diecast
Shell Thread Protection: Internal Protected Thread
