TRINNOV AUDIO

NOVA Bundle 12

Monitoring Controls

Digital audio processor bundle, 12-channel room optimization, 16x16 Dante, 7.1.4 Atmos support, 3D measurement microphone, remote control

Shipping calculated at checkout.
Want an alert when this item is on sale?

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Flexiti

Enjoy flexible financing options, including 0% financing on selected products. Quick application and convenient payment plans available.
Click here for more info.


Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.


Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

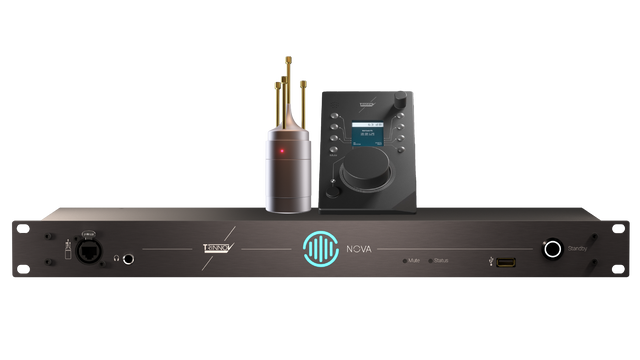

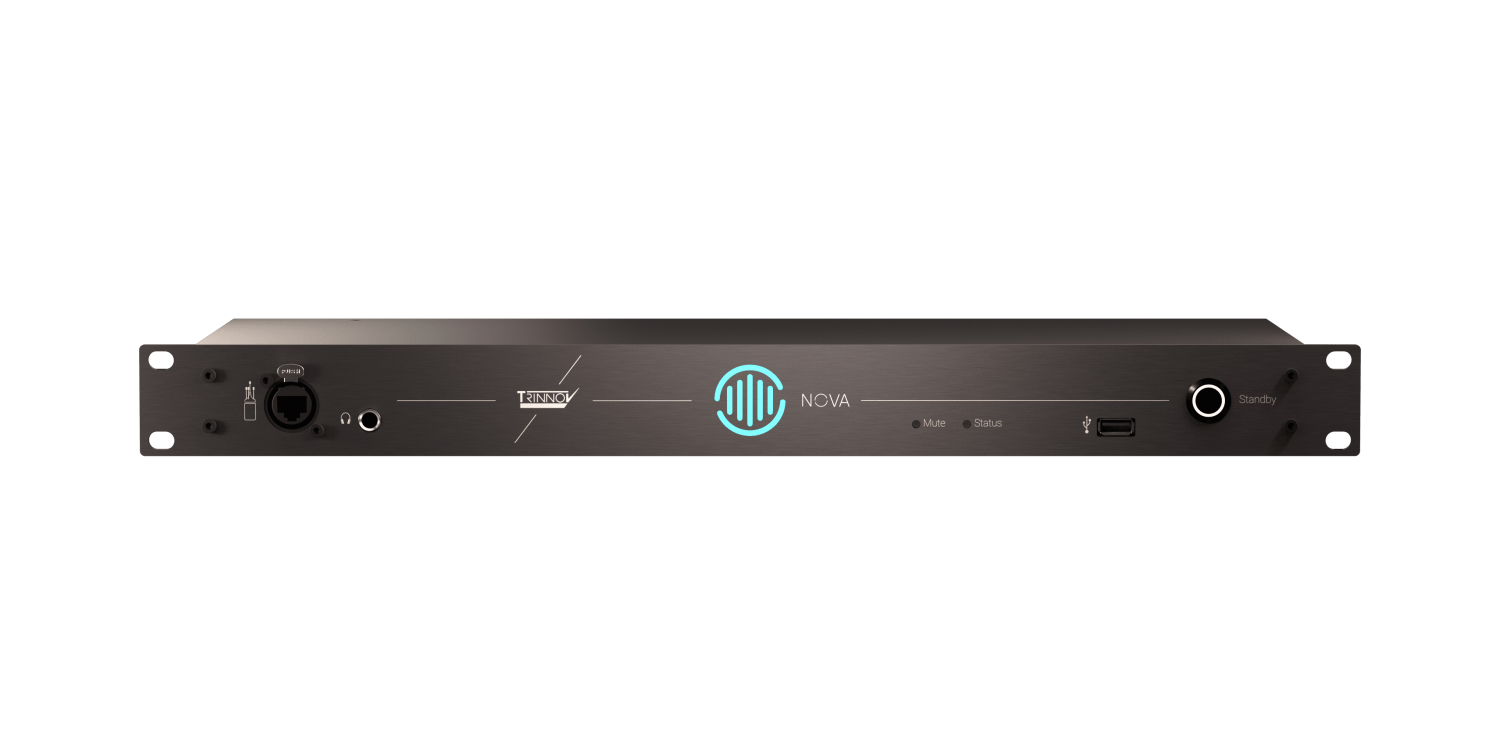

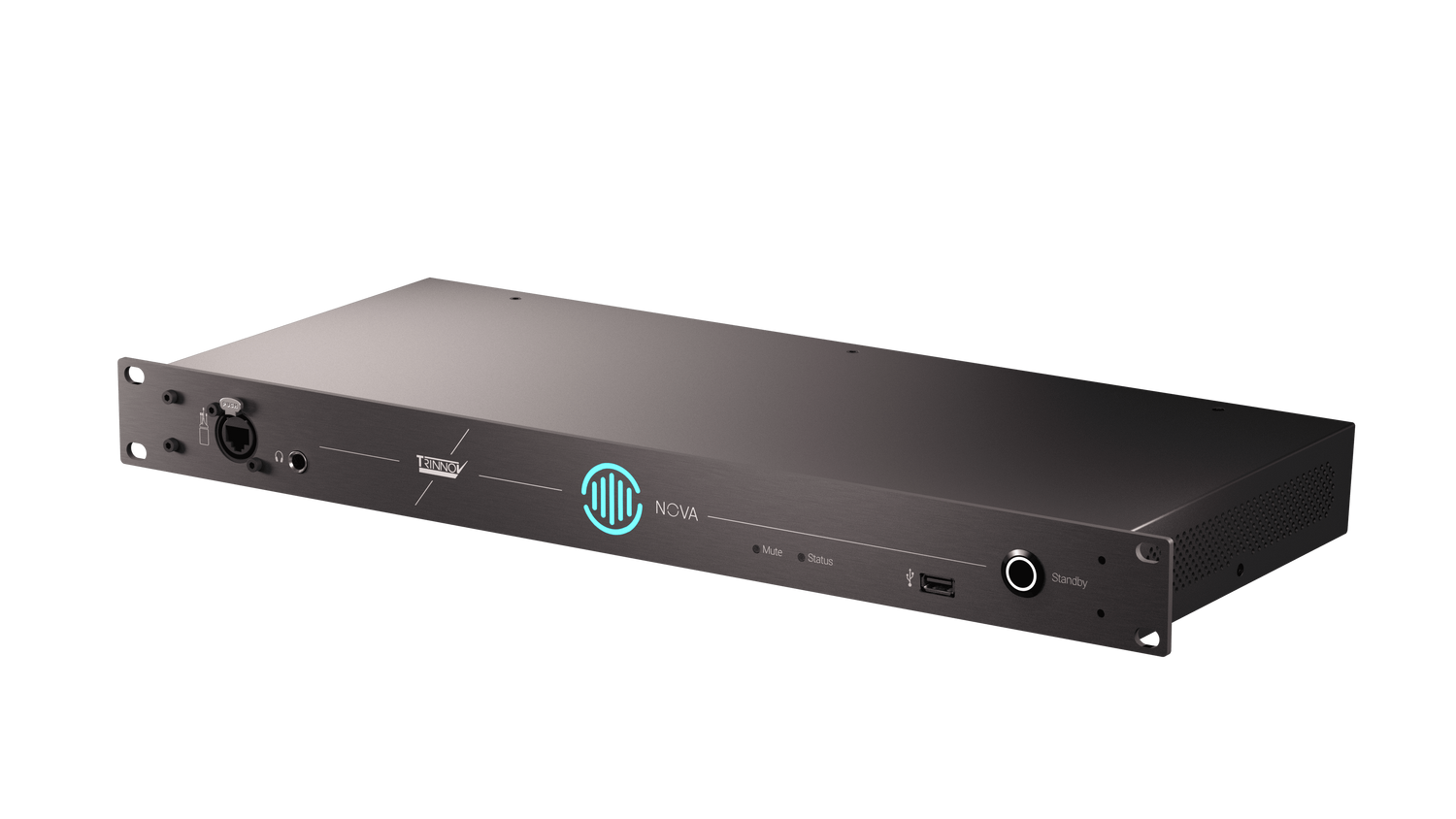

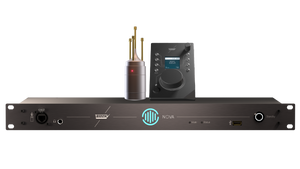

The Trinnov Audio NOVA Bundle 12 is a complete monitoring and room-optimization package for studios working with larger multichannel and immersive setups. It combines the NOVA processor, 3D Microphone ETH, La Remote, and three pairs of OPT channel licenses, providing 12 channels of Trinnov Optimizer loudspeaker and room correction. NOVA can support multiple stereo speaker sets or immersive configurations up to 7.1.4, while offering analog and digital connectivity, a 16-in/16-out Dante interface, dedicated headphone monitoring, source and speaker-set management, downmixing, and precision volume control.

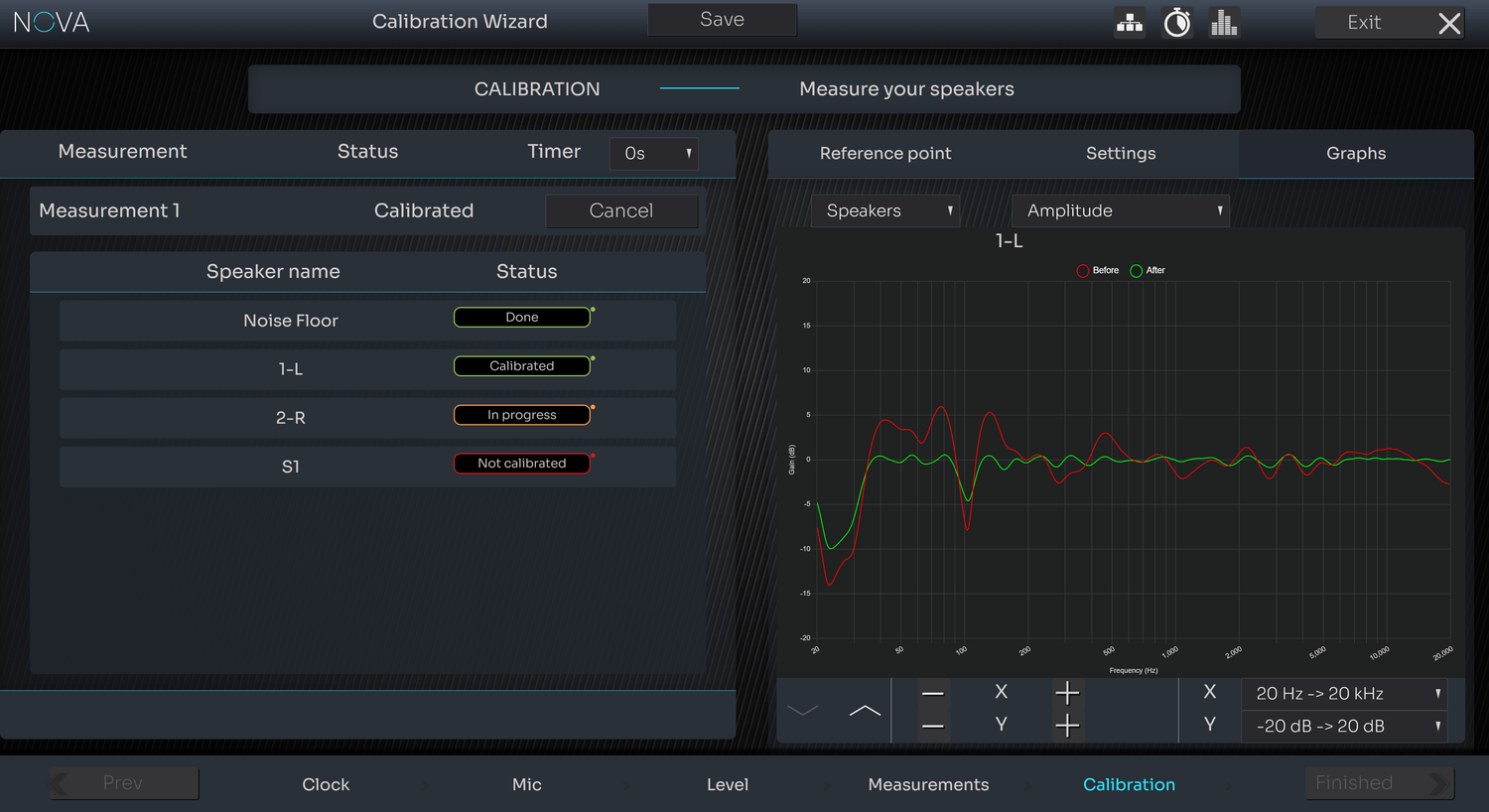

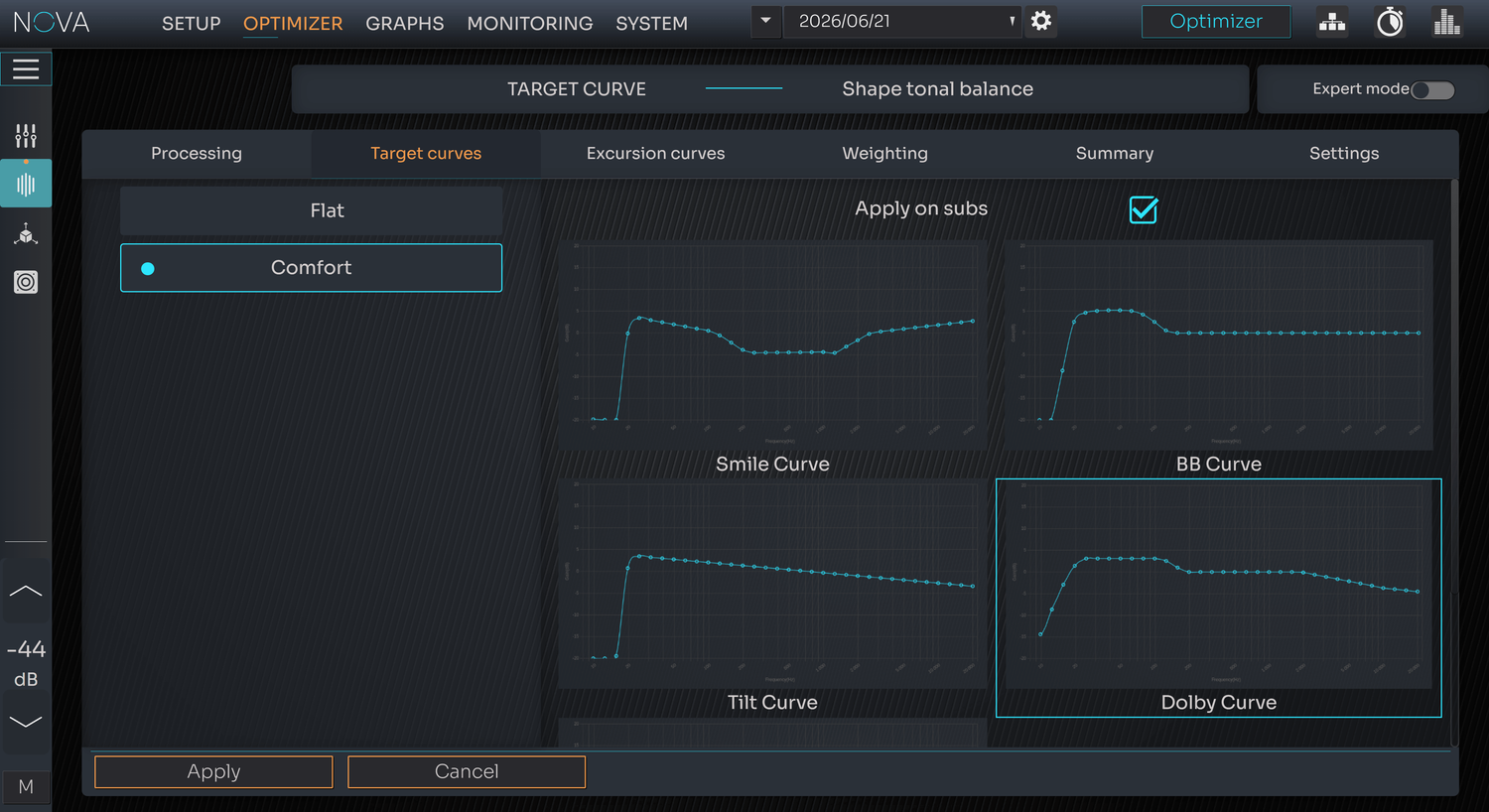

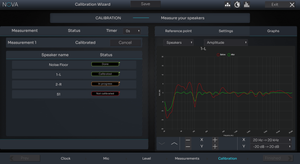

Calibration is handled with Trinnov's 3D measurement microphone, which NOVA automatically detects and uses with its compensation profile during the guided calibration process. The Optimizer then measures factors such as speaker position, frequency response, level, timing, and room interactions to apply appropriate acoustic correction, level alignment, and time alignment. The included La Remote provides hands-on control with a large volume knob, fixed mute control, eight assignable buttons, customizable layers, and configurable display functions, making frequently used monitoring commands readily accessible from the listening position.

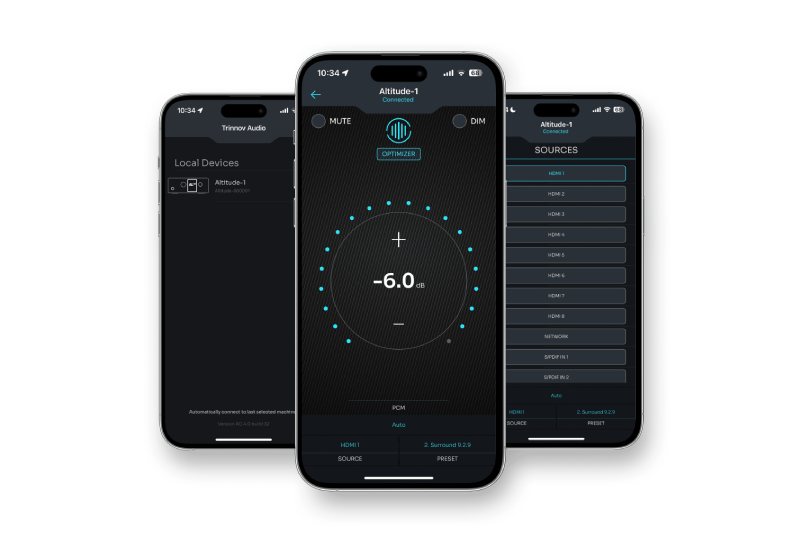

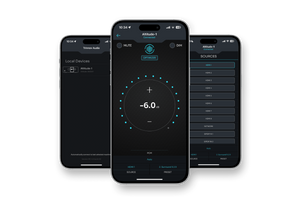

Together, the Bundle 12 is suited to stereo, surround, and Dolby Atmos production environments that need one integrated system for monitor control, acoustic calibration, routing, and room optimization. NOVA can be operated through the Trinnov App as well as La Remote, with presets allowing complete source, speaker, routing, measurement, and optimization configurations to be stored and recalled for different sessions or monitoring workflows.

Features

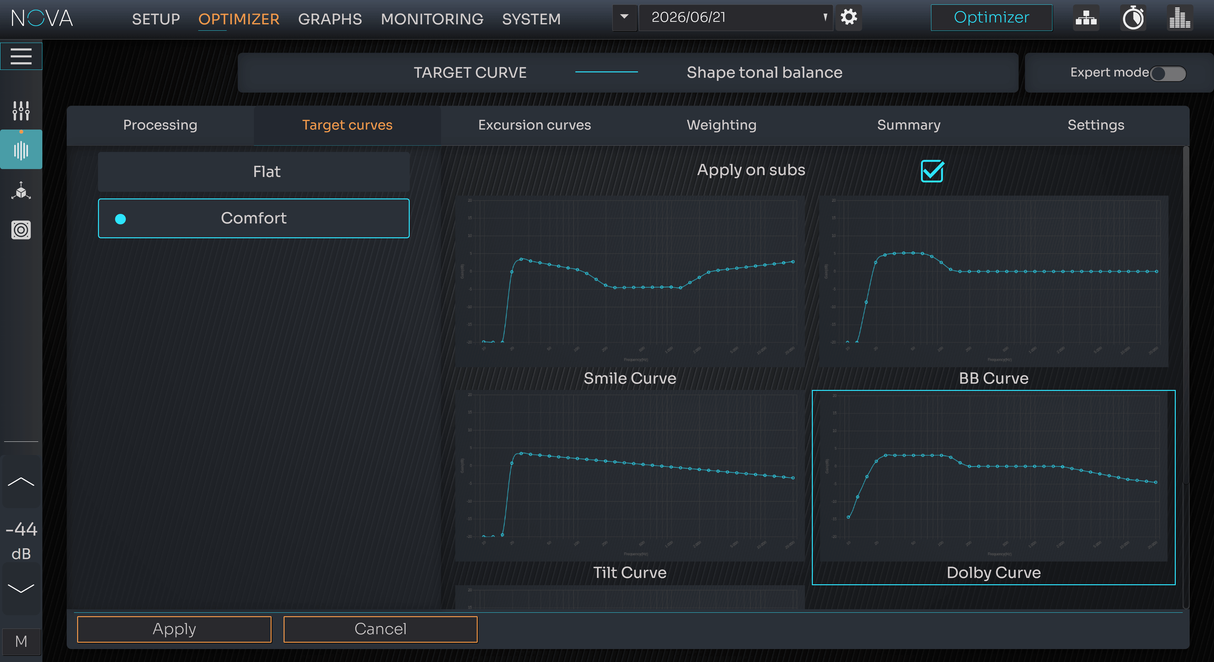

Trinnov Optimizer
Corrects loudspeaker and room acoustic issues to deliver more accurate, consistent monitoring.

Expanded Speaker Optimization
Includes the additional Optimizer capacity needed to support larger multichannel monitoring systems.

Immersive Monitoring
Supports stereo, surround, and immersive speaker configurations for modern music, film, and post-production workflows.

3D Measurement Microphone
Includes Trinnov’s dedicated measurement microphone for accurate room and loudspeaker calibration.

La Remote Control
Includes a customizable hardware controller for fast access to volume, monitoring, source selection, speaker controls, and other NOVA functions.

Flexible Audio Connectivity
Provides a comprehensive range of analog, digital, and network audio connections for easy studio integration.

Dante Audio Integration
Connects NOVA directly into Dante-based studio networks for flexible audio routing.

Advanced Monitor Control
Handles source selection, speaker sets, headphones, mute, solo, downmixing, and other everyday monitoring functions from one system.

Guided Calibration
Built-in setup and calibration tools simplify configuration and help create an optimized monitoring environment.

Customizable Workflow
Presets, configurable monitoring options, and customizable La Remote controls let NOVA adapt to different sessions and studio workflows.

Silent Studio Operation
Fanless operation helps keep the monitoring environment quiet and distraction-free.

Extended Warranty
Includes Trinnov’s extended product warranty when purchased under the applicable authorized-dealer conditions.

Specifications

General Specifications

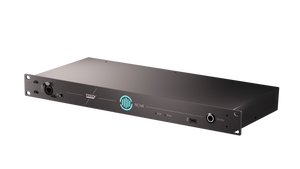

Device Type: Compact digital audio processor bundle
Rack Format: 1U, 19-inch
Loudspeaker/Room Optimization Channels: 12
Maximum Immersive Layout: 7.1.4
Optimization Technology: Trinnov Optimizer
Monitoring Functions: Integrated
Bass Management: Supported
WaveForming: Supported
Fan Cooling: Fanless

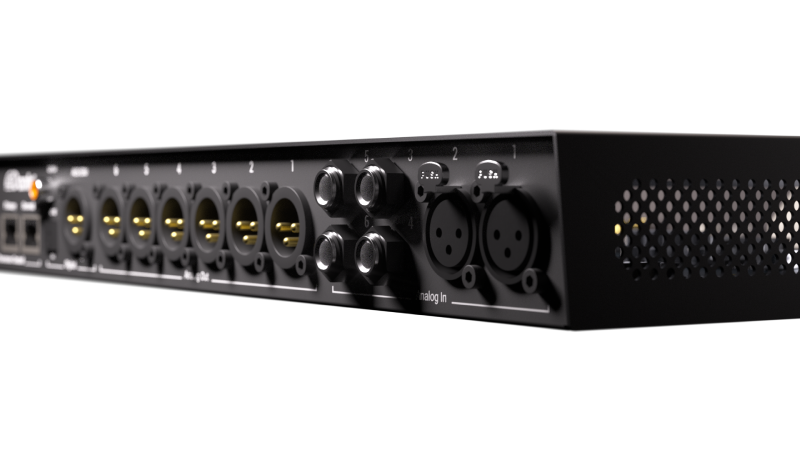

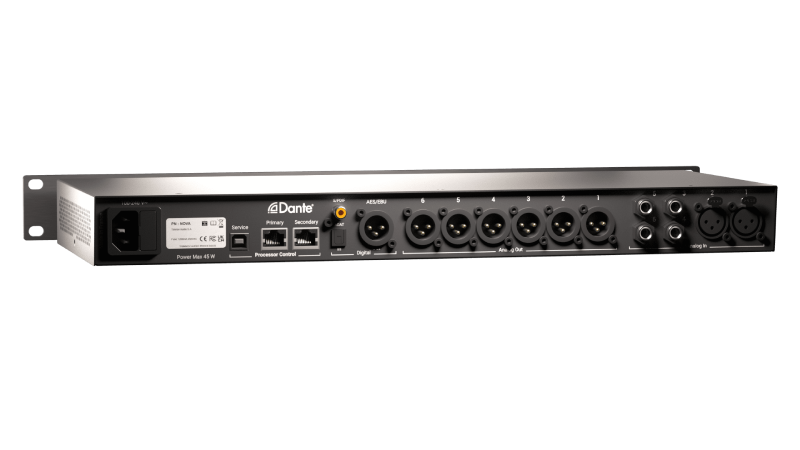

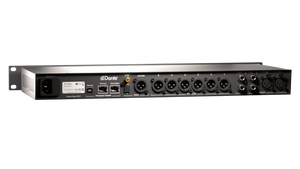

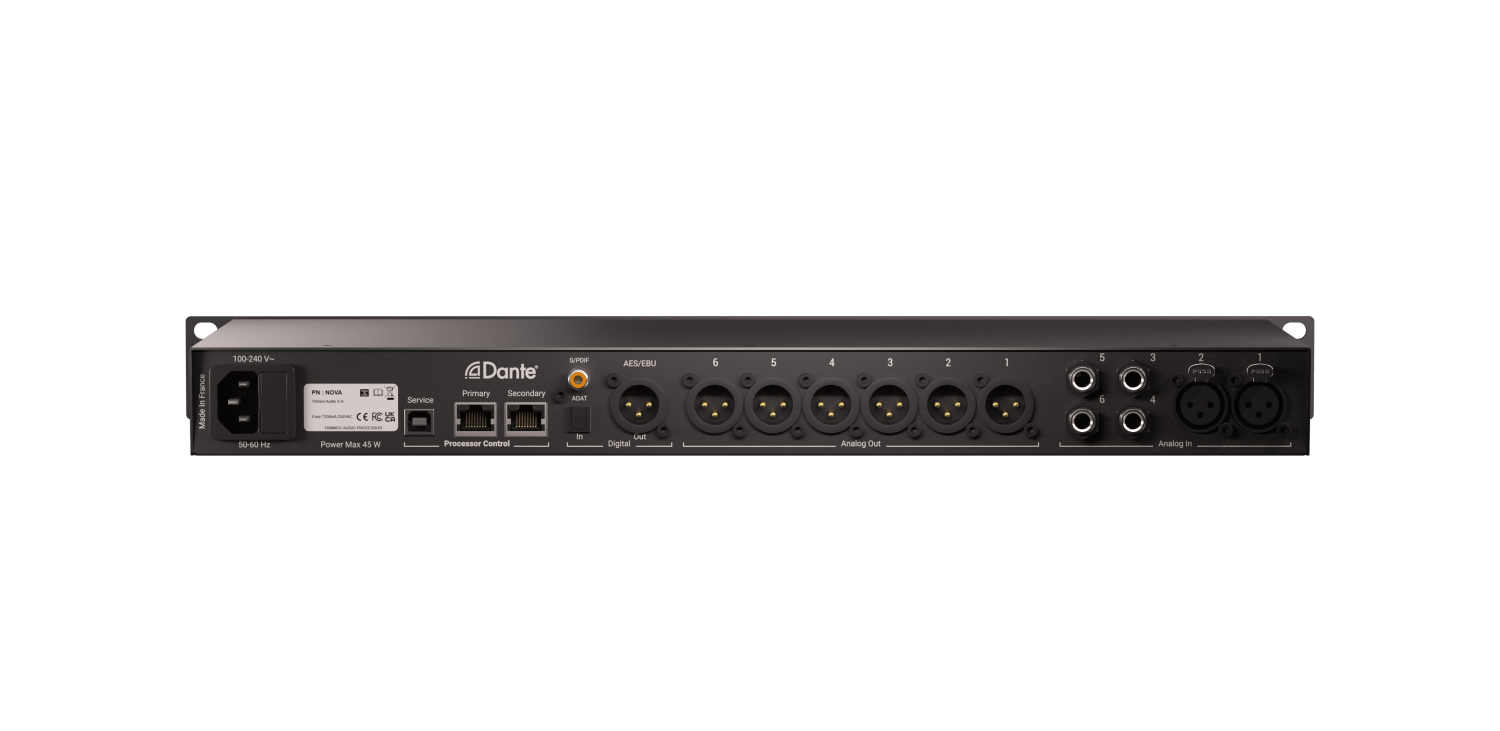

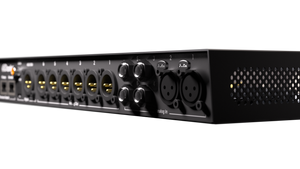

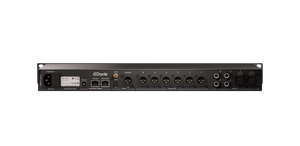

Audio Inputs and Outputs
Analog Inputs: 2 x XLR, 4 x TRS
Analog Outputs: 6 x balanced XLR
Digital Inputs: Coaxial S/PDIF, Optical S/PDIF/ADAT
Digital Output: AES/EBU
Headphone Output: Dedicated front-panel output
Measurement Microphone Input: Front-panel etherCON
La Remote Connection: Front-panel USB
Service Connection: USB-A
Optical Input Modes: S/PDIF, ADAT
ADAT SMUX: Up to 96 kHz

Dante and Networking
Dante Audio Interface: 16 inputs x 16 outputs
Ethernet Ports: 2 x RJ45
Ethernet Speeds: 100 Mbps, 1000 Mbps
Network Modes: Switched, Redundant, Isolated
Maximum Ethernet Cable Length: 100 m with Cat 6e

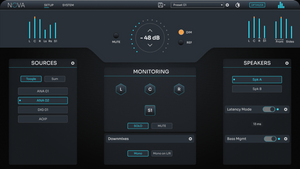

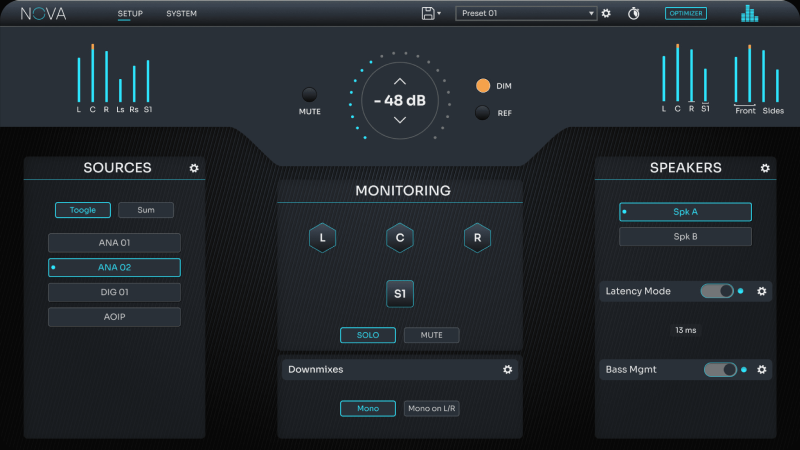

Network Control: Trinnov App
Dante Audio over IP: 1 Gbps network required

Digital Audio
Supported Internal Sample Rates: 44.1 kHz to 192 kHz
Default Sample Rate: 48 kHz
Calibration Sample Rate: 48 kHz
Clocking: Internal or external
External Clock Behavior: Automatic sampling-rate synchronization

Monitoring and Control
Speaker Set Control: Supported
Speaker Solo/Mute: Supported
Downmixes: Supported
Reference Level Recall: Supported
Dim: Supported
Presets: Supported
Direct Outputs: Zero-processing-delay, unity-gain, unprocessed
Control Compatibility: La Remote, Trinnov App, EuCon, Stream Deck plugin
La Remote Configuration: Fully customizable buttons and layers

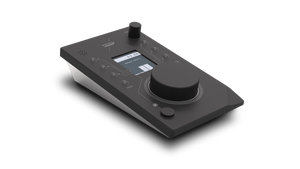

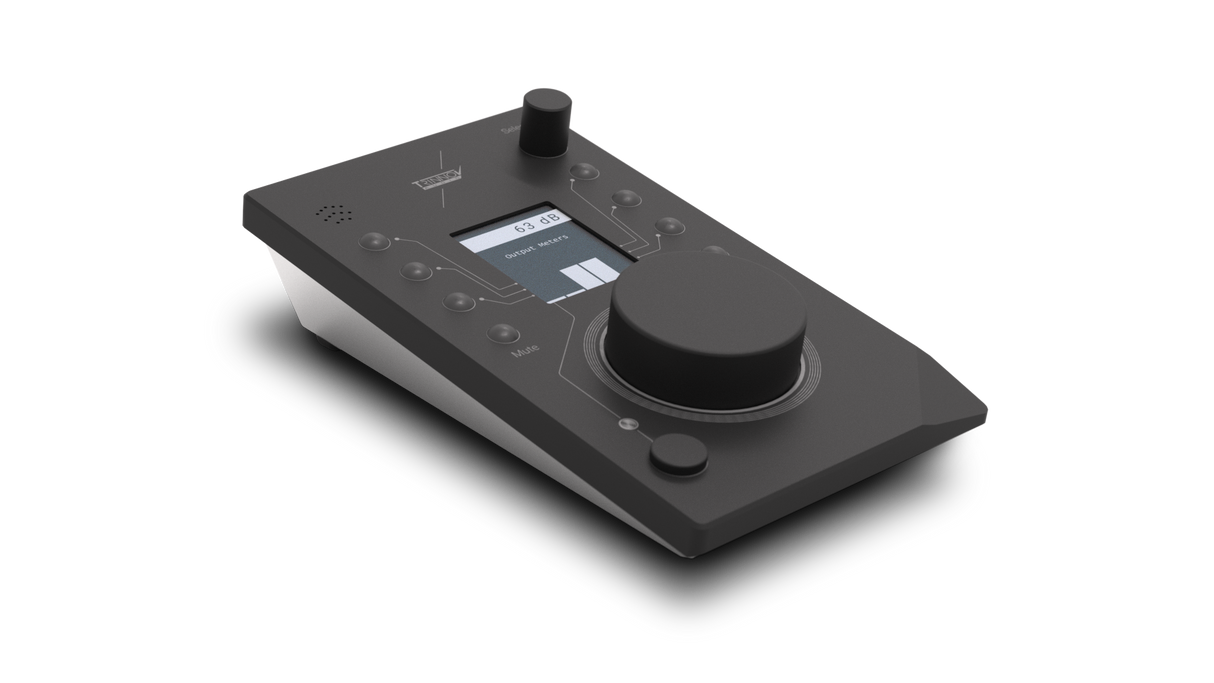

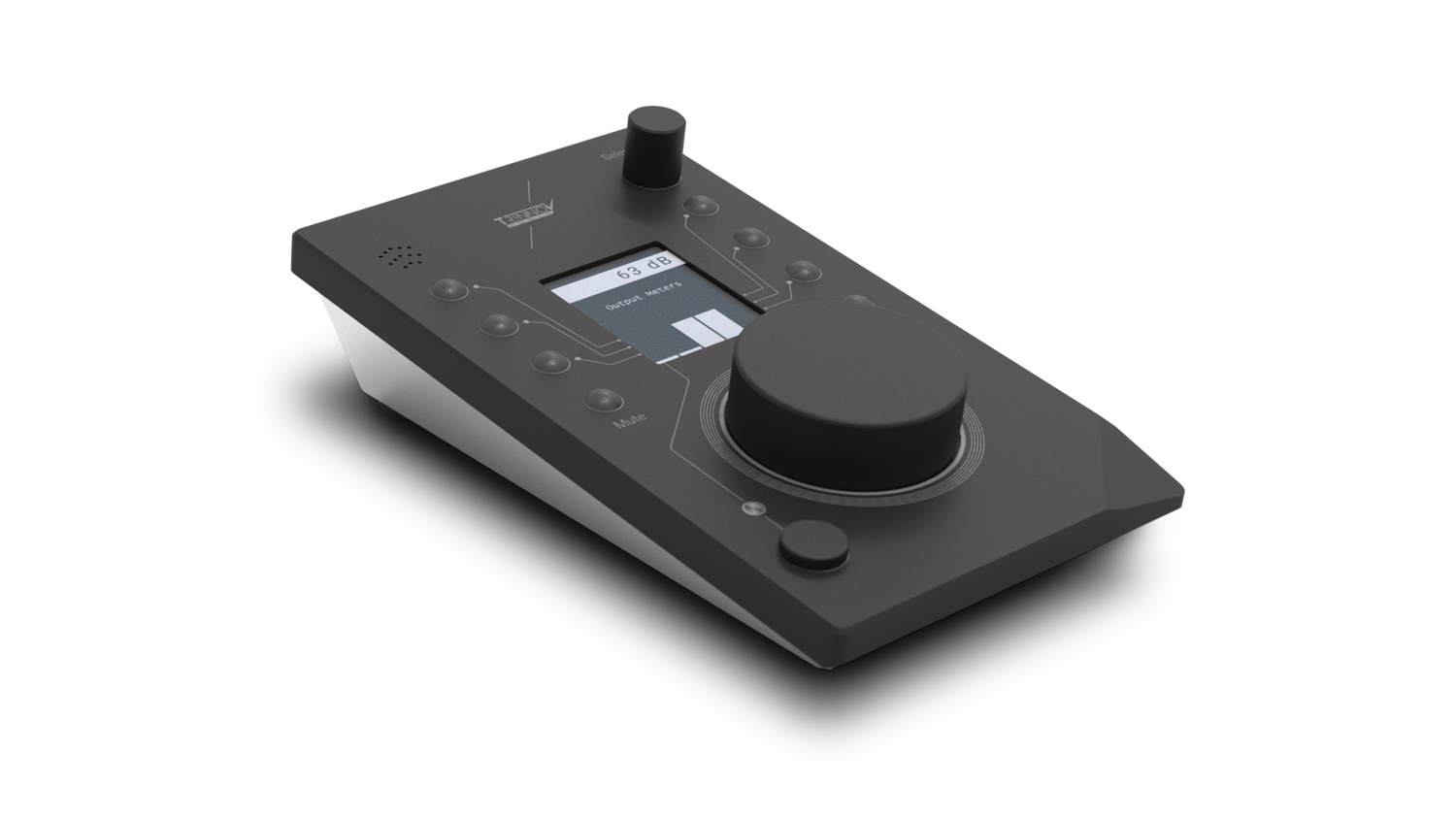

La Remote
Main Controls: Central volume knob, selection knob, fixed mute button
Assignable Controls: 8 buttons
Control Layers: Multiple user-definable layers
Display Functions: Meters, preset, network parameters, speaker set/source, headphone volume, speaker solo/mute, custom logo
Connection: USB
Power: USB powered
Maximum Current Consumption: 200 mA
USB Standard: USB 1.1 Full Speed
Recommended Maximum USB Cable Length: 3 m
Built-in Microphone: Talkback microphone

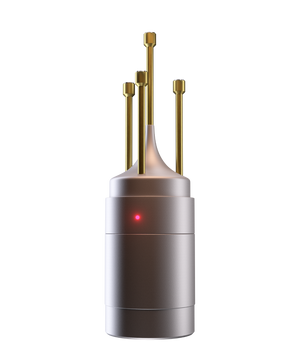

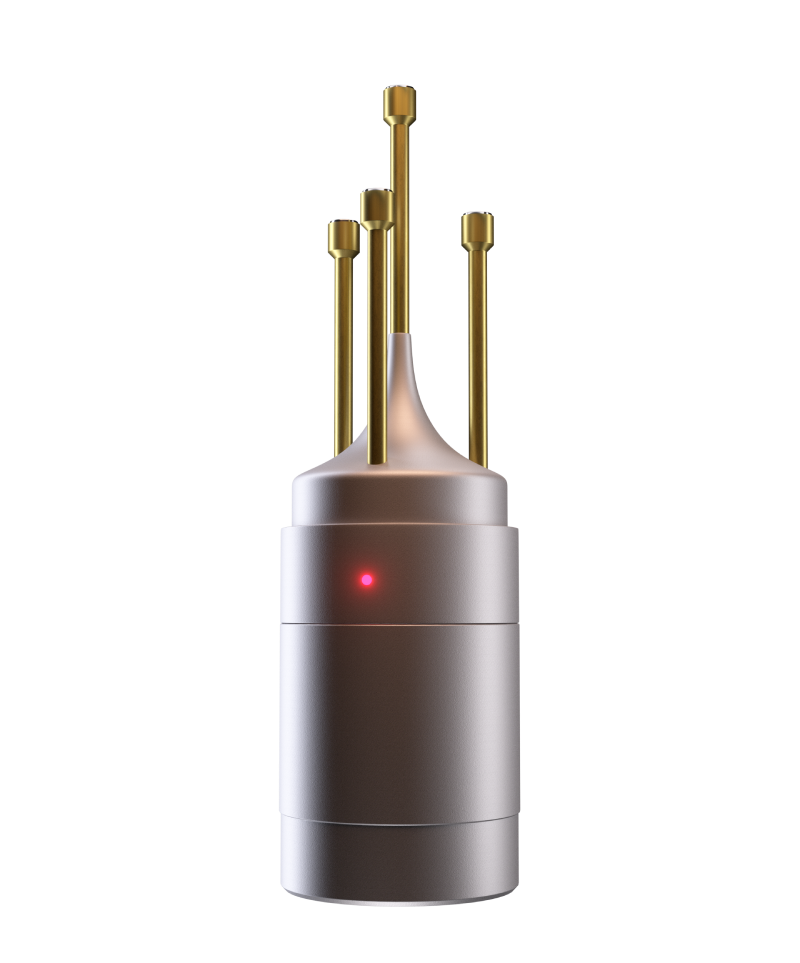

Measurement Microphone
Microphone Type: 3D Microphone ETH
Processor Connection: etherCON
Cable Length: 10 m
Automatic Detection: Supported
Automatic Compensation Profile Import: Supported
Microphone Stand Adapter: Included
Shock Mount: Included

Electrical
AC Input: 100–240 V AC
Power Inlet: IEC C14
Power Supply: Internal switch-mode
Power Supply Filtering: Built-in inline filter
Voltage Regulation: Supported
Mains Interference Suppression: Supported
Fuse Type: T500mA

Environmental Requirements
Operating Temperature: 0 °C to 40 °C
Relative Humidity: 20–65%
Maximum Internal Temperature Threshold: 85 °C

Dimensions and Weight
Processor Width: 440 mm
Processor Depth: 192 mm
Processor Height: 44 mm
Processor Net Weight: 2.5–2.6 kg
Processor Gross Weight: 4 kg
Processor Box Dimensions: 59 x 9 x 31 cm
Microphone Net Weight: 0.8 kg
Microphone Gross Weight: 1 kg
Microphone Box Dimensions: 24 x 16 x 8 cm
La Remote Net Weight: 1.0 kg
La Remote Gross Weight: 1.2 kg
La Remote Width: 105 mm
La Remote Length: 187 mm
La Remote Maximum Height: 62.38 mm

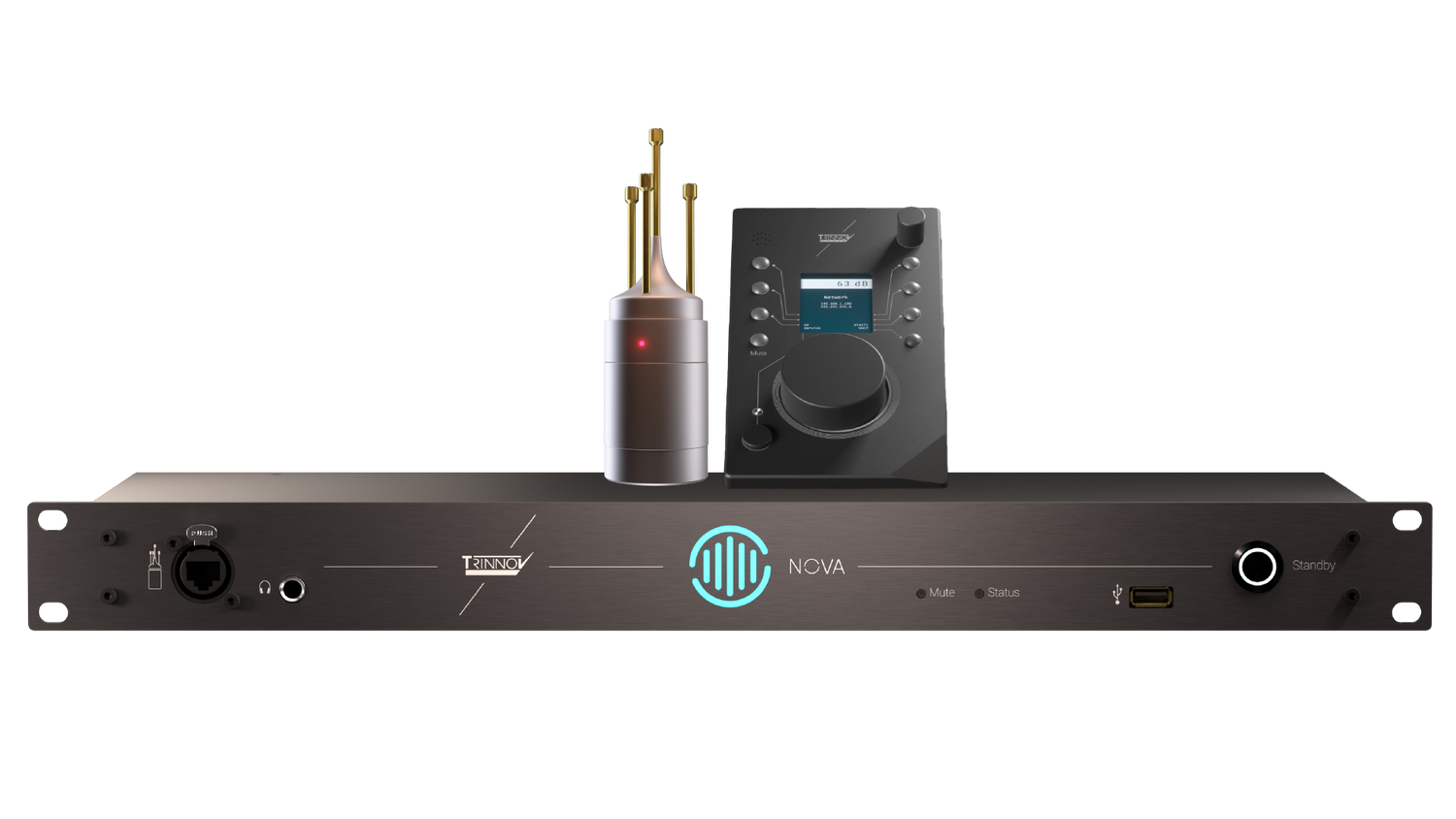

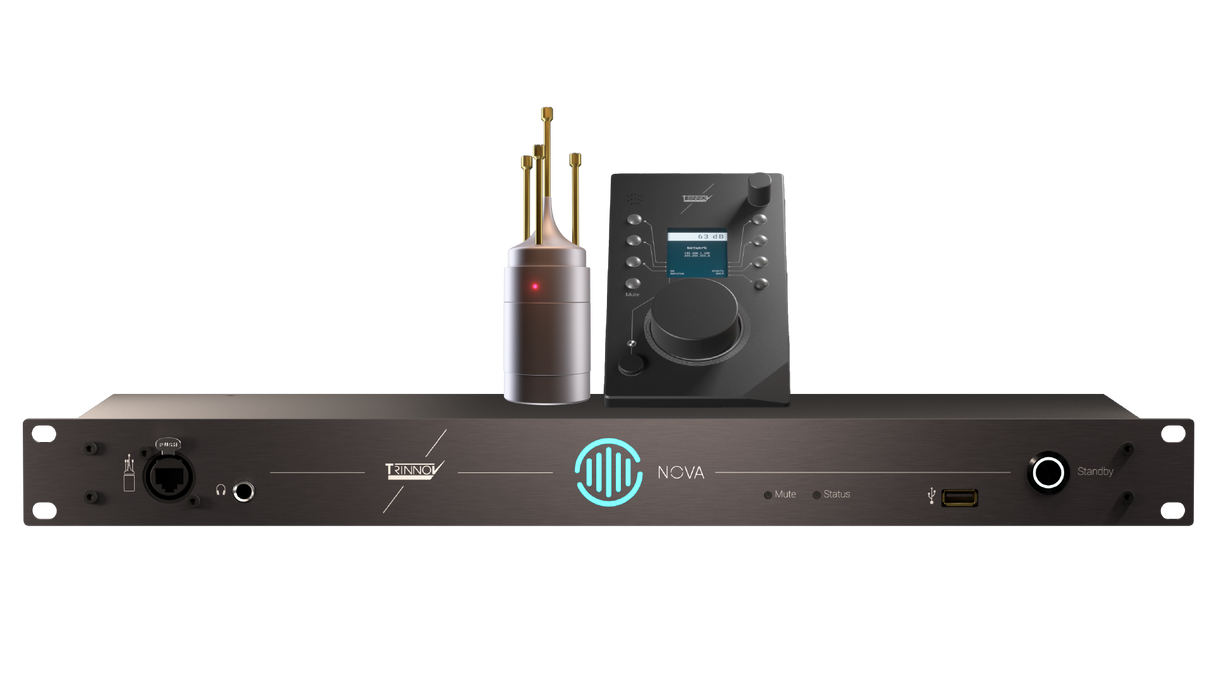

Included Components
Digital Audio Processor: 1
3D Microphone ETH: 1
La Remote: 1
Optimization Channel Pairs: 3
Processor Protection Bag: 1
Power Cord: 1
Cat5e Network Cable: 1
Quick Start Guide: 1
Microphone Cable: 10 m
Microphone Stand Adapter: 1
Microphone Shock Mount: 1
