SOUND DEVICES

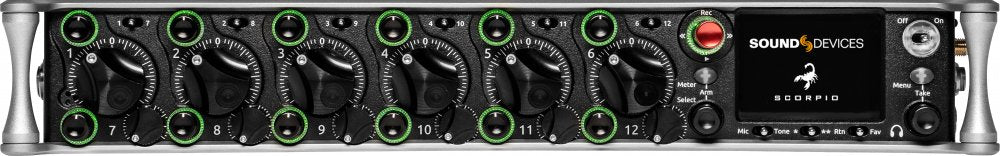

Scorpio

Field Recorders, Mixers & Preamps

With 16 mic/line preamplifiers, 32 channels of Dante in & out, AES in and out, 12 analog outputs and multiple headphone outputs, Scorpio is well-suited for any production scenario

$16,425.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

A fully-customizable routing matrix enables sound professionals to send any input to any channel, bus, or output. Up to 12 buses may be individually mixed. Due to its compact form factor, the Scorpio is equally at home over-the-shoulder or in a mobile rig.

Scorpio incorporates Sound Devices' most cutting-edge technology. An ultra-powerful engine comprised of three FPGA circuits and six ARM processors deliver the horsepower needed for the most complex tasks. FPGA-based audio processing with 64-bit data paths ensures the highest sound quality and reliability. The Scorpio also features Sound Devices' latest and best in analog microphone preamplifier design. These preamps have the smoothest sound and lowest noise of any preamp in the company's 20-year history and include built-in analog limiters, high pass filters, delay, 3-band EQ and phantom power.

Like the company's popular 788T, the Scorpio has an internal SSD and adds the ability to simultaneously record to two SD cards for redundancy. For additional flexibility, sound professionals can send different files to their choice of media. The companion SD-Remote Android application allows for control of the Scorpio via a large display.

Great attention to detail has been paid to every aspect of the Scorpio's design. Most common menus are accessible with only one or two button presses, and many menu shortcuts can be achieved with only one hand. Scorpio features a built-in dual L-Mount battery charger and may be powered with L-Mount batteries or via the TA4 DC inputs using smart batteries, NP-1 batteries, or in-line power supplies. The ultra-accurate, fully-featured timecode generator contains its own battery to hold timecode for up to four hours after power off.

Specifications

Freq. Response

10 Hz to 80 kHz Β± 0.5 dB (192 kHz sample rate, re 1 kHz)

THD + Noise

0.005% max (1 kHz, 22 Hz-22 kHz BW, trim @20, fader @ 0, -10 dBu in)

Equivalent Input Noise

-131 dBV (-129 dBu) max (A-weighting, 76 dB gain, 150 ohm source impedance)

Processing Engine

Highly extensible, full FPGA-based audio processing, 3 FPGAs

Six-way ARM multiprocessor system

64-bit audio processing precision

Audio Over Ethernet

Dante, 32 channels in, 32 channels out

AES67 compatible

1 Gb/s Ethernet, 2 ports, transformer-balanced

Inputs

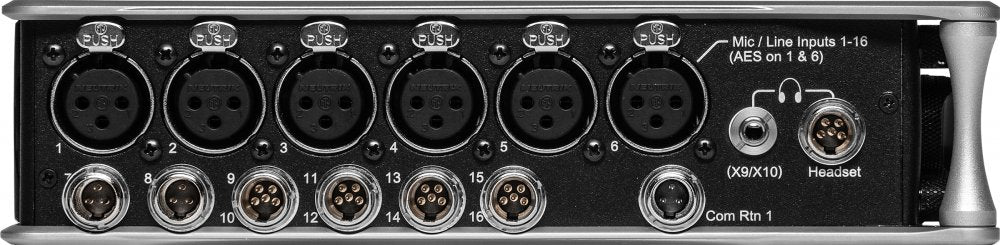

Mic/Line inputs: 16 total, all fully featured; 6 on full-size XLR, 2 on TA3, 8 on TA5

Mic-level inputs: (XLR, TA3, TA5): Class-A, discrete differential long-tail pair, 4k ohm input impedance

Line-level inputs: (XLR, TA3, TA5): active-balanced, 4k ohm input impedance

AES3 or AES42 available on XLR inputs 1 and 6

AES42: +10 V, 250 mA available, type-1, auto-ASRC

Rtn A, B, C (3.5 mm/10-pin): unbalanced 2-channel, 4k ohm input impedance

Com Rtn 1,2 (TA3, 3.5mm) balanced, 1-channel, 8k ohm input impedance

External Slate Mic (TA5): balanced, 8k ohm input impedance, menu-selectable 12 V phantom

Maximum Input Level

Mic: +8 dBu (2.0 Vrms)

Line: +28 dBu (19.5 Vrms)

Rtn A, B, C: +18 dBu (6.2 Vrms)

Com Rtn 1, 2: +24 dBu (12.3 Vrms)

External Slate Mic: +12 dBu (3.2 Vrms)

High-Pass Filters

Adjustable 40 Hz to 320 Hz, 18 dB/oct. 1st stage analog (before preamp), 2nd stage digital

Limiters

Limiters available at all channels, buses, headphones, for all sample rates

Analog first stage, all subsequent stages digital

Attack time: 1 ms

Release time: adjustable, 50 ms to 1000 ms

Threshold: adjustable, -2 dBFS to -12 dBFS

Selectable knee: hard or soft

Selectable ratio: inf:1, 20:1

Delay

Channel Adjustable 0-50 ms

Output Adjustable 0-500 ms

Maximum Gain

Trim stage (mic input): 76 dB

Trim stage (line input): 36 dB

Fader stage: 16 dB

Bus stage: 16 dB

Headphone stage: 20 dB

Mic-to-Line: 108 dB

Mic-to-Headphone: 112 dB

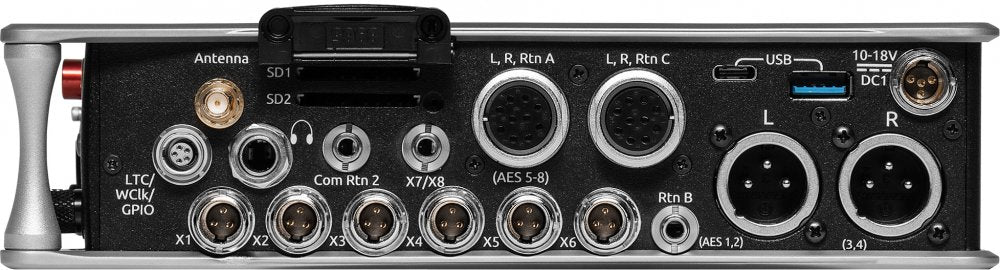

Outputs

XLR (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)

Hirose 10-pin (L, R) active-balanced, 250/3.2k/120 ohms (mic/-10/line)

TA3 (X1-X6) active-balanced, 250/3.2k/120 ohms (mic/-10/line)

3.5mm (X7, X8): unbalanced, stereo, 1.8k ohms

Headphone Outputs

ΒΌ", 3.5 mm

TA5 (along with mic input pins) for single connection to headset + mic

High output, 4 ohm output impedance, 400 mW + 400 mW at each connector, all individually driven

Compatible with headphones of any impedance

Maximum Output Level (all into 10k load)

Line: +20 dBu (7.8 Vrms)

"-10": +6 dBu (1.5 Vrms)

Mic: -20 dBu (0.078 Vrms)

X7/X8 Out: +6 dBu (1.5 Vrms)

Headphone outputs (ΒΌ", TA-5, X9/X10): +14 dBu (4.0 Vrms)

A/D converters

32-bit, 120 dB, A-weighted dynamic range typical

Sampling rates 44.1 kHz, 47.952 kHz, 48 kHz, 48.048 kHz, 88.2 kHz, 96 kHz, 192 kHz

Digital Outputs

AES3 transformer-balanced, in pairs; 1-2 (XLR-L), 3-4 (XLR-R), 5-8 (Hirose 10-pin A)

110 ohm, 2 V p-p, AES and S/PDIF compatible

Recording

Internal 256 GB SSD

Two removable SD Cards

Simultaneous recording to internal SSD and the two SD cards

exFAT formatting

36 tracks (32 iso channels, 4 buses)

Broadcast WAV monophonic and polyphonic file format

64-bit WAV (RF64) monophonic and polyphonic; support for files > 4 GB

USB

USB-C (USB 3.1 type 1) for file transfer of internal SSD, both SD Cards

USB-A host for keyboard, external controller, external USB hubs supported for connecting multiple devices

Wireless

Built-in Bluetooth v5.0 BLE (not supported with rev 1.0 release of SD-Remote)

Timecode and Sync

Modes Supported: Off, Rec Run, Free Run, 24h Run, External, including External Auto-Record and Continuous modes.

Frame Rates: 23.98, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND

Sample/Timecode Accuracy: 0.1 ppm (0.25 frames per 24 hours)

Timecode Input: 20k ohm impedance, 0.3 V - 3.0 V p-p (-17 dBu - +3 dBu)

Timecode Output: 75 ohm impedance, 5 V p-p (+12 dBu)

Word Clock Input: 10k/75 ohm selectable impedance, 1-5 V p-p input sensitivity

Word Clock Output: 75 ohm impedance, 5 V p-p output, at SR

Remote Control

USB MIDI Control - 3rd party fader controllers

SD-Remote Android app

USB Keyboard

External Timecode Record Trigger

LCD

320x240, Transflective, excellent sunlight visibility

Larger touchscreen display available via USB-connected SD-Remote app

Power

External: dual 10-18 V inputs on locking TA4 connectors, pin-4 = (+), pin-1 = (-)

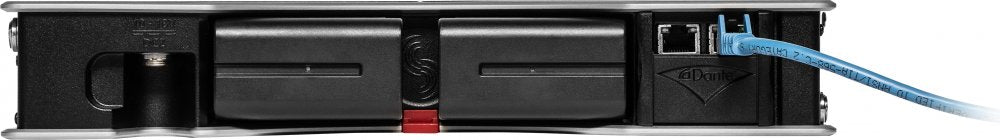

Dual rear-mount Sony-style L-mount batteries with chargers

Idle Current Draw: 875 mA @ 12 V (10.5 W)

Intelligent power-down of unused mic preamps and other internal circuits

Environmental

Operating: -20 C to 60 C, 0 to 90% relative humidity (non-condensing)

Storage: -40 C to 85 C

Dimensions (H x W x D)

5.1 cm x 32 cm x 20.5 cm ( 2 in x 12.6 in x 8.1 in)

Weight

5.8 lbs (2.63 kg) unpackaged, without batteries
