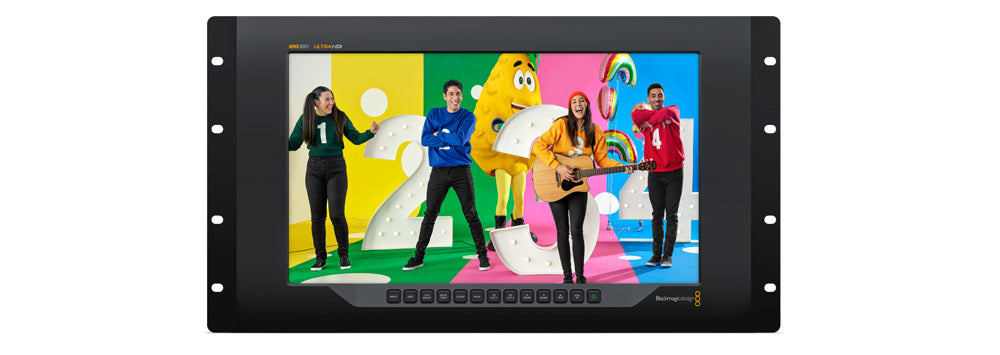

SmartView 4K G3 with 15" LCD display

Ultra HD Broadcast Monitoring
Displays high-quality Ultra HD video for professional broadcast and live production workflows.

SDI and IP Video Support
Connects directly to both traditional SDI equipment and modern IP-based broadcast systems.

Automatic Format Detection
Automatically recognizes a wide range of SD, HD, Ultra HD, and 4K video formats.

Professional Monitoring Tools
Includes focus peaking, delay viewing, blue-only mode, and framing guides for accurate video monitoring.

Custom 3D LUTs
Supports custom lookup tables for monitoring specific color grades and display looks.

Flexible IP Integration
Works with SMPTE-2110 infrastructure for integration into professional network-based production environments.

Optical Connectivity
Supports optional fiber-based video connections for installations that require optical infrastructure.

SDI Loop Output
Provides a reclocked output for passing the selected SDI signal to additional equipment.

Integrated Audio Support
Handles embedded professional audio alongside video signals in compatible workflows.

Tally Support
Connects to production tally systems for clear on-air and preview status indication.

Network Configuration
Ethernet connectivity supports IP video as well as convenient configuration and firmware management.

Flexible Power Options
Supports both standard AC power and DC power for easier integration into studios, racks, and mobile production systems

General Specifications
Device Type: Ultra HD broadcast monitor
Maximum Video Format: 4K DCI 2160p60
Multi Rate Support: Automatic detection of 4K, Ultra HD, 2K, HD and SD inputs
Video Sampling: 4:2:2, 4:4:4
3D LUT Support: Yes

SDI Connectivity
SDI Inputs: 2
SDI Outputs: 1 reclocked loop output
SDI Output Switching: Automatic based on selected input
SDI Rates: 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s, 12 Gb/s
SDI Auto Switching: SD, HD, 3G-SDI, 6G-SDI, 12G-SDI
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082
SDI Color Space: Rec. 601, Rec. 709

IP and Optical Connectivity
Ethernet: 1 × 10 Gb/s RJ-45
Ethernet Standards: 10BASE-T, 100BASE-T, 1000BASE-T, 10GBASE-T
Ethernet Functions: SMPTE ST 2110 IP video input, configuration, firmware updates
Optical Video Input: SFP optical fiber connector cage
Optical Support: SMPTE ST 2110 IP video, optical SDI
IP Video Codec: Blackmagic IP10
IP10 Application: Conversion of 12G-SDI rates to 10G SMPTE ST 2110 IP video

SMPTE ST 2110 Compliance
SMPTE ST 2110-20: Uncompressed video
IGMP: v2
SMPTE ST 2110-21 Sender: Narrow
SMPTE ST 2110-21 Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE ST 2110-30: PCM audio
Audio Conformance Level: Level C
SMPTE ST 2110-40: Ancillary data
Ancillary Data Support: Full SMPTE ancillary data stream
Ancillary Metadata Support: RP 188/SMPTE 12M-2, closed captioning, HDR static metadata

Timing and NMOS
Precision Time Protocol: IEEE 1588-2008 PTP v2
PTP Standards: ST 2059-1, ST 2059-2
NMOS IS-04 Discovery and Registration: v1.3.2
NMOS Peer-to-Peer Discovery: mDNS/DNS-SD
NMOS IS-05 Connection Management: v1.1.2
NMOS BCP-002-01: Natural Grouping
NMOS BCP-004-01: Receiver capabilities

SD Video Standards
525i: 59.94 NTSC
625i: 50 PAL

HD Video Standards
720p: 50, 59.94, 60
1080i: 50, 59.94, 60
1080p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30

2K Video Standards
2K DCI Progressive: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
2K PsF: 23.98, 24, 25, 29.97, 30

Ultra HD Video Standards
2160p: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

4K DCI Video Standards
4K DCI Progressive: 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

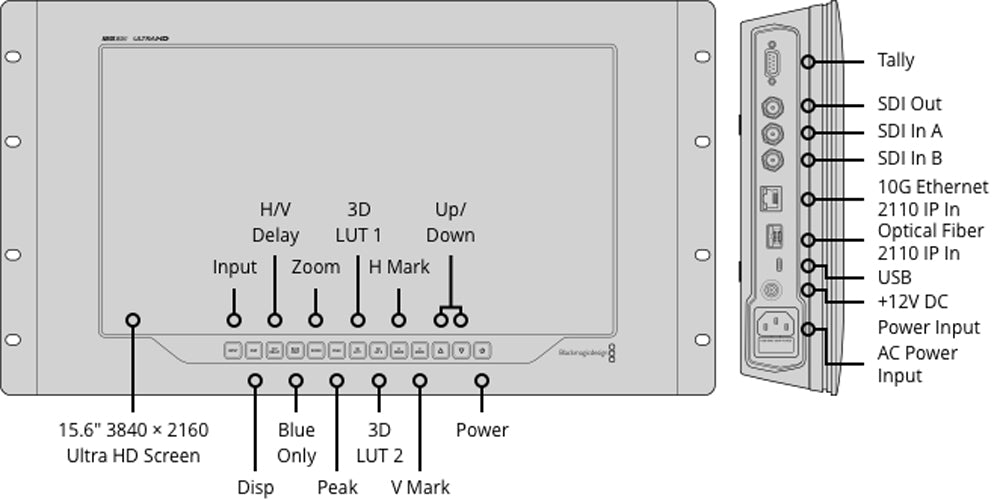

Control and Configuration
Updates and Configuration: USB, Ethernet
Tally: 9-pin D-sub connector
Monitoring Controls: Focus peaking, H/V delay, blue only, framing guides

Power
AC Power Input: Yes
DC Power Input: 12 V DC
