SERPENT AUDIO  |  SKU: 14627

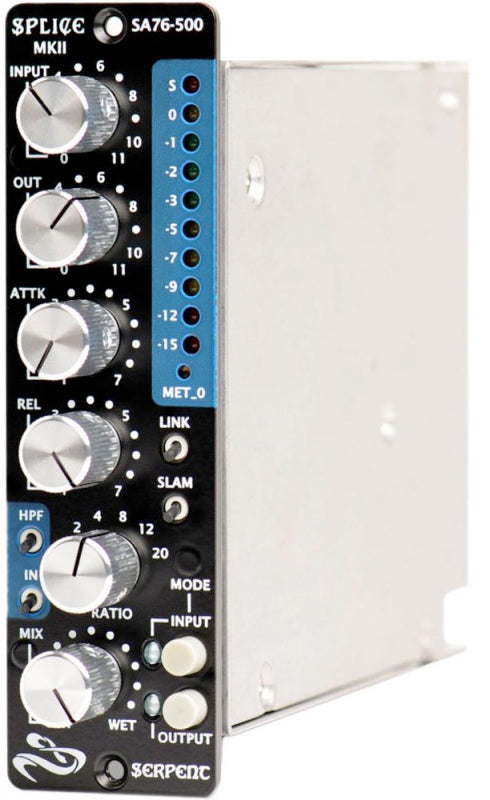

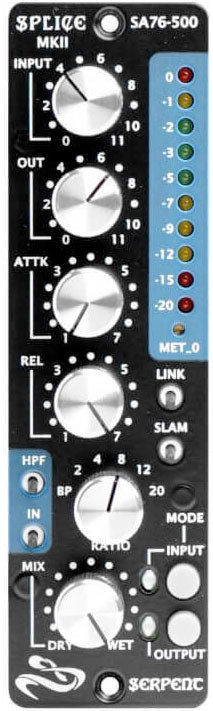

Splice-500 MKII

500 Series EQs/Compressors

Single channel FET based mono compressor in a 500-Series format

$1,955.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The SPLICE-500 MKII's unique circuitry mode switching allows the user to configure the input & output audio path circuitry between classic Blackface and Blue Stripe modes, or mix and match the two to create completely new sounds, unique to the SPLICE-500 MKII.

Size doesn't matter. The Splice-500 packs all of the sound and functionality of the acclaimed Splice MKII rack into a single 500 series module. Faithfully recreating the circuitry and sound of not one, but two classic FET compressors, the Splice-500's unique mode switching allows the user to switch between the classic Blackface or vintage Bluestripe circuits at the push of a button. In addition, the Splice-500 can also mix and match the two for entirely new sounds that can only be found with the Splice (i.e. Blue Input Circuitry + Black Output Circuitry for "Blueface" mode or Black Input Circuitry + Blue Output Circuitry for "Blackstripe" mode.

All units are made in the USA to an exceptional level of craft and workmanship.

Features

Four Compressor circuits in one box

Input Circuit Black + Output Circuit Black = "Classic Blackface Mode"

Input Blue + Output Blue = "Classic Bluestripe Mode"

Input Blue + Output Black = "Blueface Mode" (Unique to the Splice)

Input Black + Output Blue = "Blackstripe Mode" (Unique to the Splice)

General

Stereo Linkable w/ front panel switch

"All Buttons In" / Slam Mode front panel switch

Integrated Mix/Blend Control w/ switchable bypassing for in-the-box parallel processing

Integrated Sidechain High Pass Filter

Selectable 600R Output loading allows the user to easily optimize the Splice™ for use with both vintage and modern equipment

45dB of Gain (with no limiting)

Attack Time - 20 to 800 Microseconds

Release Time - 50 Milliseconds to 1.1 Seconds

Compression Ratios - 2:1, 4:1, 8:1, 12:1, 20:1 & Soft Bypass (BP)

LED Gain Reduction Meter

Backed by a 2 Year Limited Warranty

Specifications

Maximum Current Consumption: 175mA* @ +/-16V

Input: Constant 600R Input Attenuator, Floating Transformer Balanced

Output: Floating Transformer Balanced

Output (With Mix Enabled): <100 Ohm Output Impedance, Transformer-like

Floating Output, Electronically Balanced (Accepts Balanced or Unbalanced Signals)

External Send: <100 Ohm Output Impedance, Transformer-like Floating Output,

Electronically Balanced (XLR) (Accepts Balanced or Unbalanced Signals)

External Return: 22KHz Input Impedance, Electronically Balanced (XLR), (Accepts

Balanced or Unbalanced Signals)

Maximum Input Level: +30dbu with compression engaged and Input level knob set

to max (fully clockwise)

Maximum Output Level: +24dbu

Output Load: 150 Ohm minimal

Gain: 45db (+/-1dbu) with compression disabled (Ratio set to "BP")

Gain Reduction Element: FET

THD+N: (20Hz-20KHz) Typically 0.5%

Signal-To-Noise Ratio: >80dbu
