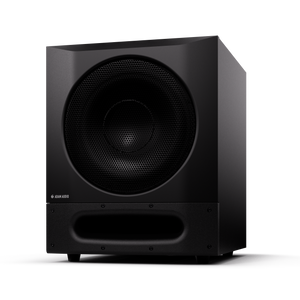

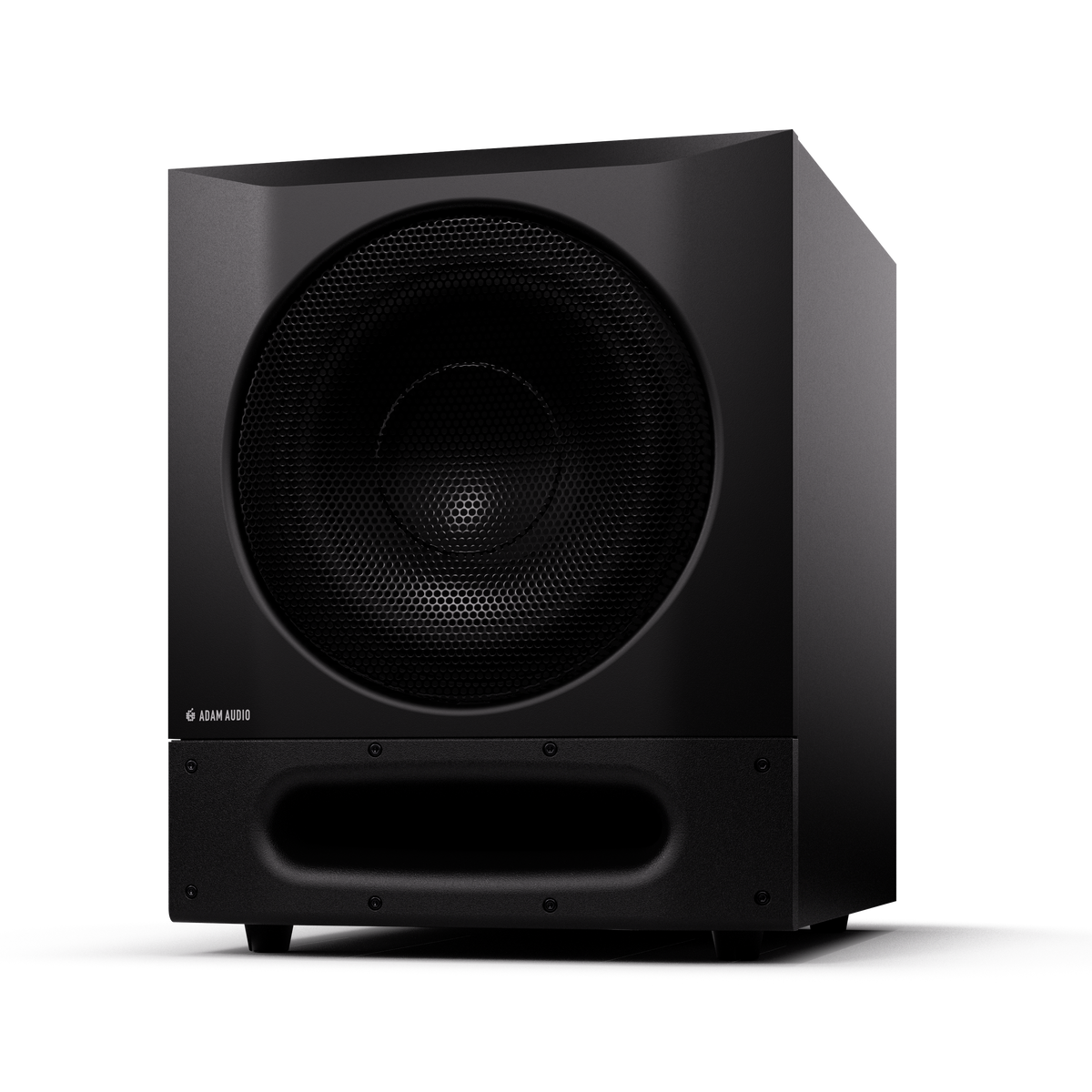

Sub10 Pro

Powerful, Controlled Bass
Delivers deep, tightly controlled low frequencies for accurate stereo and multichannel monitoring.

High-Performance Woofer
Uses a high-excursion, low-distortion woofer designed to reproduce bass with clarity and precision.

Optimized Bass Port
Carefully engineered airflow helps reduce turbulence and unwanted noise while supporting strong bass performance.

Efficient Amplification
High-performance amplification provides consistent power while integrated protection helps safeguard internal components.

Advanced DSP Processing
Built-in digital processing provides precise control over crossover, phase, equalization, and timing.

ADAM Control Integration
Connects to ADAM Control for convenient remote setup, calibration, management, and firmware updates.

Sonarworks Room Correction
Supports Sonarworks SoundID Reference calibration profiles for easier room and system optimization.

Flexible Operating Modes
Multiple operating modes make the subwoofer suitable for conventional stereo, immersive audio, and flexible bass-management workflows.

Multichannel Ready
Designed to integrate into multichannel and immersive monitoring systems, including Dolby Atmos workflows.

Digital and Analog Connectivity
Supports professional digital and balanced analog connections for easy integration with a wide range of studio equipment.

Remote Bass Management Bypass
A dedicated footswitch connection allows bass management to be quickly activated or bypassed.

Flexible System Calibration
Remote equalization, delay, phase, and level controls help fine-tune the subwoofer for different rooms and listening positions.

Network Connectivity
Ethernet connectivity enables centralized control of the subwoofer alongside compatible ADAM Audio monitors.

Robust Cabinet Design
A vibration-resistant wooden enclosure and internal reinforcement help minimize unwanted resonances.

Protective Metal Grille
A sturdy grille protects the woofer for reliable use in demanding studio environments.

Expandable Through Firmware Updates
Network-based firmware updates allow new functionality to be added over time.

Extended Warranty Available
Product registration extends the standard warranty for added long-term protection.

General Specifications
Device Type: Active DSP-based subwoofer
Cabinet Design: Front-firing, front-ported
Cabinet Material: Vinyl-wrapped MDF with painted MDF front panel
Woofer Basket Diameter: 10 in
Woofer Voice Coil Diameter: 45 mm
Woofer Cone Material: Paper
Woofer Construction: Fibre-reinforced paper cone, elasticated rubber surround, ferrite magnet system with demodulation rings
Woofer Protection: Steel grille
Bass Port: FEA-optimized

Acoustic Performance
Frequency Response @ -3 dB: 22–264 Hz
Frequency Response @ -6 dB: 21–300 Hz
Max SPL, 50–100 Hz, 3% THD RMS: 106 dB SPL
Max SPL, 25–50 Hz, 10% THD RMS / Peak: 102 / 105 dB SPL
Max Peak SPL, IEC-Weighted Noise, Full Range / 85 Hz Bass Managed: 114 / 113 dB SPL
Dolby D.A.R.D.T. Max Peak SPL, Full Range / 85 Hz Bass Managed: 113 dB SPL
Crossover Frequencies: 70, 85, 100, 115 Hz
Self-Generated Noise @ 10 cm, +6 dB Level, Wide Mode: <20 dB(A)

Amplification
Amplifier Type: PWM
Woofer Amplifier Peak Output, 10% THD, Limiter Deactivated: 325 W
Woofer Amplifier RMS Output, 1% THD, Limiter Deactivated: 200 W @ 3 Ω
Protection: Independent peak and thermal limiters, over-current protection, over-temperature protection, under-voltage protection

Audio Inputs
Analog Inputs: 2 × XLR/TRS combo
Digital Input: XLR AES3
Analog Input Impedance: 25 kΩ
Digital Input Impedance: 110 Ω
Maximum Input Level: 19 dBu
AES3 Resolution: Up to 24-bit
AES3 Sample Rate: Up to 96 kHz
AES3 Channels: 2

Audio Outputs
Analog Outputs: 2 × XLR
Digital Output: XLR AES3
AES3 Channels: 2

Signal Processing
AD Converter: 24-bit
Internal Sample Rate: 96 kHz
Latency: 4 ms
Delay Range: 0–10 ms
Delay Resolution: 32-bit
Advanced Room Adaptation: 4 × PEQ, level, delay
Third-Party Calibration Compatibility: Sonarworks SoundID Reference import
Calibration Profile Hosting: Integrated DSP platform

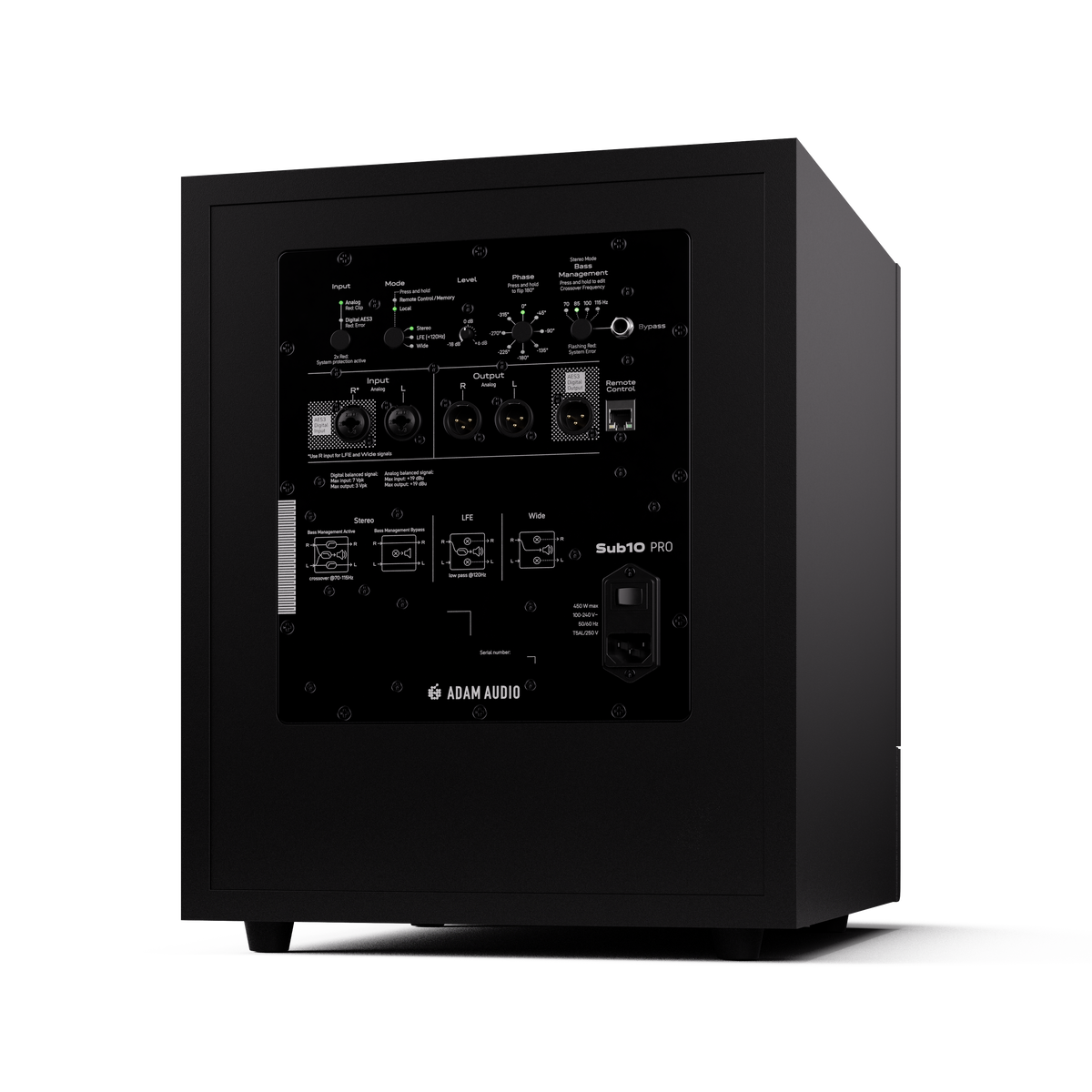

Backplate Controls
Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
Level Range: -18 dB to +6 dB
Input Selection: Analog, digital
Phase Settings: 0°, -45°, -90°, 135°, 180°, -225°, -270°, -315°
Bass Management Settings: 70, 85, 100, 115 Hz
Operational Modes: Remote Control, Local / Stereo, LFE (<120 Hz), Wide
LFE Cutoff: 120 Hz
Footswitch: Bypass, latched TS connection

Network Control
Network Connector: RJ45
Connection Type: Ethernet
Communication Protocol: AES70 / TCP
Control Software: ADAM Control
Remote Functions: Equalization, level, phase, delay, calibration, firmware updates
Multi-Device Control: Supported

Electrical
AC Input Voltage: 100–240 V, 50/60 Hz
Maximum Power Consumption: 450 W
Standby Power Consumption: 2.5 W
Power Rating: 450 W max
Peak Inrush Current: 6.8 A

Dimensions and Weight
Unit Dimensions H × W × D: 17.7 × 14.2 × 17.7 in
Unit Weight: 50 lb 4 oz
Boxed Dimensions H × W × D: 23.1 × 18.9 × 22.9 in
Boxed Weight: 66 lb 13.51 oz
Packed Cube: 0.164 m³

Environmental Requirements
Operating Temperature: -10°C to +40°C (+14°F to +104°F)
Operating Relative Humidity: <75%, non-condensing
Transport / Storage Temperature: -20°C to +65°C (-4°F to +149°F)
Transport / Storage Relative Humidity: <95%, non-condensing

Included Components
Subwoofer: 1
Power Cable: IEC
Documentation: Quick Start Guide, safety and warning sheet
