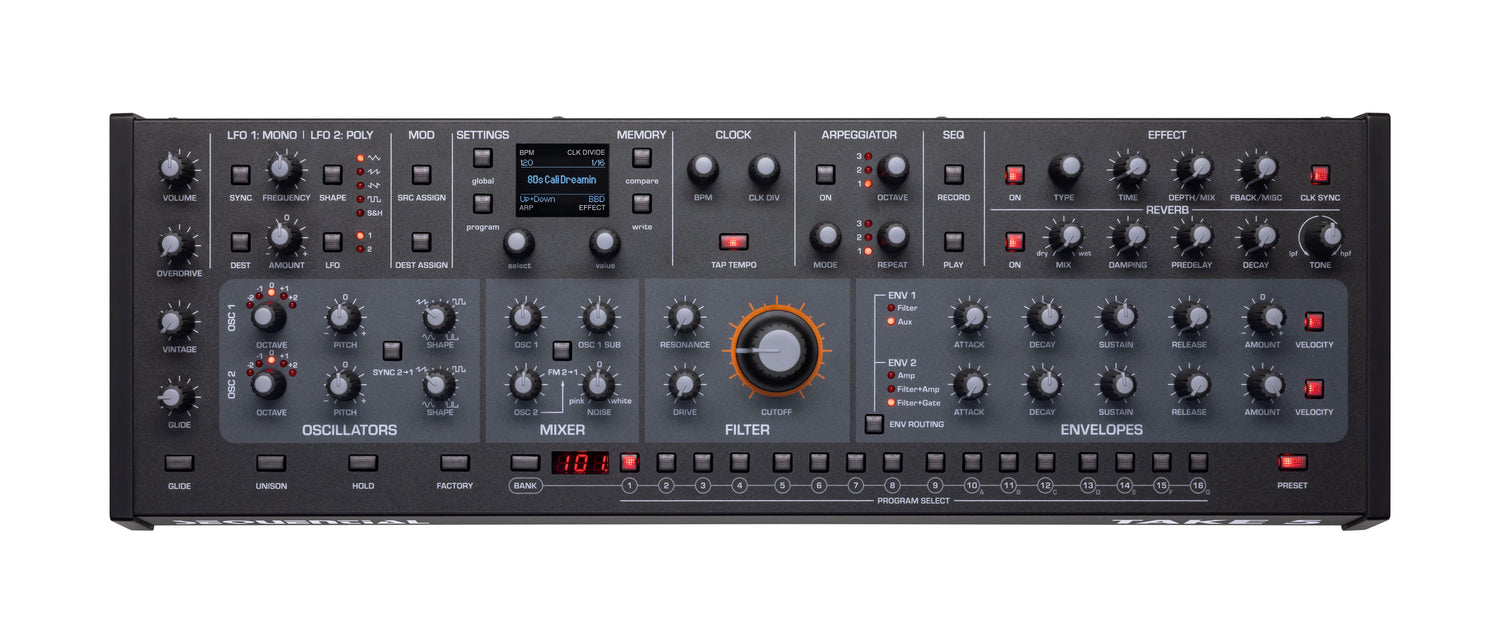

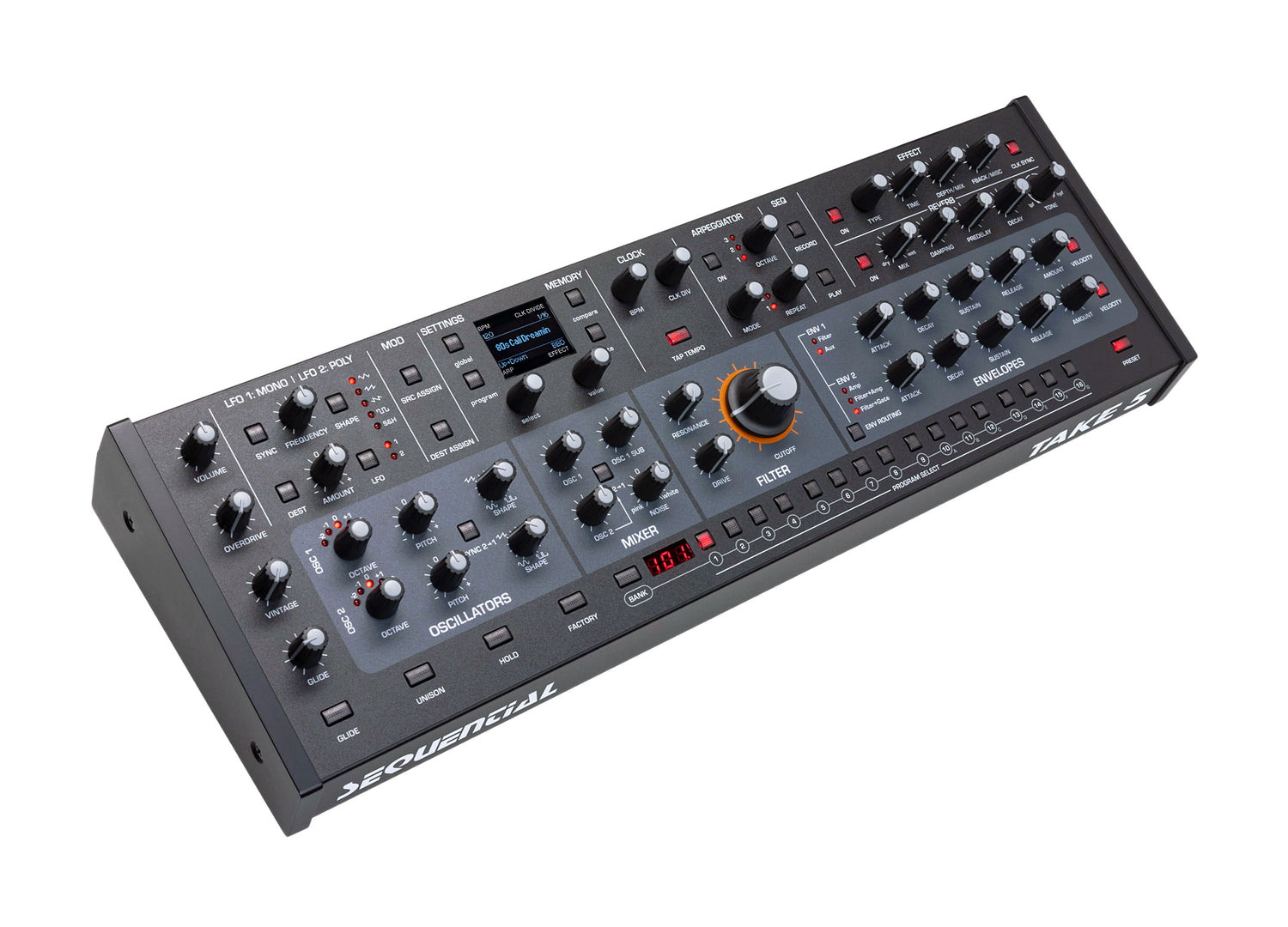

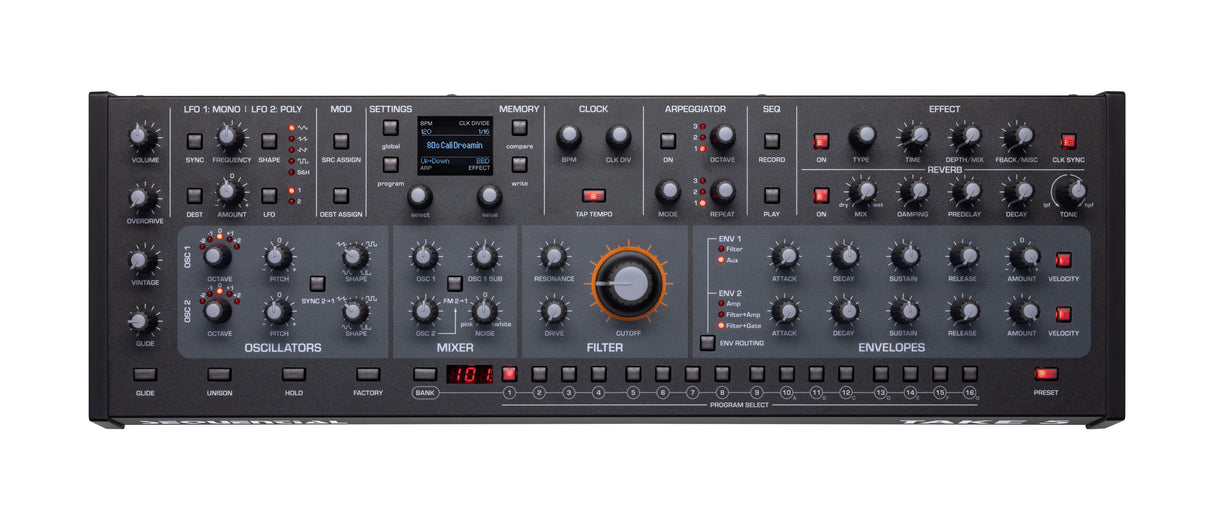

Take 5 Desktop Module

Take 5 Desktop Module
Compact and powerful 5-voice analog polysynth module inspired by the legendary Prophet-style sound.

Classic Analog Sound
Features true analog oscillators and filters that deliver warm, rich, and expressive vintage-inspired tones.

Compact Desktop Design
Space-saving module format fits easily into home studios, live rigs, and portable production setups.

Powerful Sound Engine
Combines classic subtractive synthesis with modern modulation and effects for deep sound design possibilities.

Versatile Modulation System
Flexible modulation routing allows users to shape evolving textures, motion, and expressive performances with ease.

Legendary Analog Filter
Prophet-inspired resonant low-pass filter delivers smooth sweeps, punchy basses, and detailed tone shaping.

Built-In Digital Effects
Includes high-quality reverbs, delays, chorus, flanger, distortion, and more for polished sounds without external gear.

Integrated Sequencer & Arpeggiator
Create rhythmic patterns, evolving sequences, and performance-ready melodic ideas directly from the synth.

Hands-On Workflow
Front-panel controls provide fast access to essential sound shaping functions for intuitive creativity.

Extensive Preset Library
Includes professionally designed factory sounds plus user memory for saving custom patches.

Flexible Studio Connectivity
USB and MIDI connections integrate easily with DAWs, controllers, and other synthesizers.

Portable Performance Synth
Designed for musicians who want professional analog sound in a lightweight and travel-friendly format.

General Specifications
Product Type: Desktop analog polyphonic synthesizer module
Synthesis Type: Analog subtractive synthesis
Polyphony: 5 voices
Oscillators Per Voice: 2 analog VCOs plus sub-oscillator
Patch Memory: 128 factory presets, 128 user presets

Sound Engine
Oscillator Waveforms: Sine, sawtooth, variable-width pulse
Wave Shaping: Continuously variable wave shape control
Oscillator Sync: Hard sync oscillator 1 to oscillator 2
Sub-Oscillator: Square wave sub-octave generator
Frequency Modulation: Front-panel FM control
Filter Type: 4-pole resonant low-pass analog filter
Filter Design: Prophet-5 Rev4 inspired
Filter Self-Oscillation: Yes
Filter Envelope Amount: Bi-polar

Modulation
Envelope Generators: 2 five-stage envelopes
Envelope Stages: Attack, decay, sustain, release, delay
LFO Count: 1 global LFO, 1 per-voice LFO
LFO Waveforms: Triangle, sawtooth, reverse sawtooth, square, random sample and hold
LFO Sync: Internal clock and MIDI clock sync
Modulation Sources: 19
Modulation Destinations: 54
Velocity Sensitivity: Yes
Aftertouch Type: Channel mono aftertouch
Aftertouch Routing: Freely assignable

Effects
Reverb: Dedicated digital reverb
Reverb Controls: Damping, pre-delay, decay, tone
Multi-Effects: Stereo delay, BBD delay, tape delay, chorus, flanger, phaser, ring modulation, rotating speaker, distortion, high-pass filter
Overdrive Effect: Dedicated analog-style overdrive
Vintage Drift Control: Vintage Knob voice variation emulation

Performance Features
Arpeggiator: Yes
Arpeggiator Modes: Up, down, up/down, random, assign
Sequencer Type: Polyphonic step sequencer
Sequencer Length: Up to 64 steps
Sequencer Functions: Ties and rests
Glide: Polyphonic portamento
Unison Mode: Configurable 1 to 5 voice stack
Tap Tempo: Yes
Clock Sync: MIDI clock synchronization
Hold Function: Yes
Factory Switch Mode: Live panel control mode

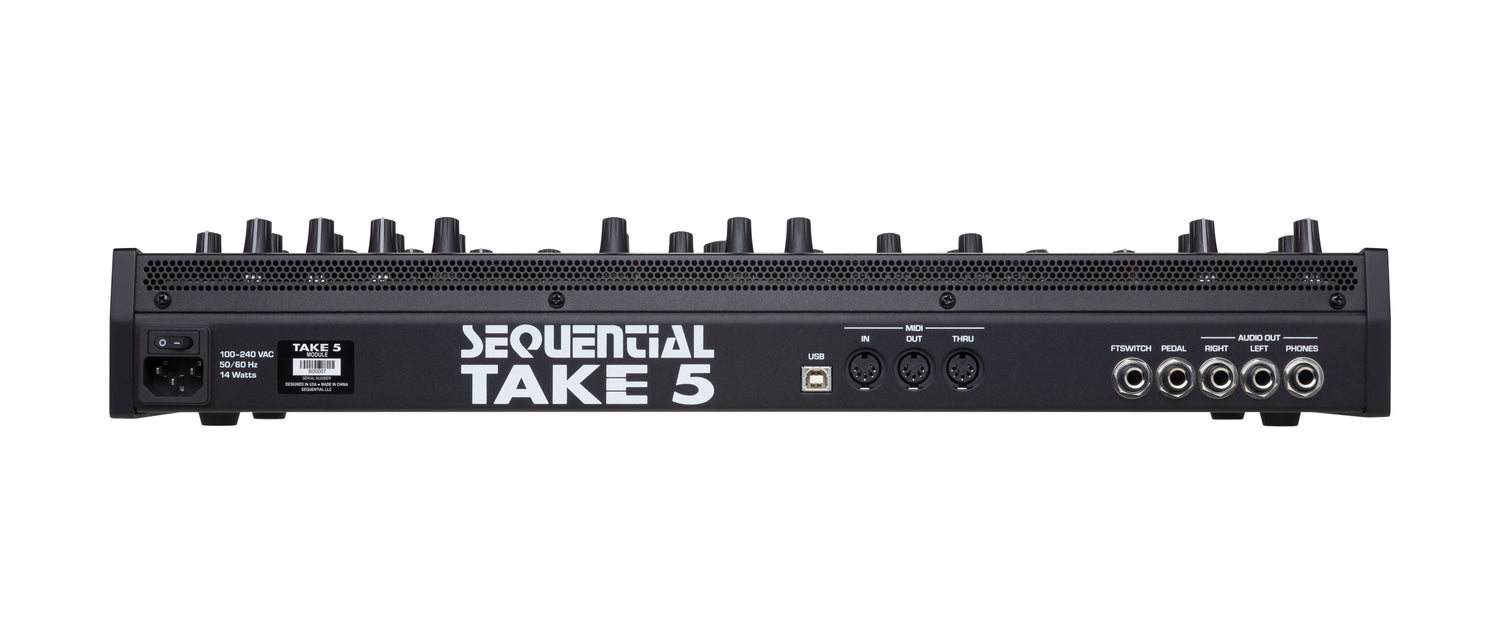

Connectivity
MIDI Input: 5-pin DIN MIDI In
MIDI Output: 5-pin DIN MIDI Out
MIDI Thru: 5-pin DIN MIDI Thru
USB: Bidirectional MIDI over USB
Sustain Input: 1 footswitch input
Expression Input: 1 expression pedal input
Main Outputs: Stereo 1/4-inch outputs
Headphone Output: Stereo 1/4-inch headphone output

Physical Specifications
Chassis Material: All-steel construction
Length: 21 in
Width: 7 in
Height: 3.5 in
Weight: 6.8 lb

Power Specifications
Power Supply Type: Internal universal power supply
AC Input Voltage: 100 to 240 V
AC Frequency: 50 to 60 Hz
Maximum Power Consumption: 14 W
