IDX

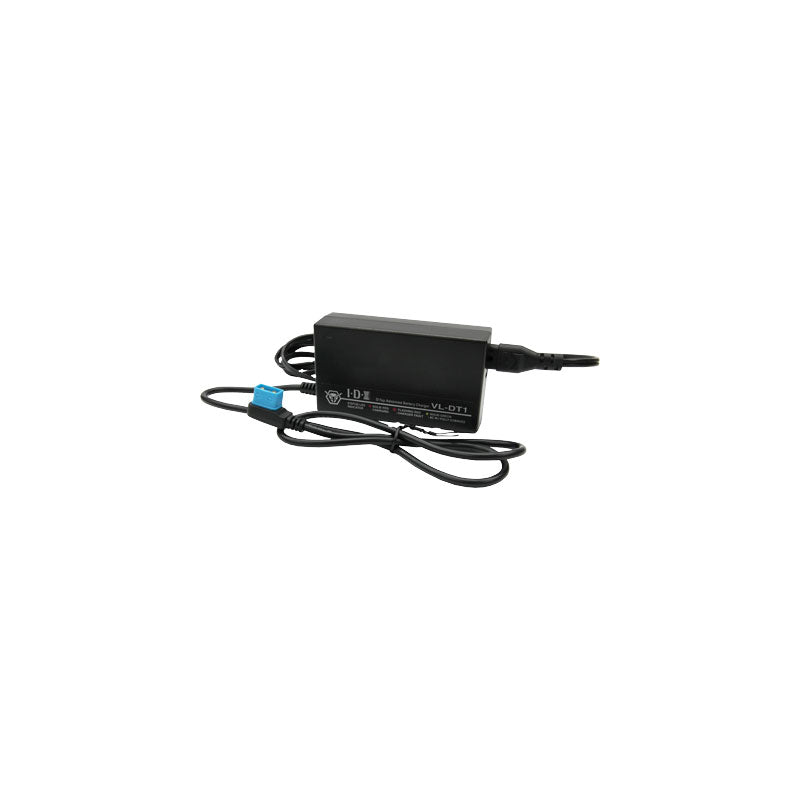

VL-DT1

Batteries & Power Distribution

Single-channel D-Tap charger, supports IDX Lithium-ion batteries, 2A quick charge, 100–240V AC input, LED status indicator, compact 0.57 lb design.

Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

The VL-DT1 is a compact, single-channel D-Tap Advanced charger designed by IDX for users who need a portable and reliable way to charge lithium-ion batteries equipped with the D-Tap Advanced 3-pin port. Ideal for mobile production kits, field work, or minimalist charging setups, the VL-DT1 offers a cost-effective and travel-friendly solution without compromising safety or efficiency.

Using a 3-pin D-Tap Advanced connection, this charger intelligently monitors battery cell status, ensuring a controlled and safe charging process that helps extend battery life. With an output of 16.8V / 2.4A, it can deliver up to 2A of charging current, and includes key safety features like temperature and over-current protection, along with a status LED that clearly indicates charging progress, full charge, fault conditions, or power status (as shown in the LED chart on the bottom right of the manual).

Features

Single-Channel Charging
Charges one IDX battery equipped with a D-Tap Advanced port.

Smart Charging Control
Uses a 3-pin D-Tap Advanced connector to monitor battery cell status for safe and efficient charging.

Battery Life Protection
Controls charge flow to extend battery lifespan and reduce wear.

Wide Battery Compatibility
Works with DUO-C, SB-U, IPL, Imicro, DUO-CP, and ZEN-C series batteries.

Compact and Lightweight
Portable design weighs only 0.57 lbs, ideal for mobile setups and travel.

Global Power Support
Accepts AC 100–240V input, making it compatible worldwide.

Built-In Safety Features
Includes temperature, over-current, and over-voltage protection for safe operation.

LED Charging Indicator
Clearly shows charging status with color-coded lights for ease of use.

Specifications

General Specifications
Device Type: 1ch D-Tap Advanced Battery Charger
Compatible Battery Types: IDX Lithium-ion batteries with D-Tap Advanced
Supported Series: DUO-C, DUO-CP, SB-U, IPL, Imicro, ZEN-C series
Charging Method: Constant Current / Constant Voltage
Power Consumption: Max 24W
Safety Protections: Temperature, Over-current, Short-circuit, Reverse polarity, Charge protection timer
Status Indicator: 1x Bi-color LED (Red/Green)
Dimensions: 4.3" (W) x 3.5" (H) x 0.9" (D) / 110 mm x 88 mm x 24.4 mm
Weight: 0.57 lbs / 0.26 kg
Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
Operating Humidity: 20% – 90%

Electrical Specifications
Input Voltage: AC 100–240V, 50/60 Hz
Output Voltage: DC 16.8V, 2A (via D-Tap Advanced)

Charging Output
Charge Current: 2A
Charge Interface: D-Tap Advanced plug (3-pin with data communication)

Status LED Indicators
Solid Red: Charging in progress
Flashing Red: Battery abnormal temperature / charger fault
Solid Green: Fully charged / AC is plugged in
Light Off: No power
