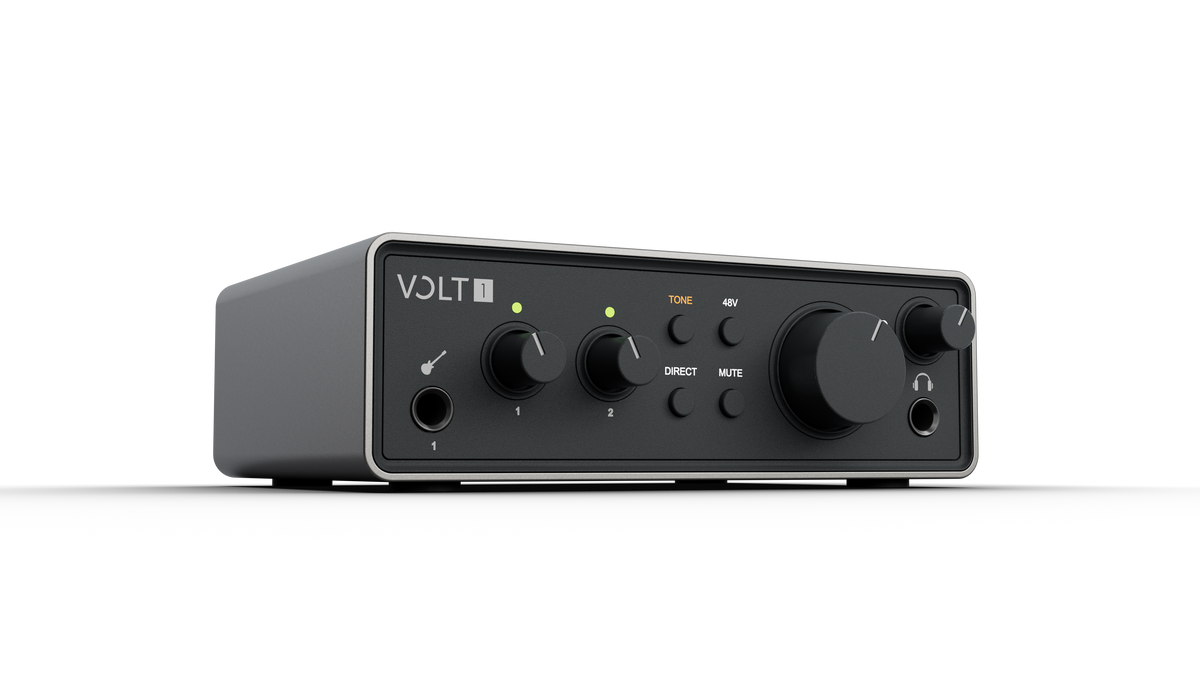

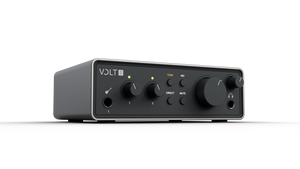

Volt 1 Gen 2

Tone-Shaping Preamp
Choose from Warmth, Focus, and Shine modes to add tube, solid-state, or British Class-A character while recording.

Voice and Instrument Recording
Dedicated microphone and instrument inputs allow both sources to be recorded simultaneously.

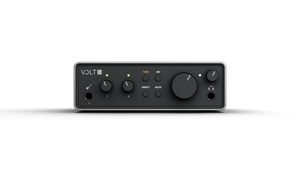

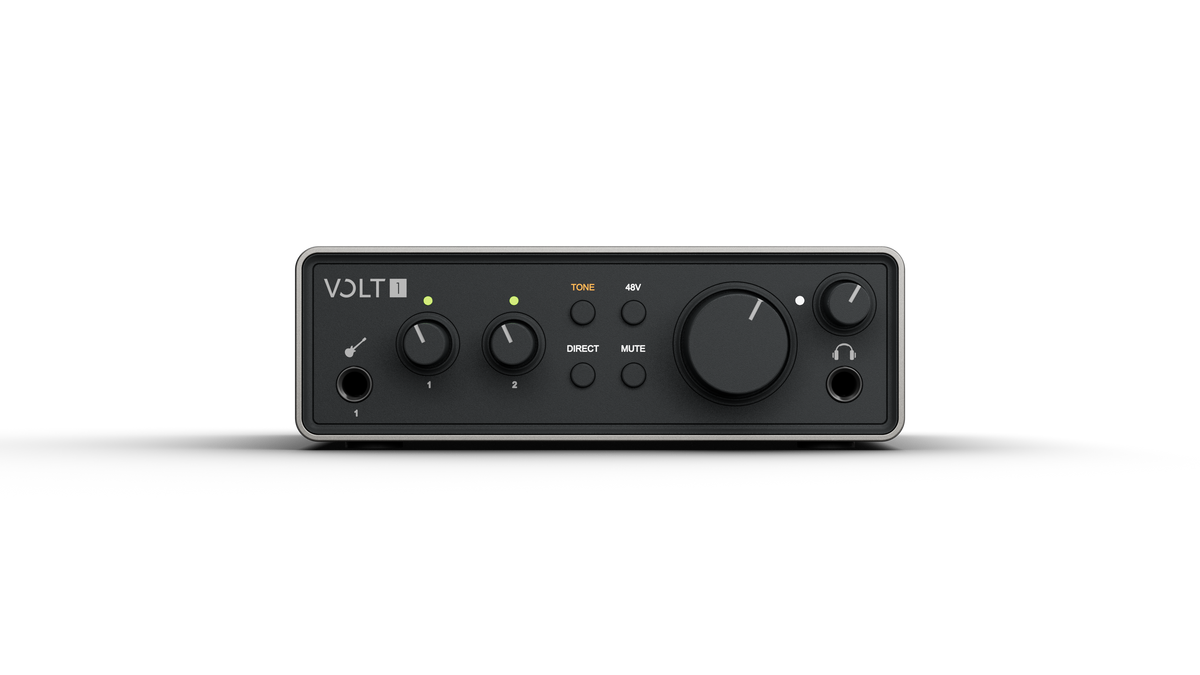

Instrument Input
The front-panel high-impedance connection provides direct input for an electric guitar, bass, or other compatible instrument.

Condenser Microphone Support
Switchable phantom power supports compatible condenser microphones.

Headphone Monitoring
A dedicated headphone output provides clear monitoring through the shared monitor mix.

Loopback Audio
Computer audio and live sources can be combined for podcasts, livestreams, video calls, and other content.

USB Bus Power
Power from a compatible computer or mobile device supports recording without an external power supply.

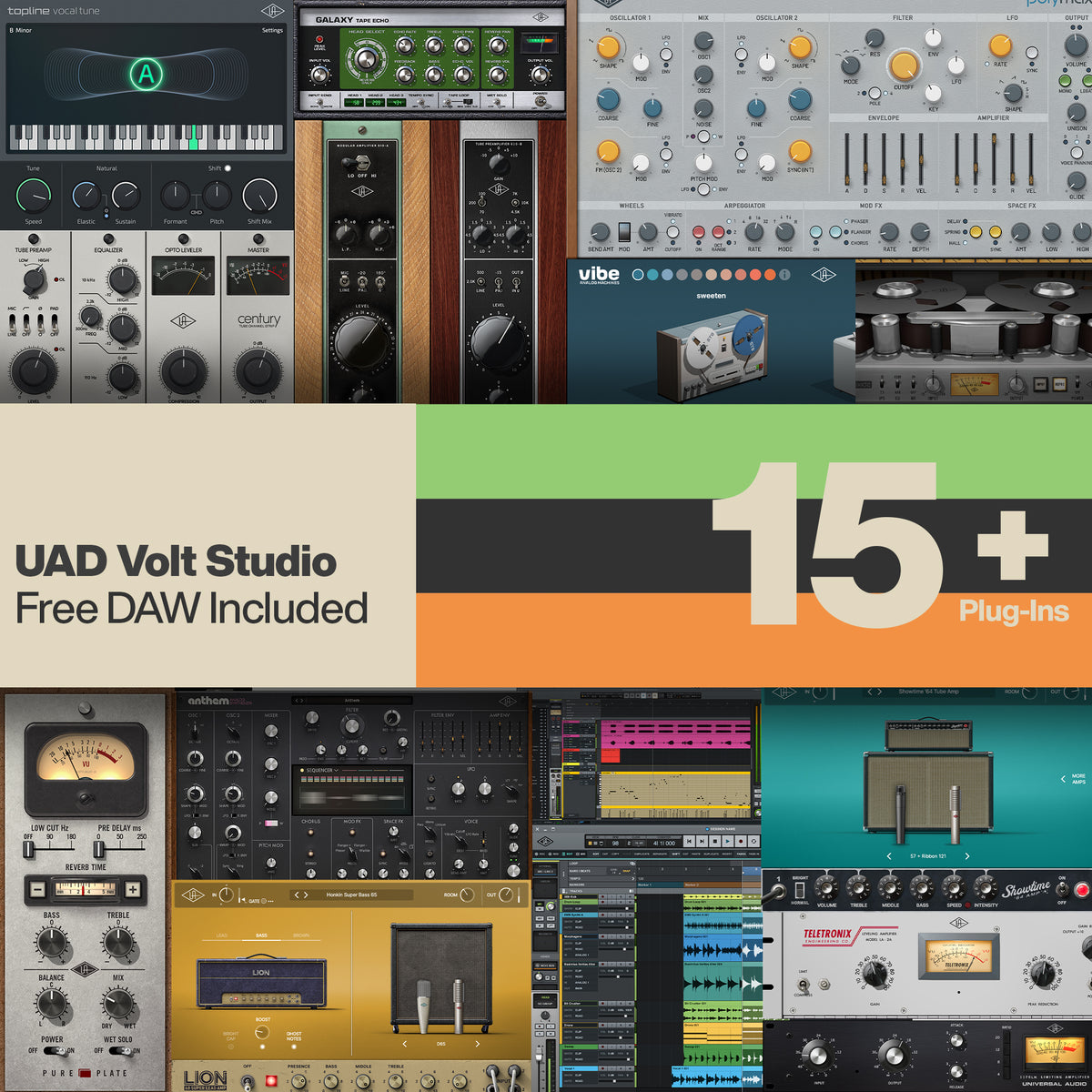

Production Software
Included recording software, plug-ins, instruments, effects, and amplifier tools provide a complete starting point for music production.

General Specifications
Device Type: USB audio interface
Simultaneous I/O: 2-in / 2-out
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Bit Depth: 32-bit
USB Standard: USB 2.0
USB Connector Type: USB-C
Loopback: Built-in
Digital I/O: None
MIDI I/O: None

Analog Inputs
Microphone Preamps: 1
Microphone Preamp Gain: 60 dB
Mic / Line Inputs: 1
Instrument Inputs: 1
Phantom Power: +48V, switchable
Microphone Connector Type: XLR combo
Line Connector Type: 1/4-inch TRS balanced or TS unbalanced
Instrument Connector Type: 1/4-inch TS unbalanced

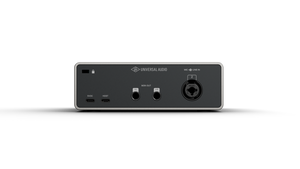

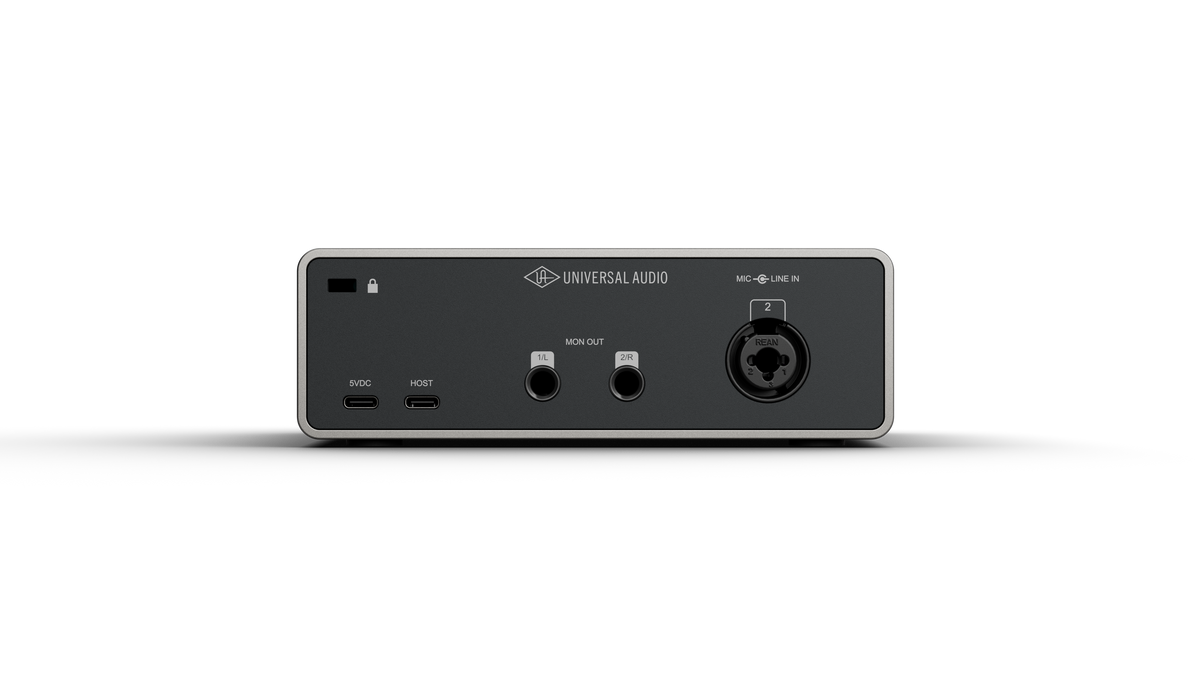

Analog Outputs
Monitor Outputs: 1 stereo
Headphone Outputs: 1 stereo
Headphone Mix: Shared monitor mix
Monitor Connector Type: 1/4-inch TRS balanced
Headphone Connector Type: 1/4-inch TRS stereo

USB Connectivity
USB Host Port: 1
External Power Input: 5V DC, 1A minimum

Power
USB Bus Power: Supported
Typical Power Consumption: 2.4W at 5V DC
Maximum Power Consumption: 3.6W at 5V DC
Power Switch: None

Instrument Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.03 dB
Dynamic Range: 116 dB, A-weighted
THD + Noise: -101 dB, 0.0009%
Maximum Input Level: 12.5 dBu
Input Impedance: 1 MΩ
Available Gain: 60 dB

Microphone Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.1 dB
Dynamic Range: 119 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 14.5 dBu
Input Impedance: 2 kΩ
Available Gain: 60 dB

Line Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
Dynamic Range: 119 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 22 dBu
Input Impedance: 10 kΩ
Available Gain: 60 dB

Monitor Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.04 dB
Dynamic Range: 122 dB, A-weighted
THD + Noise: -111 dB, 0.0003%
Maximum Output Level: 20.2 dBu
Output Impedance: 100 Ω
DC Coupled: Yes

Headphone Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.1 dB
Dynamic Range: 121 dB, A-weighted
THD + Noise: -108 dB, 0.0004% into 300 Ω
Maximum Output Power at 32 Ω: 52 mW
Maximum Output Power at 300 Ω: 27 mW
DC Coupled: Yes

System Requirements
Computer Connection: Available USB 2.0 or higher port
Processor: Intel, AMD, or Apple silicon
Windows: Windows 10 64-bit or newer
macOS: macOS 12 Monterey or newer
Mobile Operating System: iPadOS or iOS 16 or newer
DAW Compatibility: Major digital audio workstations
Internet Connection: Required for software downloads
