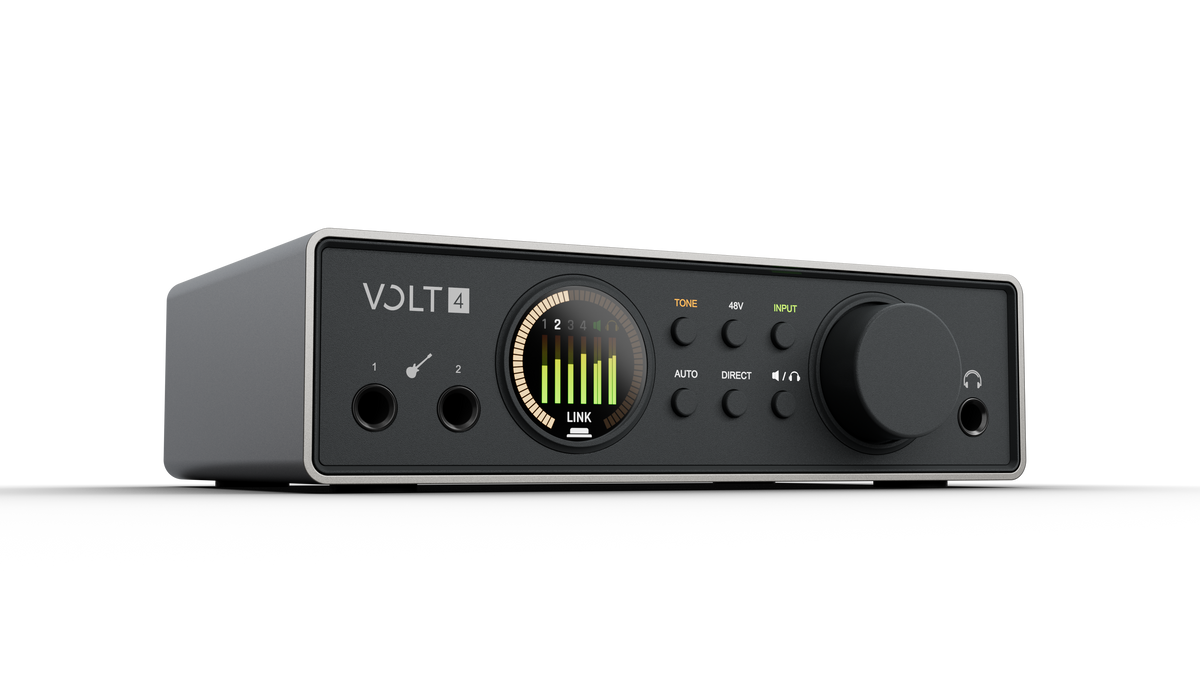

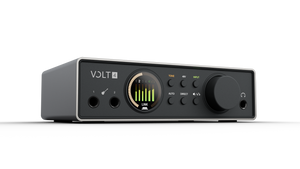

Volt 4 Gen 2

Tone-Shaping Preamps
Choose from Warmth, Focus, and Shine modes to add tube, solid-state, or British Class-A character while recording.

Flexible Analog Inputs
Mic, line, and instrument connections accommodate vocals, instruments, stereo sources, and external studio equipment.

Digital Expansion
The optical input supports additional channels through ADAT or a stereo digital source through S/PDIF.

Automatic Level Control
Auto-Gain sets recording levels quickly, while Clip Protection helps prevent unexpected peaks from distorting a take.

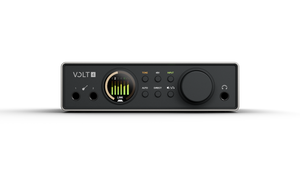

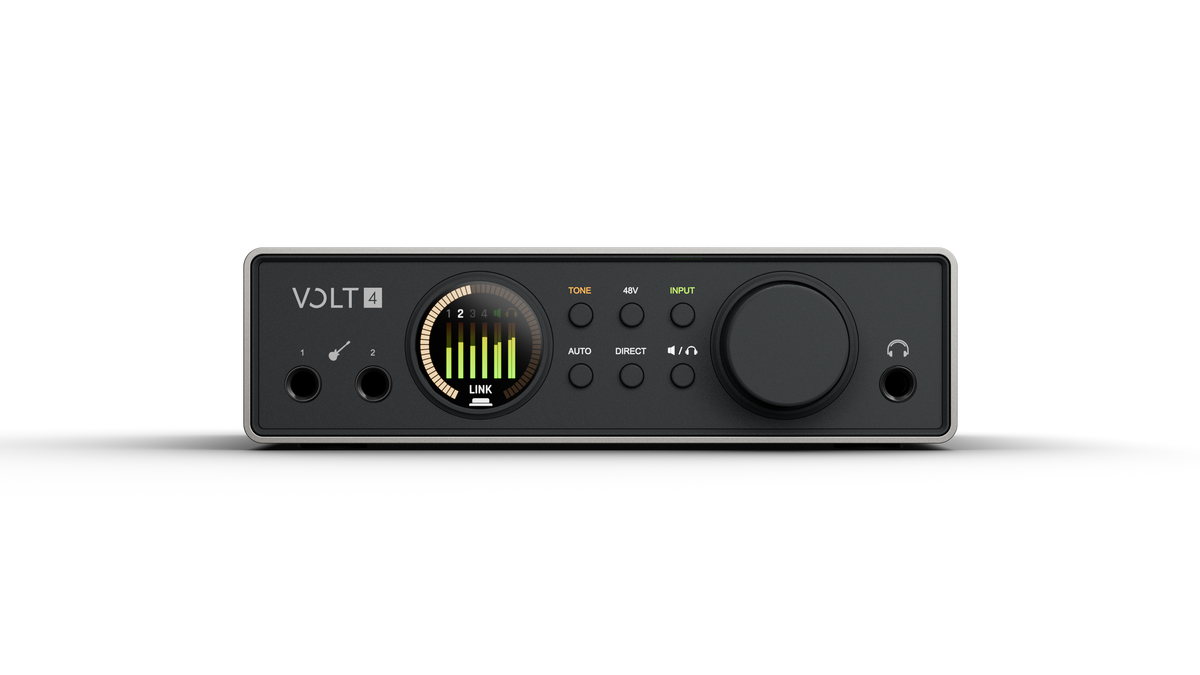

Full-Color Display
Clear visual feedback provides quick access to input levels, channel settings, and other recording information.

MIDI Connectivity
MIDI input and output connect compatible controllers, keyboards, synthesizers, and drum machines.

Independent Phantom Power
Each microphone channel provides individually switchable phantom power for compatible condenser microphones.

Loopback Audio
Computer audio and live sources can be combined for podcasts, livestreams, video calls, and other content.

USB Bus Power
Power from a compatible computer or mobile device supports recording without an external power supply.

USB Hub
An onboard USB port connects compatible peripherals and can power external MIDI controllers.

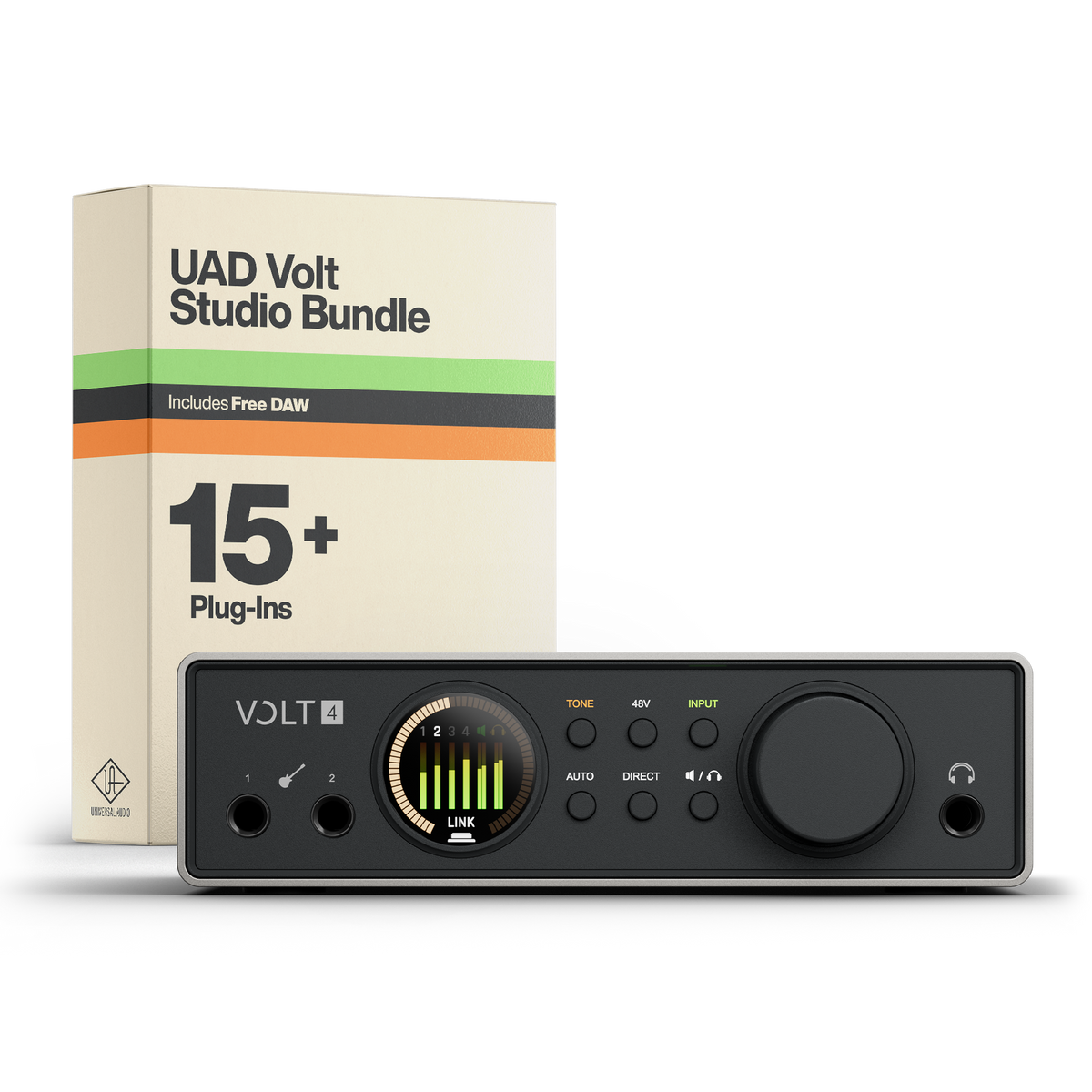

Production Software
Included recording software, plug-ins, instruments, effects, and amplifier tools provide a complete starting point for music production.

General Specifications
Device Type: USB audio interface
Simultaneous I/O: 12-in / 6-out
Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
Bit Depth: 32-bit
USB Standard: USB 2.0
USB Connector Type: USB-C
Loopback: Built-in

Analog Inputs
Microphone Preamps: 2
Microphone Preamp Gain: 60 dB
Mic / Line Inputs: 2
Additional Line Inputs: 2
Instrument Inputs: 2
Phantom Power: +48V, independently switchable per channel
Microphone Connector Type: XLR combo
Mic / Line Connector Type: 1/4-inch TRS balanced or TS unbalanced
Additional Line Input Connector Type: 1/4-inch TRS balanced or TS unbalanced
Instrument Connector Type: 1/4-inch TS unbalanced

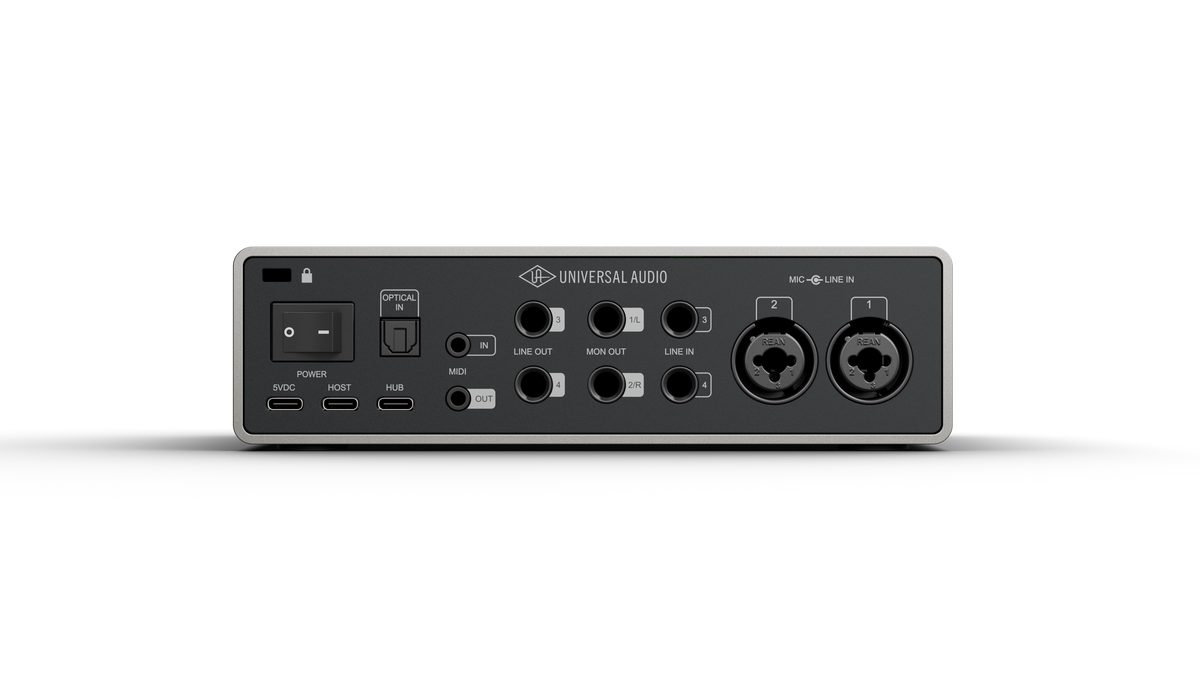

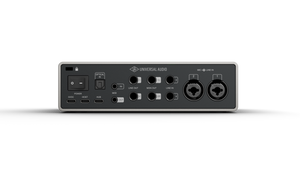

Analog Outputs
Monitor Outputs: 1 stereo
Additional Line Outputs: Outputs 3 and 4
Headphone Outputs: 1 stereo
Headphone Cue Mixes: 1
Monitor and Line Connector Type: 1/4-inch TRS balanced
Headphone Connector Type: 1/4-inch TRS stereo

Digital I/O
Optical Input: ADAT or S/PDIF
ADAT Channels at 44.1 or 48 kHz: 8
ADAT Channels at 96 kHz: 4 via S/MUX
ADAT Channels at 192 kHz: 2 via S/MUX
S/PDIF Channels: 2 at all supported sample rates

MIDI
MIDI Connections: In and Out
MIDI Connector Type: 1/8-inch TRS mini-jack
MIDI Standard: Type A

USB Connectivity
USB Host Port: 1
USB Hub Port: 1
USB Hub Power Output: 5V DC, 0.5A maximum
External Power Input: 5V DC, 1A minimum

Power
USB Bus Power: Supported
Typical Power Consumption: 4.2W at 5V DC
Maximum Power Consumption: 5.8W at 5V DC
Power Switch: Rear panel

Instrument Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.02 dB
Dynamic Range: 116 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 13 dBu
Input Impedance: 1 MΩ
Available Gain: 60 dB

Microphone Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.08 dB
Dynamic Range: 118 dB, A-weighted
THD + Noise: -110 dB, 0.0003%
Maximum Input Level: 14 dBu
Input Impedance: 2 kΩ
Available Gain: 60 dB

Line Input Performance
Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
Dynamic Range: 119 dB, A-weighted
THD + Noise: -108 dB, 0.0004%
Maximum Input Level: 22 dBu
Input Impedance: 10 kΩ
Available Gain: 60 dB on channels 1 and 2

Monitor and Line Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.05 dB
Dynamic Range: 126 dB, A-weighted
THD + Noise: -112 dB, 0.0003%
Maximum Output Level: 20.2 dBu
Output Impedance: 200 Ω
DC Coupled: Yes

Headphone Output Performance
Frequency Response: 20 Hz to 20 kHz, ±0.08 dB
Dynamic Range: 116 dB, A-weighted
THD + Noise: -103 dB, 0.0007% into 300 Ω
Maximum Output Power at 32 Ω: 45 mW
Maximum Output Power at 300 Ω: 24 mW
DC Coupled: Yes

System Requirements
Computer Connection: Available USB 2.0 or higher port
Processor: Intel, AMD, or Apple silicon
Windows: Windows 10 64-bit or newer
macOS: macOS 12 Monterey or newer
Mobile Operating System: iPadOS or iOS 16 or newer
DAW Compatibility: Major digital audio workstations
Internet Connection: Required for software downloads
